LN167R-TRMDSQ3 (1997)
Toyota Hilux

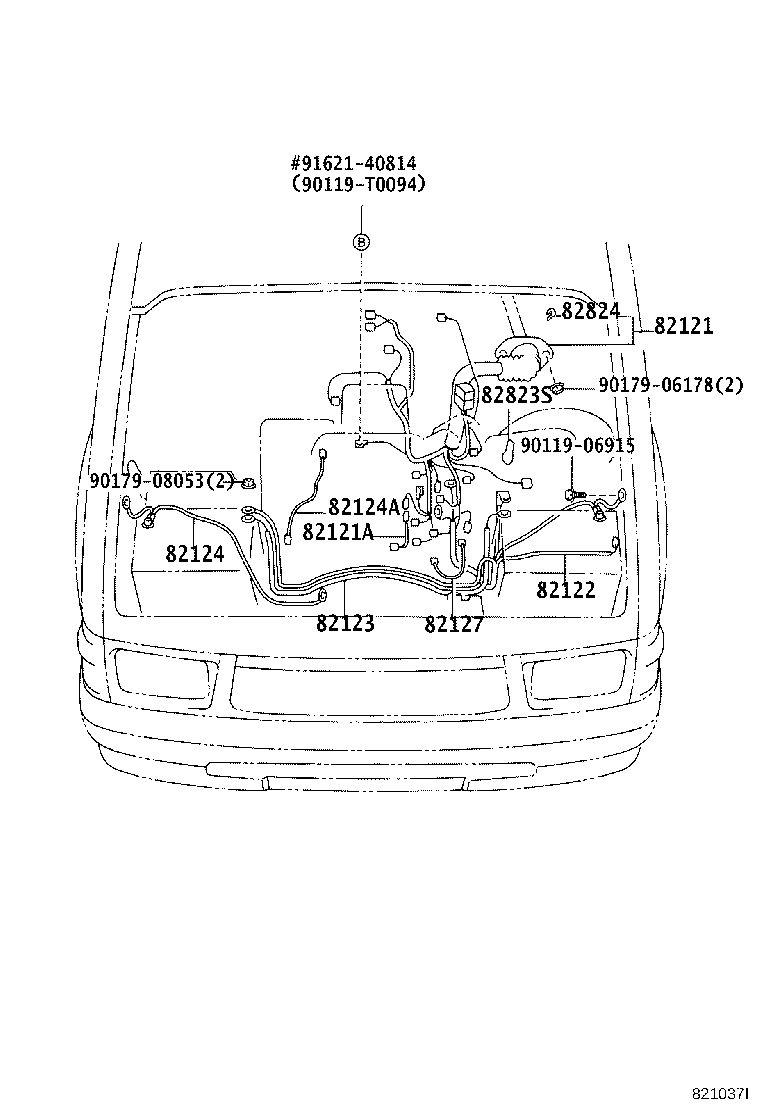

ILLUST NO. 1 OF 6(9708- )LN147,167,172
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3D570 |
LN167,172..ARL |
1 | ||
| 82121-3D570 |
LN167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82121-3D570 |
LN167,172..ARL |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35550 |
LN16#,172..RHD..(ARL,GEN) |
1 | ||
| 82122-35550 |
LN16#,172..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-35070 |
LN145..DCB..IV3;LN145..LHD..IV3;LN145,166,191..GEN..CBU;LN167..(DCB,SCB)..DSL..ARL |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-35100 |
LN16#,172..RHD..(ARL,GEN) W(1 BATTERY) |
1 | ||
| 82124-35060 |
LN152..XTR..DEFI..IV3;LN147,167,172..(DCB,SCB,XTR)..DLX..DEFI..ARL;LN141,145,146,147,152,16#,17#,191..DSL..(ARL,GCC,GEN) |
1 | ||
| 82124-35100 |
LN16#,172..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN) W(1 BATTERY) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35060 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150,192..XTR..SR;KZN165,LN145..SCB..DLX..(ARL,GEN,TH);LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,16#..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,TH);KZN190,LN141,146,147,155,157,172..(DCB,SCB,XTR)..DLX |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0094 | ||||
| 90179-06178 | ||||
| 90179-08053 | ||||
| 91621-40814 | ||||
ILLUST NO. 5 OF 6(9708- )KDN145,15#,16#,190,KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35170 |
RZN144,148,149,154,16#,174,19# |
1 | ||
| 82124-35190 |
LN14#,15#,16#,17#,19# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35170 |
RZN144,148,149,154,16#,174,19# |
1 | ||
| 82124-35190 |
LN14#,15#,16#,17#,19# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91611-B0816 | ||||
| 91612-B1014 | ||||
ILLUST NO. 2 OF 6(9708- )LN14#,15#,16#,17#,19#,YN140
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3G580 |
LN147,167,172..ARL |
1 | ||
| 82111-3D830 |
LN147,167,172 |
1 | ||
| 82111-3G340 |
LN167..DCB;LN167..IV3 NEW ZEALAND SPEC |
1 | ||
| 82111-3G580 |
LN147,152,167,172..ARL |
1 | ||
| 82111-3G581 |
LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-35020 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82112-35021 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
LN152..XTR..IV3;LN152..THXTR..DEFI..IV3;RZN169,194..(DCB,SCB)..SA;KZN165..(THDCB,THSCB)..SR;LN147,167..(DCB,SCB)..DLX..ARL;KZN165,LN172..(DCB,SCB,XTR)..ARL;LN147,167,172..(THDCB,THSCB,THXTR)..DLX..DEFI 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
RZN147..GCC,SA;KZN165..SR..ARL;RZN147..LHD..GEN;RZN149..EFI..GEN;RZN169..LHD..CBR;LN152..THXTR..DEFI..IV3;LN147,167..(DCB,SCB)..DLX..ARL;LN147,167..(THDCB,THSCB)..DLX..DEFI;LN152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN172,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DEFI,DSL) 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08285 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-35110 |
LN167,172..ARL |
1 | ||
| 82261-35110 |
LN152,167,172..ARL |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-35550 |
LN147,167,172..ARL |
1 | ||
| 82662-35720 |
LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82662-35550 |
LN147,152,167,172..ARL |
1 | ||
| 82662-35720 |
LN147,152,167,172..ARL |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN152,167..(DCB,SCB,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-35050 |
LN147,152,167,172..ARL |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-3D180 | ||||
| 82819-35140 | ||||
| 90119-06431 | ||||
| 90119-06915 | ||||
| 90119-T0096 | ||||
| 90179-06158 | ||||
| 91631-B0614 | ||||
| 91642-81216 | ||||
ILLUST NO. 1 OF 6(9708- )LN147,152,157,167,172,192,YN140
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28017-54150 | ||||
| 82711-35060 | ||||
| 82711-95J26 | ||||
| 82715-22180 | ||||
| 82715-2B120 | ||||
| 82715-30500 | ||||
| 82715-35140 | ||||
| 82715-35170 | ||||
| 82715-35680 | ||||
| 82715-35790 | ||||
| 82715-35880 | ||||
| 82715-3D010 | ||||
| 82715-3D020 | ||||
| 82715-3D280 | ||||
| 82715-3D320 | ||||
| 82715-3D340 | ||||
| 82715-3D360 | ||||
| 82715-89101 | ||||
| 82715-89103 | ||||
| 82715-89104 | ||||
| 82715-89107 | ||||
| 82715-89108 | ||||
| 82715-89110 | ||||
| 82715-89115 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82751-35010 | ||||
| 90119-08671 | ||||
| 90119-08A96 | ||||
| 90168-60010 | ||||
| 91611-B0610 | ||||
| 91611-B0614 | ||||
| 91621-J0612 | ||||
ILLUST NO. 1 OF 6(9708- )RZN14#,154,16#,174,19#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35610 | ||||
| 82715-26380 | ||||
| 82715-26390 | ||||
| 82715-34100 | ||||
| 82715-34120 | ||||
| 82715-34130 | ||||
| 82715-34160 | ||||
| 82715-34190 | ||||
| 82715-34210 | ||||
| 82715-34220 | ||||
| 82715-34240 | ||||
| 82715-34310 | ||||
| 82715-34430 | ||||
| 82715-35320 | ||||
| 82715-35540 | ||||
| 82715-35600 | ||||
| 82715-35650 | ||||
| 82715-3D040 | ||||
| 82715-3D080 | ||||
| 82715-3D090 | ||||
| 82715-3D120 | ||||
| 82715-3D140 | ||||
| 82715-3D230 | ||||
| 82715-3D240 | ||||
| 82715-3D250 | ||||
| 82715-3D270 | ||||
| 82715-3D330 | ||||
| 82715-3D340 | ||||
| 91611-B0812 | ||||
| 91621-J0814 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91651-61016 | ||||
ILLUST NO. 1 OF 6(9708- )RZN14#,154,16#,174,19#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3D570 |
LN167,172..ARL |
1 | ||
| 82121-3D570 |
LN167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82121-3D570 |
LN167,172..ARL |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35550 |
LN16#,172..RHD..(ARL,GEN) |
1 | ||
| 82122-35550 |
LN16#,172..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35060 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150,192..XTR..SR;KZN165,LN145..SCB..DLX..(ARL,GEN,TH);LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,16#..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,TH);KZN190,LN141,146,147,155,157,172..(DCB,SCB,XTR)..DLX |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN152,167..(DCB,SCB,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08951 | ||||
| 90119-T0092 | ||||
| 90179-08053 | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||
| 91621-J0814 | ||||
| 91641-80818 | ||||
ILLUST NO. 4 OF 6(9708- )
ROOF,DOOR,FRAME & DIFF. WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-35190 |
LN141,145,147,152,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN) W(SPEAKER) |
1 | ||
| 82151-35190 |
LN152..XTR..IV3;RZN154,169..(SCB,XTR)..ARL;RZN149..SCB..EFI..(ARL,GEN);KZN165,RZN147,148,168,174..(SCB,XTR)..DLX..(ARL,GCC,GEN);LN141,145,147,16#,17#,RZN142,144,149,154,169..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN) W(SPEAKER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-35190 |
LN141,145,147,152,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN) W(SPEAKER) |
1 | ||
| 82151-35190 |
LN145..LHD..IV3;LN152..XTR..IV3;LN145..SCB..GEN..CBU;RZN154,169..(SCB,XTR)..ARL;RZN149..SCB..EFI..(ARL,GEN);KZN165,RZN147,148,168,174..(SCB,XTR)..DLX..(ARL,GCC,GEN);LN141,147,16#,17#,RZN142,144,149,154,169..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN) W(SPEAKER) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3D230 |
LN145,147,167,RZN147,149,169..(SCB,THSCB)..IV3 |
1 | ||
| 82164-3D240 |
LN147,167,RZN147,149,169..IV3 W(ABS) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-35070 |
LN167,RZN147..(DCB,SCB)..(DSL,EFI)..ARL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-35370 |
LN141,145,147,16#,RZN14#,16#..(SCB,THSCB)..(ARL,GCC,GEN) |
1 | ||
| 82171-35370 |
RZN169..SCB..ARL;KZN165..THSCB..SR;RZN149..SCB..EFI..(ARL,GEN);RZN147,148,168..SCB..(ARL,GCC,GEN);KZN165,LN141,145,147,16#,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-0A050 | ||||
| 82711-2A720 | ||||
| 82711-35480 | ||||
| 82711-60270 | ||||
| 82715-04030 | ||||
| 88266-35600 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90179-08230 | ||||
| 90179-08237 | ||||
| 90464-00165 | ||||
| 90901-89028 | ||||
ILLUST NO. 3 OF 6(9708- )RHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-3D790 |
LN147,167..(SCB,THSCB)..ARL |
1 | ||
| 82129-35740 |
LN147,152,167,172..(SCB,XTR)..ARL |
1 | ||
| 82135-3D791 |
LN147,167..SCB..ARL W(*80) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-35010 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-35010 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-35030 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| Common parts | ||||
| 82711-30380 | ||||
| 82711-35230 | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 82712-35010 | ||||
| 82715-35640 | ||||
| 90119-06915 | ||||
| 90119-T0093 | ||||
| 90119-T0095 | ||||
| 90149-50032 | ||||
| 90167-T0003 | ||||
| 91616-60616 | ||||
| 91631-60622 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 6(9708- )RZN14#,154,16#,174,19#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-34080 | ||||
| 82715-34090 | ||||
| 82715-35680 | ||||
| 82715-35710 | ||||
| 82715-35790 | ||||
| 82715-35880 | ||||
| 82715-3D100 | ||||
| 82715-3D110 | ||||
| 82715-3D260 | ||||
| 82715-3D280 | ||||
| 82715-3D290 | ||||
| 82715-89104 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82729-35040 | ||||
| 90119-08671 | ||||
| 90464-00500 | ||||
| 91611-B0614 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91651-41016 | ||||
| 91651-B0814 | ||||
ILLUST NO. 2 OF 6(9708- )RZN14#,154,16#,174,19#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3G580 |
LN147,167,172..ARL |
1 | ||
| 82111-3D830 |
LN147,167,172 |
1 | ||
| 82111-3G340 |
LN167..DCB;LN167..IV3 NEW ZEALAND SPEC |
1 | ||
| 82111-3G580 |
LN147,152,167,172..ARL |
1 | ||
| 82111-3G581 |
LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-35020 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82112-35021 |
LN147,152,167,172,RZN147,149,154,169,174..ARL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
LN152..XTR..IV3;LN152..THXTR..DEFI..IV3;RZN169,194..(DCB,SCB)..SA;KZN165..(THDCB,THSCB)..SR;LN147,167..(DCB,SCB)..DLX..ARL;KZN165,LN172..(DCB,SCB,XTR)..ARL;LN147,167,172..(THDCB,THSCB,THXTR)..DLX..DEFI 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
RZN147..GCC,SA;KZN165..SR..ARL;RZN147..LHD..GEN;RZN149..EFI..GEN;RZN169..LHD..CBR;LN152..THXTR..DEFI..IV3;LN147,167..(DCB,SCB)..DLX..ARL;LN147,167..(THDCB,THSCB)..DLX..DEFI;LN152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN172,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DEFI,DSL) 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08285 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-35550 |
LN147,167,172..ARL |
1 | ||
| 82662-35720 |
LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 82662-35550 |
LN147,152,167,172..ARL |
1 | ||
| 82662-35720 |
LN147,152,167,172..ARL |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN152,167..(DCB,SCB,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82819-35140 | ||||
| 90119-06915 | ||||
| 90119-T0096 | ||||
| 90179-06158 | ||||
| 90182-T0005 | ||||
| 91611-B0812 | ||||
| 91631-B0614 | ||||
ILLUST NO. 6 OF 6(9708- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10162 | ||||
| 90980-10173 | ||||
| 90980-10216 | ||||
| 90980-10359 | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11140 | ||||
| 90980-11142 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11248 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
