LN167R-TRMDSQ3 (1997)
Toyota Hilux

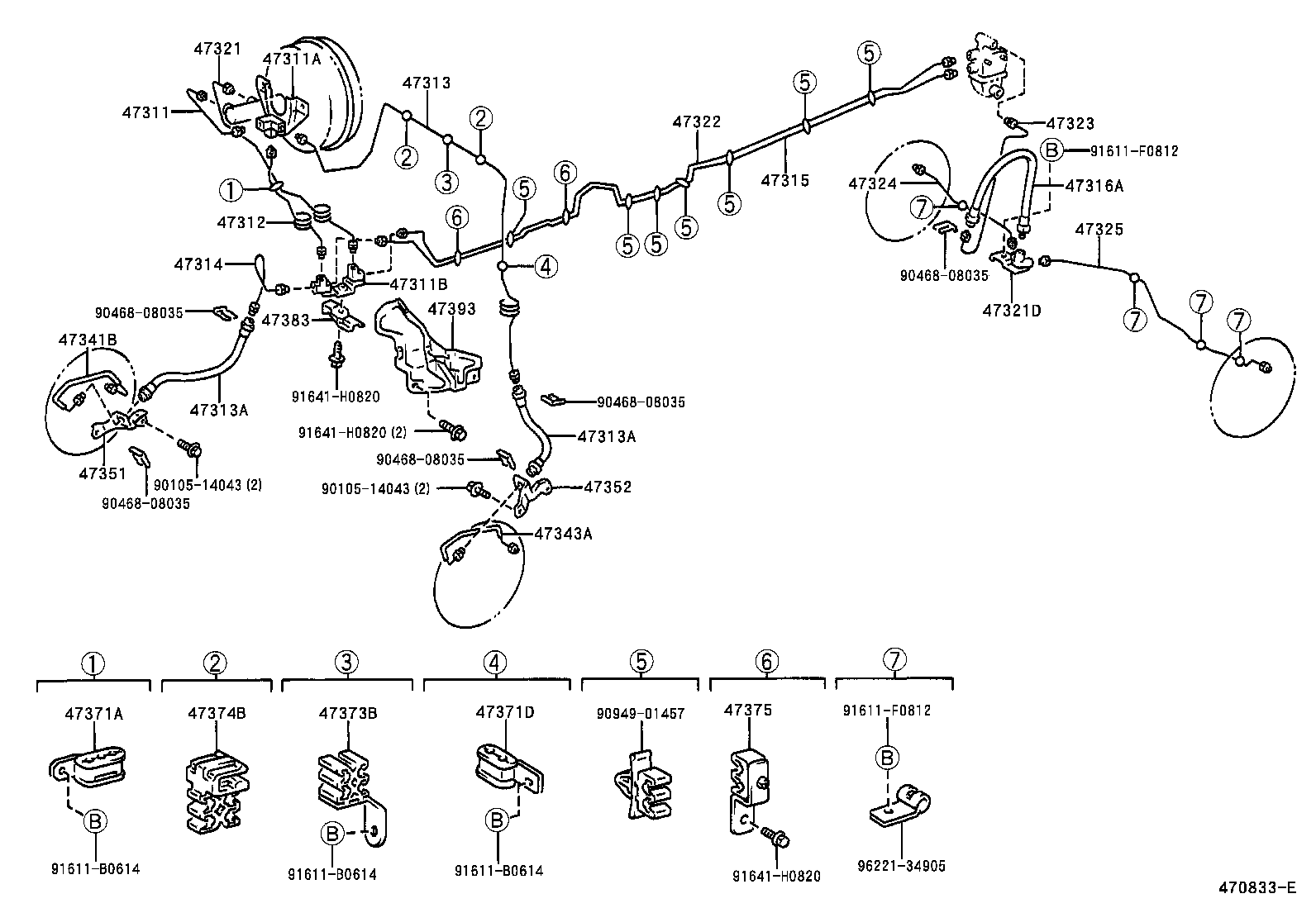

ILLUST NO. 1 OF 3(9708- )LN167,172,192,RZN169,174,194..ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60490 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 47311-35450 |
LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13041 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 90904-13043 |
RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-13038 |
RZN169,194..SA;RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN167,172,192,RZN174..DLX |
1 | ||
| 90904-12055 |
RZN169..SR..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC) W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D350 |
RZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);LN172,192,RZN174,194..ARL,SA |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-3D061 |
LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;LN167,172,RZN169..RHD..(CBR,DSL);RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN166,192,RZN174,194..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA,TH) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35280 |
RZN169..ARL,SA;RZN169..CBR..GCC;KZN165,190,LN16#,172,192,RZN174,194..ARL,GCC,SA |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35330 |
RZN169..ARL,SA;RZN169..CBR..GCC;KZN165,190,LN16#,192,RZN194..ARL,GCC,SA |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02958 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35780 |
LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;LN167,172,RZN169..RHD..(CBR,DSL);RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN166,192,RZN174,194..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA,TH) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13036 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35750 |
RZN169..(DCB,SCB)..ARL;LN16#,RZN169..(DCB,SCB)..(CBR,DSL)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35190 |
RZN169..CBR..GCC;RZN169..(DCB,SCB)..ARL;LN16#,172,RZN174..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35250 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35290 |
LN192..TH;KZN165,LN16#,17#,191,RZN16#,174,193 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35310 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47351-35300 |
KZN165..XTR;LN192,RZN194;KZN165..SR..ARL;KZN165..SCB..DLX;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35350 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) W/O(ABS) |
1 | ||
| 47352-35360 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35230 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35060 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-35150 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35020 |
LN167..DSL..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN165,RZN168..SCB..DLX..(ARL,GEN);RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(SCB,THDCB,THSCB)..DLX..(CBR,DEFI);KZN190,LN166,17#,19#,RZN174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| 90105-14043 | ||||
| 90468-08035 | ||||
| 90949-01457 | ||||
| 91611-B0614 | ||||
| 91611-F0812 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||
ILLUST NO. 1 OF 3(9708- )KDN16#,190,KZN165,190,LN167,172,192,RZN174,VZN167,172..ARL,SA,TH
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60490 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 47311-60490 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 47311-35450 |
LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA) |
1 | ||
| 47311-35450 |
LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13041 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 90904-13041 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL W(ABS) |
1 | ||
| 90904-13043 |
RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH) |
1 | ||
| 90904-13043 |
RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-13038 |
RZN169,194..SA;RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN167,172,192,RZN174..DLX |
1 | ||
| 90904-13038 |
RZN169,194..SA;RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN167,172,192,RZN174..DLX |
1 | ||
| 90904-12055 |
RZN169..SR..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC) W(ABS) |
1 | ||
| 90904-12055 |
RZN169..SR..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC) W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-3D350 |
RZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);LN172,192,RZN174,194..ARL,SA |
1 | ||
| 47312-3D350 |
RZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);LN172,192,RZN174,194..ARL,SA |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 90947-02957 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35330 |
RZN169..ARL,SA;RZN169..CBR..GCC;KZN165,190,LN16#,192,RZN194..ARL,GCC,SA |
1 | ||
| 47315-35330 |
RZN169..ARL,SA;RZN169..CBR..GCC;KZN165,190,LN16#,192,RZN194..ARL,GCC,SA |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35230 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(THDCB,THSCB)..SR;KZN165..(DCB,SCB)..(ARL,SA);LN147,172,RZN147,149,154,169,174..DLX..ARL |
1 | ||
| 47316-35230 |
LN152..IV3;RZN169..SR..SA;LN167..DLX..DEFI;LN167..DSL..(ARL,SA);KZN165..(THDCB,THSCB)..SR;KZN165..(DCB,SCB)..(ARL,SA);LN147,172,RZN147,149,154,169,174..DLX..ARL |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02958 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 90947-02958 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-35050 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47317-35050 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35100 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47318-35100 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13036 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90904-13036 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35750 |
RZN169..(DCB,SCB)..ARL;LN16#,RZN169..(DCB,SCB)..(CBR,DSL)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47322-35750 |
RZN169..(DCB,SCB)..ARL;LN16#,RZN169..(DCB,SCB)..(CBR,DSL)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35190 |
RZN169..CBR..GCC;RZN169..(DCB,SCB)..ARL;LN16#,172,RZN174..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47323-35190 |
RZN169..CBR..GCC;RZN169..(DCB,SCB)..ARL;LN16#,172,RZN174..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35250 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47324-35250 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35290 |
LN192..TH;KZN165,LN16#,17#,191,RZN16#,174,193 |
1 | ||
| 47325-35290 |
LN192..TH;KZN165,LN16#,17#,191,RZN16#,174,193 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-35070 |
LN192,RZN169..(SCB,XTR)..(ARL,TH);RZN169..(DCB,THDCB,THSCB)..(ARL,SA);KZN165,LN147,150,152,167,172,RZN147,149,154,174..RHD..(DEFI,DSL,EFI,TDE) |
1 | ||
| 47326-35070 |
LN192,RZN169..(SCB,XTR)..(ARL,TH);RZN169..(DCB,THDCB,THSCB)..(ARL,SA);KZN165,LN147,150,152,167,172,RZN147,149,154,174..RHD..(DEFI,DSL,EFI,TDE) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-35040 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47327-35040 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);LN172,192,RZN174..ARL,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47341-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47343-35170 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35310 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47351-35310 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47351-35300 |
KZN165..XTR;LN192,RZN194;KZN165..SR..ARL;KZN165..SCB..DLX;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47351-35300 |
KZN165..XTR;LN192,RZN194;KZN165..SR..ARL;KZN165..SCB..DLX;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35350 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) W/O(ABS) |
1 | ||
| 47352-35350 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) W/O(ABS) |
1 | ||
| 47352-35360 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47352-35360 |
LN167..DSL;RZN169..SR..SA;LN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN166,172,192,RZN174..ARL,GCC,TH;LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC) W(ABS) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35230 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47371-35230 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH) |
1 | ||
| 47372-35080 |
LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35060 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47373-35060 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-35150 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 47372-35150 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 47372-35030 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-35020 |
LN152,167..DSL;RZN169..SR..SA;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150,192..(THDCB,THSCB,XTR)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL |
1 | ||
| 47378-35020 |
LN152,167..DSL;RZN169..SR..SA;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150,192..(THDCB,THSCB,XTR)..SR;LN147,172,RZN147,149,154,169,174..DLX..ARL |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-35020 |
LN167..DSL..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN165,RZN168..SCB..DLX..(ARL,GEN);RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(SCB,THDCB,THSCB)..DLX..(CBR,DEFI);KZN190,LN166,17#,19#,RZN174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 47383-35020 |
LN167..DSL..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN165,RZN168..SCB..DLX..(ARL,GEN);RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(SCB,THDCB,THSCB)..DLX..(CBR,DEFI);KZN190,LN166,17#,19#,RZN174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| 90105-14043 | ||||
| 90119-T0028 | ||||
| 90119-T0030 | ||||
| 90468-08035 | ||||
| 90949-01457 | ||||
| 91611-B0614 | ||||
| 91611-F0812 | ||||
| 91641-H0820 | ||||
| 96221-34905 | ||||
ILLUST NO. 2 OF 3(9708- )KDN145,150,151,16#,190,KZN165,LN147,152,167,172,RZN147,149,154,174,VZN16
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-35020 |
RZN169..DCB..EFI;LN192,RZN169..(SCB,XTR)..(ARL,TH);LN147,150,152,167,172,RZN147,149,154,174..DSL,EFI |
1 | ||
| 44050-35020 |
RZN169..DCB..EFI;LN192,RZN169..(SCB,XTR)..(ARL,TH);LN147,150,152,167,172,RZN147,149,154,174..DSL,EFI |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44545-35080 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44546-35090 |
RZN169..SR;LN192,RZN147,169..ARL,GCC,TH;LN141,146,147,150,152,16#,172,RZN142,144,149,154,174..ARL,GCC,SA,TH |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-35030 |
RZN169..DCB..EFI;LN192,RZN169..(SCB,XTR)..(ARL,TH);LN147,150,152,167,172,RZN147,149,154,174..DSL,EFI |
1 | ||
| 44590-35030 |
RZN169..DCB..EFI;LN192,RZN169..(SCB,XTR)..(ARL,TH);LN147,150,152,167,172,RZN147,149,154,174..DSL,EFI |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91631-60814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
RZN169..LHD..GEN;LN147,157,167..ARL,TH;KZN165,LN152,172,192..THSCB,THXTR,XTR |
1 | ||
| 04477-26010 |
RZN169..LHD..GEN;LN147,157,167..ARL,TH;KZN165,LN152,172,192..THSCB,THXTR,XTR |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
KZN165,190,LN14#,152,16#,172,192,RZN142,144,147,149,154,169,174,194,YN140..ARL,GCC,SA |
1 | ||
| 31478-30010 |
KZN165,190,LN14#,152,16#,172,192,RZN142,144,147,149,154,169,174,194,YN140..ARL,GCC,SA |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-35440 |
RZN169..SA;RZN194..SCB;RZN149,169..DLX..ARL;RZN142,154,174..ARL,GCC;LN14#,16#,172,192,RZN144,149,169,YN140..(CBR,DSL)..(ARL,GCC,SA);LN152,RZN147..(DCB,SCB,THSCB,THXTR)..(CBR,DSL,EFI)..(ARL,GCC,SA) W(LSP & BV) |
1 | ||
| 47910-35440 |
RZN169..SA;RZN194..SCB;RZN149,169..DLX..ARL;RZN142,154,174..ARL,GCC;LN14#,16#,172,192,RZN144,149,169,YN140..(CBR,DSL)..(ARL,GCC,SA);LN152,RZN147..(DCB,SCB,THSCB,THXTR)..(CBR,DSL,EFI)..(ARL,GCC,SA) W(LSP & BV) |
1 | ||
| 47910-35420 |
LN152..IV3;RZN169..SR..SA;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);KZN165..(THDCB,THSCB)..SR;LN167,RZN149..RHD..DLX..(DEFI,EFI);LN141,146,147,166,172,RZN142,147,154,174..DLX..(ARL,GCC);KZN165,RZN144,149,169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,SA) W(ABS) |
1 | ||
| 47910-35420 |
LN152..IV3;RZN169..SR..SA;RZN169..DLX..ARL;LN167..DSL..(ARL,SA);KZN165..(THDCB,THSCB)..SR;LN167,RZN149..RHD..DLX..(DEFI,EFI);LN141,146,147,166,172,RZN142,147,154,174..DLX..(ARL,GCC);KZN165,RZN144,149,169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,SA) W(ABS) |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
LN141,146,147,16#,172,RZN142,144,147,149,154,169,174..ARL,GCC |
1 | ||
| 47547-27020 |
LN141,146,147,16#,172,RZN142,144,147,149,154,169,174..ARL,GCC |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35080 |
RZN169..LHD;KZN165,190,LN16#,172,192,RZN169,174,194..(DSL,EFI,TDE)..(ARL,GCC,SA,TH) |
1 | ||
| 47920-35080 |
RZN169..LHD;KZN165,190,LN16#,172,192,RZN169,174,194..(DSL,EFI,TDE)..(ARL,GCC,SA,TH) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 90467-31110 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 90202-10103 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 90202-10103 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47924-35010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47924-35010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35110 |
RZN149..SR;RZN169..LHD;RZN169..(DCB,SCB)..ARL;RZN149..(DCB,SCB)..DLX..(ARL,GCC);LN141,146,147,16#,172,RZN142,144,147,154,174..(DCB,SCB,XTR)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47931-35110 |
RZN149..SR;RZN169..LHD;RZN169..(DCB,SCB)..ARL;RZN149..(DCB,SCB)..DLX..(ARL,GCC);LN141,146,147,16#,172,RZN142,144,147,154,174..(DCB,SCB,XTR)..(ARL,GCC) W(LSP & BV) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35070 |
RZN169..LHD;LN16#,172,RZN169,174..(DSL,EFI)..(ARL,GCC) |
1 | ||
| 47933-35070 |
RZN169..LHD;LN16#,172,RZN169,174..(DSL,EFI)..(ARL,GCC) |
1 | ||
| 47933-35071 |
RZN169..LHD;KZN165,190,LN16#,172,192,RZN169,174,194..(DSL,EFI,TDE)..(ARL,GCC,SA,TH) |
1 | ||
| 47933-35071 |
RZN169..LHD;KZN165,190,LN16#,172,192,RZN169,174,194..(DSL,EFI,TDE)..(ARL,GCC,SA,TH) |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47935-35030 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 90387-08099 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35050 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47936-35050 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35030 |
RZN149..SR;RZN169..ARL;RZN148,169..LHD;RZN149..DLX..(ARL,GCC);LN141,146,147,16#,172,RZN142,144,147,154,174..ARL,GCC |
1 | ||
| 47937-35030 |
RZN149..SR;RZN169..ARL;RZN148,169..LHD;RZN149..DLX..(ARL,GCC);LN141,146,147,16#,172,RZN142,144,147,154,174..ARL,GCC |
1 | ||
| 47937-60010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| 47937-60010 |
RZN149..SR;RZN169..EFI;RZN148,169..LHD..CBU;RZN149..DLX..(ARL,GCC);KZN165,190,LN14#,15#,16#,172,192,RZN142,144,147,154,174,194,YN140..ARL,GCC,SA,TH |
1 | ||
| Common parts | ||||
| 90119-08B11 | ||||
| 90170-08016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91641-H0820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
