LN167R-PRMDSQ (1997)

Toyota Hilux

Production Aug 1997 - Sep 2000
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN145..LHD..GEN ; (9708- )LN147,152,16#,172,RZN147..RHD..DSL,EFI..ARL

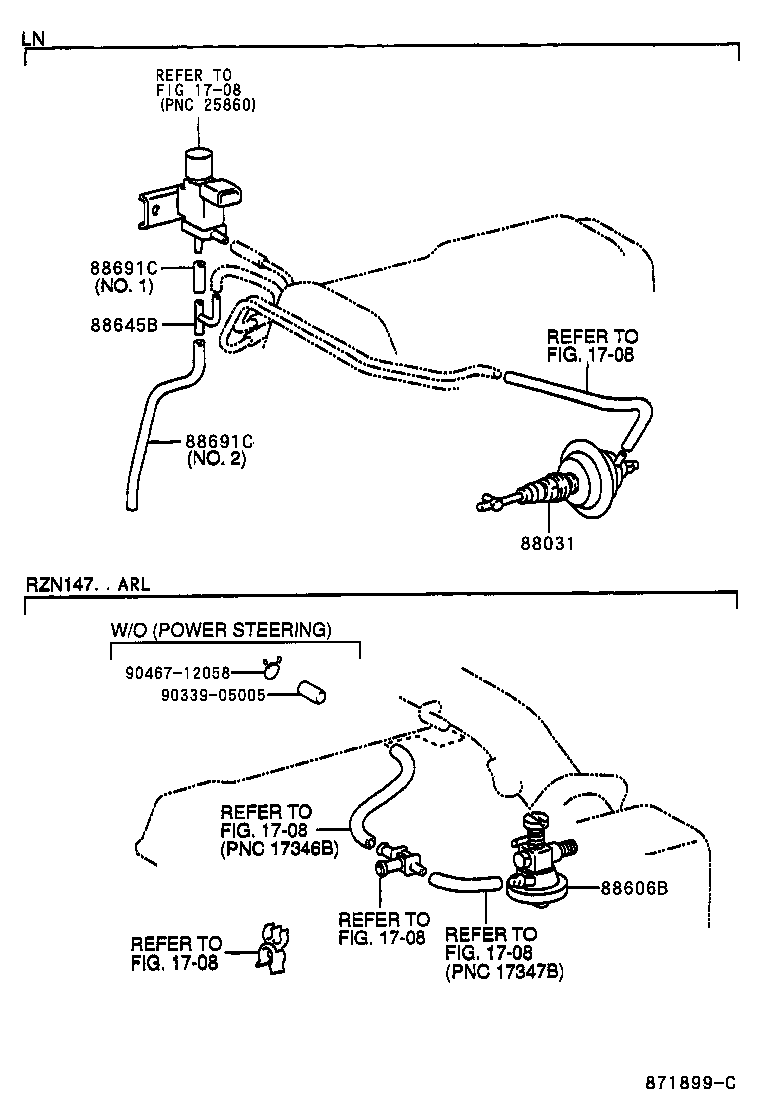

Click highlighted areas on diagram

diagram 1708 88031 88606B 88645B 88691C 88691C 9033905005 9046712058
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-35110

LN147,152,167,172..DSL..ARL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04008

LN147,152,167,172..DLX

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN147,152,167,172..DSL..ARL

*H,L=290,MARK=#*

 1
90999-92002

LN147,152,167,172..DLX

*H,L=50,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN147,152,167,172..DSL..ARL

*H,L=290,MARK=#*

 1
90999-92002

LN147,152,167,172..DLX

*H,L=50,MARK=#*

 1
Common parts
90339-05005
90467-12058
Linked diagrams
1708
