LN167R-PRMDEQ (2000)

Toyota Hilux

Production Sep 2000 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )2L,5LE..LN145,15#,167,192..RHD..TH ;(0208- )5LE..LN147,152,167,172..

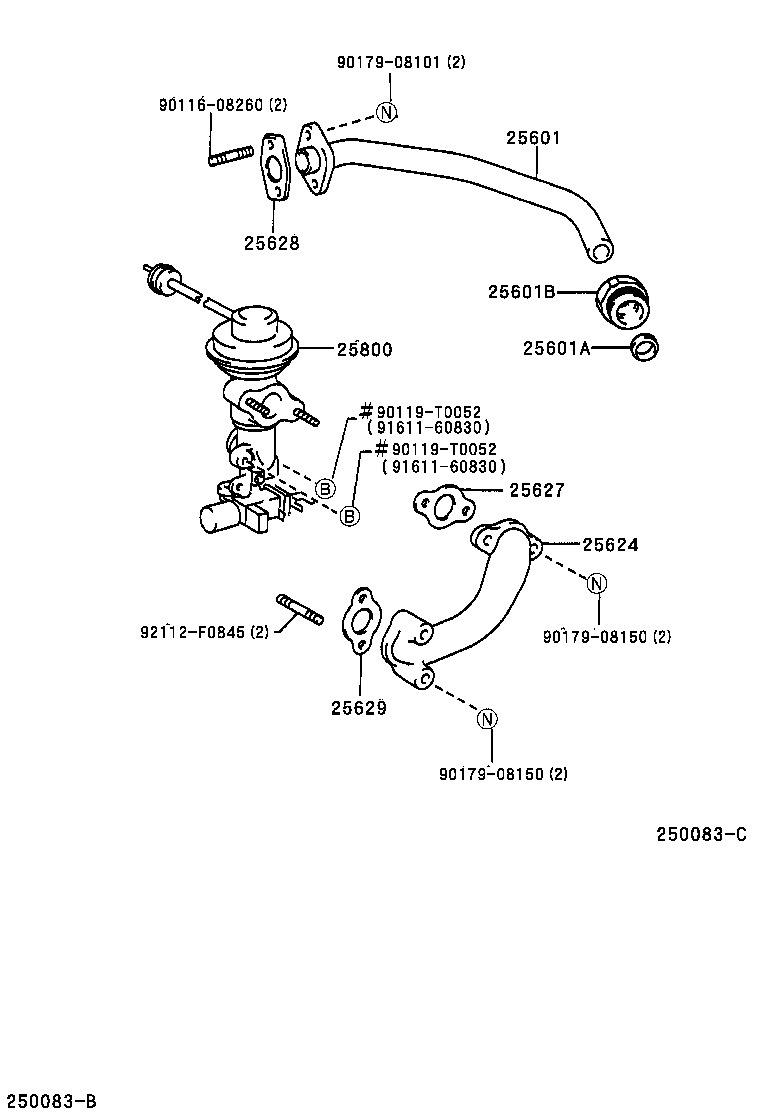

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25624 25627 25628 25629 25800 9011608260 90119T0052 90119T0052 9017908101 9017908150 9017908150 9161160830 9161160830 92112F0845
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-54090

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25601-54090

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25001

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
90410-25001

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33001

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
90402-33001

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25624 - ADAPTER, EGR VALVE
25624-54060

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25624-54060

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25627 - GASKET, EGR VALVE
25627-54011

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25627-54011

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25628 - GASKET, EGR INLET
25628-54012

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25628-54012

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-54011

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25629-54011

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-54220

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
25800-54220

5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL

 1
Common parts
90116-08260
90119-T0052
90179-08101
90179-08150
91611-60830
92112-F0845
