LN167R-PRMDEQ (2000)
Toyota Hilux
(0009- )5LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54020 |
5LE..LN152..IV3;5LE..LN167,192..SA,TH;5LE..LN147,167,172..DLX..ARL |
1 | ||
| 17138-54020 |
5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR |
1 | ||
| 17183B - COLLAR, MANIFOLD | ||||
| 17183-54010 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
1 | ||
| 17218 - COLLAR, THRUST | ||||
| 17218-54030 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
3 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-5B100 |
5L..LN167,192;2L,3L,5L..LN140,145,147,152,166,172..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B170 |
5LE..LN152..IV3;5LE..LN147,167,172,192..DLX |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17705-54460 |
5LE..LN152..IV3;5LE..LN147,167,172,192..DLX |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 96111-10830 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
2 | ||
| 17781A - CLAMP, HOSE | ||||
| 96111-10830 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17801-67070 |
5LE..LN152..IV3;5LE..LN147,167,172,192..DLX |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-54030 |
5LE..LN152..IV3;5LE..LN147,167,172,192..DLX |
1 | ||
| 17871-54040 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,167,172..DLX..ARL W(AIR CONDITIONER) |
1 | ||
| 17871-54040 |
5LE..LN147,152,167,172,192 W(AIR CONDITIONER) |
1 | ||
| 17871-54030 |
5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR |
1 | ||
| 17871-54041 |
5LE..LN147,152,167,172..ARL W(AIR CONDITIONER) |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-54030 |
5LE..LN152..IV3;5LE..LN147,167,172,192..DLX |
1 | ||
| 17871-54040 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,167,172..DLX..ARL W(AIR CONDITIONER) |
1 | ||
| 17871-54040 |
5LE..LN147,152,167,172,192 W(AIR CONDITIONER) |
1 | ||
| 17871-54030 |
5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR |
1 | ||
| 17871-54041 |
5LE..LN147,152,167,172..ARL W(AIR CONDITIONER) |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-54070 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
1 | ||
| 17872-54040 |
5LE..LN167..SCB..IV3;5LE..LN167..DCB..DLX..ARL;5LE..LN147,152,172..DCB,SCB,XTR |
1 | ||
| 17872-54070 |
5LE..LN147,152,167,172,192 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10780 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
1 | ||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881-54740 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) NO.1 |
1 | ||
| 17881-54780 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) NO.2 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881-54740 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) NO.1 |
1 | ||
| 17881-54780 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 90467-63002 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-54230 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
1 | ||
| 17893-54230 |
5LE..LN147,152,167,172,192 |
1 | ||
| 23249B - RUBBER, CUSHION | ||||
| 23249-54010 |
5LE..LN147,152,167,172..ARL |
3 | ||
| 90480-16045 |
5LE..LN147,152,167,172,192 |
3 | ||
| 23249-54010 |
5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH) |
3 | ||
| 52840 - RESONATOR ASSY, COOL AIR INTAKE | ||||
| 52840-04010 |
LN167..IV3;LN147,152,172;LN167..(DCB,THDCB)..DLX..ARL |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
LN147,167..IV3;LN147,172..DCB,THDCB,THXTR,XTR;LN152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU |
1 | ||
| 53775-35010 |
KDN145,15#,16#,190..CBU |
1 | ||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH | ||||
| 53808-35030 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06920 | ||||
| 90119-06937 | ||||
| 90170-11006 | ||||
| 90387-07034 | ||||
| 90387-07035 | ||||
| 90464-00366 | ||||
| 90464-00520 | ||||
| 90480-13032 | ||||
| 90480-14022 | ||||
| 90480-14023 | ||||
| 90480-14024 | ||||
| 90480-14025 | ||||
| 90480-16046 | ||||
| 90959-01210 | ||||
| 91511-60810 | ||||
| 91619-61218 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
| 93269-14010 | ||||
| 93568-55014 | ||||

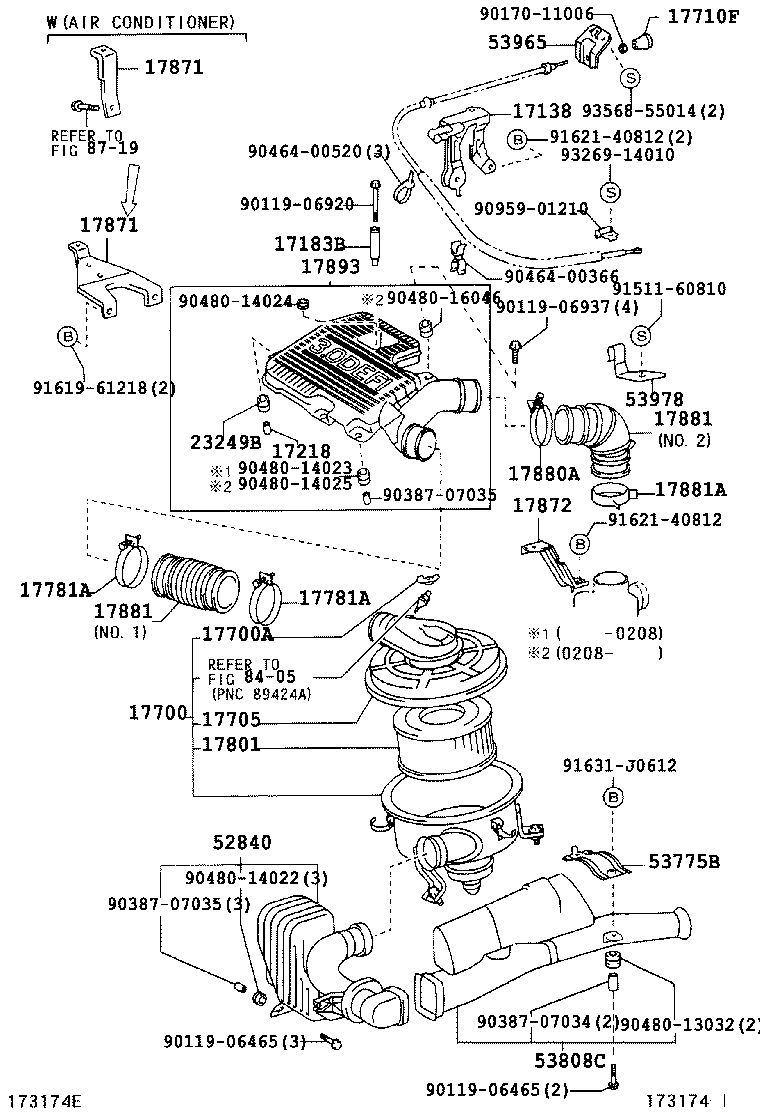

| Linked diagrams | ||||
| 8405 | ||||
| 8719 | ||||
