LN167R-JRMDEQ (2000)
Toyota Hilux
(9708-0211)2L,3L,5L#
12V 55A,70A

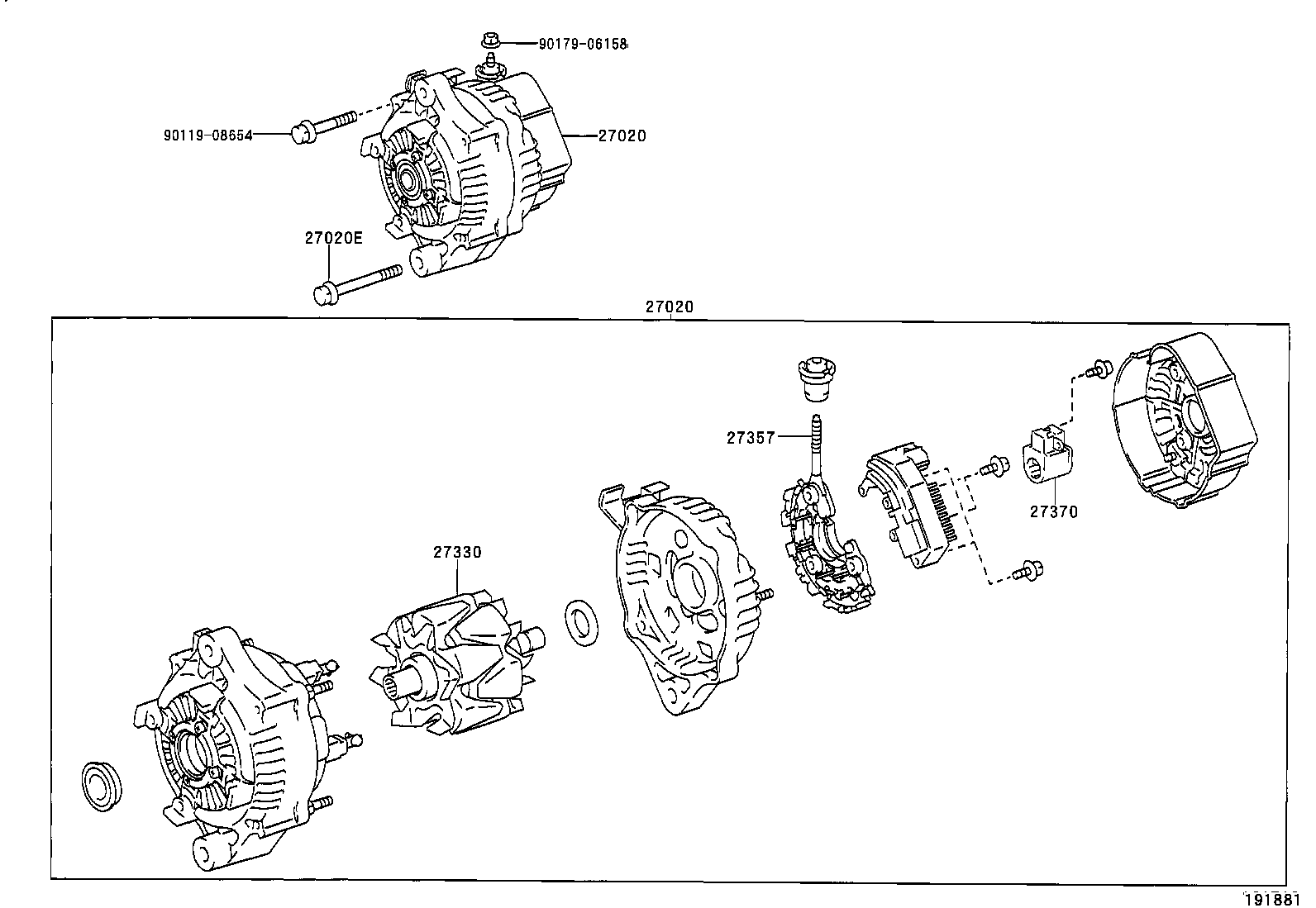

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54290 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27060-54440 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27060-54290 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10239 |
5LE..LN152,157,167,192..TH |
1 | ||
| 90105-10287 |
5L#..LN152..IV3;5LE..LN167..DCB..DLX..ARL;3L,5L..LN16#..DSL..(ARL,GEN,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90105-10287 |
5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU |
1 | ||
| 90105-10287 |
5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 90105-10287 |
5LE..LN147..THDCB;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;2L..LN145..(GEN,SA)..CBU;5LE..LN147,167..THSCB..IV3;5LE..LN167..(SCB,THDCB,THSCB)..CBU;3L,5LE..LN152,166..RHD..(DCB,SCB,THXTR)..CBU;2L,3L,5LE..LN140,141,146,172,192..DCB,SCB,THXTR |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5L#,1RZE,3RZFE..KZN190,LN147,172,RZN147,149,154..RHD..DLX;1KZTE,2L,3L,5L#,2RZFE..KZN165,LN140,141,145,146,166,171,19#,RZN193..(DEFI,DSL,EFI,TDE)..(GCC,GEN,SA) |
1 | ||
| 27039-16380 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,16#,17#,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54630 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-64130 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,SA 12V 55A,70A |
1 | ||
| 27330-64130 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) 12V 55A,70A |
1 | ||
| 27330-64190 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5LE..LN172;5L#..LN167..DLX..ARL;1KZTE,2RZFE..KZN165,RZN193..GEN,SA;1KZTE,5L,1RZE,3RZFE..KZN190,LN152,172,RZN147,149,154..RHD..DLX |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27357-16380 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27357-23040 |
3L,5LE..LN147,152,16#,172..ARL,MA 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16182 |
5L#..LN152..IV3;3RZFE..RZN149..DLX..ARL;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5L,3RZFE..LN167,RZN154..ARL,SA;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#,1RZE,2RZFE..LN14#,166,17#,19#,RZN147,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 27370-75060 |
3L,5LE..LN147,152,16#,172..ARL,MA |
1 | ||
| 27370-58320 |
5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..XTR;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1KZTE..KZN165..XTR;1RZ..RZN147..GCC,GEN;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;2L,3L..LN145,166..LHD..DLX;1KZTE..KZN165..SR..(ARL,SA);3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,1RZ,3RZF..LN155,RZN142,144,149..LHD;2L,5L#..LN145,152..(DCB,THXTR,XTR)..IV3;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;2L,5L,3RZFE..LN145,167,RZN154,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZF..KZN190,LN140,141,146,147,17#,19#,RZN147,154,169,193..DLX |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1KZTE..KZN165..XTR;1RZ..RZN147..GCC,GEN;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;2L,3L..LN145,166..LHD..DLX;1KZTE..KZN165..SR..(ARL,SA);3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,1RZ,3RZF..LN155,RZN142,144,149..LHD;2L,5L#..LN145,152..(DCB,THXTR,XTR)..IV3;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;2L,5L,3RZFE..LN145,167,RZN154,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZF..KZN190,LN140,141,146,147,17#,19#,RZN147,154,169,193..DLX |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
1KZTE..KZN165..XTR;1RZ..RZN147..GCC,GEN;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;2L,3L..LN145,166..LHD..DLX;1KZTE..KZN165..SR..(ARL,SA);3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,1RZ,3RZF..LN155,RZN142,144,149..LHD;2L,5L#..LN145,152..(DCB,THXTR,XTR)..IV3;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;2L,5L,3RZFE..LN145,167,RZN154,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZF..KZN190,LN140,141,146,147,17#,19#,RZN147,154,169,193..DLX |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
1KZTE..KZN165..XTR;1RZ..RZN147..GCC,GEN;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;2L,3L..LN145,166..LHD..DLX;1KZTE..KZN165..SR..(ARL,SA);3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,1RZ,3RZF..LN155,RZN142,144,149..LHD;2L,5L#..LN145,152..(DCB,THXTR,XTR)..IV3;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;2L,5L,3RZFE..LN145,167,RZN154,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZF..KZN190,LN140,141,146,147,17#,19#,RZN147,154,169,193..DLX |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
5L#..LN152..IV3;1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;1KZTE..KZN165..SR..(ARL,SA);2L..LN145,155..LHD..DLX..TH;3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;5L,3RZFE..LN167,RZN154,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZFE..KZN190,LN14#,166,17#,19#,RZN147,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5L#..LN152..IV3;1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..SA;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1RZE,3RZFE..RZN147,149,169..(THDCB,THSCB)..DLX;5L,3RZFE..LN167,RZN154,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,3RZFE..KZN190,LN14#,166,17#,19#,RZN174..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-63020 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5L#,1RZE,3RZFE..KZN190,LN147,172,RZN147,149,154..RHD..DLX;1KZTE,2L,3L,5L#,2RZFE..KZN165,LN140,141,145,146,166,171,19#,RZN193..(DEFI,DSL,EFI,TDE)..(GCC,GEN,SA) |
4 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;1KZTE..KZN165..SR..(ARL,SA);1KZTE..KZN165..DCB..DLX..CBU;3RZFE..RZN169..DLX..(ARL,SA);5LE,3RZFE..LN167,RZN149..DLX..ARL;5L,1RZ,3RZF..LN167,RZN142,144,147,149..ARL,GCC,GEN;5LE,3RZFE..LN172,RZN154,174,194..RHD..(DCB,SCB,THXTR,XTR);1KZTE,5L,1RZE,2RZFE,3RZF..KZN190,LN152,172,RZN147,154,169,193..DLX |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
5LE..LN167..DLX..ARL;1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE,5LE,3RZFE..KZN165,LN172,RZN154..(DCB,SCB,THXTR,XTR)..ARL;5L,1RZE,2RZFE,3RZFE..LN152,167,172,RZN147,148,149,168,193..DLX..(ARL,GEN) 12V 70A |
1 | ||
| 27700-50030 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| Common parts | ||||
| 27445-54660 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90119-08654 | ||||
| 90179-06158 | ||||
| 90179-10072 | ||||
| 94622-11000 | ||||
(0211- )5LE..LN167,172..ARL
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54290 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27060-54440 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27060-54290 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54290 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27060-54440 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27060-54290 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10239 |
5LE..LN152,157,167,192..TH |
1 | ||
| 90105-10287 |
5L#..LN152..IV3;5LE..LN167..DCB..DLX..ARL;3L,5L..LN16#..DSL..(ARL,GEN,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90105-10287 |
5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU |
1 | ||
| 90105-10287 |
5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 90105-10287 |
5LE..LN147..THDCB;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;2L..LN145..(GEN,SA)..CBU;5LE..LN147,167..THSCB..IV3;5LE..LN167..(SCB,THDCB,THSCB)..CBU;3L,5LE..LN152,166..RHD..(DCB,SCB,THXTR)..CBU;2L,3L,5LE..LN140,141,146,172,192..DCB,SCB,THXTR |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,SA 12V 55A,70A |
1 | ||
| 27330-64130 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) 12V 55A,70A |
1 | ||
| 27330-64190 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27357-16380 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27357-23040 |
3L,5LE..LN147,152,16#,172..ARL,MA 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 27370-75060 |
3L,5LE..LN147,152,16#,172..ARL,MA |
1 | ||
| 27370-58320 |
5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..XTR;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| 90119-08654 | ||||
| 90179-06158 | ||||
(0211- )2L,3L,5LE..LN14#,152,155,16#,171,19#..ARL,GCC,GEN,SA,TH
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54290 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27060-54440 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27060-54290 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10239 |
5LE..LN152,157,167,192..TH |
1 | ||
| 90105-10287 |
5L#..LN152..IV3;5LE..LN167..DCB..DLX..ARL;3L,5L..LN16#..DSL..(ARL,GEN,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90105-10287 |
5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU |
1 | ||
| 90105-10287 |
5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL |
1 | ||
| 90105-10287 |
5LE..LN147..THDCB;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;2L..LN145..(GEN,SA)..CBU;5LE..LN147,167..THSCB..IV3;5LE..LN167..(SCB,THDCB,THSCB)..CBU;3L,5LE..LN152,166..RHD..(DCB,SCB,THXTR)..CBU;2L,3L,5LE..LN140,141,146,172,192..DCB,SCB,THXTR |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5L#,1RZE,3RZFE..KZN190,LN147,172,RZN147,149,154..RHD..DLX;1KZTE,2L,3L,5L#,2RZFE..KZN165,LN140,141,145,146,166,171,19#,RZN193..(DEFI,DSL,EFI,TDE)..(GCC,GEN,SA) |
1 | ||
| 27039-16380 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,16#,17#,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54630 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-64130 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,SA 12V 55A,70A |
1 | ||
| 27330-64130 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) 12V 55A,70A |
1 | ||
| 27330-64190 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5LE..LN172;5L#..LN167..DLX..ARL;1KZTE,2RZFE..KZN165,RZN193..GEN,SA;1KZTE,5L,1RZE,3RZFE..KZN190,LN152,172,RZN147,149,154..RHD..DLX |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5LE..LN167,172..ARL;5L..LN152,167,172..ARL 12V 70A |
1 | ||
| 27357-16380 |
5LE..LN167..IV3;5LE..LN167,172..(DCB,THDCB,THXTR,XTR)..DLX..ARL 12V 70A |
1 | ||
| 27357-23040 |
3L,5LE..LN147,152,16#,172..ARL,MA 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16182 |
5L#..LN152..IV3;3RZFE..RZN149..DLX..ARL;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5L,3RZFE..LN167,RZN154..ARL,SA;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#,1RZE,2RZFE..LN14#,166,17#,19#,RZN147,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
5LE..LN167..SA;5LE..LN147,167..IV3;2L..LN145..LHD..IV3;5LE..LN147..DCB,THDCB;2L..LN145,155..LHD..TH;5LE..LN167..(DCB,THDCB)..DLX..ARL;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,3L,5LE..LN140,141,146,166,17#,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 27370-75060 |
3L,5LE..LN147,152,16#,172..ARL,MA |
1 | ||
| 27370-58320 |
5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..XTR;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
5L#..LN152..IV3;1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;1KZTE..KZN165..SR..(ARL,SA);2L..LN145,155..LHD..DLX..TH;3RZFE..RZN149,169..DLX..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;5L,3RZFE..LN167,RZN154,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,1RZE,2RZFE,3RZFE..KZN190,LN14#,166,17#,19#,RZN147,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5L#..LN152..IV3;1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..SA;1KZTE..KZN165..SCB..DLX;2L..LN145,155..LHD..DLX..TH;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1RZE,3RZFE..RZN147,149,169..(THDCB,THSCB)..DLX;5L,3RZFE..LN167,RZN154,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);1KZTE,2L,3L,5L#,3RZFE..KZN190,LN14#,166,17#,19#,RZN174..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-63020 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,5L#,1RZE,3RZFE..KZN190,LN147,172,RZN147,149,154..RHD..DLX;1KZTE,2L,3L,5L#,2RZFE..KZN165,LN140,141,145,146,166,171,19#,RZN193..(DEFI,DSL,EFI,TDE)..(GCC,GEN,SA) |
4 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE..KZN165..XTR;3RZFE..RZN169..DCB..SA;1KZTE..KZN165..SCB..DLX;1KZTE..KZN165..SR..(ARL,SA);1KZTE..KZN165..DCB..DLX..CBU;3RZFE..RZN169..DLX..(ARL,SA);5LE,3RZFE..LN167,RZN149..DLX..ARL;5L,1RZ,3RZF..LN167,RZN142,144,147,149..ARL,GCC,GEN;5LE,3RZFE..LN172,RZN154,174,194..RHD..(DCB,SCB,THXTR,XTR);1KZTE,5L,1RZE,2RZFE,3RZF..KZN190,LN152,172,RZN147,154,169,193..DLX |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
5LE..LN167..DLX..ARL;1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE,5LE,3RZFE..KZN165,LN172,RZN154..(DCB,SCB,THXTR,XTR)..ARL;5L,1RZE,2RZFE,3RZFE..LN152,167,172,RZN147,148,149,168,193..DLX..(ARL,GEN) 12V 70A |
1 | ||
| 27700-50030 |
5LE..LN167,172..ARL 12V 70A |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
5L..LN152,167,172..ARL;5LE..LN167,172..DLX..ARL |
1 | ||
| Common parts | ||||
| 27445-54660 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90119-08654 | ||||
| 90179-06158 | ||||
| 90179-10072 | ||||
| 93319-14025 | ||||
| 94622-11000 | ||||
