LN166R-TRMDSE (2002)

Toyota Hilux

Production Sep 2002 - Mar 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0211)2L,3L,5L#

Click highlighted areas on diagram

12V 55A,70A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27384 27387 27389 27443 2744554660 27700A 29341 9009900167 9009900197 9009900243 9009900269 9009900276 9009904478 9009904966 9009905119 9009905172 9009905172 9011906033 9011908127 9011908654 9017906158 9017910072 9462211000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-54410

3L,5LE..LN147,152,166..ARL,MA

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-54860

3L,5LE..LN147,152,166..ARL,MA

12V 55A

 1
27330-64130

3L..LN166..MA

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-23040

3L,5LE..LN147,152,16#,172..ARL,MA

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

3L,5LE..LN147,152,16#,172..ARL,MA

 1
27700A - REGULATOR ASSY, GENERATOR
27700-62030

3L..LN166..MA

 1
Common parts
27445-54660
90099-00167
90099-00197
90099-00243
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05172
90119-06033
90119-08127
90119-08654
90179-06158
90179-10072
94622-11000

(0211- )3L..LN166..MA

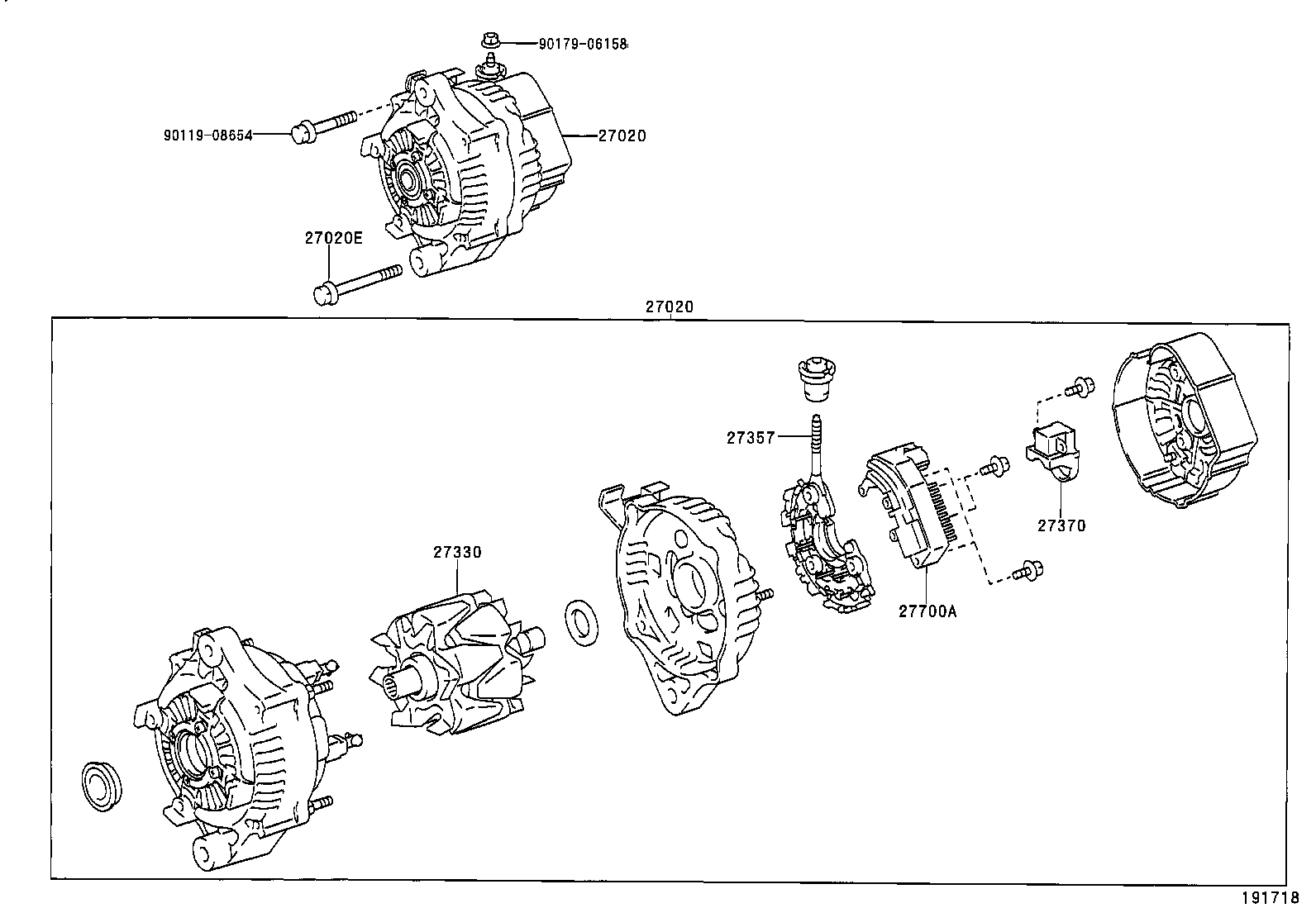

Click highlighted areas on diagram

12V 55A

diagram 27020 27020 27020E 27330 27357 27370 27700A 9011908654 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-54410

3L,5LE..LN147,152,166..ARL,MA

12V 55A

 1
27020 - ALTERNATOR ASSY
27060-54410

3L,5LE..LN147,152,166..ARL,MA

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-54860

3L,5LE..LN147,152,166..ARL,MA

12V 55A

 1
27330-64130

3L..LN166..MA

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-23040

3L,5LE..LN147,152,16#,172..ARL,MA

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

3L,5LE..LN147,152,16#,172..ARL,MA

 1
27700A - REGULATOR ASSY, GENERATOR
27700-62030

3L..LN166..MA

 1
Common parts
90119-08654
90179-06158
