LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

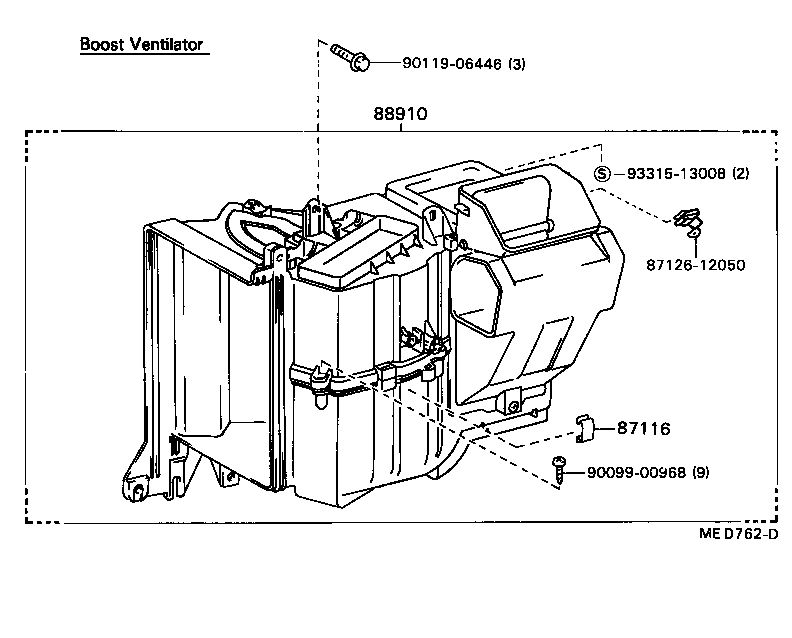

ILLUST NO. 3 OF 4(8308- )GEN,ME

Click highlighted areas on diagram

diagram 87116 8712612050 88910 9009900968 9011906446 9331513008
Part # Description Qty Price
Common parts
87126-12050
90099-00968
90119-06446
93315-13008

ILLUST NO. 1 OF 4(8308- )

Click highlighted areas on diagram

diagram 87104 87105 8712612050 87130 87138 88540B 9009900947 9009902210 9009905164 9011906446 9017906026 9331513008 9354014010 9354014012 9354014012
Part # Description Qty Price
Common parts
87126-12050
90099-00947
90099-02210
90099-05164
90119-06446
90179-06026
93315-13008
93540-14010
93540-14012

ILLUST NO. 2 OF 4(8308- )

Click highlighted areas on diagram

diagram 87107 87107 87116 87116 8712410010 8712410010 8712612050 8712612050 8712689101 8712689101 87150 87150 87248E 87249E 8739889104 8739889104 8739889105 8739889105 9011906446 9011906446 9331513008 9331513008 9354015016 9354015016 9354015016 9676119016 9676119016
Part # Description Qty Price
Common parts
87124-10010
87126-12050
87126-89101
87398-89104
87398-89105
90119-06446
93315-13008
93540-15016
96761-19016

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87111 87111A 8712420020 8715 88910 9011906074 9017906274
Part # Description Qty Price
87111 - CASE, HEATER
87111-35220

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

W(HEATER)

 1
87111-35240

LN145..DCB..IV3;LN145,166,RZN147,169..RHD..(CBR,DSL)..GEN..CBU

 1
87111-35240

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87111-35220

LN145,166,RZN147..RHD..GEN..CBU

W(HEATER)

 1
87111A - CASE, HEATER
87111-35230

LN140,145,147,16#,172,192,RZN147,149,154,169,174,194..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)

W(HEATER)

 1
87111-35250

LN145..DCB..IV3;LN145,166,RZN147,169..RHD..(CBR,DSL)..GEN..CBU

 1
87111-35250

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87111-35230

LN145,166,RZN147..RHD..GEN..CBU

W(HEATER)

 1
88910 - VENTILATOR ASSY, BOOST
88910-35010

LN145..DCB..IV3;LN145,166,RZN147,169..RHD..(CBR,DSL)..GEN..CBU

 1
88910-35010

KDN165,190,LN145,166,RZN147,169..RHD..(GEN,MA)..CBU

 1
Common parts
87124-20020
90119-06074
90179-06274
Linked diagrams
8715

ILLUST NO. 1 OF 2(9708- )RHD

Click highlighted areas on diagram

diagram 87103 87107 87111 87111A 8712420020 8712420020 8712435040 8712435040 87130 8715 87150 87248Q 87248Q 8739889104 8739889104 9011906074 9011906074 90119T0090 90119T0090 9016850013 9016850013 9017906274 9017906274 90179T0001 90179T0001 9331314008 9331314008 9676119016 9676119016
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-35010

LN140,145,147,16#,172,192,RZN147,149,154,169,174,194..RHD..(ARL,GEN,SA)

 1
87103-35030

LN152..IV3;RZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;KZN165..(THDCB,THSCB)..SR;KZN165,RZN194..(DCB,SCB)..(ARL,SA);LN167,RZN169..RHD..(CBR,DSL)..(ARL,GEN,SA);KZN190,LN140,145,147,166,172,192,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA)

 1
87103-35030

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

 1
87103-35030

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87103-35030

RZN169..DCB..SA;KZN190,RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-35070

RZN154,169..ARL,SA;RZN149,154,169..CBR;RZN149..EFI..(ARL,GEN);RZN142,147,148,168,YN140..DLX;LN145,155,RZN144..LHD..(CBR,DSL)..(GCC,TH);KZN165,190,LN14#,152,16#,17#,19#,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA)

 1
87107-35070

LN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

 1
87107-35070

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

 1
87107-35070

RZN169..DCB..SA;RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,RZN148,149,168..DLX..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)

 1
87111 - CASE, HEATER
87111-35220

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

W(HEATER)

 1
87111-35240

LN145..DCB..IV3;LN145,166,RZN147,169..RHD..(CBR,DSL)..GEN..CBU

 1
87111-35240

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87111-35220

LN145,166,RZN147..RHD..GEN..CBU

W(HEATER)

 1
87111A - CASE, HEATER
87111-35230

LN140,145,147,16#,172,192,RZN147,149,154,169,174,194..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)

W(HEATER)

 1
87111-35250

LN145..DCB..IV3;LN145,166,RZN147,169..RHD..(CBR,DSL)..GEN..CBU

 1
87111-35250

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87111-35230

LN145,166,RZN147..RHD..GEN..CBU

W(HEATER)

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-35090

LN152..IV3;RZN169..SA;LN167..DLX..DEFI;RZN169..DLX..ARL;KZN165..(THDCB,THSCB)..SR;KZN165,RZN194..(DCB,SCB)..(ARL,SA);LN167,RZN169..RHD..(CBR,DSL)..(ARL,GEN,SA);KZN190,LN140,145,147,166,172,192,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA)

 1
87130-35090

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

 1
87130-35090

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87130-35090

RZN169..DCB..SA;KZN190,RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)

 1
87150 - RADIATOR ASSY, HEATER
87150-35180

LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

 1
87150-35180

LN145,166,RZN147,169..RHD..GEN..CBU

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-35090

LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

NO.1

 1
87156-35100

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

NO.2

 1
87156-35090

LN145,166,RZN147,169..RHD..GEN..CBU

NO.1

 1
87156-35100

LN145,166,RZN147,169..RHD..GEN..CBU

NO.2

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-35090

LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

NO.1

 1
87156-35100

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

NO.2

 1
87156-35090

LN145,166,RZN147,169..RHD..GEN..CBU

NO.1

 1
87156-35100

LN145,166,RZN147,169..RHD..GEN..CBU

NO.2

 1
Common parts
87124-20020
87124-35040
87398-89104
90119-06074
90119-T0090
90168-50013
90179-06274
90179-T0001
93313-14008
96761-19016
Linked diagrams
8715
