Toyota Hilux LN166 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
GR
HILUX
LN166R-TRMDS (1997)
8103 - FRONT TURN SIGNAL LAMP

LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81279-91D01
81518-89121
81619-14070

(9708-0108)

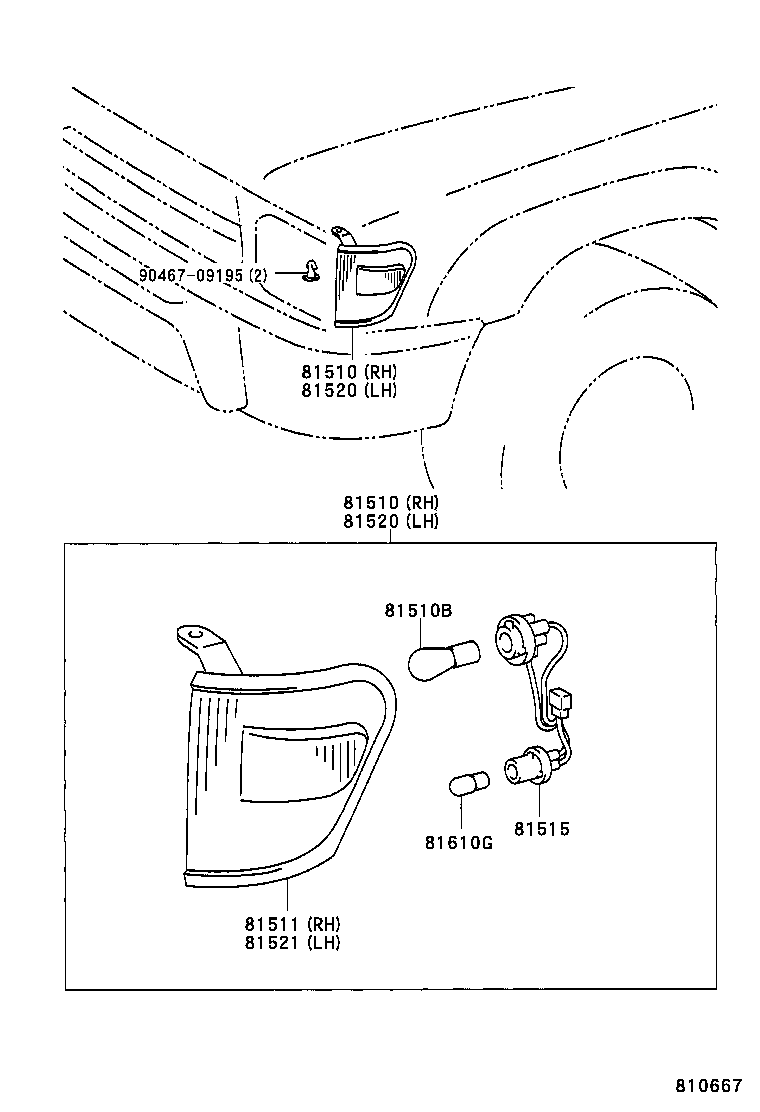

Click highlighted areas on diagram

W/SIDE TURN SIGNAL(USE PNC=81515)

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-35150	RZN148,154,168,193..MTM;LN147,167,RZN149..DCB..ARL;LN147,167,172,RZN149..MTM..IV3;LN141,145,146,152,166,171,191,RZN142,144,147,149,169..(CBR,DSL)..(ARL,GCC,GEN)	08/1997 - 10/1998	2
81515-35290	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	2
81515-35150	LN141,145,146,166,171,191,RZN14#,154,16#,193..GCC,GEN	10/1998 - 08/2001	2
81515-35290	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

(9708-0108)

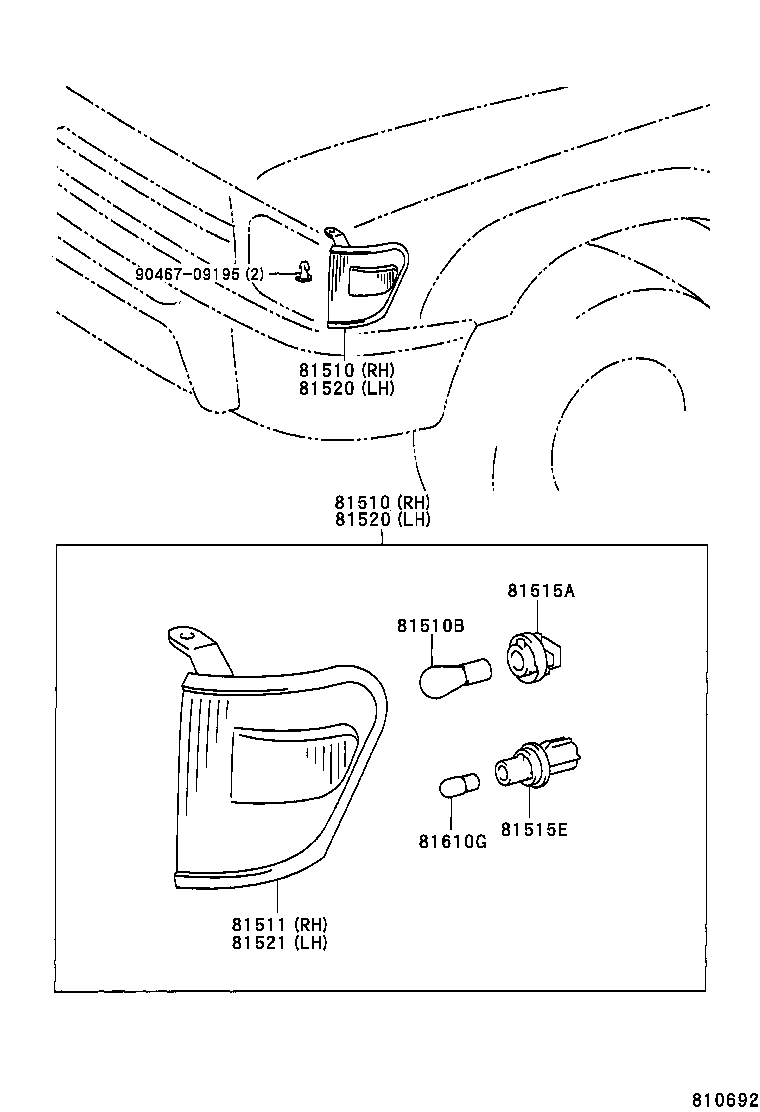

Click highlighted areas on diagram

W/O SIDE TURN SIGNAL(NOT USE 81515)

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

(0108- )LN166 ; (0108- )KDN145,15#,16#,190,KZN165,190,LN14#,15#,167,17#,19#,R

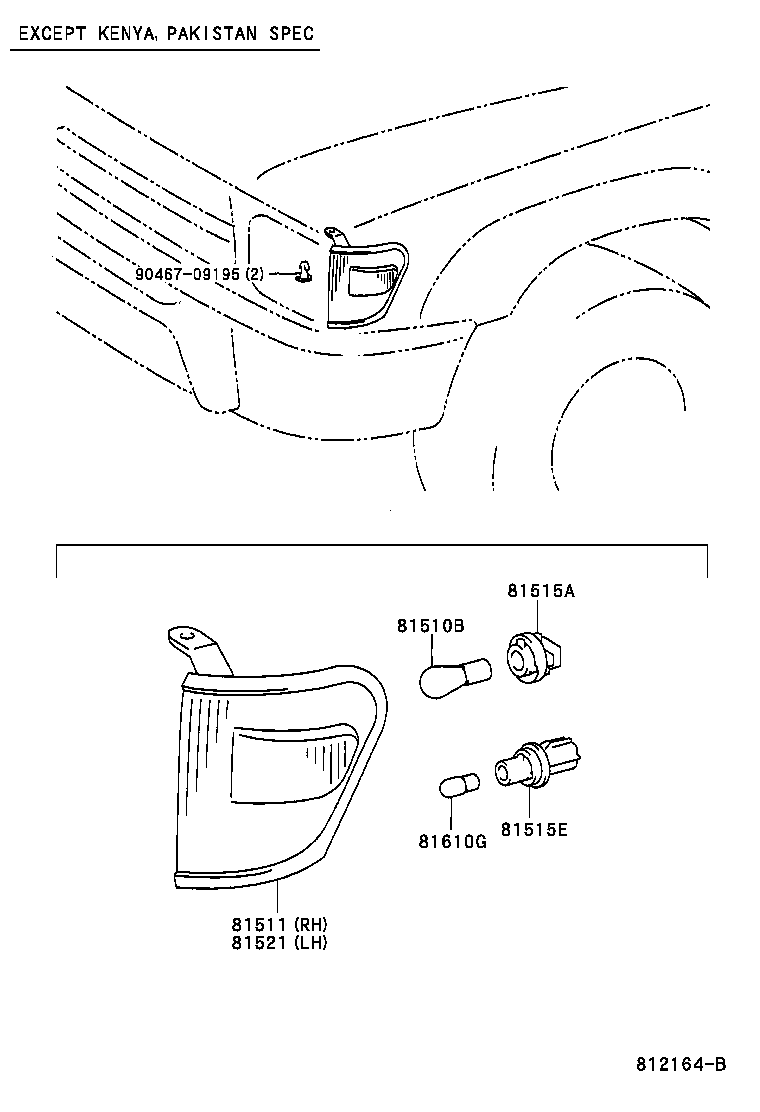

Click highlighted areas on diagram

USE PNC=81515

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-35150	RZN148,154,168,193..MTM;LN147,167,RZN149..DCB..ARL;LN147,167,172,RZN149..MTM..IV3;LN141,145,146,152,166,171,191,RZN142,144,147,149,169..(CBR,DSL)..(ARL,GCC,GEN)	08/1997 - 10/1998	2
81515-35290	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	2
81515-35150	LN141,145,146,166,171,191,RZN14#,154,16#,193..GCC,GEN	10/1998 - 08/2001	2
81515-35290	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

(0108- )

Click highlighted areas on diagram

USE PNC=81515

Part #	Description	Period	Qty
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-35150	RZN148,154,168,193..MTM;LN147,167,RZN149..DCB..ARL;LN147,167,172,RZN149..MTM..IV3;LN141,145,146,152,166,171,191,RZN142,144,147,149,169..(CBR,DSL)..(ARL,GCC,GEN)	08/1997 - 10/1998	2
81515-35290	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	2
81515-35150	LN141,145,146,166,171,191,RZN14#,154,16#,193..GCC,GEN	10/1998 - 08/2001	2
81515-35290	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

(0108- )

Click highlighted areas on diagram

NOT USE 81515

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81510-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81510-35170	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81510-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81510-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81510-35161	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81510-35171	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81520-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81520-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81520-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81520-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81520-35151	LN166..RHD..GEN;RZN148..GEN..IV3;RZN149,168..DLX..GEN	08/2001 - 12/2999	1
81520-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

(0108- )LN166 ; (0108- )KDN145,15#,16#,190,KZN165,190,LN14#,15#,167,17#,19#,R

Click highlighted areas on diagram

NOT USE 81515

Part #	Description	Period	Qty
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1997 - 10/1998	2
99132-11210	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	12/1998 - 08/1999	2
99132-11210	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	10/1998 - 12/1998	2
99132-11210	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/2000 - 09/2000	2
99132-11210	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	09/2000 - 08/2001	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	09/2001 - 03/2002	2
90981-13043	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 06/2005	2
90981-13043	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU 12V 21W,W(SIDE TURN SIGNAL LAMP)	08/2001 - 09/2001	2
99132-11210	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA 12V 21W	08/1999 - 08/2000	2
90981-13043	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU 12V 21W	03/2002 - 12/2999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81511-35160	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81511-35170	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81511-35171	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81511-35161	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81511-35270	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81511-35171	LN166..RHD..GEN;RZN168..DLX..GEN KENYA,PAKISTAN SPEC	08/2001 - 12/2999	1
81511-35270	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	08/1997 - 10/1998	1
81521-35150	LN166,191,RZN16#,193..GCC,GEN	08/1997 - 02/1999	1
81521-35160	LN166,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	10/1998 - 02/1999	1
81521-35161	LN166,171,191,RZN16#,193..GCC,GEN CHROME PLATED PACKAGE	02/1999 - 08/2001	1
81521-35151	RZN148..IV3;RZN149..EFI..GEN;LN166,171,191,RZN16#,193..GCC,GEN	02/1999 - 08/2001	1
81521-35161	LN166..RHD..GEN;RZN168..DLX..GEN CHROME PLATED PACKAGE	08/2001 - 12/2999	1
81521-35260	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	08/2001 - 12/2999	1
81521-35260	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
81610G - BULB(FOR CLEARANCE LAMP)
99132-12050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 10/1998	2
99132-12050	RZN149,154..CBR;LN147,RZN149..SCB..ARL..CBU;RZN149,154..(SCB,THXTR,XTR)..ATM;LN140,141,145,146,152,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	10/1998 - 12/1998	2
99132-12050	LN147..IV3;RZN154..ATM;RZN169..ARL,SA;LN147..DCB,THDCB;RZN148,168..DLX..CBU;LN145..RHD..(GEN,SA)..CBU;RZN147,149..RHD..(SCB,THSCB);KZN165,LN140,16#,172,192,RZN142,174,194..RHD..(ARL,GEN,SA)	08/2001 - 09/2001	2
99132-12050	RZN154..ATM;RZN149..(SCB,THSCB)..ARL;LN147,152,RZN149,154..(DCB,SCB,THSCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/2000 - 09/2000	2
99132-12050	LN147,RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN152,RZN149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	12/1998 - 08/1999	2
99132-12050	RZN154..ATM;RZN149,154..CBR;LN147,152,RZN149..(SCB,THSCB,XTR)..ARL;KZN165,190,LN140,141,145,146,16#,17#,19#,RZN142,144,147,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1999 - 08/2000	2
99132-12050	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU	09/2001 - 12/2999	2
99132-12050	RZN147..RHD;RZN147..GCC;RZN154..ATM;RZN149,154..LHD;RZN149..(SCB,THSCB)..ARL;KZN165,190,LN14#,152,16#,17#,19#,RZN142,144,148,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/2000 - 08/2001	2
99132-12050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
Common parts
90467-09195

LN166R-TRMDS (1997)

(8308- )

(9708-0108)

(9708-0108)

(0108- )LN166 ; (0108- )KDN145,15#,16#,190,KZN165,190,LN14#,15#,167,17#,19#,R

(0108- )

(0108- )

(0108- )LN166 ; (0108- )KDN145,15#,16#,190,KZN165,190,LN14#,15#,167,17#,19#,R

Part Price Details
