Toyota Hilux LN166 HOOD LOCK & HINGE

Manufacturers Home
Toyota
GR
HILUX
LN166R-TRMDS (1997)
5354 - HOOD LOCK & HINGE

LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

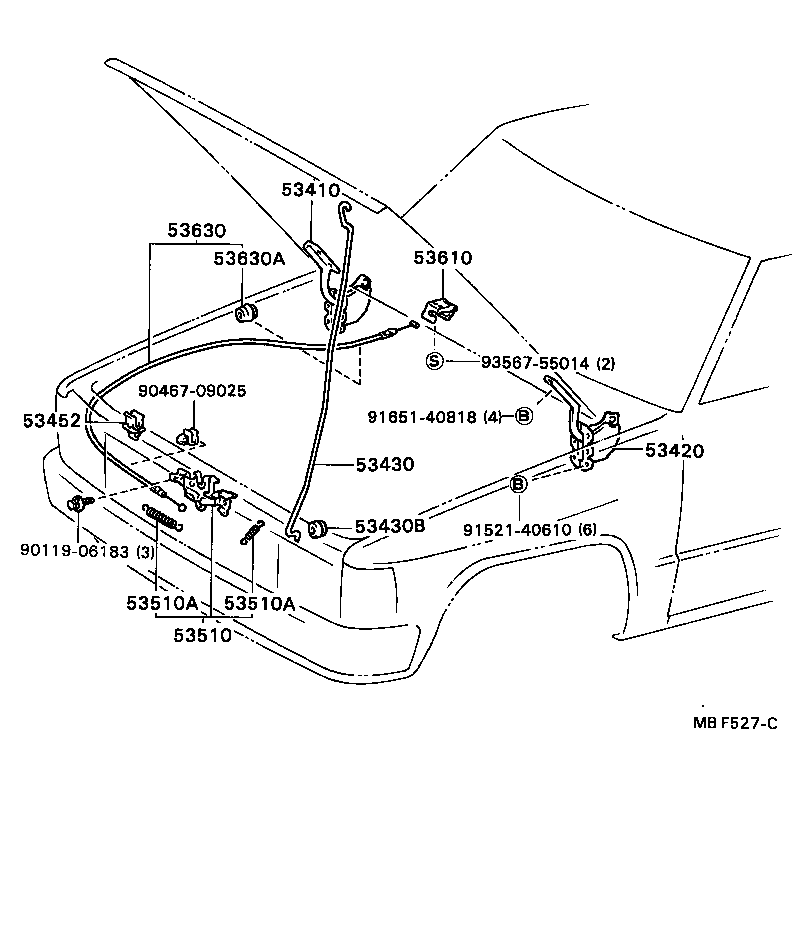

(8308- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06183
90467-09025
91521-40610
91651-40818
93567-55014

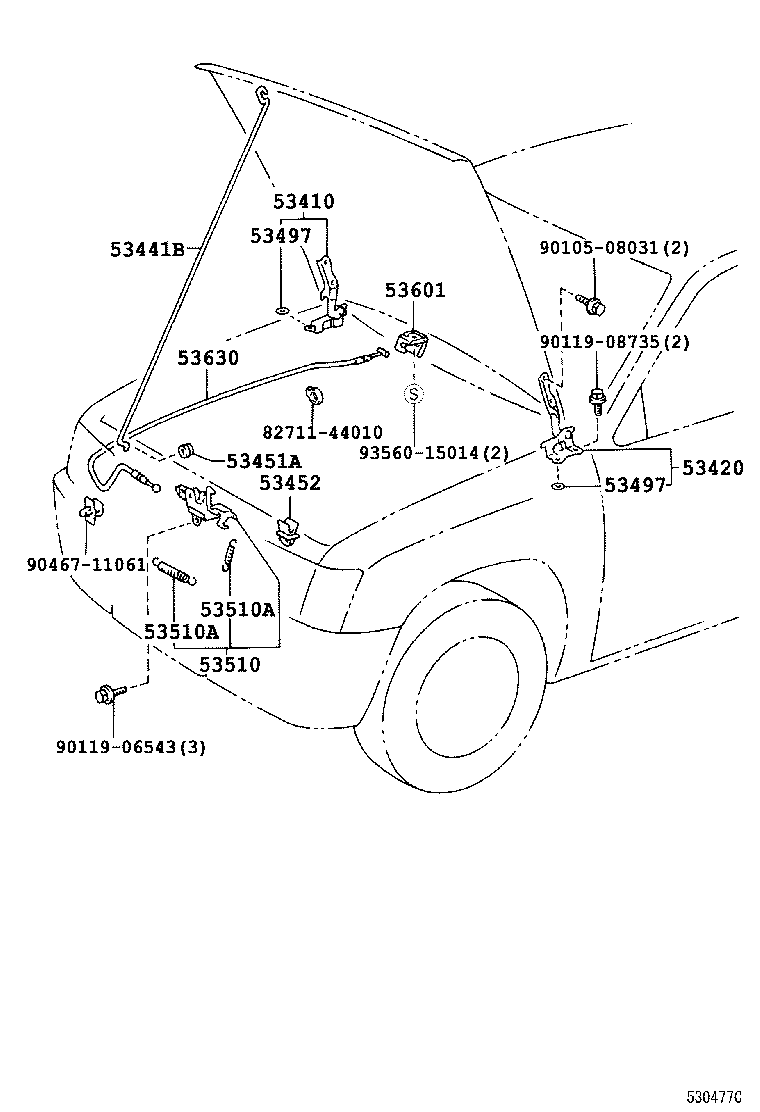

(9708-0108) ; (0108-0109)ARL,SA,TH ; (0109-0203)SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53410-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53420 - HINGE ASSY, HOOD, LH
53420-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53420-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53441B - SUPPORT, HOOD
53441-35030	KZN165,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 01/2000	1
53441-35050	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53441-35050	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53441-35031	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	01/2000 - 08/2001	1
53441-35050	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53441-35050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15027	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
90480-15012	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2001	1
90480-15027	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
90480-15027	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
90480-15027	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53452 - HOLDER, HOOD STAY
53455-35010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53455-35010	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53452-90351	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2001	1
53455-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53455-35010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53497 - PAD, HOOD HINGE, NO.1
53497-35040	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=2.0	08/1997 - 12/2999	4
53497-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=0.5	08/1997 - 12/2999	4
53497-35020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=1.0	08/1997 - 12/2999	4
53497-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=2.0	08/2001 - 06/2005	4
53497-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=0.5	08/2001 - 06/2005	4
53497-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=1.0	08/2001 - 06/2005	4
53497 - PAD, HOOD HINGE, NO.1
53497-35040	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=2.0	08/1997 - 12/2999	4
53497-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=0.5	08/1997 - 12/2999	4
53497-35020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=1.0	08/1997 - 12/2999	4
53497-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=2.0	08/2001 - 06/2005	4
53497-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=0.5	08/2001 - 06/2005	4
53497-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=1.0	08/2001 - 06/2005	4
53510 - LOCK ASSY, HOOD
53510-35210	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 02/2003	1
53510-35120	LN145,166,RZN147,169..RHD..GEN	08/1997 - 08/2001	1
53510-35210	LN145,166,RZN147,169..RHD..(GEN,MA)..CBU	08/2001 - 02/2003	1
53510-35211	LN145,166,RZN147,169..RHD..GEN..CBU	02/2003 - 06/2005	1
53510-35211	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	02/2003 - 12/2999	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-10020B3	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN MD.MOON MIST,TRIM1#	03/2002 - 12/2999	1
53601-10020B3	RZN154,169..ARL;RZN149..EFI..(ARL,GEN);RZN147,148,168..DLX..(ARL,GCC,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,LN141,145,146,147,15#,16#,17#,19#,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,TH) MD.MOON MIST,TRIM1#	08/1997 - 09/2001	1
53601-10020B3	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN MD.MOON MIST,TRIM1#	09/2001 - 03/2002	1
53601-10020B3	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-35050	LN145,155..LHD..TH;LN140,145,147,152,16#,17#,19#,RZN142,147,148,149,154,16#,174,19#,YN140..ARL,GEN,SA	08/1997 - 03/1999	1
53630-35050	LN140,145,147,152,16#,17#,19#,RZN142,147,148,149,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GEN,SA)	03/1999 - 08/1999	1
53630-35050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
82711-44010
90105-08031
90119-06543
90119-08735
90467-11061
93560-15014

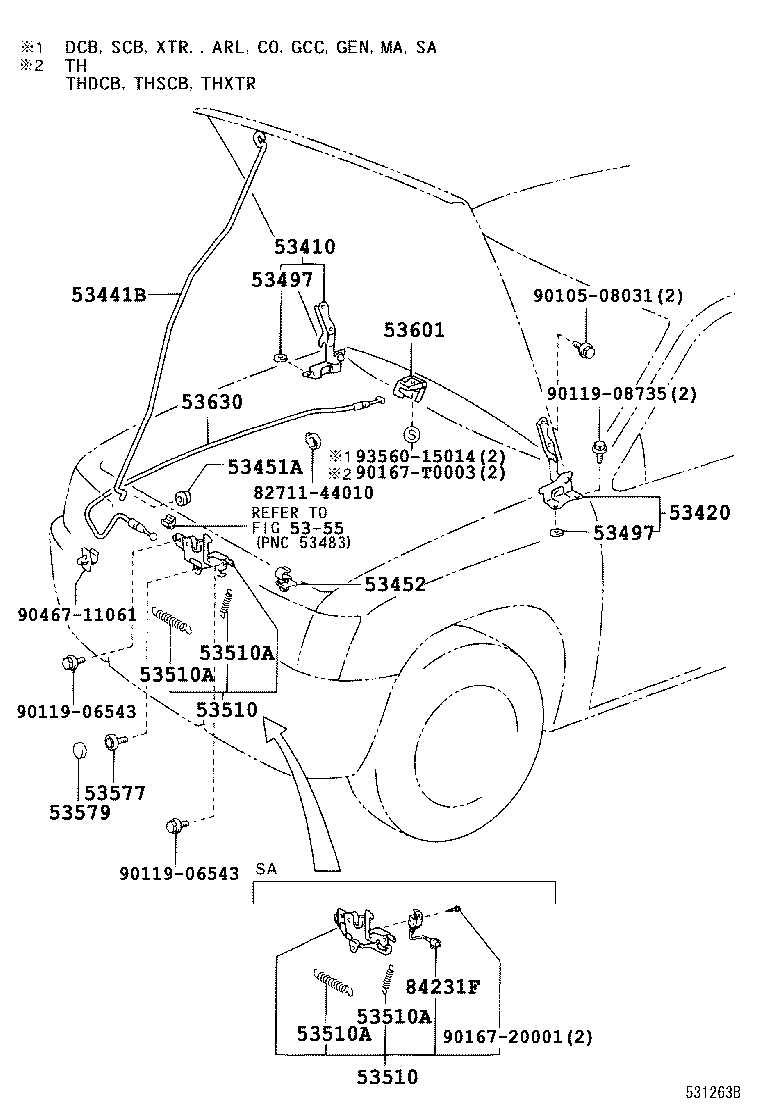

(0108-0109)GCC,GEN ; (0109-0203)ARL,GCC,GEN,TH ;(0203- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53410-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53420 - HINGE ASSY, HOOD, LH
53420-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53420-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53441B - SUPPORT, HOOD
53441-35030	KZN165,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 01/2000	1
53441-35050	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53441-35050	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53441-35031	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	01/2000 - 08/2001	1
53441-35050	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53441-35050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15027	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
90480-15012	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2001	1
90480-15027	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
90480-15027	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
90480-15027	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53452 - HOLDER, HOOD STAY
53455-35010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53455-35010	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53452-90351	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2001	1
53455-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53455-35010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53497 - PAD, HOOD HINGE, NO.1
53497-35040	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=2.0	08/1997 - 12/2999	4
53497-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=0.5	08/1997 - 12/2999	4
53497-35020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=1.0	08/1997 - 12/2999	4
53497-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=2.0	08/2001 - 06/2005	4
53497-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=0.5	08/2001 - 06/2005	4
53497-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=1.0	08/2001 - 06/2005	4
53497 - PAD, HOOD HINGE, NO.1
53497-35040	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=2.0	08/1997 - 12/2999	4
53497-35030	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=0.5	08/1997 - 12/2999	4
53497-35020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) T=1.0	08/1997 - 12/2999	4
53497-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=2.0	08/2001 - 06/2005	4
53497-35030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=0.5	08/2001 - 06/2005	4
53497-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU T=1.0	08/2001 - 06/2005	4
53510 - LOCK ASSY, HOOD
53510-35210	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 02/2003	1
53510-35120	LN145,166,RZN147,169..RHD..GEN	08/1997 - 08/2001	1
53510-35210	LN145,166,RZN147,169..RHD..(GEN,MA)..CBU	08/2001 - 02/2003	1
53510-35211	LN145,166,RZN147,169..RHD..GEN..CBU	02/2003 - 06/2005	1
53510-35211	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	02/2003 - 12/2999	1
53510 - LOCK ASSY, HOOD
53510-35210	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 02/2003	1
53510-35120	LN145,166,RZN147,169..RHD..GEN	08/1997 - 08/2001	1
53510-35210	LN145,166,RZN147,169..RHD..(GEN,MA)..CBU	08/2001 - 02/2003	1
53510-35211	LN145,166,RZN147,169..RHD..GEN..CBU	02/2003 - 06/2005	1
53510-35211	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	02/2003 - 12/2999	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=2.0,CW=17	08/1997 - 12/2999	1
90506-07021	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) WD=0.7,CW=37.25	08/1997 - 12/2999	1
90506-07021	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=0.7,CW=37.25	02/2003 - 06/2005	1
90506-20008	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU WD=2.0,CW=17	02/2003 - 06/2005	1
53577 - BOLT, HOOD LOCK
53577-33010	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53577-33010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53577-33010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53577-33010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53579 - CAP, HOOD LOCK NUT
53579-50010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	08/2001 - 09/2001	1
53579-50010	RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU	09/2001 - 03/2002	1
53579-50010	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU	03/2002 - 12/2999	1
53579-50010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-10020B3	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN MD.MOON MIST,TRIM1#	03/2002 - 12/2999	1
53601-10020B3	RZN154,169..ARL;RZN149..EFI..(ARL,GEN);RZN147,148,168..DLX..(ARL,GCC,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,LN141,145,146,147,15#,16#,17#,19#,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,TH) MD.MOON MIST,TRIM1#	08/1997 - 09/2001	1
53601-10020B3	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN MD.MOON MIST,TRIM1#	09/2001 - 03/2002	1
53601-10020B3	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-35050	LN145,155..LHD..TH;LN140,145,147,152,16#,17#,19#,RZN142,147,148,149,154,16#,174,19#,YN140..ARL,GEN,SA	08/1997 - 03/1999	1
53630-35050	LN140,145,147,152,16#,17#,19#,RZN142,147,148,149,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GEN,SA)	03/1999 - 08/1999	1
53630-35050	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
82711-44010
90105-08031
90119-06543
90119-08735
90167-20001
90167-T0003
90467-11061
93560-15014
Linked diagrams
5355

LN166R-TRMDS (1997)

(8308- )RHD

(9708-0108) ; (0108-0109)ARL,SA,TH ; (0109-0203)SA

(0108-0109)GCC,GEN ; (0109-0203)ARL,GCC,GEN,TH ;(0203- )
