LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108) ; (0108-0109)ARL,SA,TH ; (0109-0203)SA

Click highlighted areas on diagram

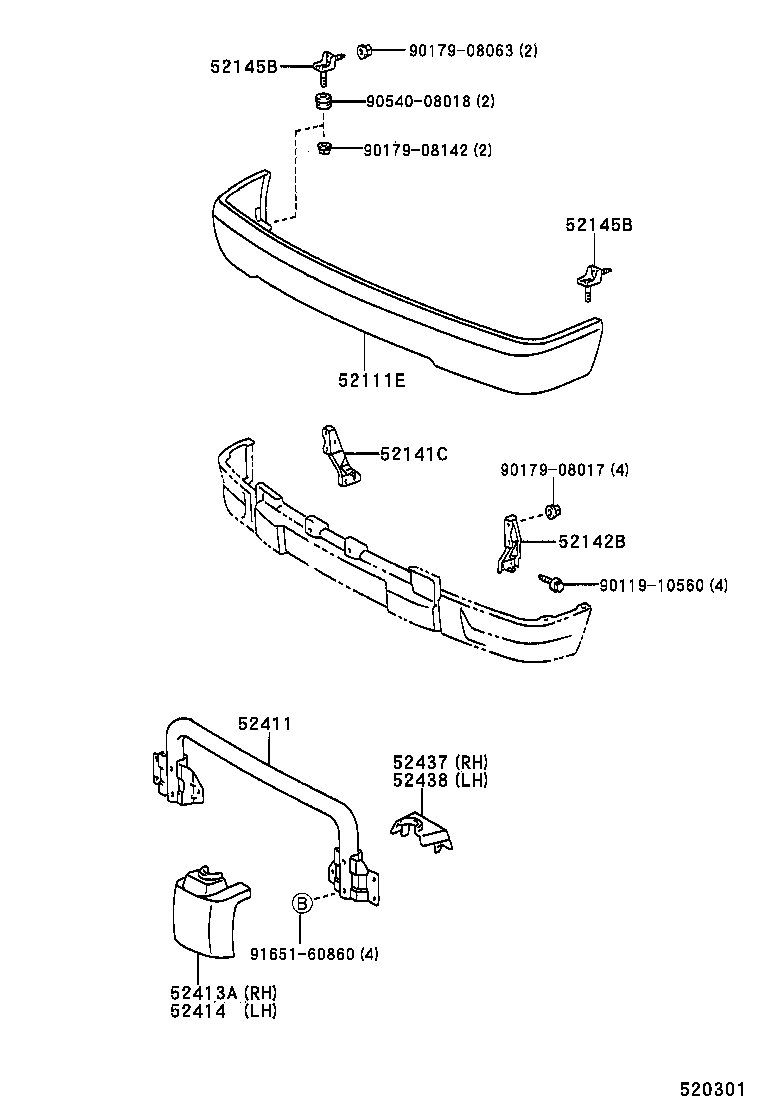

diagram 52111E 52141C 52142B 52145B 52145B 52411 52413A 52414 52437 52438 9011910560 9017908017 9017908063 9017908142 9054008018 9165160860
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-35370

RZN169..CBR;LN172..XTR..IV3;RZN169..(DCB,THDCB)..ARL;LN16#,171,19#,RZN168,193..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,TH)

CHROME PLATED

 1
52101-35370

LN166,171,19#,RZN16#,193..GCC,GEN,TH;LN167,RZN169..(DCB,THDCB,XTR)..(ARL,TH)

CHROME PLATED

 1
52101-35360

KZN165,190,LN16#,17#,19#,RZN16#,174,19#

 1
52101-35370

LN172..IV3;RZN169..CBR;KZN165..SR..(ARL,TH);RZN169..(DCB,THDCB)..ARL;LN16#,171,19#,RZN168,193..ARL,GCC,GEN,TH

CHROME PLATED

 1
52101-35370

LN167,172..IV3;LN167,RZN169..(DCB,XTR)..(ARL,TH);LN166,171,19#,RZN16#,193..GCC,GEN,TH

CHROME PLATED

 1
52101-35600

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52101-35600

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52101-35610

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

CHROME PLATED

 1
52101-35610

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

CHROME PLATED

 1
52101-35600

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52101-35610

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

CHROME PLATED

 1
52101-35600

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

 1
52141C - ARM, FRONT BUMPER, RH
52141-35060

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
52141-35080

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52141-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52141-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52141-35080

KZN190..SR;LN147..IV3;LN167..ARL,SA;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH);KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172

 1
52142B - ARM, FRONT BUMPER, LH
52142-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52142-35080

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52142-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52142-35080

KZN190..SR;LN147..IV3;LN167..ARL,SA;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH);KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172

 1
52142-35060

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
52145-89102

LN147..IV3;LN167..ARL,SA;LN145..DCB..TH;LN145..LHD..IV3;LN147..DCB..DLX;KZN190,LN147..SR;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172;KDN145,150,151,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH)

 2
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
52145-89102

LN147..IV3;LN167..ARL,SA;LN145..DCB..TH;LN145..LHD..IV3;LN147..DCB..DLX;KZN190,LN147..SR;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172;KDN145,150,151,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH)

 2
Common parts
90119-10560
90179-08017
90179-08063
90179-08142
90540-08018
91651-60860

(0108-0109)GCC,GEN ; (0109- )DCB,SCB,THDCB,THSCB,THXTR,XTR..ARL,GCC,GEN,MA,TH ;

Click highlighted areas on diagram

diagram 52111E 52114A 52141C 52142B 52145B 52145B 52411 52413A 52414 52437 52438 5353 5353 5353 9011910608 9017908017 9017908063 9017908142 9054008018 9165160860
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-35370

RZN169..CBR;LN172..XTR..IV3;RZN169..(DCB,THDCB)..ARL;LN16#,171,19#,RZN168,193..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,TH)

CHROME PLATED

 1
52101-35370

LN166,171,19#,RZN16#,193..GCC,GEN,TH;LN167,RZN169..(DCB,THDCB,XTR)..(ARL,TH)

CHROME PLATED

 1
52101-35360

KZN165,190,LN16#,17#,19#,RZN16#,174,19#

 1
52101-35370

LN172..IV3;RZN169..CBR;KZN165..SR..(ARL,TH);RZN169..(DCB,THDCB)..ARL;LN16#,171,19#,RZN168,193..ARL,GCC,GEN,TH

CHROME PLATED

 1
52101-35370

LN167,172..IV3;LN167,RZN169..(DCB,XTR)..(ARL,TH);LN166,171,19#,RZN16#,193..GCC,GEN,TH

CHROME PLATED

 1
52101-35600

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52101-35600

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52101-35610

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

CHROME PLATED

 1
52101-35610

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

CHROME PLATED

 1
52101-35600

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52101-35610

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

CHROME PLATED

 1
52101-35600

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

 1
52141C - ARM, FRONT BUMPER, RH
52141-35060

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
52141-35080

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52141-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52141-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52141-35080

KZN190..SR;LN147..IV3;LN167..ARL,SA;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH);KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172

 1
52142B - ARM, FRONT BUMPER, LH
52142-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52142-35080

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

 1
52142-35080

RZN148,168..DLX..CBU;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU

 1
52142-35080

KZN190..SR;LN147..IV3;LN167..ARL,SA;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH);KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172

 1
52142-35060

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
52145-89102

LN147..IV3;LN167..ARL,SA;LN145..DCB..TH;LN145..LHD..IV3;LN147..DCB..DLX;KZN190,LN147..SR;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172;KDN145,150,151,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH)

 2
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 2
52145-89102

LN147..IV3;LN167..ARL,SA;LN145..DCB..TH;LN145..LHD..IV3;LN147..DCB..DLX;KZN190,LN147..SR;LN150,152,192..DLX..CBU;LN145,RZN148..(GEN,SA)..CBU;KZN165,LN140,141,146,155,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172;KDN145,150,151,16#,190,RZN148,149..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,MA,TH)

 2
Common parts
90119-10608
90179-08017
90179-08063
90179-08142
90540-08018
91651-60860
Linked diagrams
5353
