Toyota Hilux LN166 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
GR
HILUX
LN166R-TRMDS (1997)
4505 - FRONT STEERING GEAR & LINK

LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

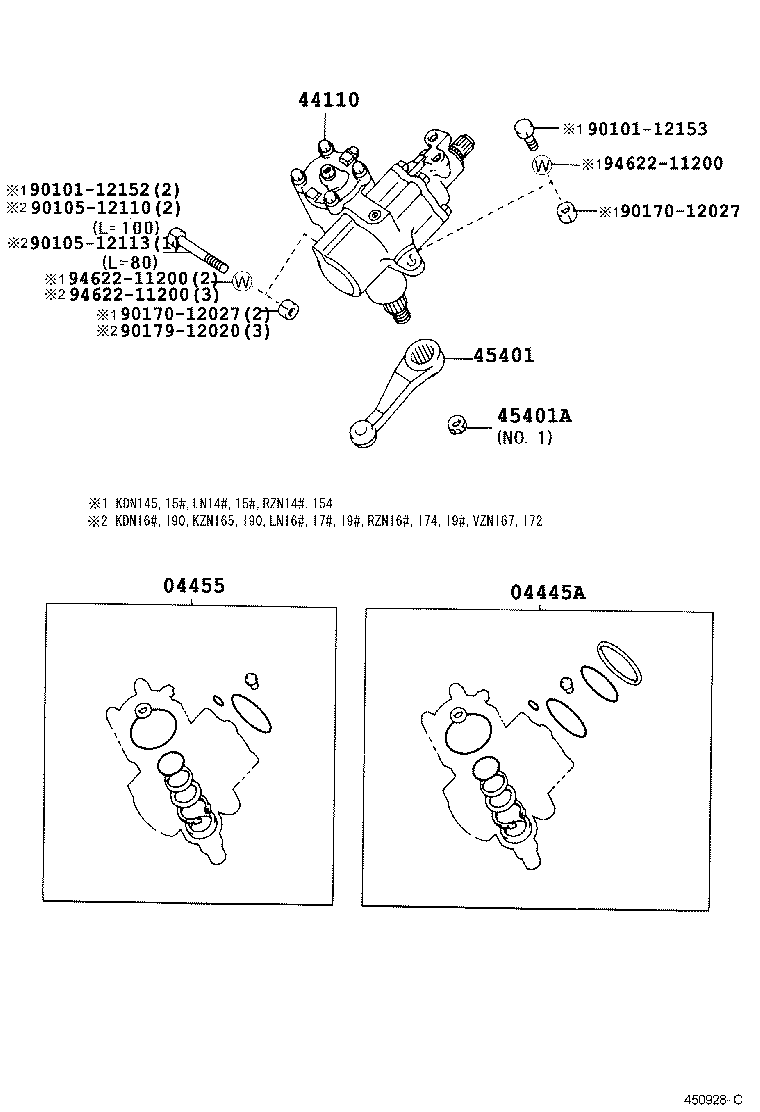

ILLUST NO. 1 OF 3(9708- )KDN16#,190,KZN165,190,LN16#,172,192,RZN169,174,194,VZN167,172..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-39385	LN167..DSL;RZN169..DLX..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN166,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN,SA)	08/1997 - 03/2002	1
45046-39385	LN166..RHD..GEN;RZN168..DLX..GEN	03/2002 - 12/2999	1
45046-39385	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39385	RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
45046-39385	RZN169..SA;RZN168..DLX;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA)	09/2001 - 03/2002	1
45046-39385	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45046-39385	LN166..RHD..GEN;RZN168..DLX..GEN	03/2002 - 12/2999	1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90170-22058	RZN148..IV3;RZN168..DLX;RZN169..ARL,SA;LN145..DCB..TH;RZN147..RHD..(SCB,THSCB);LN145,166,RZN154..RHD..(CBU,IV1);KZN165,190,LN140,147,15#,167,172,192,RZN149,174,194..ARL,GEN,SA,TH W(POWER STEERING),NO.1	08/2001 - 09/2001	1
90171-14042	LN147..IV3;LN16#,192..RHD..DLX;RZN148,168..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KZN165,LN140,155,172,RZN142,149,154,169,174,194..(ARL,SA,TH)..(CBU,IV3) NO.2	08/2001 - 09/2001	1
90170-22058	RZN169..SA;RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	09/2001 - 11/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
90170-22058	RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,166..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	11/2001 - 03/2002	1
90170-22058	RZN148..GEN..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU W(POWER STEERING),NO.1	03/2002 - 12/2999	1
90171-14042	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU NO.2	09/2001 - 12/2999	1
90170-22058	LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1	08/2001 - 06/2005	1
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
45406 - ROD SUB-ASSY, TIE, RH
45406-39185	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45406-39185	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
45407 - ROD SUB-ASSY, TIE, LH
45406-39185	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45406-39185	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
90201-14010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90201-14010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	06/2002 - 06/2005	1
45409C - NUT(FOR IDLER ARM SUPPORT)
94184-61401	LN166..RHD;RZN168..DLX	09/2001 - 03/2002	1
94184-61401	LN166..RHD;RZN168..DLX	08/2001 - 09/2001	1
94184-61401	LN166..RHD..GEN;RZN168..DLX..GEN	03/2002 - 12/2999	1
94184-61401	LN166,171,191,RZN16#,193..GEN	06/2002 - 06/2005	1
45409D - BUSH(FOR IDLER ARM)
90389-21004	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
90389-21004	LN166,171,191,RZN16#,193..GEN	06/2002 - 06/2005	2
45409D - BUSH(FOR IDLER ARM)
90389-21004	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
90389-21004	LN166,171,191,RZN16#,193..GEN	06/2002 - 06/2005	2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90304-31012	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	06/2002 - 06/2005	1
45450 - ROD ASSY, STEERING RELAY
45451-39175	LN16#,172..RHD	08/1997 - 05/1998	1
45451-39505	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,172..RHD	08/2001 - 06/2005	1
45451-39505	LN192;LN167..DSL;KZN165..XTR;LN167..DEFI..TH;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN190,LN166,172..RHD..DLX..(ARL,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU	05/1998 - 12/2999	1
45460 - ROD ASSY, TIE, RH
45460-39505	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
45460-39505	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45461 - ROD, STEERING TIE
45465-35040	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
45465-35040	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	2
45461 - ROD, STEERING TIE
45465-35040	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
45465-35040	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	2
45466 - CLAMP, TIE ROD END
45466-30020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	4
45466-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	4
45466 - CLAMP, TIE ROD END
45466-30020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	4
45466-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	4
45466 - CLAMP, TIE ROD END
45466-30020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	4
45466-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	4
45466 - CLAMP, TIE ROD END
45466-30020	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	4
45466-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	4
45470 - ROD ASSY, TIE, LH
45460-39505	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
45460-39505	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 12/2999	1
45490 - ARM ASSY, STEERING IDLER
45490-39445	LN167..DSL;LN192,RZN194;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;KZN190,LN166,172,RZN174..RHD..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN169..RHD..(DCB,SCB)..(CBR,TDE)..(ARL,GEN,SA)	08/1997 - 06/2002	1
45490-39445	KZN190..SR;LN167,192..ARL,SA;KDN165,190,KZN165,LN166,172,RZN169,174,194..RHD	08/2001 - 06/2002	1
45490-39446	KDN16#,190,KZN165,190,LN16#,172,192,RZN169,174,194,VZN167,172..RHD	06/2002 - 06/2005	1
45490-39446	LN166..RHD..GEN	06/2002 - 02/2004	1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90171-12028	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
45497 - CAP, IDLER ARM BRACKET
45497-28010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45497-28010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	06/2002 - 06/2005	1
45611 - ARM, STEERING KNUCKLE, RH
45611-35130	LN166..RHD..GEN;RZN168..DLX..GEN	05/2003 - 12/2999	1
45611-35130	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA)	09/2001 - 05/2003	1
45611-35130	RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
45611-35130	KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 11/2005	1
45611P - BOLT(FOR STEERING KNUCKLE)
90105-14043	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172	08/2001 - 12/2999	4
90105-14043	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	4
45611P - BOLT(FOR STEERING KNUCKLE)
90105-14043	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172	08/2001 - 12/2999	4
90105-14043	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	4
45612 - ARM, STEERING KNUCKLE, LH
45612-35150	RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
45612-35150	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA)	09/2001 - 05/2003	1
45612-35150	LN166..RHD..GEN;RZN168..DLX..GEN	05/2003 - 12/2999	1
45612-35150	KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 11/2005	1
45700 - DAMPER ASSY, STEERING
45700-39046	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
45700-39046	KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH	08/2001 - 11/2005	1
45700A - NUT(FOR STEERING DAMPER)
90171-12028	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
90171-12028	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	1
45700A - NUT(FOR STEERING DAMPER)
90171-12028	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
90171-12028	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	1
Common parts
90101-08057
90105-12110
90105-12113
90106-12014
90179-12020
91612-61045
94110-41000
94110-50800
94130-61200
94512-00800
94622-11200
95381-03225

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-35170	RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)	08/1997 - 12/2999	1
44107-35170	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-36006	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
90364-36006	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	2
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-36006	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
90364-36006	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-69002	KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-69002	RZN194..DCB;LN167..(DCB,SCB)..DLX;RZN169..(DCB,SCB)..DLX..ARL;KZN165,190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA) ID=69.0,OD=74.0	08/2001 - 11/2001	1
96711-19010	RZN194..DCB;LN152..XTR..IV3;RZN169..(DCB,SCB)..DLX..ARL;LN147,167,RZN149..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,190,LN166,172,192,RZN147,154,174..RHD..(DCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA) ID=9.8,OD=13.6	08/2001 - 11/2001	2
90301-37006	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7	08/1997 - 08/2001	1
90080-30071	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR ID=9.15,OD=13.05	01/2000 - 09/2001	2
96711-19010	RZN169..SA;RZN149..GEN;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA) ID=9.8,OD=13.6	11/2001 - 03/2002	2
90080-30069	LN166..RHD..GEN ID=69.0,OD=74.0,THAILAND PRODUCT	01/2000 - 02/2004	1
96711-19010	RZN149..GEN;LN166..RHD..GEN ID=9.8,OD=13.6	03/2002 - 12/2999	2
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 12/2999	1
90080-30071	LN166..RHD..GEN ID=9.15,OD=13.05	09/2001 - 12/2999	2
90301-69002	LN167..SCB..SA;RZN169..DCB..SA;KZN190,RZN169..DLX..SA;KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=69.0,OD=74.0	11/2001 - 12/2999	1
90301-69002	LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0	08/2001 - 06/2005	1
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 06/2005	1
96711-19010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6	08/2001 - 06/2005	2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-69002	KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-69002	RZN194..DCB;LN167..(DCB,SCB)..DLX;RZN169..(DCB,SCB)..DLX..ARL;KZN165,190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA) ID=69.0,OD=74.0	08/2001 - 11/2001	1
96711-19010	RZN194..DCB;LN152..XTR..IV3;RZN169..(DCB,SCB)..DLX..ARL;LN147,167,RZN149..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,190,LN166,172,192,RZN147,154,174..RHD..(DCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA) ID=9.8,OD=13.6	08/2001 - 11/2001	2
90301-37006	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7	08/1997 - 08/2001	1
90080-30071	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR ID=9.15,OD=13.05	01/2000 - 09/2001	2
96711-19010	RZN169..SA;RZN149..GEN;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA) ID=9.8,OD=13.6	11/2001 - 03/2002	2
90080-30069	LN166..RHD..GEN ID=69.0,OD=74.0,THAILAND PRODUCT	01/2000 - 02/2004	1
96711-19010	RZN149..GEN;LN166..RHD..GEN ID=9.8,OD=13.6	03/2002 - 12/2999	2
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 12/2999	1
90080-30071	LN166..RHD..GEN ID=9.15,OD=13.05	09/2001 - 12/2999	2
90301-69002	LN167..SCB..SA;RZN169..DCB..SA;KZN190,RZN169..DLX..SA;KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=69.0,OD=74.0	11/2001 - 12/2999	1
90301-69002	LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0	08/2001 - 06/2005	1
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 06/2005	1
96711-19010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6	08/2001 - 06/2005	2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-69002	KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-69002	RZN194..DCB;LN167..(DCB,SCB)..DLX;RZN169..(DCB,SCB)..DLX..ARL;KZN165,190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA) ID=69.0,OD=74.0	08/2001 - 11/2001	1
96711-19010	RZN194..DCB;LN152..XTR..IV3;RZN169..(DCB,SCB)..DLX..ARL;LN147,167,RZN149..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,190,LN166,172,192,RZN147,154,174..RHD..(DCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA) ID=9.8,OD=13.6	08/2001 - 11/2001	2
90301-37006	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7	08/1997 - 08/2001	1
90080-30071	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR ID=9.15,OD=13.05	01/2000 - 09/2001	2
96711-19010	RZN169..SA;RZN149..GEN;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA) ID=9.8,OD=13.6	11/2001 - 03/2002	2
90080-30069	LN166..RHD..GEN ID=69.0,OD=74.0,THAILAND PRODUCT	01/2000 - 02/2004	1
96711-19010	RZN149..GEN;LN166..RHD..GEN ID=9.8,OD=13.6	03/2002 - 12/2999	2
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 12/2999	1
90080-30071	LN166..RHD..GEN ID=9.15,OD=13.05	09/2001 - 12/2999	2
90301-69002	LN167..SCB..SA;RZN169..DCB..SA;KZN190,RZN169..DLX..SA;KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=69.0,OD=74.0	11/2001 - 12/2999	1
90301-69002	LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0	08/2001 - 06/2005	1
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 06/2005	1
96711-19010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6	08/2001 - 06/2005	2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-69002	KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-69002	RZN194..DCB;LN167..(DCB,SCB)..DLX;RZN169..(DCB,SCB)..DLX..ARL;KZN165,190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA) ID=69.0,OD=74.0	08/2001 - 11/2001	1
96711-19010	RZN194..DCB;LN152..XTR..IV3;RZN169..(DCB,SCB)..DLX..ARL;LN147,167,RZN149..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,190,LN166,172,192,RZN147,154,174..RHD..(DCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA) ID=9.8,OD=13.6	08/2001 - 11/2001	2
90301-37006	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7	08/1997 - 08/2001	1
90080-30071	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR ID=9.15,OD=13.05	01/2000 - 09/2001	2
96711-19010	RZN169..SA;RZN149..GEN;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA) ID=9.8,OD=13.6	11/2001 - 03/2002	2
90080-30069	LN166..RHD..GEN ID=69.0,OD=74.0,THAILAND PRODUCT	01/2000 - 02/2004	1
96711-19010	RZN149..GEN;LN166..RHD..GEN ID=9.8,OD=13.6	03/2002 - 12/2999	2
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 12/2999	1
90080-30071	LN166..RHD..GEN ID=9.15,OD=13.05	09/2001 - 12/2999	2
90301-69002	LN167..SCB..SA;RZN169..DCB..SA;KZN190,RZN169..DLX..SA;KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=69.0,OD=74.0	11/2001 - 12/2999	1
90301-69002	LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0	08/2001 - 06/2005	1
90301-37006	LN166..RHD..GEN ID=37.7,OD=44.7,PLANT NO.P11	08/2001 - 06/2005	1
96711-19010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6	08/2001 - 06/2005	2
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-36002	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=36.0,OD=44.0	08/1997 - 08/2001	1
90562-35001	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=35.7,OD=38.1	08/1997 - 08/2001	1
90562-35001	RZN169..ARL,SA;LN167,192,RZN168..DLX;KZN165,LN166,172,RZN174,194..RHD..(CBU,IV3) ID=35.7,OD=38.1	08/2001 - 09/2001	1
90562-36002	RZN169..ARL,SA;LN167,192,RZN168..DLX;KZN165,LN166,172,RZN174,194..RHD..(CBU,IV3) ID=36.0,OD=44.0	08/2001 - 09/2001	1
90562-35001	RZN169..SA;RZN168..DLX;KZN165,LN16#,192,RZN194..RHD..(GEN,SA) ID=35.7,OD=38.1	09/2001 - 11/2001	1
90562-35001	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=35.7,OD=38.1	11/2001 - 12/2999	1
90562-36002	RZN169..SA;RZN168..DLX;KZN165,LN16#,192,RZN194..RHD..(GEN,SA) ID=36.0,OD=44.0	09/2001 - 11/2001	1
90562-36002	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=36.0,OD=44.0	11/2001 - 12/2999	1
90562-35001	LN166,171,191,RZN16#,193..GEN ID=35.7,OD=38.1	08/2001 - 06/2005	1
90562-36002	LN166,171,191,RZN16#,193..GEN ID=36.0,OD=44.0	08/2001 - 06/2005	1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-36002	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=36.0,OD=44.0	08/1997 - 08/2001	1
90562-35001	KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=35.7,OD=38.1	08/1997 - 08/2001	1
90562-35001	RZN169..ARL,SA;LN167,192,RZN168..DLX;KZN165,LN166,172,RZN174,194..RHD..(CBU,IV3) ID=35.7,OD=38.1	08/2001 - 09/2001	1
90562-36002	RZN169..ARL,SA;LN167,192,RZN168..DLX;KZN165,LN166,172,RZN174,194..RHD..(CBU,IV3) ID=36.0,OD=44.0	08/2001 - 09/2001	1
90562-35001	RZN169..SA;RZN168..DLX;KZN165,LN16#,192,RZN194..RHD..(GEN,SA) ID=35.7,OD=38.1	09/2001 - 11/2001	1
90562-35001	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=35.7,OD=38.1	11/2001 - 12/2999	1
90562-36002	RZN169..SA;RZN168..DLX;KZN165,LN16#,192,RZN194..RHD..(GEN,SA) ID=36.0,OD=44.0	09/2001 - 11/2001	1
90562-36002	RZN169..DCB..SA;LN167,RZN169..SCB..DLX..SA;KZN190,RZN168..DLX..(GEN,SA);KZN165,LN166,192,RZN194..RHD..(GEN,SA) ID=36.0,OD=44.0	11/2001 - 12/2999	1
90562-35001	LN166,171,191,RZN16#,193..GEN ID=35.7,OD=38.1	08/2001 - 06/2005	1
90562-36002	LN166,171,191,RZN16#,193..GEN ID=36.0,OD=44.0	08/2001 - 06/2005	1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90521-48002	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
90521-48002	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90311-36005	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
90311-36005	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	1
44108 - COVER SUB-ASSY, SIDE
44108-60020	RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)	08/1997 - 12/2999	1
44108-60020	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
44108A - RING, O(FOR SIDE COVER)
90301-64002	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
90301-64002	LN166..RHD..GEN PLANT NO.P11	08/2001 - 12/2999	1
90080-30073	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR	01/2000 - 09/2001	1
90080-30073	LN166..RHD..GEN THAILAND PRODUCT	09/2001 - 12/2999	1
90301-64002	LN166..RHD..GEN PLANT NO.P11	08/2001 - 06/2005	1
90301-64002	LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44111 - SHAFT, CROSS
44111-60030	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
44111-60030	LN166,171,191,RZN16#,193..GEN	08/2001 - 06/2005	1
44120 - VALVE ASSY, W/BALL NUT
44120-35320	RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)	08/1997 - 12/2999	1
44120-35320	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
44142 - NUT, LOCK
44142-60020	RZN169..SA;RZN147..RHD..SCB..CBR;RZN148,149,168..DLX..GEN;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU	09/2001 - 03/2002	1
44142-60020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44142-60020	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN	03/2002 - 12/2999	1
44142-60020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44152 - PLUNGER, POWER PISTON
44152-30020	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN	03/2002 - 12/2999	1
44152-30020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44152-30020	RZN169..SA;RZN147..RHD..SCB..CBR;RZN148,149,168..DLX..GEN;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU	09/2001 - 03/2002	1
44152-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)
90501-20095	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
90080-50281	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR	01/2000 - 09/2001	1
90501-20095	LN166..RHD..GEN PLANT NO.P11	08/2001 - 12/2999	1
90080-50281	LN166..RHD..GEN THAILAND PRODUCT	09/2001 - 12/2999	1
90501-20095	LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90501-20095	LN166..RHD..GEN PLANT NO.P11	08/2001 - 06/2005	1
44153 - GUIDE, POWER PISTON PLUNGER
44153-04010	LN166..RHD..GEN THAILAND PRODUCT	09/2001 - 12/2999	1
44153-30020	LN166..RHD..GEN PLANT NO.P11	08/2001 - 12/2999	1
44153-30020	LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44153-30020	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
44153-30020	LN166..RHD..GEN PLANT NO.P11	08/2001 - 06/2005	1
44153-04010	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR	01/2000 - 09/2001	1
44154 - NUT, POWER PISTON PLUNGER GUIDE
44154-30020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44154-30020	RZN169..SA;RZN147..RHD..SCB..CBR;RZN148,149,168..DLX..GEN;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU	09/2001 - 03/2002	1
44154-30020	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN	03/2002 - 12/2999	1
44154-30020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)
90080-30070	LN167..DCB..TH;LN145,152..RHD..TH;LN152,155,157,166,172,RZN154,174..RHD..(DCB,SCB,THXTR);KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR	01/2000 - 09/2001	1
90080-30070	LN166..RHD..GEN THAILAND PRODUCT	09/2001 - 12/2999	1
96711-19014	LN166..RHD..GEN PLANT NO.P11	08/2001 - 12/2999	1
96711-19014	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
96711-19014	LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
96711-19014	LN166..RHD..GEN PLANT NO.P11	08/2001 - 06/2005	1
44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN	03/2002 - 12/2999	1
90210-10001	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
90210-10001	RZN169..SA;RZN147..RHD..SCB..CBR;RZN148,149,168..DLX..GEN;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU	09/2001 - 03/2002	1
90210-10001	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
44447B - BRACKET, HOSE SUPPORT, NO.1
44447-35030	LN167..SCB..SA;RZN169..DCB..SA;KZN190,RZN169..DLX..SA;KZN165,LN166,192,RZN194..RHD..(GEN,SA)	11/2001 - 12/2999	1
44447-35030	LN166..RHD	08/2001 - 09/2001	1
44447-35030	LN166..RHD	09/2001 - 11/2001	1
44447-35030	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-60030	RZN169..SA;RZN148,168..DLX..CBU;RZN147,194..RHD..SCB..(GEN,SA);LN140,145,166..RHD..(GEN,SA)..CBU W(POWER STEERING)	09/2001 - 03/2002	1
45357-36010	RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA)	08/1997 - 10/2000	1
45357-60030	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU W(POWER STEERING)	03/2002 - 12/2999	1
45357-36010	LN166,171,191,RZN16#,193..GEN	10/2000 - 08/2001	1
45357-36010	LN166..RHD..GEN;RZN168..DLX..GEN	08/2001 - 12/2999	1
45357-60030	RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING)	08/1997 - 09/2001	1
45357-60030	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,168,193..DLX..GEN..CBU W(POWER STEERING)	08/2001 - 06/2005	1
Common parts
90080-11145
90080-11392
90119-10070
90119-10582
90170-10208

ILLUST NO. 2 OF 3(9708- )KDN145,15#,16#,190,KZN165,190,LN14#,152,155,157,16#,17#,19#,RZN144,147,1

Click highlighted areas on diagram

POWER STEERING

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-35180	KZN165,190,LN16#,17#,19#,RZN16#,174,19#..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2001	1
04445-35180	KZN165,190,LN16#,17#,19#,RZN16#,174,19#..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2001	1
04445-35180	RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;LN167,RZN168..(DCB,SCB)..DLX;KZN165,190,LN166,172,192,RZN174,194..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)	08/2001 - 10/2001	1
04445-35180	RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;LN167,RZN168..(DCB,SCB)..DLX;KZN165,190,LN166,172,192,RZN174,194..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)	08/2001 - 10/2001	1
04445-35180	RZN169..SA;RZN168..DLX;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA)	10/2001 - 03/2002	1
04445-35180	RZN169..SA;RZN168..DLX;KZN165,190,LN16#,192,RZN194..RHD..(GEN,SA)	10/2001 - 03/2002	1
04445-35180	LN166..RHD..GEN;RZN168..DLX..GEN;RZN169..DCB..GCC	03/2002 - 12/2999	1
04445-35180	LN166..RHD..GEN;RZN168..DLX..GEN;RZN169..DCB..GCC	03/2002 - 12/2999	1
04445-35180	LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA)	08/2001 - 12/2999	1
04445-35180	LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA)	08/2001 - 12/2999	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-35100	LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA)	08/2001 - 12/2999	1
04455-35100	LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA)	08/2001 - 12/2999	1
04455-35100	RZN169..SA;LN167,192,RZN168..DLX..(DEFI,EFI)..(GEN,SA);KZN165,190,LN166,RZN194..RHD..(DCB,SCB)..(GEN,SA)	08/1997 - 03/2002	1
04455-35100	RZN169..SA;LN167,192,RZN168..DLX..(DEFI,EFI)..(GEN,SA);KZN165,190,LN166,RZN194..RHD..(DCB,SCB)..(GEN,SA)	08/1997 - 03/2002	1
44110 - GEAR ASSY, POWER STEERING
44110-35330	RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)	08/1997 - 12/2999	1
44110-35330	RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN190,LN166,172,192,RZN174..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)	08/1997 - 12/2999	1
44110-35330	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
44110-35330	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
45401 - ARM SUB-ASSY, PITMAN
45401-35260	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN167,RZN169..RHD..(CBR,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN166,172,RZN174..RHD..DLX..(ARL,GEN,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
45401-35260	KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN167,RZN169..RHD..(CBR,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN166,172,RZN174..RHD..DLX..(ARL,GEN,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
45401-35260	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
45401-35260	LN166,RZN169..RHD..GEN	08/2001 - 06/2005	1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90170-22058	RZN148..IV3;RZN168..DLX;RZN169..ARL,SA;LN145..DCB..TH;RZN147..RHD..(SCB,THSCB);LN145,166,RZN154..RHD..(CBU,IV1);KZN165,190,LN140,147,15#,167,172,192,RZN149,174,194..ARL,GEN,SA,TH W(POWER STEERING),NO.1	08/2001 - 09/2001	1
90170-22058	RZN148..IV3;RZN168..DLX;RZN169..ARL,SA;LN145..DCB..TH;RZN147..RHD..(SCB,THSCB);LN145,166,RZN154..RHD..(CBU,IV1);KZN165,190,LN140,147,15#,167,172,192,RZN149,174,194..ARL,GEN,SA,TH W(POWER STEERING),NO.1	08/2001 - 09/2001	1
90171-14042	LN147..IV3;LN16#,192..RHD..DLX;RZN148,168..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KZN165,LN140,155,172,RZN142,149,154,169,174,194..(ARL,SA,TH)..(CBU,IV3) NO.2	08/2001 - 09/2001	1
90171-14042	LN147..IV3;LN16#,192..RHD..DLX;RZN148,168..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KZN165,LN140,155,172,RZN142,149,154,169,174,194..(ARL,SA,TH)..(CBU,IV3) NO.2	08/2001 - 09/2001	1
90170-22058	RZN169..SA;RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	09/2001 - 11/2001	1
90170-22058	RZN169..SA;RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	09/2001 - 11/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
90170-22058	RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,166..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	11/2001 - 03/2002	1
90170-22058	RZN148..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,166..RHD..(GEN,SA)..CBU W(POWER STEERING),NO.1	11/2001 - 03/2002	1
90170-22058	RZN148..GEN..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU W(POWER STEERING),NO.1	03/2002 - 12/2999	1
90170-22058	RZN148..GEN..IV3;RZN149,168..DLX..GEN;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU W(POWER STEERING),NO.1	03/2002 - 12/2999	1
90171-14042	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU NO.2	09/2001 - 12/2999	1
90171-14042	RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN..CBU;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN140,145,166,192,RZN142,194..RHD..(GEN,SA)..CBU NO.2	09/2001 - 12/2999	1
90170-22058	LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1	08/2001 - 06/2005	1
90170-22058	LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1	08/2001 - 06/2005	1
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
90171-14042	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
Common parts
90101-12152
90101-12153
90105-12110
90105-12113
90170-12027
90179-12020
94622-11200

LN166R-TRMDS (1997)

ILLUST NO. 1 OF 3(9708- )KDN16#,190,KZN165,190,LN16#,172,192,RZN169,174,194,VZN167,172..RHD

ILLUST NO. 3 OF 3(9708- )

ILLUST NO. 2 OF 3(9708- )KDN145,15#,16#,190,KZN165,190,LN14#,152,155,157,16#,17#,19#,RZN144,147,1

Part Price Details
