LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN166,171..GEN,MA

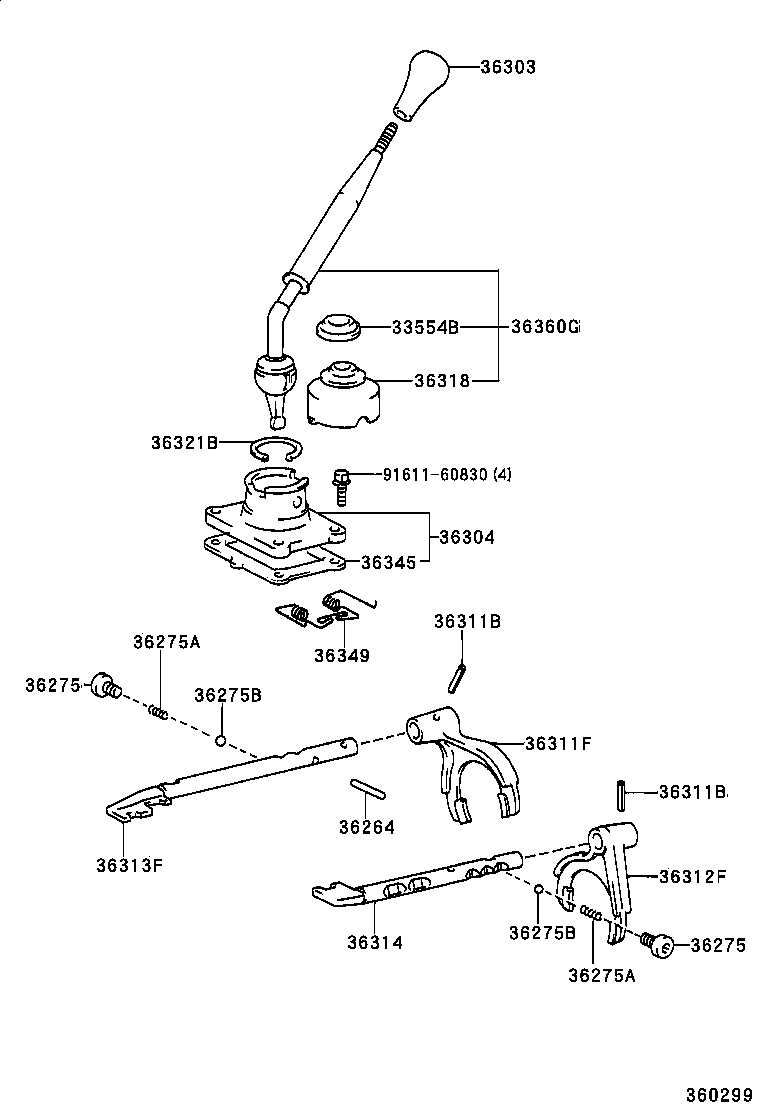

Click highlighted areas on diagram

diagram 33554B 36264 36275 36275 36275A 36275A 36275B 36275B 36303 36304 36311B 36311B 36311F 36312F 36313F 36314 36318 36321B 36345 36349 36360G 9161160830
Part # Description Qty Price
33554B - CAP, TRANSFER SHIFT LEVER
33554-20010

KZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(CBR,DEFI)..(GCC,GEN,TH);KZN165,LN17#,RZN174..(SCB,THXTR,XTR)..DLX;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU

 1
33554-20010

RZN169..LHD..GEN;LN166,171,RZN168..GEN

 1
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06005

LN166,171..DSL..GEN

L=30.8,OD=6

 1
90250-06005

LN166,171..GEN,MA

L=30.8,OD=6

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-10064

LN166,171..DSL..GEN

 2
90341-10064

LN166,171..GEN,MA

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-10064

LN166,171..DSL..GEN

 2
90341-10064

LN166,171..GEN,MA

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13001

LN166,171..DSL..GEN

L=16.5

 2
90501-13001

LN166,171..GEN,MA

L=16.5

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13001

LN166,171..DSL..GEN

L=16.5

 2
90501-13001

LN166,171..GEN,MA

L=16.5

 2
36275B - BALL, SHIFT DETENT
90360-08009

LN166,171..DSL..GEN

OD=7.94,STEEL

 2
90360-08009

LN166,171..GEN,MA

OD=7.94,STEEL

 2
36275B - BALL, SHIFT DETENT
90360-08009

LN166,171..DSL..GEN

OD=7.94,STEEL

 2
90360-08009

LN166,171..GEN,MA

OD=7.94,STEEL

 2
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-35140B1

RZN169..DCB..SA;RZN168..DLX..GEN;LN167,RZN169..SCB..DLX..SA;KZN165,LN166..RHD..(GEN,SA)

MD.MOON MIST,TRIM1#

 1
36303-35140B1

LN166,171,RZN16#..GEN

MD.MOON MIST,TRIM1#

 1
36303-35140B1

KZN165..XTR;LN167..DSL..(CBU,IV3);LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN166,17#,RZN168,174..(DCB,SCB,THXTR,XTR)..DLX

MD.MOON MIST,TRIM1#

 1
36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36304-35032

LN166..RHD..GEN

 1
36304-35032

LN166,171..GEN,MA

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

VZN167..SR;LN166,171..GEN,MA;VZN167,172..ATM..DLX

L=22

 2
90254-05001

LN166,171..DSL..GEN

L=22

 2
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

VZN167..SR;LN166,171..GEN,MA;VZN167,172..ATM..DLX

L=22

 2
90254-05001

LN166,171..DSL..GEN

L=22

 2
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-35010

LN166,171..DSL..GEN

 1
36311-35010

LN166,171..GEN,MA

 1
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-35020

LN166,171..DSL..GEN

 1
36312-35020

LN166,171..GEN,MA

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-35020

LN166,171..DSL..GEN

 1
36313-35020

LN166,171..GEN,MA

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-35020

LN166,171..DSL..GEN

 1
36314-35020

LN166,171..GEN,MA

 1
36318 - BOOT, TRANSFER FRONT DRIVE SHIFT
33555-35200

LN166,171..DSL..GEN

 1
33555-35200

LN166,171..GEN

 1
36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
90521-49003

KZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);LN16#..DSL..(ARL,GCC,GEN,SA,TH);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(CBR,DEFI)..(GCC,GEN,TH);KZN165,LN17#,RZN174..(SCB,THXTR,XTR)..DLX;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU

 1
90521-49003

RZN169..LHD..GEN;LN166,171,RZN168..GEN

 1
36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36345-35021

LN166..RHD..GEN

 1
36345-35021

LN166,171..GEN,MA

 1
36349 - SPRING, TRANSFER SELECT RETURN
36349-35031

LN166,171..GEN,MA

 1
36349-35031

LN166..RHD..GEN

 1
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-35330

LN166..RHD..GEN

 1
36360-35330

LN166..RHD..GEN

 1
Common parts
91611-60830
