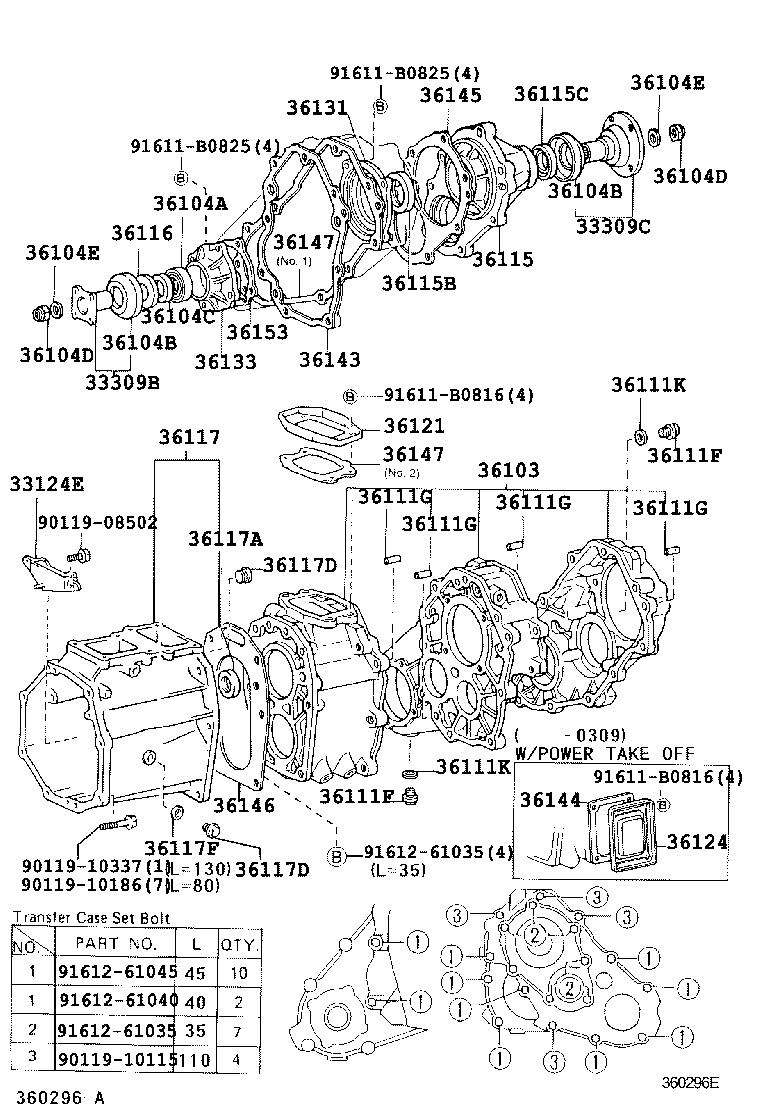

LN166R-TRMDS (1997)
Toyota Hilux
(9708- )LN166,171..GEN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-35020 |
LN166,171..GEN,MA |
1 | ||
| 33124-35020 |
LN166..RHD..GEN |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35030 |
LN166,171..DSL..GEN |
1 | ||
| 33309-35030 |
LN166,171..GEN,MA |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35040 |
LN166,171..DSL..GEN |
1 | ||
| 33309-35040 |
LN166,171..GEN,MA |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-35024 |
LN166,171..GEN W(POWER TAKE OFF) |
1 | ||
| 36103-35014 |
LN166,171..GEN,MA |
1 | ||
| 36103-35014 |
LN166,171..DSL..GEN |
1 | ||
| 36103-35024 |
LN166,171..DSL..GEN W(POWER TAKE OFF) |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38016 |
LN166,171..GEN,MA |
1 | ||
| 90311-38016 |
LN166,171..DSL..GEN |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN166,171..GEN,MA |
2 | ||
| 33325-35020 |
LN166,171..DSL..GEN |
2 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN166,171..GEN,MA |
2 | ||
| 33325-35020 |
LN166,171..DSL..GEN |
2 | ||
| 36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90303-38010 |
LN166,171..DSL..GEN |
1 | ||
| 90303-38010 |
LN166,171..GEN,MA |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN166,171..DSL..GEN |
2 | ||
| 90179-20001 |
LN166,171..GEN,MA |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN166,171..DSL..GEN |
2 | ||
| 90179-20001 |
LN166,171..GEN,MA |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN166,171..DSL..GEN |
2 | ||
| 90201-20005 |
LN166,171..GEN,MA |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN166,171..DSL..GEN |
2 | ||
| 90201-20005 |
LN166,171..GEN,MA |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN166,171..DSL..GEN FILLER |
1 | ||
| 90341-18057 |
LN166,171..DSL..GEN DRAIN |
1 | ||
| 90341-18006 |
LN166,171..GEN |
1 | ||
| 90341-18057 |
LN166,171..GEN,MA DRAIN |
1 | ||
| 90341-18006 |
LN166,171..GEN,MA FILLER |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
LN166,171..DSL..GEN FILLER |
1 | ||
| 90341-18057 |
LN166,171..DSL..GEN DRAIN |
1 | ||
| 90341-18006 |
LN166,171..GEN |
1 | ||
| 90341-18057 |
LN166,171..GEN,MA DRAIN |
1 | ||
| 90341-18006 |
LN166,171..GEN,MA FILLER |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN166,171..DSL..GEN L=15,OD=8 |
4 | ||
| 90250-10232 |
LN166,171..GEN,MA L=15,OD=8 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN166,171..DSL..GEN L=15,OD=8 |
4 | ||
| 90250-10232 |
LN166,171..GEN,MA L=15,OD=8 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN166,171..DSL..GEN L=15,OD=8 |
4 | ||
| 90250-10232 |
LN166,171..GEN,MA L=15,OD=8 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN166,171..DSL..GEN L=15,OD=8 |
4 | ||
| 90250-10232 |
LN166,171..GEN,MA L=15,OD=8 |
4 | ||
| 36111K - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN166,171..DSL..GEN |
2 | ||
| 90430-18008 |
LN166,171..GEN,MA |
2 | ||
| 36111K - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
LN166,171..DSL..GEN |
2 | ||
| 90430-18008 |
LN166,171..GEN,MA |
2 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36115-35010 |
LN166,171..GEN,MA |
1 | ||
| 36115-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36115B - SEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90312-48001 |
LN166,171..GEN,MA |
1 | ||
| 90312-48001 |
LN166,171..DSL..GEN |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38140 |
LN166,171..DSL..GEN |
1 | ||
| 90311-38140 |
LN166,171..GEN,MA |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
LN166,171..GEN,MA |
1 | ||
| 33145-30010 |
LN166,171..DSL..GEN |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35092 |
LN166..RHD..GEN |
1 | ||
| 36107-35092 |
LN166,171..GEN,MA |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-32009 |
LN166..RHD..GEN |
1 | ||
| 90311-32009 |
LN166,171..GEN,MA |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN166,171..GEN,MA FILLER |
1 | ||
| 90341-30003 |
LN166..RHD..GEN DRAIN |
1 | ||
| 90341-30003 |
LN166,171..GEN,MA DRAIN |
1 | ||
| 90341-18006 |
LN166..RHD..GEN FILLER |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90341-18006 |
LN166,171..GEN,MA FILLER |
1 | ||
| 90341-30003 |
LN166..RHD..GEN DRAIN |
1 | ||
| 90341-30003 |
LN166,171..GEN,MA DRAIN |
1 | ||
| 90341-18006 |
LN166..RHD..GEN FILLER |
1 | ||
| 36117F - GASKET(FOR TRANSFER ADAPTER PLUG) | ||||
| 90430-18008 |
LN166,171..GEN,MA |
1 | ||
| 90430-18008 |
LN166..RHD..GEN |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36121-35010 |
LN166,171..GEN,MA |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 33161-25010 |
LN166,171..GEN |
1 | ||
| 33161-25010 |
LN166,171..DSL..GEN |
1 | ||
| 36131 - RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING | ||||
| 36131-35010 |
LN166,171..GEN,MA |
1 | ||
| 36131-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36133 - RETAINER, TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 36133-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36133-35010 |
LN166,171..GEN,MA |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-35010 |
LN166,171..GEN,MA |
1 | ||
| 36143-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 33162-25010 |
LN166,171..GEN |
1 | ||
| 33162-25010 |
LN166,171..DSL..GEN |
1 | ||
| 36145 - GASKET, TRANSFER EXTENSION HOUSING | ||||
| 36145-35010 |
LN166,171..DSL..GEN |
1 | ||
| 36145-35010 |
LN166,171..GEN,MA |
1 | ||
| 36146 - GASKET, TRANSFER REDUCTION CASE | ||||
| 36146-35021 |
LN166,171..GEN |
1 | ||
| 36146-35021 |
LN166,171..DSL..GEN |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36147-35010 |
LN166,171..DSL..GEN NO.2 |
1 | ||
| 36141-35010 |
LN166,171..GEN,MA NO.1 |
1 | ||
| 36147-35010 |
LN166,171..GEN,MA NO.2 |
1 | ||
| 36141-35010 |
LN166,171..DSL..GEN NO.1 |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36147-35010 |
LN166,171..DSL..GEN NO.2 |
1 | ||
| 36141-35010 |
LN166,171..GEN,MA NO.1 |
1 | ||
| 36147-35010 |
LN166,171..GEN,MA NO.2 |
1 | ||
| 36141-35010 |
LN166,171..DSL..GEN NO.1 |
1 | ||
| 36153 - GASKET, FRONT DRIVE GEAR BEARING RETAINER | ||||
| 36153-35010 |
LN166,171..GEN,MA |
1 | ||
| 36153-35010 |
LN166,171..DSL..GEN |
1 | ||
| Common parts | ||||
| 90119-08502 | ||||
| 90119-10115 | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
