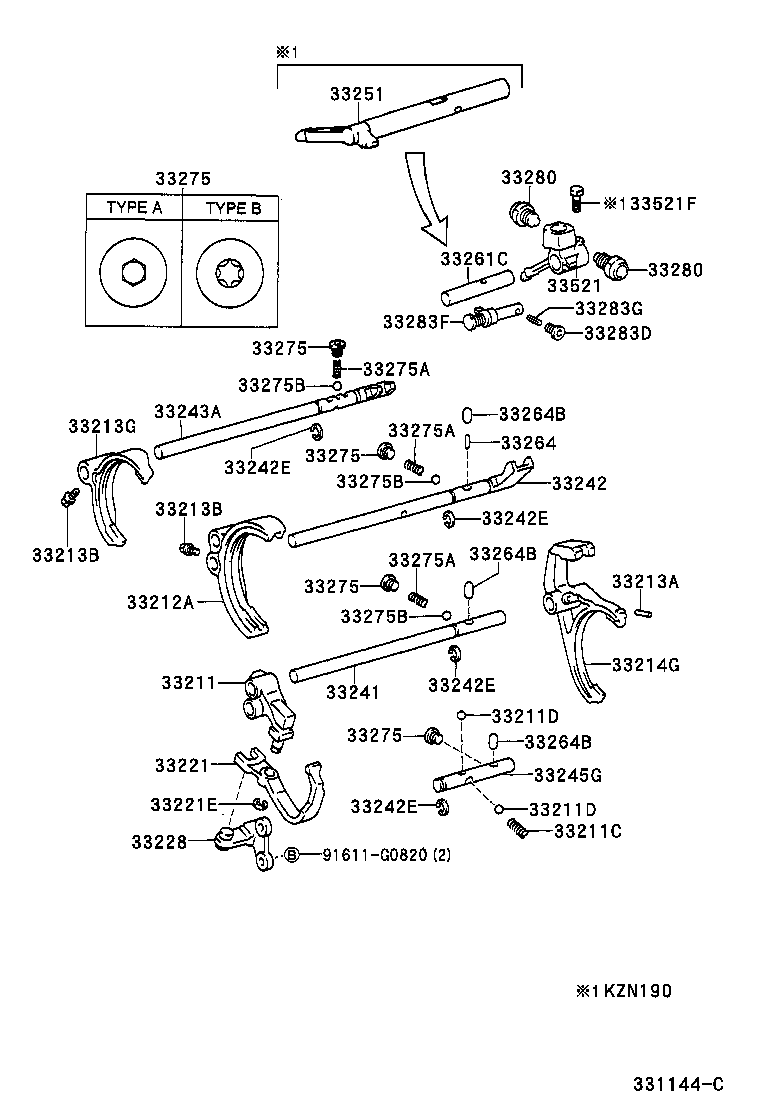

LN166R-TRMDS (1997)
Toyota Hilux
(9708- )LN16#,17#
G52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33211-35050 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33211-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33212C - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-35023 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33212-35023 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 90254-05001 |
LN150..SR;LN167,192..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DLX..DEFI..ARL;LN152,167,192..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 90254-05001 |
LN150..SR;LN167,192..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DLX..DEFI..ARL;LN152,167,192..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
3 | ||
| 90105-06077 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
2 | ||
| 90105-06143 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
3 | ||
| 90105-06143 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
3 | ||
| 90105-06077 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
2 | ||
| 90105-06143 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
3 | ||
| 90105-06143 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
3 | ||
| 90105-06077 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
2 | ||
| 90105-06143 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
3 | ||
| 90105-06143 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35033 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33213-35040 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33213-35033 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33213-30060 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-35040 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33230-35010 |
KZN190..SR;KDN151,16#,KZN165,VZN167,172..MTM |
1 | ||
| 33230-30011 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33214-35040 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33230-35011 |
KZN165..SR;KDN151,16#,KZN190..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33221-22020 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33221-35050 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33221-22021 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33221-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 96160-01000 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 96160-00800 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22020 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33225-35030 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33225-35030 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00600 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 96160-00800 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 96160-00800 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33228-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33228-35030 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
2 | ||
| 90253-11001 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-35070 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33231-22040 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33231-35070 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33231-22041 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90360-08009 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90520-12006 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35050 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33244-30050 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33244-35060 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33244-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33244-35050 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-30070 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33242-35022 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33242-35022 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33242-60090 |
KDN151,16#..MTM |
1 | ||
| 33242-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-30130 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33243-35042 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33243-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33243-35042 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90520-12006 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 90520-12003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90520-12006 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 90520-12003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33245-22011 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33245-35080 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33245-35080 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33246C - SHAFT, GEAR SHIFT FORK, NO.5 | ||||
| 33246-35020 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33246-35020 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35080 |
LN166,171..GEN,MA |
1 | ||
| 33261-35080 |
LN166,171..DSL..GEN |
1 | ||
| 33261-35081 |
LN166,171..GEN,MA |
1 | ||
| 33261-35081 |
LN166..RHD..GEN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10002 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=21.6,PIN |
1 | ||
| 90361-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=9.52,STEEL |
1 | ||
| 33264-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90361-10002 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=21.6,PIN |
1 | ||
| 90361-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=13.6,OD=9.5 |
1 | ||
| 90250-05029 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=11.5,OD=4.8 |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=9.52,STEEL |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10002 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=21.6,PIN |
1 | ||
| 90361-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=9.52,STEEL |
1 | ||
| 33264-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90361-10002 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=21.6,PIN |
1 | ||
| 90361-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=13.6,OD=9.5 |
1 | ||
| 90250-05029 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=11.5,OD=4.8 |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=9.52,STEEL |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10002 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=21.6,PIN |
1 | ||
| 90361-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=9.52,STEEL |
1 | ||
| 33264-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90361-10002 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=21.6,PIN |
1 | ||
| 90361-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=13.6,OD=9.5 |
1 | ||
| 90250-05029 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=11.5,OD=4.8 |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=9.52,STEEL |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=11.1,OD=4.8 |
2 | ||
| 90250-06007 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=8.6,OD=6 |
1 | ||
| 90250-05020 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=11.1,OD=4.8 |
2 | ||
| 33265-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=11.2,OD=4 |
1 | ||
| 33266-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=13.6,OD=6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=11.1,OD=4.8 |
2 | ||
| 90250-06007 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=8.6,OD=6 |
1 | ||
| 90250-05020 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=11.1,OD=4.8 |
2 | ||
| 33265-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=11.2,OD=4 |
1 | ||
| 33266-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=13.6,OD=6 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12008 |
LN150..SR;LN167,192..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DLX..DEFI..ARL;LN152,167,192..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90341-12018 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 90341-12008 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-10061 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 90501-10061 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 90501-14123 |
RZN144,148,149,154,16#,174,19#..MTM |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;LN192,RZN169..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,168,174,YN140..DLX..(ARL,GCC,GEN,SA,TH) RH |
1 | ||
| 33280-35072 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) LH |
1 | ||
| 33280-35072 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 LH |
1 | ||
| 33280-35021 |
KZN165..SR;LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;LN192,RZN169..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,168,174,YN140..DLX..(ARL,GCC,GEN,SA,TH) RH |
1 | ||
| 33280-35072 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) LH |
1 | ||
| 33280-35072 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 LH |
1 | ||
| 33280-35021 |
KZN165..SR;LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
LN166..RHD..GEN |
1 | ||
| 90341-10065 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90341-12008 |
KDN165..SRWGN;LN167,172..ARL,SA;KDN151,166,KZN190..MTM..SR;KDN165,KZN165,LN166,171..GCC,GEN,MA,SA |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-30061 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33280-35040 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33280-35100 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33280-35040 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
LN147..THDCB;LN167..ARL,SA;KZN165,190..SR;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,166,17#,191,RZN142,147..MTM |
1 | ||
| 90254-05001 |
LN192;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN152,167..MTM..DEFI..TH;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35090 |
LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI |
1 | ||
| 33521-35090 |
LN16#,17#..ARL,GCC,GEN,MA,SA |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
LN166..RHD..GEN;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 90105-08079 |
LN147..DCB;LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN145,152..RHD..(SCB,XTR)..(ARL,GEN)..CBU;LN141,146,166,17#,191,RZN142,147..(DCB,SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,MA) |
1 | ||
| 90109-08305 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN |
1 | ||
| 90109-08305 |
RZN149,154..(THDCB,THSCB,THXTR)..MTM;RZN144,148,149,154,16#,193..MTM..(CO,GCC,GEN,SA) |
1 | ||
| 90109-08305 |
LN167..ARL;LN145..CBU;LN145..LHD..IV3;LN147,152..THDCB,THSCB,THXTR;KDN145,150,155,LN140,141,146,150,155,166,17#,191,RZN142,147 |
1 | ||
| Common parts | ||||
| 91611-60850 | ||||
(9908- )KDN151,16#,KZN165,190,VZN167,172..MTM
R150,R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33211-35050 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33211-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=9.52,STEEL |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=9.52,STEEL |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-30050 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33212-35032 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 90254-05001 |
LN150..SR;LN167,192..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DLX..DEFI..ARL;LN152,167,192..MTM..DEFI..TH;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
3 | ||
| 90105-06077 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
2 | ||
| 90105-06143 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
3 | ||
| 90105-06143 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
3 | ||
| 90105-06077 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
2 | ||
| 90105-06143 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
3 | ||
| 90105-06143 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35033 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33213-35040 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33213-35033 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33213-30060 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-35040 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33230-35010 |
KZN190..SR;KDN151,16#,KZN165,VZN167,172..MTM |
1 | ||
| 33230-30011 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33214-35040 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33230-35011 |
KZN165..SR;KDN151,16#,KZN190..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33221-22020 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33221-35050 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33221-22021 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33221-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33228-28010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33228-35030 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35050 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33244-30050 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33244-35060 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33244-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33244-35050 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-30070 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33242-35022 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33242-35022 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33242-60090 |
KDN151,16#..MTM |
1 | ||
| 33242-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-30130 |
RZN144,148,149,154,16#,174,19#..MTM |
1 | ||
| 33243-35042 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33243-53020 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33243-35042 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33245-22011 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33245-35080 |
LN147..THDCB;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 33245-35080 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35080 |
LN166,171..GEN,MA |
1 | ||
| 33261-35080 |
LN166,171..DSL..GEN |
1 | ||
| 33261-35081 |
LN166,171..GEN,MA |
1 | ||
| 33261-35081 |
LN166..RHD..GEN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10002 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=21.6,PIN |
1 | ||
| 90361-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=9.52,STEEL |
1 | ||
| 33264-22010 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90361-10002 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=21.6,PIN |
1 | ||
| 90361-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=13.6,OD=9.5 |
1 | ||
| 90250-05029 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=11.5,OD=4.8 |
1 | ||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=9.52,STEEL |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN150..SR;LN145..SCB;LN145..DCB..GEN;LN166..DSL..GEN;LN145..LHD..DLX..TH;LN140,155,171,RZN142,147 OD=18 |
4 | ||
| 90341-12008 |
LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165,190..SR..SA;LN145..(GEN,SA)..CBU;KDN165,LN150,167,192..DLX;KDN165,LN147,152..(SRWGN,THDCB,THXTR)..CBU;KDN145,15#,166,LN140,141,146,155,166,17#,191,RZN142,147..MTM OD=18 |
4 | ||
| 90341-12014 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=17 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14123 |
RZN149..DLX..CBR..GEN;RZN149..MTM..(ARL,GCC);RZN144,148,154,16#,174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..MTM L=20.2 |
1 | ||
| 90501-14132 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=31 |
3 | ||
| 90501-14123 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=20.2 |
1 | ||
| 90501-14123 |
LN192;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(SADCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN152,167,RZN149..MTM..SR..(CBR,DEFI)..(GEN,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=20.2 |
1 | ||
| 90501-16143 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=33.8 |
3 | ||
| 90501-15040 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=19.9 |
1 | ||
| 90501-14132 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=31 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
4 | ||
| 90360-10003 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
3 | ||
| 90360-10003 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90360-10003 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;LN192,RZN169..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,168,174,YN140..DLX..(ARL,GCC,GEN,SA,TH) RH |
1 | ||
| 33280-35072 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) LH |
1 | ||
| 33280-35072 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 LH |
1 | ||
| 33280-35021 |
KZN165..SR;LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35021 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;LN192,RZN169..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,168,174,YN140..DLX..(ARL,GCC,GEN,SA,TH) RH |
1 | ||
| 33280-35072 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) LH |
1 | ||
| 33280-35072 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 LH |
1 | ||
| 33280-35021 |
KZN165..SR;LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
LN166..RHD..GEN |
1 | ||
| 90341-10065 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 90341-12008 |
KDN165..SRWGN;LN167,172..ARL,SA;KDN151,166,KZN190..MTM..SR;KDN165,KZN165,LN166,171..GCC,GEN,MA,SA |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-30061 |
RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU |
1 | ||
| 33280-35040 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33280-35100 |
KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX |
1 | ||
| 33280-35040 |
LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
LN147..THDCB;LN167..ARL,SA;KZN165,190..SR;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,166,17#,191,RZN142,147..MTM |
1 | ||
| 90254-05001 |
LN192;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..MTM..DSL;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN152,167..MTM..DEFI..TH;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35090 |
LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI |
1 | ||
| 33521-35090 |
LN16#,17#..ARL,GCC,GEN,MA,SA |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
LN166..RHD..GEN;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 90105-08079 |
LN147..DCB;LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN145,152..RHD..(SCB,XTR)..(ARL,GEN)..CBU;LN141,146,166,17#,191,RZN142,147..(DCB,SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,MA) |
1 | ||
| 90109-08305 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN |
1 | ||
| 90109-08305 |
RZN149,154..(THDCB,THSCB,THXTR)..MTM;RZN144,148,149,154,16#,193..MTM..(CO,GCC,GEN,SA) |
1 | ||
| 90109-08305 |
LN167..ARL;LN145..CBU;LN145..LHD..IV3;LN147,152..THDCB,THSCB,THXTR;KDN145,150,155,LN140,141,146,150,155,166,17#,191,RZN142,147 |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
