Toyota Hilux LN166 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
GR
HILUX
LN166R-TRMDS (1997)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9708- )LN14#,15#,16#,17#,19#..MTM

Click highlighted areas on diagram

G52

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-35032	LN16#,17#	08/1997 - 12/1998	1
31111-35032	LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI	12/1998 - 03/2006	1
31111-26032	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
31111-35101	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
31111-35032	LN167..THDCB..SR;LN167..THSCB..CBU;LN16#,17#..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	LN147..THDCB;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,144,147,16#,174,193..MTM	08/2001 - 11/2005	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
90341-18057	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90341-18006	KZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM..DLX	08/2001 - 11/2005	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
90430-18008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33111 - CASE, MANUAL TRANSMISSION
33101-35070	LN166,171..DSL..GEN	08/1997 - 03/2006	1
33101-35070	LN166,171..GEN,MA	08/2001 - 06/2005	1
33101-60040	KDN151,16#..MTM	02/2002 - 03/2005	1
33101-30071	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18019	LN166,171..DSL..GEN	08/1997 - 12/2999	1
90341-18019	LN166,171..GEN,MA	08/2001 - 06/2005	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=14	08/1997 - 03/2006	4
96411-41800	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=18	08/2001 - 11/2005	2
96411-41800	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=18	09/2001 - 04/2005	3
90331-14004	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=14	09/2001 - 04/2005	1
90331-14004	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=14	08/2001 - 08/2005	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=14,OD=15	08/2001 - 08/2005	2
90253-15001	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=14,OD=15	09/2001 - 04/2005	4
90253-15001	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=14,OD=15	08/1997 - 03/2006	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-35060	LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI	08/1997 - 12/2999	1
33118-26011	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
33118-35060	LN166..GEN	08/2001 - 06/2005	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-26021	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33131-35031	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33131-30080	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33131-26020	LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);LN140,141,146,166,17#,19#,RZN142,147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014	LN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90311-30014	LN147..THDCB;LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,144,147,16#,174,193	08/2001 - 11/2005	1
90311-32012	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33132-28010	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
33107-30020	RZN144,148,149,154,16#,174,19#..MTM	08/1997 - 10/2000	1
33151-35030	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33151-30051	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33151-35020	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449B - MAGNET, TRANSMISSION
33449-26010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33449-30010	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU REAR	08/2001 - 11/2005	1
33449-35030	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449-26010	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33449-30020	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU FRONT	08/2001 - 11/2005	1
Common parts
90119-08332
90119-10025
90119-12168
90149-80002
91612-61030
91612-61045
91619-61250
91651-61032
91651-61045

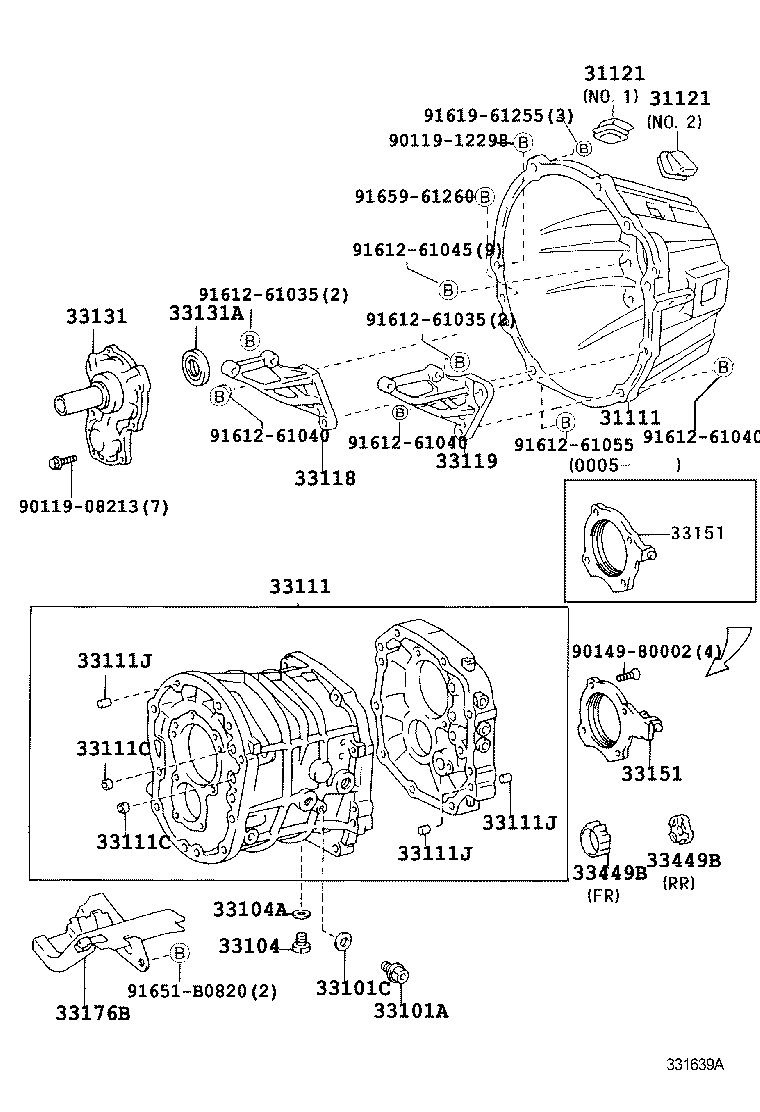

(9708- )RZN144,148,149,154,16#,174,19#..MTM

Click highlighted areas on diagram

W56

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-35032	LN16#,17#	08/1997 - 12/1998	1
31111-35032	LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI	12/1998 - 03/2006	1
31111-26032	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
31111-35101	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
31111-35032	LN167..THDCB..SR;LN167..THSCB..CBU;LN16#,17#..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-35020	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU NO.1	08/2001 - 11/2005	1
31121-26020	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU NO.2	08/2001 - 11/2005	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-35020	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU NO.1	08/2001 - 11/2005	1
31121-26020	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU NO.2	08/2001 - 11/2005	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	LN147..THDCB;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,144,147,16#,174,193..MTM	08/2001 - 11/2005	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
90341-18057	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90341-18006	KZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM..DLX	08/2001 - 11/2005	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
90430-18008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33111 - CASE, MANUAL TRANSMISSION
33101-35070	LN166,171..DSL..GEN	08/1997 - 03/2006	1
33101-35070	LN166,171..GEN,MA	08/2001 - 06/2005	1
33101-60040	KDN151,16#..MTM	02/2002 - 03/2005	1
33101-30071	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=14	08/1997 - 03/2006	4
96411-41800	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=18	08/2001 - 11/2005	2
96411-41800	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=18	09/2001 - 04/2005	3
90331-14004	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=14	09/2001 - 04/2005	1
90331-14004	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=14	08/2001 - 08/2005	4
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=14	08/1997 - 03/2006	4
96411-41800	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=18	08/2001 - 11/2005	2
96411-41800	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=18	09/2001 - 04/2005	3
90331-14004	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=14	09/2001 - 04/2005	1
90331-14004	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=14	08/2001 - 08/2005	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33118 - PLATE, STIFFENER, RH(MTM)
33118-35060	LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI	08/1997 - 12/2999	1
33118-26011	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
33118-35060	LN166..GEN	08/2001 - 06/2005	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-26021	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33131-35031	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33131-30080	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33131-26020	LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);LN140,141,146,166,17#,19#,RZN142,147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014	LN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90311-30014	LN147..THDCB;LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,144,147,16#,174,193	08/2001 - 11/2005	1
90311-32012	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
33107-30020	RZN144,148,149,154,16#,174,19#..MTM	08/1997 - 10/2000	1
33151-35030	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33151-30051	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33151-35020	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-30020	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33449B - MAGNET, TRANSMISSION
33449-26010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33449-30010	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU REAR	08/2001 - 11/2005	1
33449-35030	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449-26010	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33449-30020	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU FRONT	08/2001 - 11/2005	1
33449B - MAGNET, TRANSMISSION
33449-26010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33449-30010	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU REAR	08/2001 - 11/2005	1
33449-35030	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449-26010	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33449-30020	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU FRONT	08/2001 - 11/2005	1
Common parts
90119-08213
90119-12298
90149-80002
91612-61035
91612-61040
91612-61045
91612-61055
91619-61255
91651-B0820
91659-61260

(9908-0504)KDN151,16#,KZN165,190..MTM

Click highlighted areas on diagram

R151

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-35032	LN16#,17#	08/1997 - 12/1998	1
31111-35032	LN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI	12/1998 - 03/2006	1
31111-26032	RZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
31111-35101	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
31111-35032	LN167..THDCB..SR;LN167..THSCB..CBU;LN16#,17#..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	LN147..THDCB;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,144,147,16#,174,193..MTM	08/2001 - 11/2005	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,166,192,RZN148..DLX..(CO,GCC,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,172,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
90341-18057	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90341-18006	KZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM..DLX	08/2001 - 11/2005	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;KZN165,190..SR;LN145..LHD..IV3;LN147..THSCB..IV3;KZN165..(THDCB,THSCB)..DLX;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,15#,16#,LN140,141,146,155,166,17#,191,RZN142,147,16#,174..MTM	08/2001 - 11/2005	1
90430-18008	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33111 - CASE, MANUAL TRANSMISSION
33101-35070	LN166,171..DSL..GEN	08/1997 - 03/2006	1
33101-35070	LN166,171..GEN,MA	08/2001 - 06/2005	1
33101-60040	KDN151,16#..MTM	02/2002 - 03/2005	1
33101-30071	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=14	08/1997 - 03/2006	4
96411-41800	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=18	08/2001 - 11/2005	2
96411-41800	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=18	09/2001 - 04/2005	3
90331-14004	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=14	09/2001 - 04/2005	1
90331-14004	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=14	08/2001 - 08/2005	4
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) OD=14	08/1997 - 03/2006	4
96411-41800	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU OD=18	08/2001 - 11/2005	2
96411-41800	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=18	09/2001 - 04/2005	3
90331-14004	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX OD=14	09/2001 - 04/2005	1
90331-14004	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 OD=14	08/2001 - 08/2005	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=16,OD=12	08/1997 - 03/2006	4
90250-12002	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=16,OD=12	09/2001 - 04/2005	2
90250-12002	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=16,OD=12	08/2001 - 08/2005	4
90250-12002	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU L=16,OD=12	08/2001 - 11/2005	6
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=14,OD=15	08/2001 - 08/2005	2
90253-15001	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=14,OD=15	09/2001 - 04/2005	4
90253-15001	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=14,OD=15	08/1997 - 03/2006	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LN147..THDCB;LN150,192..DLX;LN145..LHD..SCB;LN145,167..ARL,SA;LN147..THSCB..IV3;LN145,152..(DCB,THXTR)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147 L=14,OD=15	08/2001 - 08/2005	2
90253-15001	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX L=14,OD=15	09/2001 - 04/2005	4
90253-15001	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=14,OD=15	08/1997 - 03/2006	2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33131-35031	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33131-30080	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33131-26020	LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);LN140,141,146,166,17#,19#,RZN142,147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA)	08/2001 - 08/2005	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014	LN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
90311-30014	LN147..THDCB;LN145..DCB..TH;LN145..LHD..IV3;LN147..THSCB..IV3;RZN149,154..LHD..MTM;RZN149..(THDCB,THSCB)..MTM;LN150,192,RZN148..DLX..(CO,SA,TH);LN145,152,RZN148..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..MTM..(ARL,SA);KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,144,147,16#,174,193	08/2001 - 11/2005	1
90311-32012	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
33107-30020	RZN144,148,149,154,16#,174,19#..MTM	08/1997 - 10/2000	1
33151-35030	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33151-30051	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU	08/2001 - 11/2005	1
33151-35020	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449B - MAGNET, TRANSMISSION
33449-26010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
33449-30010	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU REAR	08/2001 - 11/2005	1
33449-35030	KZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX	09/2001 - 04/2005	1
33449-26010	LN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147	08/2001 - 08/2005	1
33449-30020	RZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU FRONT	08/2001 - 11/2005	1
Common parts
90119-08332
91611-G0820
91612-61045
91619-61250

LN166R-TRMDS (1997)

(9708- )LN14#,15#,16#,17#,19#..MTM

(9708- )RZN144,148,149,154,16#,174,19#..MTM

(9908-0504)KDN151,16#,KZN165,190..MTM

Part Price Details
