Toyota Hilux LN166 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
HILUX
LN166R-TRMDS (1997)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

LN166R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

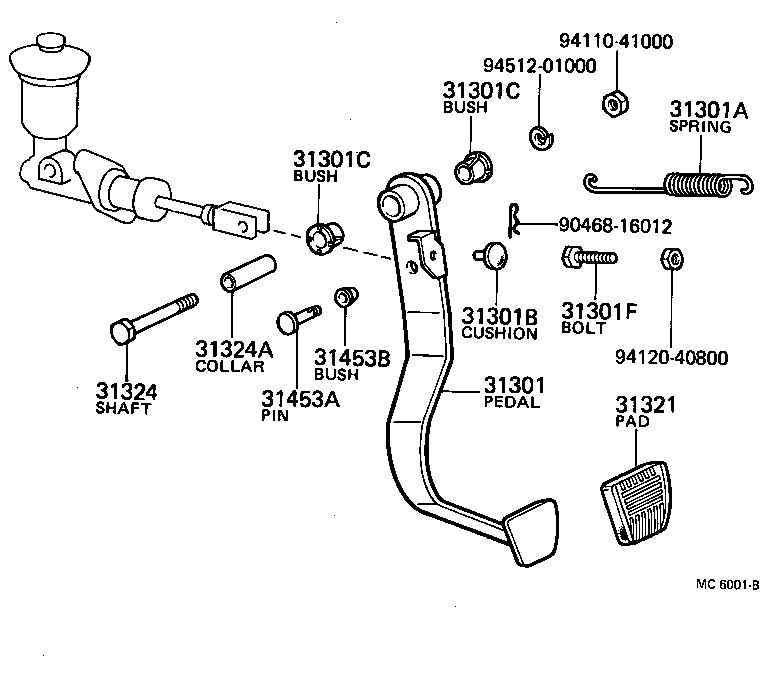

ILLUST NO. 1 OF 2(8308- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90468-16012
94110-41000
94120-40800
94512-01000

ILLUST NO. 1 OF 2(9708- )KDN145,150,155,LN140,145,147,15#,16#,172,192,RZN142,147,YN140..RHD..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35240	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
31301-35240	LN147..IV3;LN147..DCB,THDCB;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,16#,172,192,RZN142,147..RHD..(ARL,GEN,SA)	08/2001 - 06/2005	1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03036	KZN190..SR;KDN151,166,KZN165..MTM NO.1	09/2001 - 02/2005	1
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90507-14030	LN147..IV3;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN167,RZN148..ARL,CO,SA;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,LN140,141,146,155,166,17#,191,RZN142,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;RZN148,168..DLX..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
90541-06036	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH)	08/2001 - 11/2005	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-13007	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-13007	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH)	08/2001 - 11/2005	1
90101-10369	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
31321-14020	LN147..IV3;LN147..DCB,THDCB;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,167,192,RZN142,147,169,194..RHD..(ARL,GEN,SA);KDN151,16#,KZN165,LN166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31324 - SHAFT, CLUTCH PEDAL
90101-10177	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
90101-10177	LN147..IV3;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,150,192,RZN142,147..RHD..DLX;LN167,RZN169,194..RHD..(ARL,GEN,SA);LN145,147..RHD..(DCB,THDCB)..(ARL,TH);KDN145,150,151,16#,KZN165,LN155,166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
90387-10082	LN147..IV3;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,150,192,RZN142,147..RHD..DLX;LN167,RZN169,194..RHD..(ARL,GEN,SA);LN145,147..RHD..(DCB,THDCB)..(ARL,TH);KDN145,150,151,16#,KZN165,LN155,166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=27	08/1997 - 12/2999	1
47148-34010	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH) L=27	08/2001 - 11/2005	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90386-08002	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35100	LN140,145,147,152,16#,172,192,RZN142,147,YN140..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)	03/1999 - 08/2001	1
55107-35100	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN THAILAND PRODUCT	08/2001 - 12/2999	1
55107-35100	LN140,145,147,152,16#,172,192,RZN147,YN140..RHD..(ARL,GEN,SA)	08/1997 - 03/1999	1
55107-35110	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU PLANT NO.P11	08/2001 - 12/2999	1
55107-35110	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU PLANT NO.P11	08/2001 - 06/2005	1
Common parts
90119-T0083
90129-08009
90468-16012
94120-41000
94512-01000

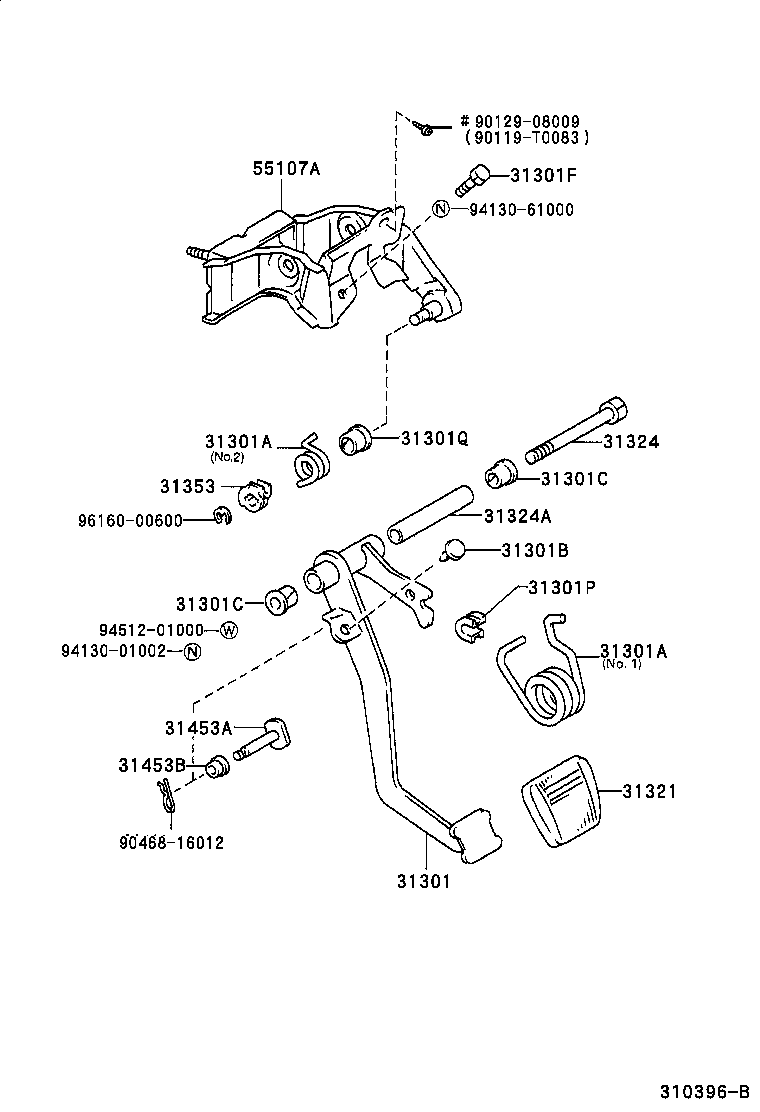

ILLUST NO. 2 OF 2(9708- )LN140,145,147,15#,16#,172,192..RHD..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35440	LN140,145,147,15#,16#,172,192,RZN142,147,149,154,169,174,194..RHD..MTM	08/1997 - 03/2001	1
31481-35440	RZN169..RHD..CBR;RZN169..(DCB,SCB)..(ARL,SA);LN140,145,147,15#,16#,172,192,RZN142,147,149,154,174,194..RHD..(DCB,SCB,XTR)..MTM	03/2001 - 09/2001	1
31481-35440	RZN169..DCB..SA;RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);LN140,145,166,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 12/2999	1
31481-35440	LN145,166,RZN147,169..RHD..GEN..CBU	08/2001 - 06/2005	1
31481A - HOSE, CLUTCH, NO.1
90947-02953	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90947-02953	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165,LN145..SCB..DLX;RZN147,174..DCB,SCB,XTR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..(ARL,SA);LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,148,168,193..DLX..(ARL,GCC,GEN,SA,TH) (J)	08/1997 - 03/2006	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35410	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31482-35410	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
31482-35400	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31484-35310	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
31484-35300	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
90468-08035

ILLUST NO. 1 OF 2(9708- )KDN151,16#,KZN165,190,RZN149,154,169,174,194,VZN167,172..RHD..MTM ; (030

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35240	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
31301-35240	LN147..IV3;LN147..DCB,THDCB;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,16#,172,192,RZN142,147..RHD..(ARL,GEN,SA)	08/2001 - 06/2005	1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03036	KZN190..SR;KDN151,166,KZN165..MTM NO.1	09/2001 - 02/2005	1
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90507-14030	LN147..IV3;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN167,RZN148..ARL,CO,SA;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,LN140,141,146,155,166,17#,191,RZN142,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03036	KZN190..SR;KDN151,166,KZN165..MTM NO.1	09/2001 - 02/2005	1
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90507-14030	LN147..IV3;LN145..LHD..IV3;LN150,152,192..DLX..CBU;LN167,RZN148..ARL,CO,SA;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,LN140,141,146,155,166,17#,191,RZN142,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;RZN148,168..DLX..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
90541-06036	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH)	08/2001 - 11/2005	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-13007	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-13007	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH)	08/2001 - 11/2005	1
90101-10369	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN	08/1997 - 12/2999	1
31321-14020	LN147..IV3;LN147..DCB,THDCB;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,167,192,RZN142,147,169,194..RHD..(ARL,GEN,SA);KDN151,16#,KZN165,LN166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31324 - SHAFT, CLUTCH PEDAL
90101-10177	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
90101-10177	LN147..IV3;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,150,192,RZN142,147..RHD..DLX;LN167,RZN169,194..RHD..(ARL,GEN,SA);LN145,147..RHD..(DCB,THDCB)..(ARL,TH);KDN145,150,151,16#,KZN165,LN155,166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..MTM..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
90387-10082	LN147..IV3;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,150,192,RZN142,147..RHD..DLX;LN167,RZN169,194..RHD..(ARL,GEN,SA);LN145,147..RHD..(DCB,THDCB)..(ARL,TH);KDN145,150,151,16#,KZN165,LN155,166,172,RZN149,154,174,VZN167,172..RHD..MTM..(ARL,GEN,TH)	08/2001 - 06/2005	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=27	08/1997 - 12/2999	1
47148-34010	LN147..IV3;RZN148..CO;LN145..LHD..IV3;LN140,150,192,RZN142,147..DLX;LN145,147..(DCB,THDCB)..(ARL,TH);LN167,RZN169,194..ARL,GCC,GEN,SA;LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN145,150,151,16#,KZN165,LN141,146,155,166,17#,191,RZN144,149,154,168,174,193,VZN167,172..MTM..(ARL,CO,GCC,GEN,TH) L=27	08/2001 - 11/2005	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
90386-08002	LN147..IV3;LN145..LHD..IV3;LN167,RZN148..ARL,CO,SA;LN145,152..(ARL,GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,192,RZN154..DLX..(GEN,SA,TH);RZN148,149,169..LHD..MTM..(GCC,GEN)..CBU;KDN145,150,LN140,141,146,155,166,17#,191,RZN142,144,147,168,193..ARL,CO,GCC,GEN,SA,TH	08/2001 - 11/2005	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35100	LN140,145,147,152,16#,172,192,RZN142,147,YN140..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)	03/1999 - 08/2001	1
55107-35100	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN THAILAND PRODUCT	08/2001 - 12/2999	1
55107-35100	LN140,145,147,152,16#,172,192,RZN147,YN140..RHD..(ARL,GEN,SA)	08/1997 - 03/1999	1
55107-35110	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU PLANT NO.P11	08/2001 - 12/2999	1
55107-35110	RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU PLANT NO.P11	08/2001 - 06/2005	1
Common parts
90119-T0083
90129-08009
90468-16012
94130-01002
94130-61000
94512-01000
96160-00600

ILLUST NO. 2 OF 2(0110- )KDN145,15#,16#..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35440	LN140,145,147,15#,16#,172,192,RZN142,147,149,154,169,174,194..RHD..MTM	08/1997 - 03/2001	1
31481-35440	RZN169..RHD..CBR;RZN169..(DCB,SCB)..(ARL,SA);LN140,145,147,15#,16#,172,192,RZN142,147,149,154,174,194..RHD..(DCB,SCB,XTR)..MTM	03/2001 - 09/2001	1
31481-35440	RZN169..DCB..SA;RZN169..DLX..SA;LN167,RZN147..RHD..SCB..(GEN,SA);LN140,145,166,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 12/2999	1
31481-35440	LN145,166,RZN147,169..RHD..GEN..CBU	08/2001 - 06/2005	1
31481A - HOSE, CLUTCH, NO.1
90947-02953	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90947-02953	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165,LN145..SCB..DLX;RZN147,174..DCB,SCB,XTR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..(ARL,SA);LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,148,168,193..DLX..(ARL,GCC,GEN,SA,TH) (J)	08/1997 - 03/2006	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31484-35310	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
31484-35300	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
90461-12413
90468-08035
91611-B0812
