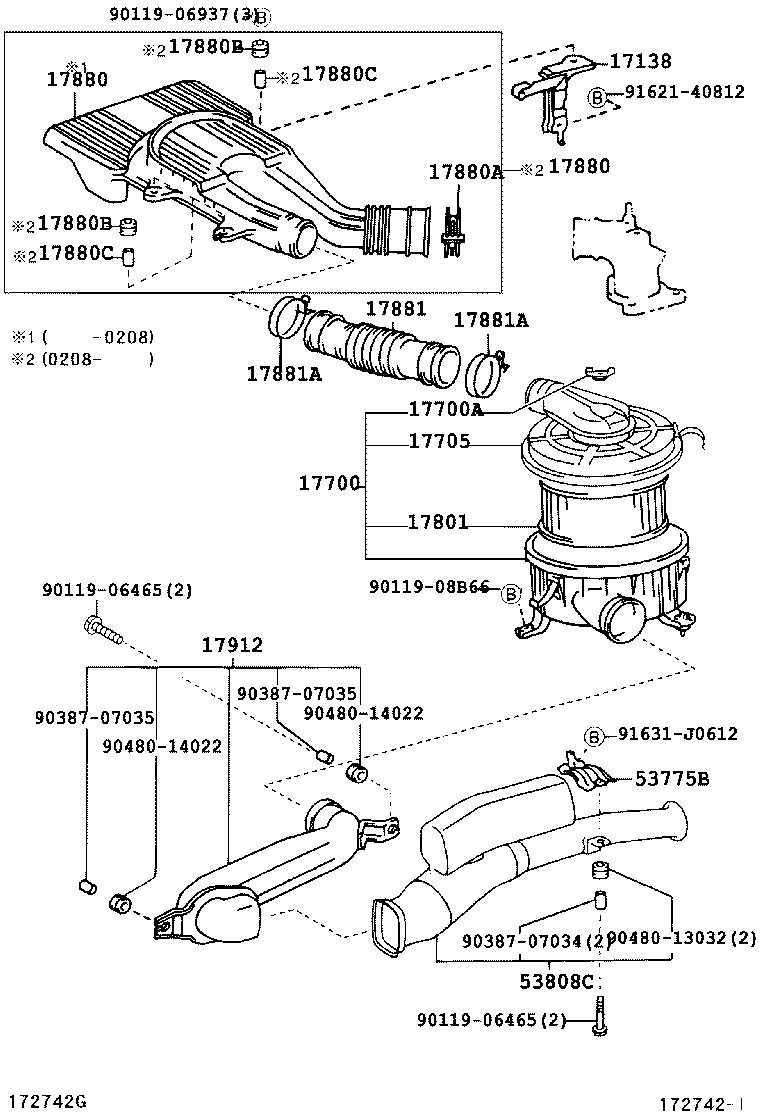

LN166R-TRMDS (1997)
Toyota Hilux
(9708-9908)2L,3L,5L..LN140,145,147,152,16#,172,192..RHD..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54011 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17138-54011 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-5B100 |
5L..LN167,192;2L,3L,5L..LN140,145,147,152,166,172..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B100 |
5L..LN167,192..TH;2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 17700-5B160 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B160 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
5L..LN167,192..TH;2L,3L,5L..LN140,145,15#,166..RHD..(GEN,SA,TH) |
1 | ||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17705-54440 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17705-54440 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN |
1 | ||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN141,145,146,147,152,166,17#,191..DSL..(ARL,GCC,GEN) |
1 | ||
| 17801-54180 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880-54240 |
2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..GEN |
1 | ||
| 17880-54240 |
2L,3L,5L..LN145,147,152,16#,172..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 96111-10710 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881-54640 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
1 | ||
| 17881-54640 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-35020 |
2L,3L,5L..LN145,147,16#..RHD |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 52820-35021 |
2L,3L,5L..LN145,147,16#,172..RHD |
1 | ||
| 52820-35022 |
2L,3L,5L..LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
KDN145,15#,16#,190..CBU |
1 | ||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 53775-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH | ||||
| 53808-35030 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-06299 | ||||
| 90119-06526 | ||||
| 90119-08B66 | ||||
| 90385-09007 | ||||
| 90387-07012 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
(9908-0004)2L,3L..LN140,145,166..RHD..GEN,SA ; (0004- )2L..LN140,145..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54011 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17138-54011 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-5B100 |
5L..LN167,192;2L,3L,5L..LN140,145,147,152,166,172..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B100 |
5L..LN167,192..TH;2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 17700-5B160 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B160 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
5L..LN167,192..TH;2L,3L,5L..LN140,145,15#,166..RHD..(GEN,SA,TH) |
1 | ||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17705-54440 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17705-54440 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN |
1 | ||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN141,145,146,147,152,166,17#,191..DSL..(ARL,GCC,GEN) |
1 | ||
| 17801-54180 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880-54240 |
2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..GEN |
1 | ||
| 17880-54240 |
2L,3L,5L..LN145,147,152,16#,172..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880-54240 |
2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..GEN |
1 | ||
| 17880-54240 |
2L,3L,5L..LN145,147,152,16#,172..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 96111-10710 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 17880B - COLLAR(FOR AIR CLEANER HOSE) | ||||
| 90387-07016 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 90387-07016 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 17880B - COLLAR(FOR AIR CLEANER HOSE) | ||||
| 90387-07016 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 90387-07016 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 17880C - GROMMET(FOR AIR CLEANER HOSE) | ||||
| 90480-14024 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 90480-14024 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 17880C - GROMMET(FOR AIR CLEANER HOSE) | ||||
| 90480-14024 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 90480-14024 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881-54640 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
1 | ||
| 17881-54640 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-35020 |
2L,3L,5L..LN145,147,16#..RHD |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 52820-35021 |
2L,3L,5L..LN145,147,16#,172..RHD |
1 | ||
| 52820-35022 |
2L,3L,5L..LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
KDN145,15#,16#,190..CBU |
1 | ||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 53775-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH | ||||
| 53808-35030 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06937 | ||||
| 90119-08B66 | ||||
| 90387-07034 | ||||
| 90387-07035 | ||||
| 90480-13032 | ||||
| 90480-14022 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
(0004- )2L,3L..LN145,166..RHD..GEN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54011 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17138-54011 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-5B100 |
5L..LN167,192;2L,3L,5L..LN140,145,147,152,166,172..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B100 |
5L..LN167,192..TH;2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 17700-5B160 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17700-5B160 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN |
1 | ||
| 90175-08008 |
5L#..LN152..IV3;5L..LN167,192..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167,192..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN141,145,146,147,166,17#,191..DLX..(ARL,GCC,GEN) |
1 | ||
| 90175-08008 |
5LE..LN147..DCB;2L..LN145..LHD..IV3;5LE..LN147..SCB..IV3;2L,5LE..LN145,152..(DCB,SCB,XTR)..(ARL,GEN)..CBU;3L,5LE..LN141,146,16#,17#,19#..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
5L..LN167,192..TH;2L,3L,5L..LN140,145,15#,166..RHD..(GEN,SA,TH) |
1 | ||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17705-54440 |
2L..LN145..RHD..GEN;3L,5L..LN147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 17705-54440 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN |
1 | ||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17801-54180 |
5L..LN167,192..ARL,SA;2L,3L,5L..LN141,145,146,147,152,166,17#,191..DSL..(ARL,GCC,GEN) |
1 | ||
| 17801-54180 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880-54240 |
2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..GEN |
1 | ||
| 17880-54240 |
2L,3L,5L..LN145,147,152,16#,172..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880-54240 |
2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..GEN |
1 | ||
| 17880-54240 |
2L,3L,5L..LN145,147,152,16#,172..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 17880-54241 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 96111-10710 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 17880B - COLLAR(FOR AIR CLEANER HOSE) | ||||
| 90387-07016 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 90387-07016 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 17880B - COLLAR(FOR AIR CLEANER HOSE) | ||||
| 90387-07016 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 90387-07016 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 17880C - GROMMET(FOR AIR CLEANER HOSE) | ||||
| 90480-14024 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 90480-14024 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 17880C - GROMMET(FOR AIR CLEANER HOSE) | ||||
| 90480-14024 |
2L,3L..LN145,166..RHD..GEN |
3 | ||
| 90480-14024 |
2L,3L..LN145,166..RHD..(GEN,MA)..CBU |
3 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881-54640 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
1 | ||
| 17881-54640 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 96111-10750 |
2L,3L,5L..LN140,145,16#,192..RHD..(GEN,SA) |
2 | ||
| 96111-10750 |
2L,3L..LN140,145,166..RHD..(GEN,MA,SA)..CBU |
2 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-35020 |
2L,3L,5L..LN145,147,16#..RHD |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA) |
1 | ||
| 52820-35021 |
2L,3L,5L..LN145,147,16#,172..RHD |
1 | ||
| 52820-35022 |
2L,3L,5L..LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 52820-35060 |
2L,3L..LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
KDN145,15#,16#,190..CBU |
1 | ||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 53775-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 53808C - DUCT SUB-ASSY, FRONT FENDER AIR, LH | ||||
| 53808-35030 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,147,152,16#,172,192..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,SA) |
1 | ||
| 53808-35070 |
LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06937 | ||||
| 90119-08B66 | ||||
| 90387-07034 | ||||
| 90387-07035 | ||||
| 90480-13032 | ||||
| 90480-14022 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
