LN166R-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KZN165,LN147,RZN148,149,168,VZN167..SR ; (0108- )KDN145,15#,16#,190,K

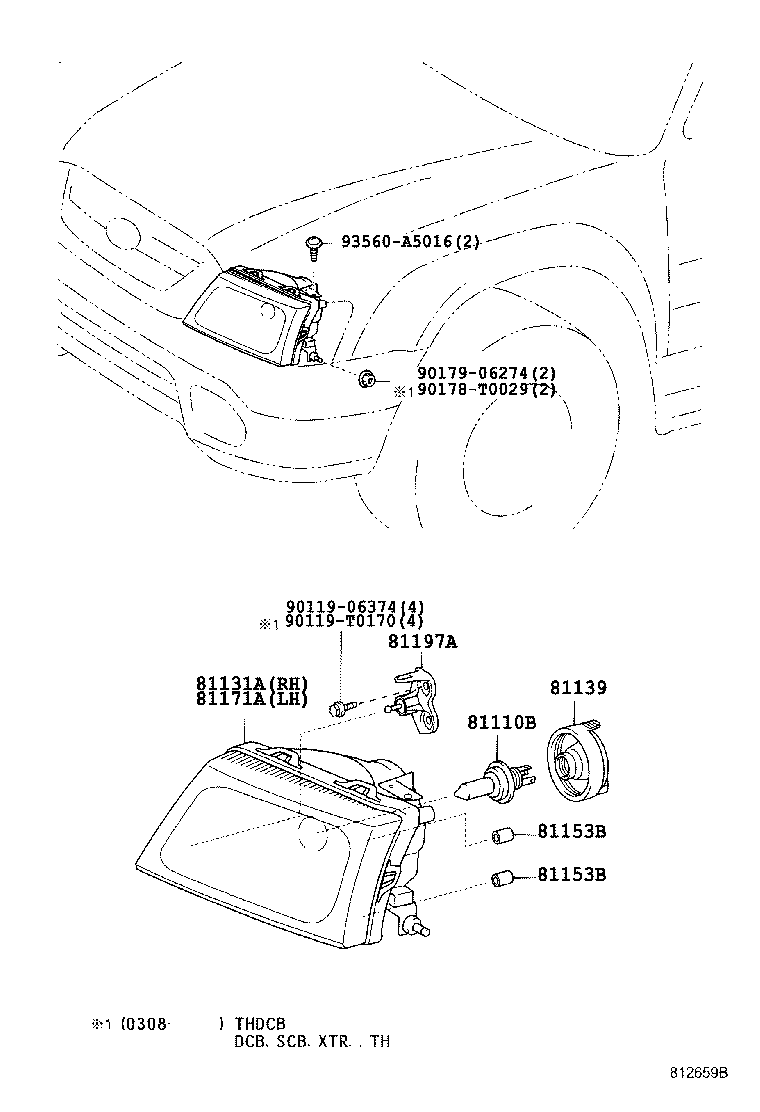

Click highlighted areas on diagram

diagram 81110B 81131A 81139 81153B 81153B 81171A 81197A 9011906374 90119T0170 90178T0029 9017906274 93560A5016
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
90981-13015

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU

12V 60/55W,*HAL *WH,SEMI-SEALED

 4
Common parts
90119-06374
90119-T0170
90178-T0029
90179-06274
93560-A5016
