Toyota Hilux LN166 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
HILUX
LN166L-PRMDS (1997)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

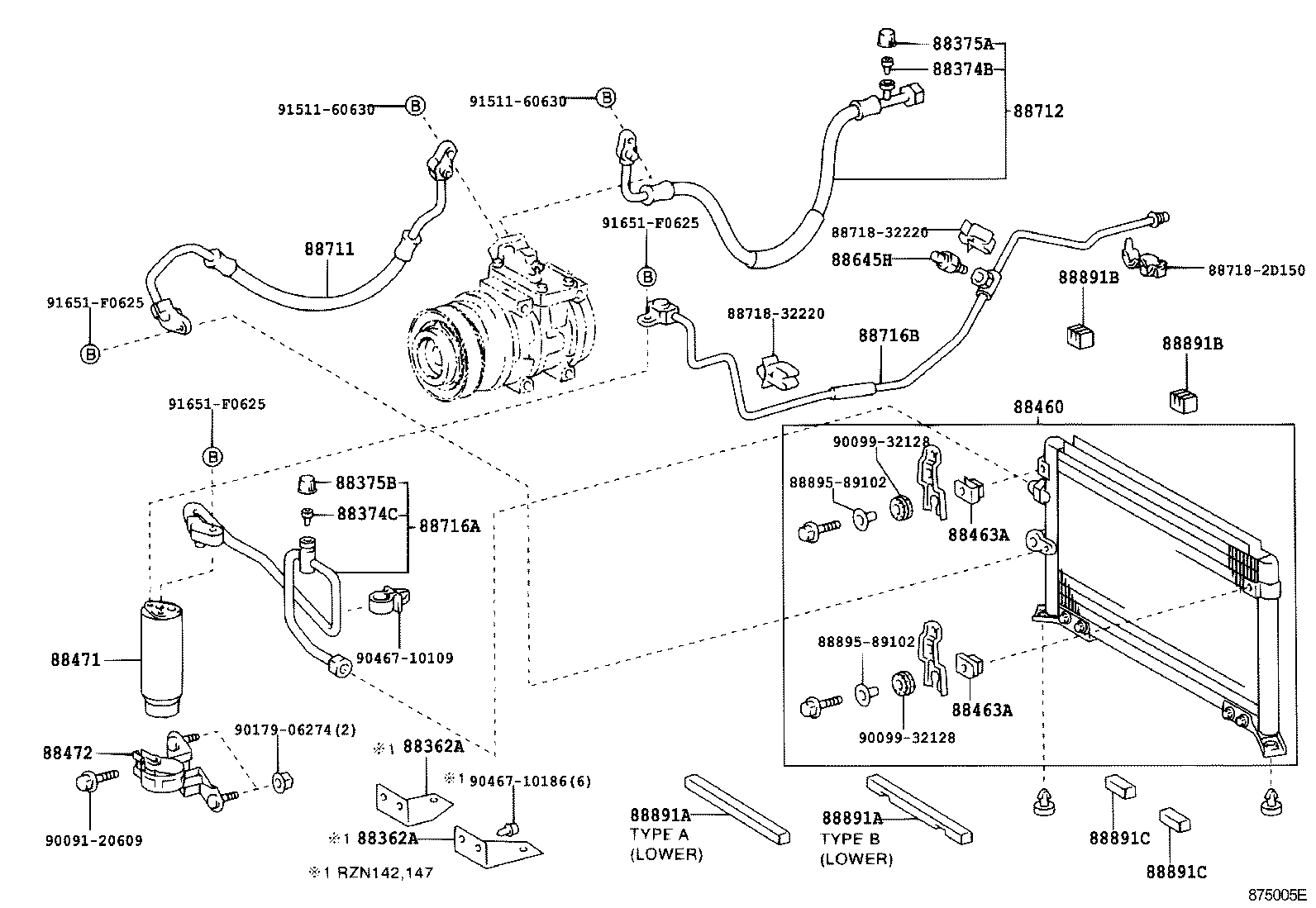

ILLUST NO. 1 OF 2(9708-0108)RZN142,147,148,149,154,16#,193..LHD..GEN ; (0108- )RZN148,149,168..DL

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	KZN165..SR..ARL;LN145..LHD..IV3;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167,192..SCB..DEFI..SA;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,THXTR,XTR);LN155,RZN144,149,154..LHD..(CBR,DSL);LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,16#,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35540	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-35070	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
88726-35040	RZN14#,154,16#,193..LHD	08/1997 - 08/1999	1
88726-35130	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1999 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88718-2D150
88718-32220
88895-89102
90091-20609
90099-32128
90467-10109
90467-10186
91511-60630
91651-F0625

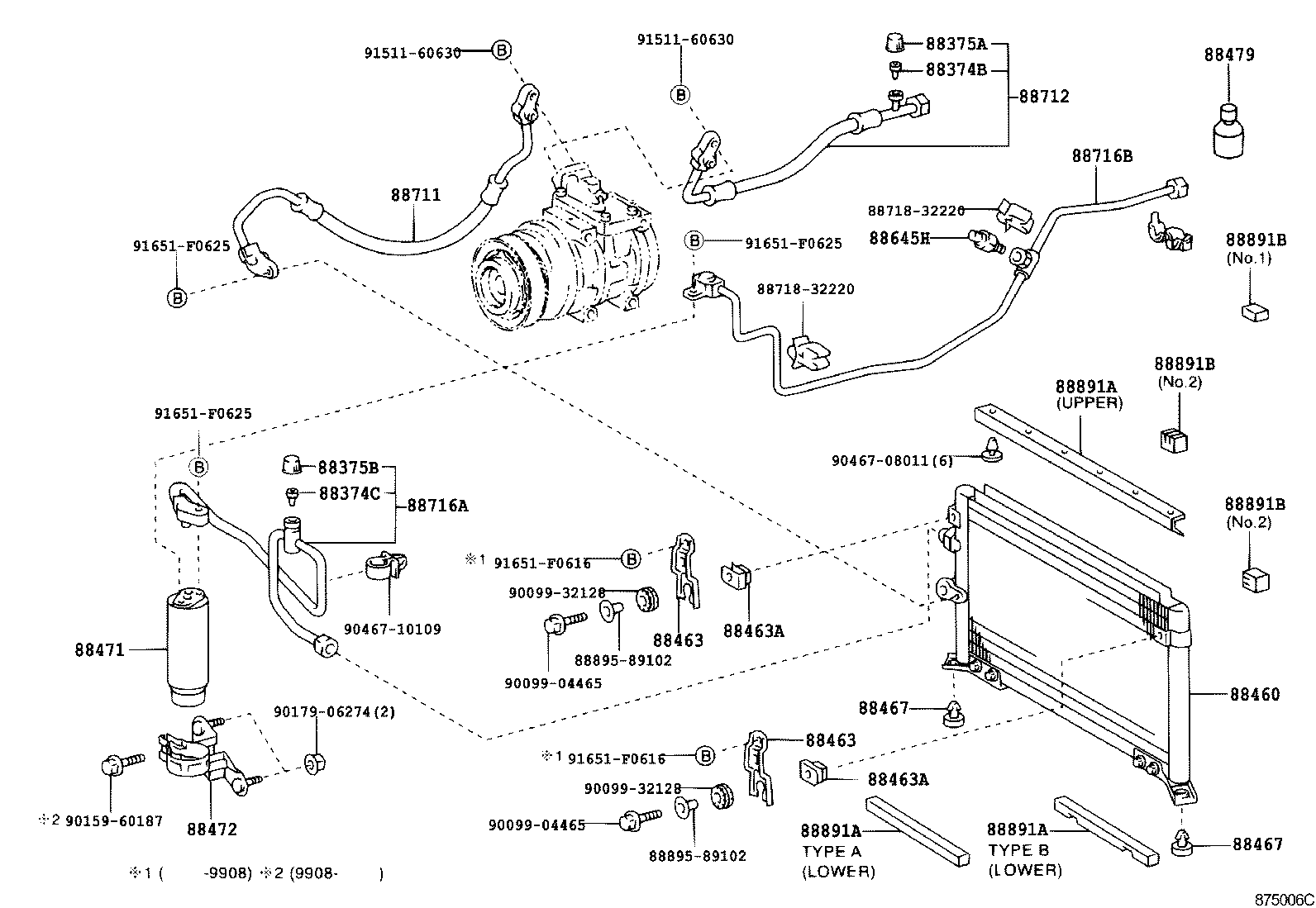

ILLUST NO. 1 OF 2(9708-0108)RZN148,149,16#,193..LHD..GEN ; (0108-)RZN148,168..DLX..GEN..CBU

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	KZN165..SR..ARL;LN145..LHD..IV3;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167,192..SCB..DEFI..SA;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,THXTR,XTR);LN155,RZN144,149,154..LHD..(CBR,DSL);LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,16#,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35540	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-35070	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
88726-35040	RZN14#,154,16#,193..LHD	08/1997 - 08/1999	1
88726-35130	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1999 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88718-32220
88895-89102
90099-04465
90099-32128
90159-60187
90179-06274
90467-08011
90467-10109
91511-60630
91651-F0616
91651-F0625

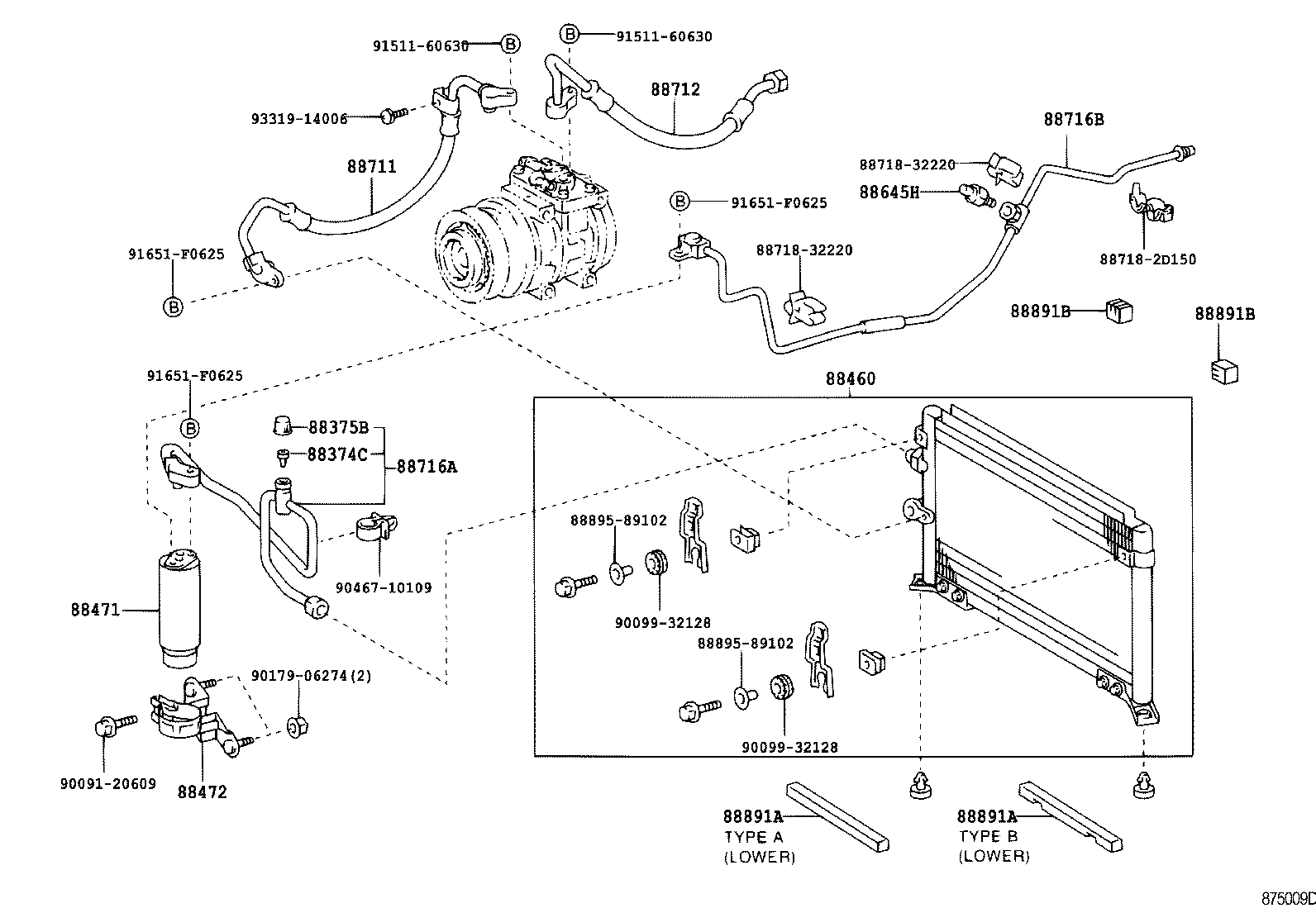

ILLUST NO. 1 OF 2(9708-0108)LN145,166,171,191..LHD..GEN

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	KZN165..SR..ARL;LN145..LHD..IV3;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167,192..SCB..DEFI..SA;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,THXTR,XTR);LN155,RZN144,149,154..LHD..(CBR,DSL);LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,16#,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35540	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-35070	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
88726-35040	RZN14#,154,16#,193..LHD	08/1997 - 08/1999	1
88726-35130	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1999 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88718-2D150
88718-32220
88895-89102
90091-20609
90099-32128
90179-06274
90467-10109
91511-60630
91651-F0625
93319-14006

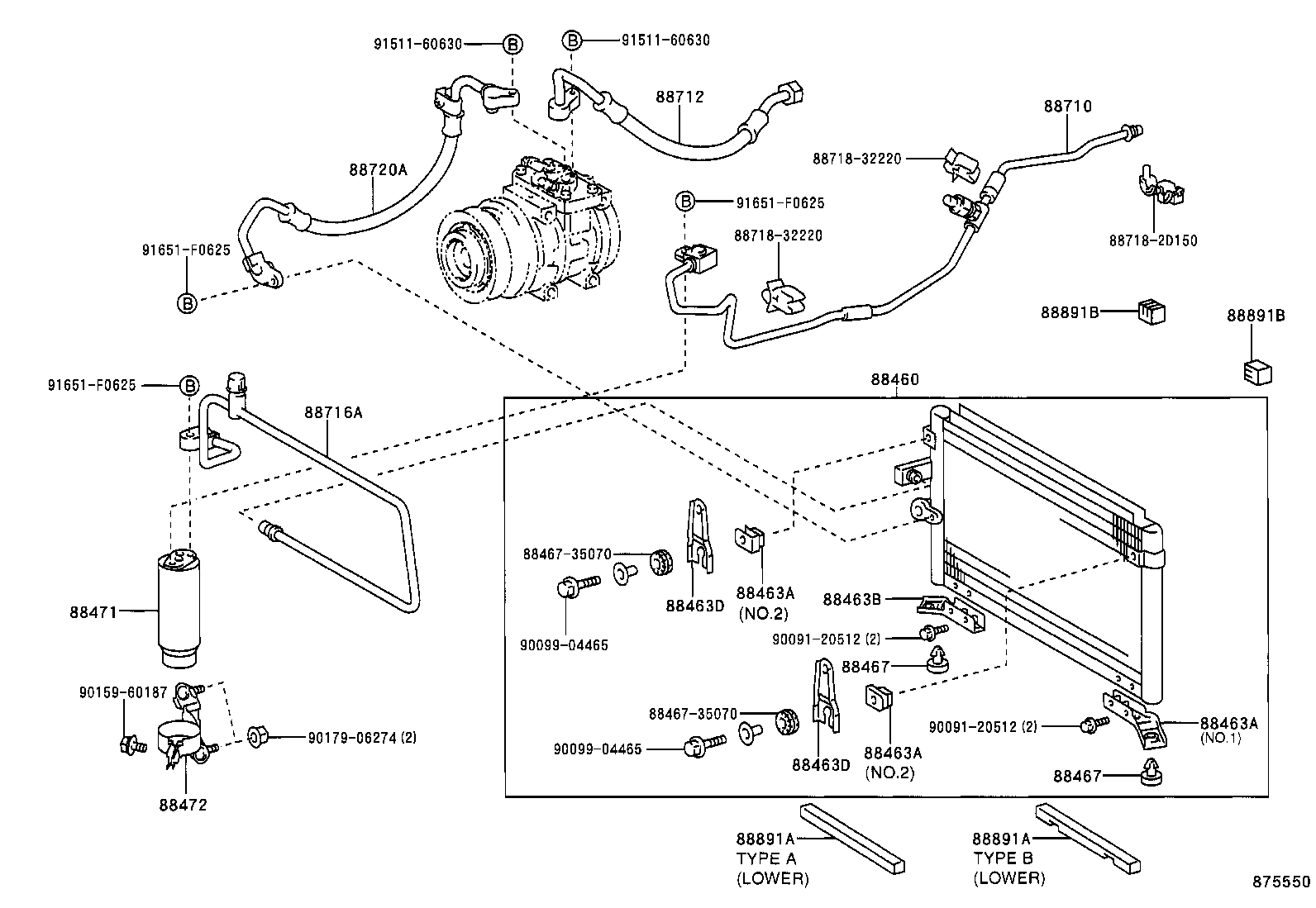

ILLUST NO. 1 OF 2(0108- )LN145,166,171,191..LHD..GEN

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35500	RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154..LHD	08/2001 - 12/2003	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-35460	LN145,166,171,191..LHD..GEN	08/2001 - 02/2004	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88467-35070
88718-2D150
88718-32220
90091-20512
90099-04465
90159-60187
90179-06274
91511-60630
91651-F0625

ILLUST NO. 1 OF 2(0108- )RZN142,147,148,154,16#,193..LHD..GEN

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35500	RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154..LHD	08/2001 - 12/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35540	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88467-35070
88718-2D150
88718-32220
88895-89102
90091-20512
90099-04465
90159-60187
90179-06274
90467-10186
91511-60630
91651-F0625

ILLUST NO. 1 OF 2(0108- )RZN148,16#,193..LHD..GEN

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-35120	LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	LN145,166,171,191..LHD..GEN DEALER OPTION	08/2001 - 06/2005	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88471-34010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35040	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35500	RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154..LHD	08/2001 - 12/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35540	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35520	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88712-35600	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35370	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
88716-35610	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..CO;LN171,191,RZN142,147,154..LHD	08/2001 - 02/2004	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN169..DCB..SA;RZN168..DLX..GEN;RZN149..ATM..DLX..ARL;RZN169..LHD..CBR..GEN;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN167,RZN154..(DSL,EFI)..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN166,17#,191,RZN174,19#..(DCB,SCB,THXTR,XTR)..(DSL,EFI)..(ARL,GEN,SA) DEALER OPTION & TYPE B:REFER TO ILLUSTRATION,LOWER	08/1997 - 12/2999	1
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN)	08/1997 - 12/2999	2
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88718-2D150
88718-32220
90091-20637
90159-60187
90179-06274
90467-08011
91511-60630
91651-F0625

LN166L-PRMDS (1997)

ILLUST NO. 2 OF 2(9708- )

ILLUST NO. 1 OF 2(9708-0108)RZN142,147,148,149,154,16#,193..LHD..GEN ; (0108- )RZN148,149,168..DL

ILLUST NO. 1 OF 2(9708-0108)RZN148,149,16#,193..LHD..GEN ; (0108-)RZN148,168..DLX..GEN..CBU

ILLUST NO. 1 OF 2(9708-0108)LN145,166,171,191..LHD..GEN

ILLUST NO. 1 OF 2(0108- )LN145,166,171,191..LHD..GEN

ILLUST NO. 1 OF 2(0108- )RZN142,147,148,154,16#,193..LHD..GEN

ILLUST NO. 1 OF 2(0108- )RZN148,16#,193..LHD..GEN

Part Price Details
