Toyota Hilux LN166 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
HILUX
LN166L-PRMDS (1997)
8401 - SWITCH & RELAY & COMPUTER

LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(9708- )LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	LN167..TH;LN145..SCB;LN192..DEFI;LN145..LHD..DLX..TH;LN145,167..DCB..DLX..(ARL,GEN);KZN165..(DCB,SCB)..(ARL,SA)..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN150,152..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83420-16040	KZN165,190,LN14#,15#,16#,17#,19#,RZN142,147,YN140	08/1997 - 09/2000	1
83420-16040	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN167..THDCB..SR;KDN145,KZN190..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);LN145,152,192..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN15#,16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,147..(DCB,SCB,SRWGN,THDCB,THSCB,XTR)..(ARL,GCC,GEN,SA,TH)	08/2001 - 12/2999	1
83420-20040	RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA	08/2001 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060	LN14#,16#,17#,191	08/1997 - 03/1998	1
83530-60020	RZN14#,154,16#,174,193	08/1997 - 03/1998	1
83530-60030	LN14#,15#,16#,17#,19#	03/1998 - 09/2000	1
83530-60030	LN145..SCB;LN152..IV3;LN192..DEFI;LN145..LHD..DLX..TH;LN150,152,167..SR..TH;LN145,167..DCB..DLX..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83530-28020	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
83530-60030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM	08/1997 - 09/2000	1
84210-12040	LN145..SCB;LN145..LHD..DLX..TH;KZN165..(THDCB,XTR)..SR..CBU;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN150,152,RZN194..(DCB,SCB,XTR)..MTM..SR;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) THAILAND SPEC	09/2000 - 12/2999	1
84210-12040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU THAILAND SPEC	08/2001 - 06/2005	1
84210-12040	KDN151,166..MTM	06/2002 - 08/2004	1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-35050	LN166,171..DSL..GEN	08/1997 - 12/2999	1
84222-35050	LN166,171..GEN	08/2001 - 06/2005	1
Common parts
82711-35610
90430-12221
90430-18008
90461-06423
91651-60614
93385-16025

ILLUST NO. 1 OF 6(9708- )RZN14#,154,16#,174,19#,YN140

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	LN167..TH;LN145..SCB;LN192..DEFI;LN145..LHD..DLX..TH;LN145,167..DCB..DLX..(ARL,GEN);KZN165..(DCB,SCB)..(ARL,SA)..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN150,152..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83420-16040	KZN165,190,LN14#,15#,16#,17#,19#,RZN142,147,YN140	08/1997 - 09/2000	1
83420-16040	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN167..THDCB..SR;KDN145,KZN190..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);LN145,152,192..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN15#,16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,147..(DCB,SCB,SRWGN,THDCB,THSCB,XTR)..(ARL,GCC,GEN,SA,TH)	08/2001 - 12/2999	1
83420-20040	RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA	08/2001 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060	LN14#,16#,17#,191	08/1997 - 03/1998	1
83530-60020	RZN14#,154,16#,174,193	08/1997 - 03/1998	1
83530-60030	LN14#,15#,16#,17#,19#	03/1998 - 09/2000	1
83530-60030	LN145..SCB;LN152..IV3;LN192..DEFI;LN145..LHD..DLX..TH;LN150,152,167..SR..TH;LN145,167..DCB..DLX..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83530-28020	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
83530-60030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM	08/1997 - 09/2000	1
84210-12040	LN145..SCB;LN145..LHD..DLX..TH;KZN165..(THDCB,XTR)..SR..CBU;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN150,152,RZN194..(DCB,SCB,XTR)..MTM..SR;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) THAILAND SPEC	09/2000 - 12/2999	1
84210-12040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU THAILAND SPEC	08/2001 - 06/2005	1
84210-12040	KDN151,166..MTM	06/2002 - 08/2004	1
Common parts
82711-35610
82711-35640
90159-70003
90179-08101
90430-18008
90461-06423
91651-40830

ILLUST NO. 4 OF 6(9708- )LHD

Click highlighted areas on diagram

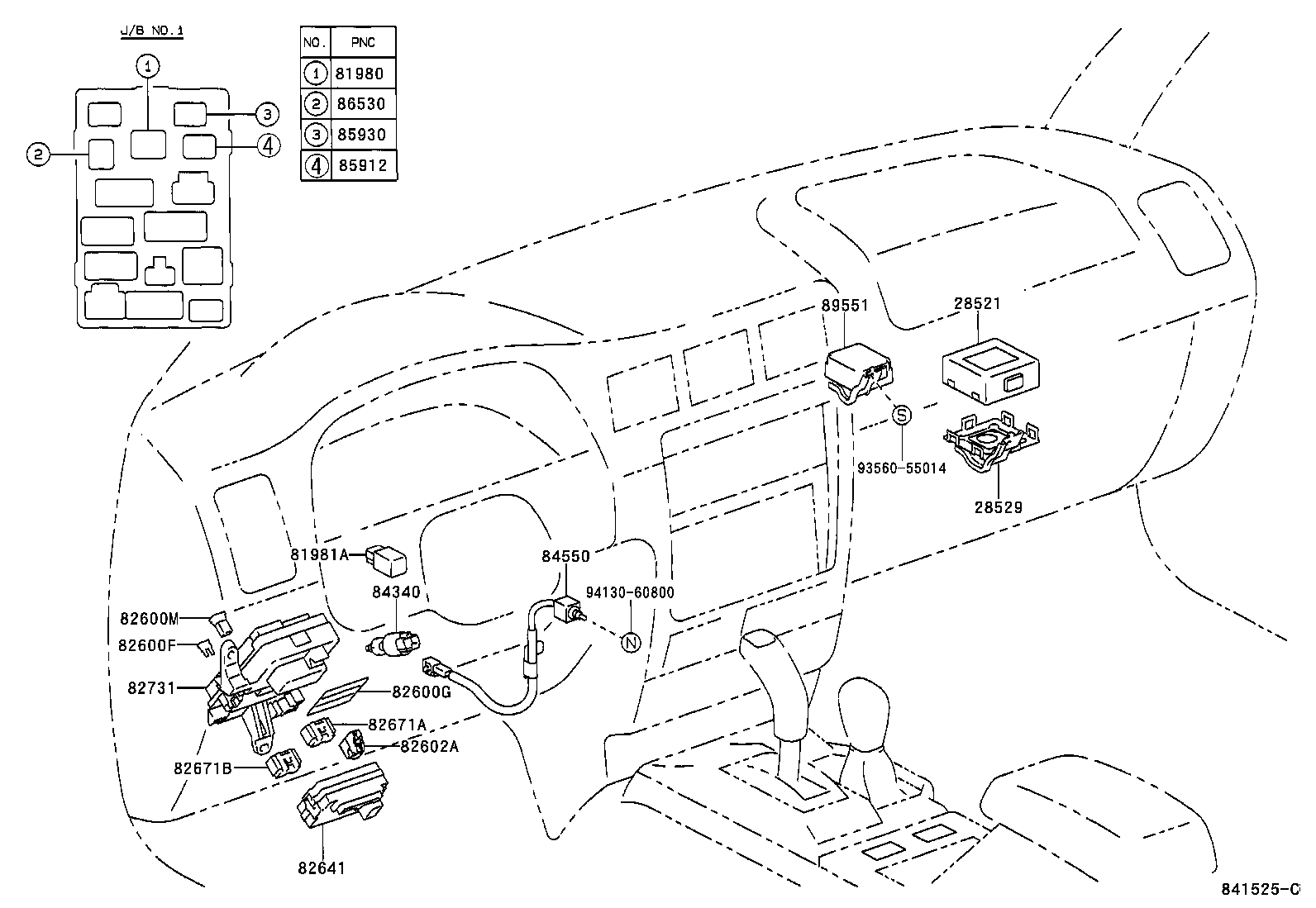

COWL RELAY

Part #	Description	Period	Qty
28521 - TIMER, PREHEATING
28521-54560	2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU	08/2001 - 12/2999	1
28521-54560	2L..LN145,155..LHD..DLX..TH;2L,3L,5L..LN140,141,145,146,16#,171,19#..DSL..(GCC,GEN,SA)	08/1997 - 12/2999	1
28529 - BRACKET, PREHEATING TIMER, NO.1
28529-54320	2L,3L,5L..LN14#,15#,16#,17#,19#	08/1997 - 09/2000	1
28529-54320	2L..LN145,155..LHD..DLX..TH;2L,3L,5L..LN140,141,145,146,16#,171,19#..DSL..(GCC,GEN,SA)	09/2000 - 12/2999	1
28529-54320	2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU	08/2001 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-12110	KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2000	1
81980-12110	RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN167,RZN154,194..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 05/2003	1
81980-12110	LN145..LHD..IV3;KZN190,RZN194..SR;LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN145,167,RZN147,148,169..(GCC,GEN,SA)..CBU;KZN165,LN140,141,146,166,17#,19#,RZN142,144,154,168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA)	08/2001 - 06/2003	1
81980-32010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	06/2003 - 06/2005	1
82600F - FUSE, FUSE BLOCK
90982-09009	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	08/1997 - 09/1998	1
90982-09008	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	08/1997 - 09/1998	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1998 - 08/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1998 - 08/1999	1
90982-09010	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	08/1997 - 09/1998	1
90982-09011	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	08/1997 - 09/1998	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1998 - 08/1999	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 15A,MINI FUSE,BLUE	08/1999 - 09/1999	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 7.5A,MINI FUSE,BRN	08/1999 - 09/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 10A,MINI FUSE,RED	08/1999 - 09/1999	1
90982-09009	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1999 - 08/2000	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	09/1998 - 08/1999	1
90982-09010	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1999 - 08/2000	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/1999 - 09/1999	1
90982-09011	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1999 - 08/2000	1
90982-09010	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 15A,MINI FUSE,BLUE	08/2000 - 09/2001	1
90982-09009	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 10A,MINI FUSE,RED	08/2000 - 09/2001	1
90982-09008	RZN169..ARL,SA;RZN147,148,168..DLX;LN167,RZN154..(DEFI,EFI)..ARL;RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);LN140,145,167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN) 7.5A,MINI FUSE,BRN	09/1999 - 09/2001	1
90982-09011	RZN154,169..ARL,SA;RZN147,148,168..DLX;LN167,RZN149..(DEFI,EFI)..(ARL,GEN);LN167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN14#,152,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/2000 - 09/2001	1
90982-09008	KDN165..SRWGN;KDN151,166..DCB,XTR;KDN190..(SRWGN,XTR)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 07/2004	1
90982-10001	KDN151,166..DCB,XTR 30A,PINK	08/2001 - 08/2004	1
90982-09008	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 06/2005	1
90982-09011	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 20A,MINI FUSE,YELLOW	08/2001 - 06/2005	1
90982-09009	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 10A,MINI FUSE,RED	08/2001 - 06/2005	1
90982-09010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 15A,MINI FUSE,BLUE	08/2001 - 06/2005	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-35100	LN145..DCB..IV3;RZN147..DCB..GEN;LN145,166..LHD..GEN;RZN147..LHD..SCB..GEN;LN171,191,RZN142,149,154,169,193..MTM..DLX..GEN	08/1997 - 08/2001	1
82683-35090	KDN145,151,166..DCB,XTR	09/2001 - 08/2004	1
82683-35100	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,168,193..DLX..GEN..CBU	08/2001 - 06/2005	1
82600M - FUSE, MEDIUM CURRENT
90982-10001	RZN144..SR;RZN147..LHD..DCB;RZN169..LHD..GEN;RZN149,169..DCB..ARL;LN166,RZN142,147..LHD..SCB..GEN;LN145,146,171,191,RZN149,193..LHD;LN147,16#,172,RZN154,168,174..DCB,XTR 30A,PINK	08/1997 - 05/1998	1
90982-10001	RZN144..SR;RZN149..CBR;RZN147..LHD..DCB;RZN169..LHD..GEN;LN145,RZN147,169..SA;LN145,166,RZN147..LHD..SCB..GEN;LN167,192,RZN142..SCB..(GEN,SA);LN140,146,152,17#,191,RZN154,174,19#..ARL,GCC,GEN,SA;LN145,147,16#,RZN148,149,16#..(DCB,THDCB)..(DSL,EFI)..(ARL,GCC,GEN) 30A,PINK	09/1998 - 08/1999	1
90982-10001	RZN147..GCC,SA;RZN147..DCB..GEN;KZN165..SR..(ARL,SA);RZN149,169..LHD..CBR;RZN149,169..RHD..DCB;LN145,166,RZN147..LHD..SCB..GEN;LN145,167,192,RZN169..SCB..(DSL,EFI)..SA;LN145,147,16#,RZN148,168..DCB..(ARL,GCC,GEN);KZN190,LN140,146,152,17#,191,RZN142,144,154,174,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 30A,PINK	08/2000 - 08/2001	1
90982-10001	RZN147..GCC,SA;RZN149,169..LHD;RZN147..DCB..GEN;RZN169..RHD..DCB;LN145,167,192,RZN169..SCB..SA;LN145,166,RZN147..LHD..SCB..GEN;LN145,147,16#,RZN148,149,168..DCB..(DSL,EFI)..(ARL,GCC,GEN);KZN165,190,LN140,146,152,17#,191,RZN142,144,154,174,19#..(DCB,SADCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,SA) 30A,PINK	08/1999 - 08/2000	1
90982-10001	RZN169..RHD;RZN142,147..LHD;KZN165,LN145..SR;RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,166..LHD..SCB;RZN149,154..ARL,GCC;LN145,166,RZN148,168..DCB..(GCC,GEN);KDN145,15#,165,190,KZN190,LN146,147,152,167,17#,19#,RZN144,174,19# 30A,PINK	03/2002 - 04/2002	1
90982-10001	RZN147..LHD;RZN149..ARL,GCC;RZN149..DCB..CO;LN145,RZN168..SR;LN145,166..LHD..SCB;RZN168..DCB..DLX..GEN;LN145,166,RZN148..DCB..(GCC,GEN,MA);KDN145,190,RZN142..(DCB,SCB,XTR)..(GCC,GEN,TH);KDN150,155,165,KZN165,190,LN146,147,152,167,17#,19#,RZN144,154,169,19#,VZN167,172..DCB,SCB,THDCB,THSCB,THXTR,XTR 30A,PINK	08/2002 - 12/2999	1
90982-10001	RZN144..SR;RZN149..CBR;RZN147..LHD..DCB;RZN169..LHD..GEN;LN145,RZN147,169..SA;LN145,166,RZN147..LHD..SCB..GEN;LN167,192,RZN142..SCB..(GEN,SA);LN140,146,17#,191,RZN154,174,19#;LN145,147,16#,RZN148,149,16#..DCB..(DSL,EFI)..(ARL,GCC,GEN) 30A,PINK	05/1998 - 09/1998	1
90982-10001	RZN149..DCB..CO;LN145,RZN168..SR;RZN169..LHD..GEN;LN167,RZN142..ARL,GEN;RZN149,169..ARL,GCC,SA;LN145,166,RZN147..LHD..SCB..GEN;LN145,166,RZN148..DCB..(GCC,GEN);RZN147,168..LHD..DCB..DLX..(GCC,GEN);KDN145,15#,165,190,KZN165,LN146,147,152,17#,191,RZN144,154,174,19# 30A,PINK	07/2002 - 08/2002	1
90982-10001	RZN169..RHD..GEN;RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,166..LHD..SCB;LN145,166,RZN148,168..DCB..(GCC,GEN);LN146,171,191,RZN142,144,147,149,193..LHD..MTM 30A,PINK	08/2001 - 09/2001	1
90982-10001	RZN147..LHD;RZN169..LHD..DCB;RZN169..SCB..GCC;RZN149,154..ARL,GCC;LN145,166..LHD..SCB;RZN169..RHD..(ARL,GEN);KZN165,LN145..SR..(ARL,TH);LN145,166,RZN148,168..DCB..(GCC,GEN);KDN145,15#,165,190,LN146,147,152,167,17#,191,RZN142,144,174,193..ARL,GCC,GEN,TH 30A,PINK	09/2001 - 03/2002	1
90982-10001	LN145,RZN168..SR;RZN169..LHD..GEN;LN167,RZN142..ARL,GEN;RZN149,169..ARL,GCC,SA;LN145,166,RZN147..LHD..SCB..GEN;LN145,166,RZN148..DCB..(GCC,GEN);RZN147,168..LHD..DCB..DLX..(GCC,GEN);KDN145,15#,165,190,KZN165,LN146,147,152,17#,191,RZN144,154,174,19# 30A,PINK	04/2002 - 07/2002	1
82602A - BLOCK SUB-ASSY, RELAY
82602-35150	KDN151,166..DCB,XTR	08/2001 - 08/2004	1
82641 - RELAY, INTEGRATION NO.1
82641-35210	RZN144,149..SR;LN166..DCB..GEN;LN166..LHD..SCB;LN192,RZN194..SA;LN145,RZN147,169..LHD..(GEN,TH)..CBU;RZN147,149..(DCB,THDCB)..DLX..(ARL,GCC,SA);LN146,147,152,167,17#,191,RZN148,154,16#,174,193..(DCB,THDCB,THXTR,XTR)..(DSL,EFI)..(ARL,GCC,GEN,SA) W(KEY REMIND WARNING & SEAT BELT WARNING & POWER DOOR LOCK)	05/1998 - 08/1999	1
82641-35210	RZN149..GCC;LN166..LHD..SCB;RZN147..DCB..(GCC,SA);RZN149,169..RHD..(DCB,THDCB);KZN165,RZN144..SR..(ARL,GCC,SA);LN145,RZN147,169..LHD..(GEN,TH)..CBU;LN147,16#,RZN148,168..(DCB,THDCB)..(ARL,GEN,SA);KZN190,LN146,152,17#,19#,RZN154,174,19#..(DCB,SCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) W(KEY REMIND WARNING & SEAT BELT WARNING & POWER DOOR LOCK)	08/2000 - 08/2001	1
82641-35210	RZN144,149..SR;LN166..LHD..SCB;RZN169..RHD..(DCB,THDCB);LN145,RZN147,169..LHD..(GEN,TH)..CBU;RZN147,149..(DCB,THDCB)..DLX..(ARL,GCC,SA);LN147,16#,RZN148,168..(DCB,THDCB)..(ARL,GEN,SA);KZN165,190,LN146,152,17#,19#,RZN154,174,19#..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA) W(KEY REMIND WARNING & SEAT BELT WARNING & POWER DOOR LOCK)	08/1999 - 08/2000	1
82641-35210	RZN144,149..SR;LN166..DCB..GEN;RZN147..LHD..DCB;LN166,RZN147..LHD..SCB..GEN;LN145,RZN169..LHD..GEN..CBU;RZN149..DCB..DLX..(ARL,GCC);LN146,147,167,17#,191,RZN154,16#,174,193..(DCB,XTR)..(DSL,EFI) W(KEY REMIND WARNING & SEAT BELT WARNING & POWER DOOR LOCK)	08/1997 - 05/1998	1
82671A - BLOCK, JUNCTION
82671-30340	RZN169..LHD..DCB..GEN;LN145,166,171,191,RZN142,147..LHD..GEN	08/2001 - 12/2999	2
82671-30340	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169..LHD..(GCC,GEN)	08/1997 - 08/2001	2
82671-30360	RZN148,154,16#,193..LHD..GEN..CBU CHINA SPEC	08/2001 - 12/2999	1
82671B - BLOCK, JUNCTION
82671-30370	LN141,145,146,166,171,191,RZN142,144,147,149,154,169..LHD..MTM..(GCC,GEN)	08/1997 - 08/2001	1
82671-30370	RZN169..LHD..DCB..GEN;LN145,166,171,191,RZN142,147..LHD..GEN	08/2001 - 12/2999	1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-35020	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
82731-35010	KDN151,166..DCB,XTR	09/2001 - 08/2004	1
82731-35020	RZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN	08/2001 - 06/2005	1
84340 - SWITCH ASSY, STOP LAMP
84340-35020	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 05/1999	1
84340-35020	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	05/1999 - 09/2000	1
84340-35020	RZN169..DCB..SA;LN167..SCB..DEFI;LN167..DCB..DLX..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,XTR);RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,LN167,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	09/2000 - 12/2999	1
84340-35030	KDN145,150,151,16#,190	10/2001 - 03/2005	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-34010	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
84550-34010	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN	08/2001 - 06/2005	1
85930 - RELAY ASSY, POWER WINDOW
90987-02012	LN167..DCB..DSL;RZN169..DCB..SA;RZN147..LHD..DCB;RZN144,149..SR..CBR;RZN169..LHD..DCB..CBR..GEN;KZN190,LN146,171,19#,RZN193..DLX;LN145,166,RZN168..LHD..DCB..DLX..GEN;LN167,RZN149,169..DCB..DLX..(DEFI,EFI)..ARL;LN147,RZN149..DCB..DLX..(CBR,DEFI,DSL)..(ARL,GCC);KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR..(ARL,SA)	08/1997 - 12/2999	1
86530 - RELAY ASSY, HORN
86530-20070	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
86530-20070	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
86530-20070	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
93560-55014
94130-60800

ILLUST NO. 5 OF 6(9708- )

Click highlighted areas on diagram

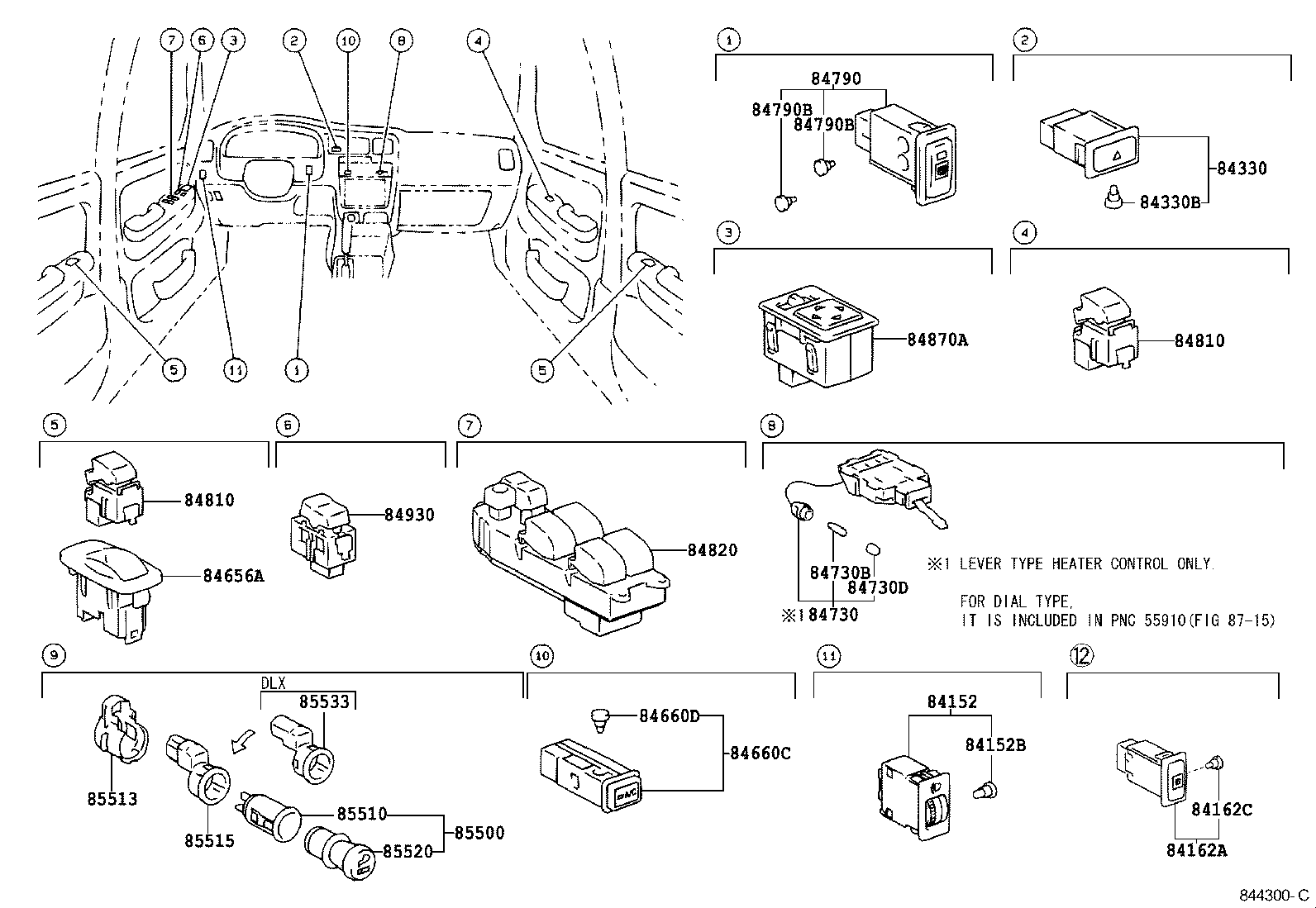

DOOR & FLOOR SWITCHES

Part #	Description	Period	Qty
82815 - COVER, WIRING HARNESS PROTECTOR
82815-35020	LN167..DCB..TH;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,LN146,166,19#,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;LN145,147,167,RZN149,169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,GEN) W(LOCK)	08/1997 - 12/2999	2
82815-35010	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
82815-35010	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..DCB..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	2
82815-35020	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(LOCK)	08/2001 - 06/2005	2
82815-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
82815 - COVER, WIRING HARNESS PROTECTOR
82815-35020	LN167..DCB..TH;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,LN146,166,19#,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;LN145,147,167,RZN149,169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,GEN) W(LOCK)	08/1997 - 12/2999	2
82815-35010	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
82815-35010	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..DCB..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	2
82815-35020	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(LOCK)	08/2001 - 06/2005	2
82815-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
83320 - GAGE ASSY, FUEL SENDER
83320-80357	LN167,RZN169..(DCB,THDCB)..DLX;KZN165,190,LN145,146,147,166,191,RZN147,148,149,168,193..(DCB,THDCB)..(ARL,GCC,GEN,SA) MARK=35470	08/1997 - 07/2001	1
83320-80398	KZN165..THDCB..SR;RZN149,169..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;LN147,16#,RZN148,168..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,191,RZN147,193..DCB..(ARL,GCC,GEN,SA) MARK=35820	07/2001 - 03/2002	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 07/2001	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-35030	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
84231-35030	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..DCB..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	2
84231-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-35030	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
84231-35030	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..DCB..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	2
84231-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-35030	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
84231-35030	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..DCB..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	2
84231-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-35030	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
84231-35030	RZN149,169..DCB..CBR;LN166,RZN148,168..DCB..DLX;RZN169..(DCB,THDCB)..(ARL,SA);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);KZN165,190,LN145,146,147,167,19#,RZN147,19#..DCB,THDCB	08/2000 - 09/2001	2
84231-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-35030	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 08/2000	2
84231-35030	RZN149,169..DCB..CBR;LN166,RZN148,168..DCB..DLX;RZN169..(DCB,THDCB)..(ARL,SA);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);KZN165,190,LN145,146,147,167,19#,RZN147,19#..DCB,THDCB	08/2000 - 09/2001	2
84231-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
86650H - BUZZER ASSY, BACK
86650-89106	LN145,166,171,191,RZN147,148,149,154,16#,193..(DCB,XTR)..GEN	08/1997 - 08/1999	1
86650-89106	RZN149..SR..CBR;RZN169..CBR..GCC;RZN142,147..SCB..GCC;RZN149..DCB..DLX..CBR;RZN169..DCB..CBR..GEN;LN141,146,171,191,RZN144,154..CBR,DSL;LN145,166,RZN147,148,168,193..DCB..DLX..(GCC,GEN)	08/1999 - 12/2999	1
86650-89106	LN145,166,171,191,RZN147,148,154,16#,193..(DCB,XTR)..GEN	08/2001 - 12/2999	1
Common parts
90119-06121
90119-06601
90179-06026
91626-40820
93319-A4010
Linked diagrams
5354

ILLUST NO. 6 OF 6(9708- )LHD

Click highlighted areas on diagram

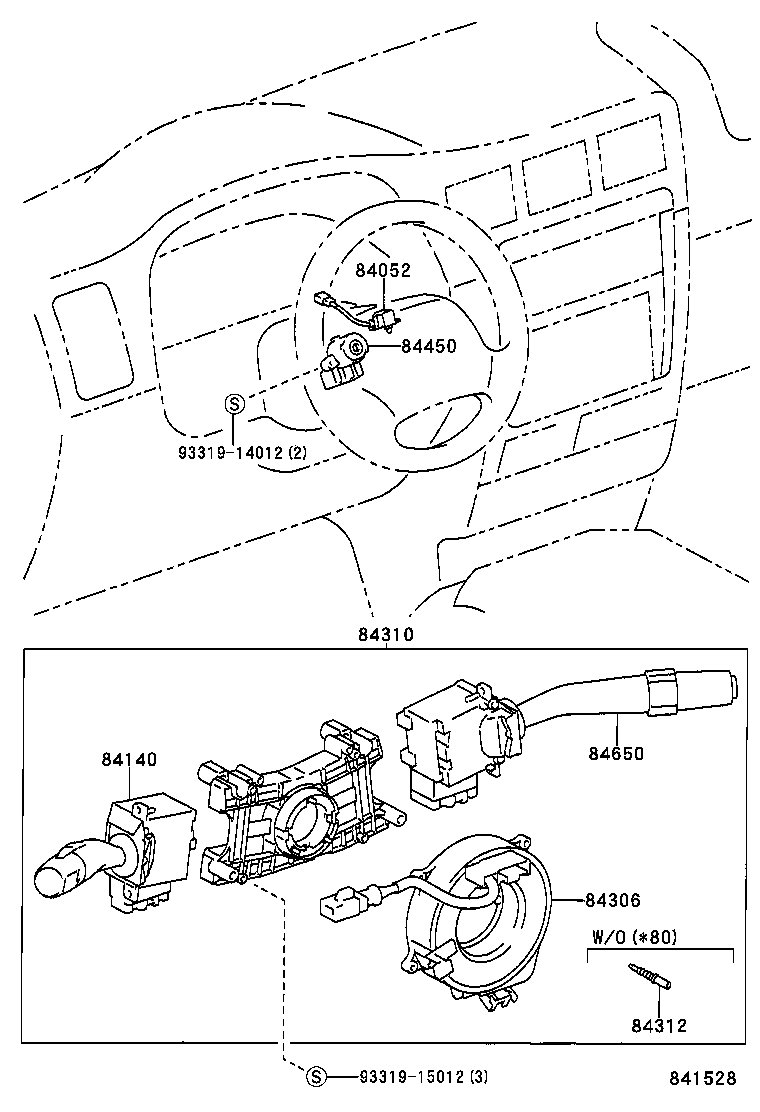

COMBINATION SWITCH

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26140	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
84140-26140	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN	08/2001 - 06/2005	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-35630	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN) W(INTERMITTENT WIPER)	08/1997 - 12/2999	1
84310-35830	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
84310-35630	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN W(INTERMITTENT WIPER)	08/2001 - 06/2005	1
84310-04200	KDN151,166..DCB,XTR	08/2002 - 08/2004	1
84310-35830	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN	08/2001 - 06/2005	1
84312 - PLATE, HORN CONTACT
84312-26010	LN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 09/2000	1
84312-26010	LN152..IV3;RZN169..SA;RZN169..DLX..ARL;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN155,RZN144,149,154..LHD..(CBR,DSL);LN167,RZN149..DLX..(DEFI,EFI)..(ARL,GEN);LN167,RZN169..(CBR,DEFI,DSL)..(GCC,GEN,SA);KZN165,RZN154,194..(DCB,SCB,THXTR,XTR)..(ARL,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)	09/2000 - 03/2002	1
84312-26010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 09/2000	1
84450-12200	LN145..SCB;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165..(THDCB,XTR)..SR..CBU;LN145,167..DCB..DLX..(ARL,GEN);LN150,152,RZN194..(DCB,SCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,SCB,THXTR,XTR)..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G010	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN) W(TILT STEERING)	08/1997 - 12/2999	1
84652-35550	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 12/2999	1
84652-2G010	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN W(INTERMITTENT WIPER)	08/2001 - 06/2005	1
84652-35550	RZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN	08/2001 - 06/2005	1
Common parts
93319-14012
93319-15012

ILLUST NO. 1 OF 6(9909- )KDN145,15#,16#,190,KZN165,190

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	LN167..TH;LN145..SCB;LN192..DEFI;LN145..LHD..DLX..TH;LN145,167..DCB..DLX..(ARL,GEN);KZN165..(DCB,SCB)..(ARL,SA)..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN150,152..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83420-16040	KZN165,190,LN14#,15#,16#,17#,19#,RZN142,147,YN140	08/1997 - 09/2000	1
83420-16040	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN167..THDCB..SR;KDN145,KZN190..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);LN145,152,192..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN15#,16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,147..(DCB,SCB,SRWGN,THDCB,THSCB,XTR)..(ARL,GCC,GEN,SA,TH)	08/2001 - 12/2999	1
83420-20040	RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA	08/2001 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060	LN14#,16#,17#,191	08/1997 - 03/1998	1
83530-60020	RZN14#,154,16#,174,193	08/1997 - 03/1998	1
83530-60030	LN14#,15#,16#,17#,19#	03/1998 - 09/2000	1
83530-60030	LN145..SCB;LN152..IV3;LN192..DEFI;LN145..LHD..DLX..TH;LN150,152,167..SR..TH;LN145,167..DCB..DLX..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	09/2000 - 12/2999	1
83530-28020	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
83530-60030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM	08/1997 - 09/2000	1
84210-12040	LN145..SCB;LN145..LHD..DLX..TH;KZN165..(THDCB,XTR)..SR..CBU;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN150,152,RZN194..(DCB,SCB,XTR)..MTM..SR;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) THAILAND SPEC	09/2000 - 12/2999	1
84210-12040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU THAILAND SPEC	08/2001 - 06/2005	1
84210-12040	KDN151,166..MTM	06/2002 - 08/2004	1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-35050	LN166,171..DSL..GEN	08/1997 - 12/2999	1
84222-35050	LN166,171..GEN	08/2001 - 06/2005	1
Common parts
82711-35610
90430-18008
90461-06423
91651-40830
91651-60614

ILLUST NO. 2 OF 6(9909- )KDN145,15#,16#,190,KZN165,190

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-46010	5LE..LN152,157,167,192;2L,5L..LN145,152,167,192..ARL,GEN,SA;1KZTE,2L,3L,5L#..KZN165,190,LN140,141,146,147,166,17#,191	08/1997 - 08/2001	1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-54360	5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..DCB..GEN;1KZTE..KZN165..SCB..DLX;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,2L,5LE..KZN165,LN150,152..XTR..SR;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
28610-54360	2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
82600F - FUSE, FUSE BLOCK
90982-09009	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	08/1997 - 09/1998	1
90982-09008	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	08/1997 - 09/1998	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1998 - 08/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1998 - 08/1999	1
90982-09010	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	08/1997 - 09/1998	1
90982-09011	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	08/1997 - 09/1998	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1998 - 08/1999	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 15A,MINI FUSE,BLUE	08/1999 - 09/1999	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 7.5A,MINI FUSE,BRN	08/1999 - 09/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 10A,MINI FUSE,RED	08/1999 - 09/1999	1
90982-09009	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1999 - 08/2000	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	09/1998 - 08/1999	1
90982-09010	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1999 - 08/2000	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/1999 - 09/1999	1
90982-09011	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1999 - 08/2000	1
90982-09010	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 15A,MINI FUSE,BLUE	08/2000 - 09/2001	1
90982-09009	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 10A,MINI FUSE,RED	08/2000 - 09/2001	1
90982-09008	RZN169..ARL,SA;RZN147,148,168..DLX;LN167,RZN154..(DEFI,EFI)..ARL;RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);LN140,145,167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN) 7.5A,MINI FUSE,BRN	09/1999 - 09/2001	1
90982-09011	RZN154,169..ARL,SA;RZN147,148,168..DLX;LN167,RZN149..(DEFI,EFI)..(ARL,GEN);LN167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN14#,152,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/2000 - 09/2001	1
90982-09008	KDN165..SRWGN;KDN151,166..DCB,XTR;KDN190..(SRWGN,XTR)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 07/2004	1
90982-10001	KDN151,166..DCB,XTR 30A,PINK	08/2001 - 08/2004	1
90982-09008	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 06/2005	1
90982-09011	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 20A,MINI FUSE,YELLOW	08/2001 - 06/2005	1
90982-09009	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 10A,MINI FUSE,RED	08/2001 - 06/2005	1
90982-09010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 15A,MINI FUSE,BLUE	08/2001 - 06/2005	1
82616 - PULLER, FUSE
82616-20010	KZN165..SA;KZN165,RZN147..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,THDCB,THSCB,THXTR,XTR	08/2000 - 09/2000	1
82616-20010	RZN147..(DCB,SCB)..(ARL,GCC,GEN);LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,XTR	08/1999 - 09/1999	1
82616-20010	LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	09/1998 - 08/1999	1
82616-20010	RZN154,169..ARL;KZN165,YN140..SA,TH;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,RZN147,148,168..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN174,193..DEFI,DSL,EFI,TDE	09/2000 - 09/2001	1
82616-20010	RZN147..ARL,GCC,GEN;KZN165,190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140	09/1999 - 08/2000	1
82616-20010	LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR	08/1997 - 09/1998	1
82616-20010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82663 - COVER, RELAY BLOCK, LOWER
82663-35050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82663-35050	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82663-35070	RZN148..CBU;LN147,167,RZN147,149,169..(DCB,SCB)..(ARL,GCC,GEN);KZN165,LN141,145,146,152,166,17#,191,RZN142,144,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN)	08/1999 - 09/2000	1
82663-35070	RZN154,169..(DCB,SCB,XTR)..ARL;RZN149..(DCB,SCB)..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);RZN147,148,168,174..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN);KZN165,LN141,145,146,147,152,16#,17#,191,RZN193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)	09/2000 - 09/2001	1
82663-35070	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35020	RZN14#,154,16#,174,19#,YN140	08/1997 - 08/1999	1
82741-35040	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
82741-35100	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1999 - 08/2001	1
82741-35100	LN145,166,171,191..LHD..GEN	08/2001 - 06/2005	1
82741-35080	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82742-35010	LN14#,16#,17#,19#..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82742-35010	LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82742-35010	LN152..XTR..IV3;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN167,192..(DCB,SCB)..DSL;KZN165..(THDCB,THSCB)..SR;LN147..(THDCB,THSCB)..DLX..DEFI;KZN165,LN172..(DCB,SCB,THXTR)..(DEFI,TDE)..ARL;LN14#,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/1999 - 03/2002	1
82742-35010	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30100	LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
90987-04002	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-04002	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916N - RELAY, TAIL LAMP
90987-02012	KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2000	1
90987-02012	RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN167,RZN154,194..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	1
90987-02012	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916P - RELAY, HEADLAMP
90987-02006	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-02006	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90987-02006	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
Common parts
90109-06270
91621-J0614
Linked diagrams
8202

ILLUST NO. 3 OF 6(9708- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCHES

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-35060	KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA) (J)	08/1997 - 08/2000	1
84332-35060	LN152..XTR..IV3;RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;RZN154,194..RHD..(DCB,SCB,XTR);RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,LN167,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) (J)	08/2000 - 08/2002	1
84332-35060	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN) 14V 0.91W	08/1997 - 08/2001	1
84999-10860	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU 14V 0.91W	08/2001 - 06/2005	1
84656A - BEZEL, SWITCH
84656-32020C0	RZN149..SR..GEN;LN145,166,RZN147,169..LHD..DCB..(GEN,TH);LN147,167,19#,RZN148,149,16#,193..(DCB,THDCB)..(DSL,EFI) BLACK,TRIM1#	05/1998 - 08/1999	2
84656-32020C0	RZN169..DCB..CBR..GEN;RZN149,169..(DCB,THDCB)..(ARL,SA);KZN190,LN147,167,19#,RZN19#..DCB,SADCB,THDCB;KZN165,RZN149..(DCB,THDCB)..SR..(ARL,GEN,SA);LN145,166,RZN147,148,168..LHD..DCB..DLX..(GEN,TH) BLACK,TRIM1#	08/1999 - 09/2001	2
84656-32020C0	RZN149..SR..GEN;LN145,166,RZN147,169..LHD..DCB..GEN;LN147,167,191,RZN149,16#,193..DCB..(DSL,EFI) BLACK,TRIM1#	08/1997 - 05/1998	2
84656-32020C0	RZN169..DCB..GEN;LN145,166,191,RZN147,148,168,193..LHD..DCB..GEN BLACK,TRIM1#	08/2001 - 06/2005	2
84660C - SWITCH, COOLER
84660-35010	LN166..LHD;LN141,145,146,171,191,RZN14#,154,16#,193..GCC,GEN	08/1997 - 05/1998	1
84660-35030	LN145..DCB..IV3;LN145..LHD..IV3;RZN149..SR..CBR;LN145..RHD..GEN..CBU;RZN169..RHD..DCB..CBR;RZN149,169..SCB..DLX..CBR;RZN149,169..DCB..DLX..CBR..GCC;LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,146,171,191,RZN142,144,147,154..(CBR,DSL)..(GCC,GEN) MAKER OPTION	05/1998 - 12/2999	1
84660-35030	RZN147..ARL;RZN169..SCB..GCC;RZN169..DCB..(GCC,SA);LN145,RZN169..LHD..GEN;LN155,166,RZN142,147..LHD;KZN165,LN141,146,171,191,RZN144,148,149,154,168,19#..MTM..(GCC,GEN,SA)..CBU MAKER OPTION	08/2001 - 12/2999	1
84660D - BULB(FOR COOLER SWITCH)
88607-16010	KZN165..DCB..DLX..CBU;RZN169..LHD..SCB..CBR..GEN;LN145,RZN148..LHD..GEN..IV3;KZN165,RZN149..SCB..DLX..(CBR,TDE);LN166,171,191,RZN142,147,154..LHD..DLX..(CBR,DSL)..GEN 14V 0.065A	09/2000 - 12/2999	1
88607-16010	KZN190..SR;LN147..IV3;RZN149..DCB..CO;RZN149,169..ARL,GCC,SA;RZN148,169..LHD..GEN..CBU;LN145,155,166,RZN142,147..LHD;LN152,RZN168..(ARL,CO,GEN)..CBU;LN147,RZN148..(DCB,THDCB)..(ARL,CO);KZN165,LN141,146,167,17#,19#,RZN144,147,154,174,19#..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 14V 0.065A	08/2001 - 12/2999	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-35030	RZN148,168..DLX..GEN;LN166,RZN154,169..LHD..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..LHD..GEN	08/1997 - 12/2999	1
84732-35030	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN	08/2001 - 12/2999	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	LN145,166,171,191,RZN142,147,148,149,154,16#,193..GEN 14V 1.4W	08/1997 - 08/2001	1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050	LN145,166,171,191,RZN142,147,148,149,154,16#,193..GEN	08/1997 - 08/2001	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-35020	LN145,171,RZN148,154,16#..LHD..(DCB,XTR)..GEN	08/2001 - 06/2005	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	LN145,171,RZN148,154,16#..LHD..(DCB,XTR)..GEN 14V 0.84W	08/2001 - 06/2005	2
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	LN145,171,RZN148,154,16#..LHD..(DCB,XTR)..GEN 14V 0.84W	08/2001 - 06/2005	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	RZN147..LHD..DCB;RZN169..LHD..DCB..CBR..GEN;LN145,166,RZN168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN146,167,19#,RZN19#..(DCB,THDCB)..(DSL,EFI);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,RZN149..(DCB,THDCB)..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN147,RZN149..(DCB,THDCB)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,SA)	08/1997 - 06/2002	3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	RZN147..LHD..DCB;RZN169..LHD..DCB..CBR..GEN;LN145,166,RZN168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN146,167,19#,RZN19#..(DCB,THDCB)..(DSL,EFI);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,RZN149..(DCB,THDCB)..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN147,RZN149..(DCB,THDCB)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,SA)	08/1997 - 06/2002	3
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-60090	RZN149..DCB..SR;RZN149..DLX..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,146,191,RZN147,168,193..LHD..DCB	08/1997 - 05/1998	1
84820-60090	RZN149..DCB..SR..CBR;RZN149..DLX..CBR..GCC;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN145,146,191,RZN147,148,168,193..LHD..DCB..DLX	05/1998 - 09/2001	1
84820-60090	LN145,RZN168..SR;RZN168..DCB..DLX..GEN;LN166,RZN169..LHD..DCB..GEN;LN145,146,191,RZN147,148,149,193..LHD..DCB..MTM..(GCC,GEN)	08/2001 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
85500-12240	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
85500-12240	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
85513-12020	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
85513-12020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
85520-28010	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
85520-28010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	RZN149..ARL,GEN;RZN144,149..DLX..GCC;LN147,152,167,172,RZN147,154,169,174..ARL,GCC,GEN,SA;KZN165,190,LN140,141,145,146,150,155,157,166,171,19#,RZN142,148,168,19#,YN140..GCC,GEN,SA,TH	08/1997 - 08/2000	1
85533-26010	LN152..IV3;LN192..DSL;RZN169..DCB..SA;RZN149..DLX..CBR;LN145..LHD..DLX..TH;LN167..XTR..DEFI..CBU;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN145,RZN144..SCB..DLX..(CBR,DSL,TDE);KZN165,LN145,RZN154..(DCB,XTR)..(CBR,DSL,TDE)..(GEN,SA);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
85533-26010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU	08/2001 - 12/2999	1

ILLUST NO. 2 OF 6(9708- )LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-46010	5LE..LN152,157,167,192;2L,5L..LN145,152,167,192..ARL,GEN,SA;1KZTE,2L,3L,5L#..KZN165,190,LN140,141,146,147,166,17#,191	08/1997 - 08/2001	1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-54360	5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..DCB..GEN;1KZTE..KZN165..SCB..DLX;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,2L,5LE..KZN165,LN150,152..XTR..SR;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
28610-54360	2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
82600F - FUSE, FUSE BLOCK
90982-09009	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	08/1997 - 09/1998	1
90982-09008	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	08/1997 - 09/1998	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1998 - 08/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1998 - 08/1999	1
90982-09010	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	08/1997 - 09/1998	1
90982-09011	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	08/1997 - 09/1998	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1998 - 08/1999	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 15A,MINI FUSE,BLUE	08/1999 - 09/1999	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 7.5A,MINI FUSE,BRN	08/1999 - 09/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 10A,MINI FUSE,RED	08/1999 - 09/1999	1
90982-09009	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1999 - 08/2000	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	09/1998 - 08/1999	1
90982-09010	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1999 - 08/2000	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/1999 - 09/1999	1
90982-09011	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1999 - 08/2000	1
90982-09010	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 15A,MINI FUSE,BLUE	08/2000 - 09/2001	1
90982-09009	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 10A,MINI FUSE,RED	08/2000 - 09/2001	1
90982-09008	RZN169..ARL,SA;RZN147,148,168..DLX;LN167,RZN154..(DEFI,EFI)..ARL;RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);LN140,145,167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN) 7.5A,MINI FUSE,BRN	09/1999 - 09/2001	1
90982-09011	RZN154,169..ARL,SA;RZN147,148,168..DLX;LN167,RZN149..(DEFI,EFI)..(ARL,GEN);LN167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN14#,152,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/2000 - 09/2001	1
90982-09008	KDN165..SRWGN;KDN151,166..DCB,XTR;KDN190..(SRWGN,XTR)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 07/2004	1
90982-10001	KDN151,166..DCB,XTR 30A,PINK	08/2001 - 08/2004	1
90982-09008	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 06/2005	1
90982-09011	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 20A,MINI FUSE,YELLOW	08/2001 - 06/2005	1
90982-09009	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 10A,MINI FUSE,RED	08/2001 - 06/2005	1
90982-09010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 15A,MINI FUSE,BLUE	08/2001 - 06/2005	1
82616 - PULLER, FUSE
82616-20010	KZN165..SA;KZN165,RZN147..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,THDCB,THSCB,THXTR,XTR	08/2000 - 09/2000	1
82616-20010	RZN147..(DCB,SCB)..(ARL,GCC,GEN);LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,XTR	08/1999 - 09/1999	1
82616-20010	LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	09/1998 - 08/1999	1
82616-20010	RZN154,169..ARL;KZN165,YN140..SA,TH;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,RZN147,148,168..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN174,193..DEFI,DSL,EFI,TDE	09/2000 - 09/2001	1
82616-20010	RZN147..ARL,GCC,GEN;KZN165,190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140	09/1999 - 08/2000	1
82616-20010	LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR	08/1997 - 09/1998	1
82616-20010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82663 - COVER, RELAY BLOCK, LOWER
82663-35050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82663-35050	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82663-35070	RZN148..CBU;LN147,167,RZN147,149,169..(DCB,SCB)..(ARL,GCC,GEN);KZN165,LN141,145,146,152,166,17#,191,RZN142,144,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN)	08/1999 - 09/2000	1
82663-35070	RZN154,169..(DCB,SCB,XTR)..ARL;RZN149..(DCB,SCB)..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);RZN147,148,168,174..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN);KZN165,LN141,145,146,147,152,16#,17#,191,RZN193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)	09/2000 - 09/2001	1
82663-35070	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35020	RZN14#,154,16#,174,19#,YN140	08/1997 - 08/1999	1
82741-35040	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
82741-35100	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1999 - 08/2001	1
82741-35100	LN145,166,171,191..LHD..GEN	08/2001 - 06/2005	1
82741-35080	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82742-35010	LN14#,16#,17#,19#..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82742-35010	LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82742-35010	LN152..XTR..IV3;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN167,192..(DCB,SCB)..DSL;KZN165..(THDCB,THSCB)..SR;LN147..(THDCB,THSCB)..DLX..DEFI;KZN165,LN172..(DCB,SCB,THXTR)..(DEFI,TDE)..ARL;LN14#,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/1999 - 03/2002	1
82742-35010	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30100	LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
84461 - SWITCH, LEVEL WARNING
84461-28040	LN145..LHD..IV3;LN145,155..LHD..TH;LN145..(GEN,SA)..CBU;LN145,152..(DCB,THXTR)..DSL..IV3;LN140,141,146,147,16#,17#,19#..DSL..(ARL,GCC,GEN,SA)	08/1997 - 08/2001	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
90987-04002	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-04002	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916N - RELAY, TAIL LAMP
90987-02012	KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2000	1
90987-02012	RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN167,RZN154,194..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	1
90987-02012	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916P - RELAY, HEADLAMP
90987-02006	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-02006	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90987-02006	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
Common parts
90119-05021
90119-06651
90179-06158
91651-60614
Linked diagrams
8202

ILLUST NO. 2 OF 6(9708- )RZN14#,154,16#,174,19#,YN140

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-46010	5LE..LN152,157,167,192;2L,5L..LN145,152,167,192..ARL,GEN,SA;1KZTE,2L,3L,5L#..KZN165,190,LN140,141,146,147,166,17#,191	08/1997 - 08/2001	1
82600F - FUSE, FUSE BLOCK
90982-09009	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	08/1997 - 09/1998	1
90982-09008	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	08/1997 - 09/1998	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1998 - 08/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1998 - 08/1999	1
90982-09010	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	08/1997 - 09/1998	1
90982-09011	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	08/1997 - 09/1998	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1998 - 08/1999	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 15A,MINI FUSE,BLUE	08/1999 - 09/1999	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 7.5A,MINI FUSE,BRN	08/1999 - 09/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 10A,MINI FUSE,RED	08/1999 - 09/1999	1
90982-09009	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1999 - 08/2000	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	09/1998 - 08/1999	1
90982-09010	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1999 - 08/2000	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/1999 - 09/1999	1
90982-09011	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1999 - 08/2000	1
90982-09010	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 15A,MINI FUSE,BLUE	08/2000 - 09/2001	1
90982-09009	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 10A,MINI FUSE,RED	08/2000 - 09/2001	1
90982-09008	RZN169..ARL,SA;RZN147,148,168..DLX;LN167,RZN154..(DEFI,EFI)..ARL;RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);LN140,145,167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN) 7.5A,MINI FUSE,BRN	09/1999 - 09/2001	1
90982-09011	RZN154,169..ARL,SA;RZN147,148,168..DLX;LN167,RZN149..(DEFI,EFI)..(ARL,GEN);LN167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN14#,152,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/2000 - 09/2001	1
90982-09008	KDN165..SRWGN;KDN151,166..DCB,XTR;KDN190..(SRWGN,XTR)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 07/2004	1
90982-10001	KDN151,166..DCB,XTR 30A,PINK	08/2001 - 08/2004	1
90982-09008	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 06/2005	1
90982-09011	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 20A,MINI FUSE,YELLOW	08/2001 - 06/2005	1
90982-09009	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 10A,MINI FUSE,RED	08/2001 - 06/2005	1
90982-09010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 15A,MINI FUSE,BLUE	08/2001 - 06/2005	1
82600F - FUSE, FUSE BLOCK
90982-09009	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	08/1997 - 09/1998	1
90982-09008	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	08/1997 - 09/1998	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1998 - 08/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1998 - 08/1999	1
90982-09010	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	08/1997 - 09/1998	1
90982-09011	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	08/1997 - 09/1998	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1998 - 08/1999	1
90982-09010	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 15A,MINI FUSE,BLUE	08/1999 - 09/1999	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 7.5A,MINI FUSE,BRN	08/1999 - 09/1999	1
90982-09009	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 10A,MINI FUSE,RED	08/1999 - 09/1999	1
90982-09009	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 10A,MINI FUSE,RED	09/1999 - 08/2000	1
90982-09008	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 7.5A,MINI FUSE,BRN	09/1998 - 08/1999	1
90982-09010	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 15A,MINI FUSE,BLUE	09/1999 - 08/2000	1
90982-09011	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/1999 - 09/1999	1
90982-09011	KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA 20A,MINI FUSE,YELLOW	09/1999 - 08/2000	1
90982-09010	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 15A,MINI FUSE,BLUE	08/2000 - 09/2001	1
90982-09009	RZN169..ARL,SA;LN157,RZN147,148,168..DLX..(CBR,DEFI,EFI);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..(CBU,IV1);LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,SA,TH);LN145,152,192,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE) 10A,MINI FUSE,RED	08/2000 - 09/2001	1
90982-09008	RZN169..ARL,SA;RZN147,148,168..DLX;LN167,RZN154..(DEFI,EFI)..ARL;RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);LN140,145,167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN174,193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN) 7.5A,MINI FUSE,BRN	09/1999 - 09/2001	1
90982-09011	RZN154,169..ARL,SA;RZN147,148,168..DLX;LN167,RZN149..(DEFI,EFI)..(ARL,GEN);LN167,192,RZN142,144,149,154,169,YN140..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,190,LN14#,152,166,17#,191,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,SA) 20A,MINI FUSE,YELLOW	08/2000 - 09/2001	1
90982-09008	KDN165..SRWGN;KDN151,166..DCB,XTR;KDN190..(SRWGN,XTR)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 07/2004	1
90982-10001	KDN151,166..DCB,XTR 30A,PINK	08/2001 - 08/2004	1
90982-09008	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 7.5A,MINI FUSE,BRN	08/2001 - 06/2005	1
90982-09011	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 20A,MINI FUSE,YELLOW	08/2001 - 06/2005	1
90982-09009	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 10A,MINI FUSE,RED	08/2001 - 06/2005	1
90982-09010	LN145..LHD..IV3;KDN165,190,LN145,166,171,191,RZN142,147,148,154,16#,193..(GEN,MA)..CBU 15A,MINI FUSE,BLUE	08/2001 - 06/2005	1
82602A - BLOCK SUB-ASSY, RELAY
82602-35150	KDN151,166..DCB,XTR	08/2001 - 08/2004	1
82616 - PULLER, FUSE
82616-20010	KZN165..SA;KZN165,RZN147..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,THDCB,THSCB,THXTR,XTR	08/2000 - 09/2000	1
82616-20010	RZN147..(DCB,SCB)..(ARL,GCC,GEN);LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,XTR	08/1999 - 09/1999	1
82616-20010	LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	09/1998 - 08/1999	1
82616-20010	RZN154,169..ARL;KZN165,YN140..SA,TH;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,RZN147,148,168..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN174,193..DEFI,DSL,EFI,TDE	09/2000 - 09/2001	1
82616-20010	RZN147..ARL,GCC,GEN;KZN165,190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140	09/1999 - 08/2000	1
82616-20010	LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR	08/1997 - 09/1998	1
82616-20010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82616 - PULLER, FUSE
82616-20010	KZN165..SA;KZN165,RZN147..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,THDCB,THSCB,THXTR,XTR	08/2000 - 09/2000	1
82616-20010	RZN147..(DCB,SCB)..(ARL,GCC,GEN);LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140..DCB,SCB,XTR	08/1999 - 09/1999	1
82616-20010	LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	09/1998 - 08/1999	1
82616-20010	RZN154,169..ARL;KZN165,YN140..SA,TH;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,RZN147,148,168..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN174,193..DEFI,DSL,EFI,TDE	09/2000 - 09/2001	1
82616-20010	RZN147..ARL,GCC,GEN;KZN165,190,LN14#,15#,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#,YN140	09/1999 - 08/2000	1
82616-20010	LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR	08/1997 - 09/1998	1
82616-20010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82663 - COVER, RELAY BLOCK, LOWER
82663-35050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82663-35050	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82663-35070	RZN148..CBU;LN147,167,RZN147,149,169..(DCB,SCB)..(ARL,GCC,GEN);KZN165,LN141,145,146,152,166,17#,191,RZN142,144,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN)	08/1999 - 09/2000	1
82663-35070	RZN154,169..(DCB,SCB,XTR)..ARL;RZN149..(DCB,SCB)..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);RZN147,148,168,174..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN);KZN165,LN141,145,146,147,152,16#,17#,191,RZN193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)	09/2000 - 09/2001	1
82663-35070	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82663 - COVER, RELAY BLOCK, LOWER
82663-35050	LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	09/1998 - 08/1999	1
82663-35050	LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA	08/1997 - 09/1998	1
82663-35070	RZN148..CBU;LN147,167,RZN147,149,169..(DCB,SCB)..(ARL,GCC,GEN);KZN165,LN141,145,146,152,166,17#,191,RZN142,144,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN)	08/1999 - 09/2000	1
82663-35070	RZN154,169..(DCB,SCB,XTR)..ARL;RZN149..(DCB,SCB)..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);RZN147,148,168,174..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN);KZN165,LN141,145,146,147,152,16#,17#,191,RZN193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)	09/2000 - 09/2001	1
82663-35070	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35020	RZN14#,154,16#,174,19#,YN140	08/1997 - 08/1999	1
82741-35040	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
82741-35100	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1999 - 08/2001	1
82741-35100	LN145,166,171,191..LHD..GEN	08/2001 - 06/2005	1
82741-35080	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35020	RZN14#,154,16#,174,19#,YN140	08/1997 - 08/1999	1
82741-35040	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/1999	1
82741-35100	LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1999 - 08/2001	1
82741-35100	LN145,166,171,191..LHD..GEN	08/2001 - 06/2005	1
82741-35080	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
90987-04002	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-04002	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916N - RELAY, TAIL LAMP
90987-02012	KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2000	1
90987-02012	RZN169..DCB..SA;LN167..SCB..DEFI;KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;KZN165,LN152..(SCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN167,RZN154,194..(DCB,SCB,XTR)..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)	08/2000 - 12/2999	1
90987-02012	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
85916P - RELAY, HEADLAMP
90987-02006	LN167..DSL;LN145..DCB..GEN;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(DEFI,TDE)..(IV1,IV3);KZN165,LN152..(THDCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/2000 - 12/2999	1
90987-02006	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90987-02006	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140	08/1997 - 08/2000	1
Common parts
90119-06005
91611-B0614
91621-J0614
Linked diagrams
8202

LN166L-PRMDS (1997)

ILLUST NO. 1 OF 6(9708- )LN14#,15#,16#,17#,19#

ILLUST NO. 1 OF 6(9708- )RZN14#,154,16#,174,19#,YN140

ILLUST NO. 4 OF 6(9708- )LHD

ILLUST NO. 5 OF 6(9708- )

ILLUST NO. 6 OF 6(9708- )LHD

ILLUST NO. 1 OF 6(9909- )KDN145,15#,16#,190,KZN165,190

ILLUST NO. 2 OF 6(9909- )KDN145,15#,16#,190,KZN165,190

ILLUST NO. 3 OF 6(9708- )LHD

ILLUST NO. 2 OF 6(9708- )LN14#,15#,16#,17#,19#

ILLUST NO. 2 OF 6(9708- )RZN14#,154,16#,174,19#,YN140

Part Price Details
