LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN141,145,146,155,166,171,191..LHD

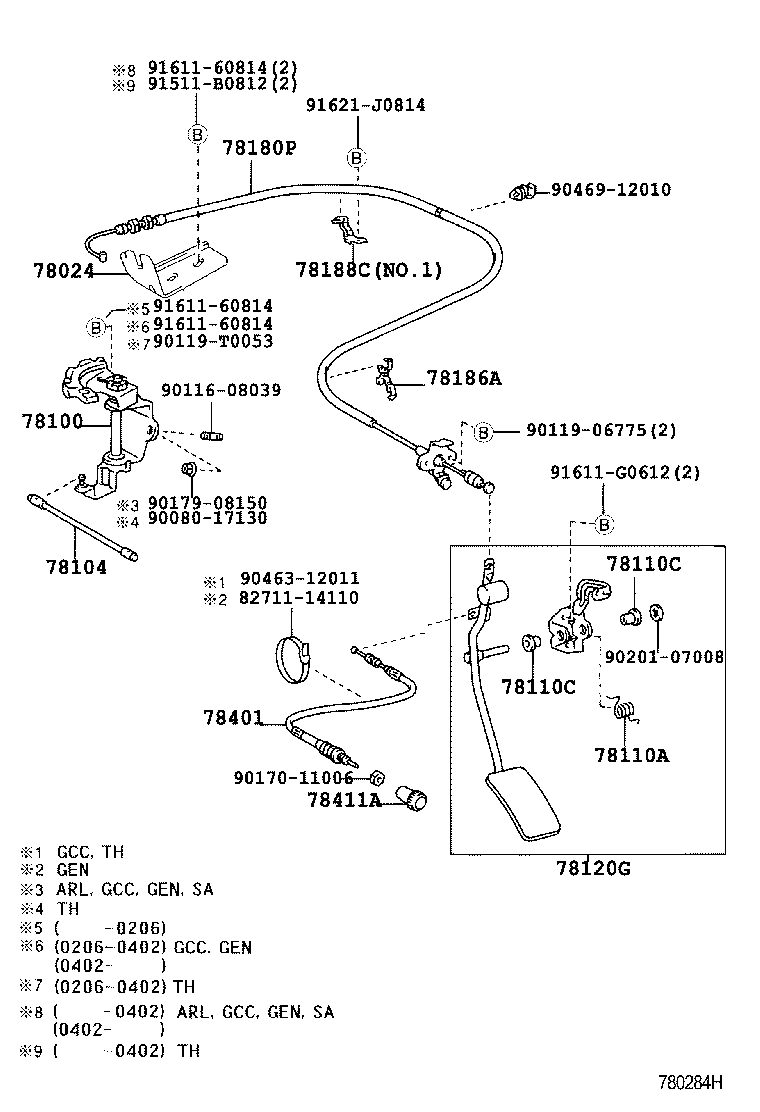

Click highlighted areas on diagram

diagram 78024 78100 78104 78110A 78110C 78110C 78120G 78180P 78186A 78188C 78401 78411A 8271114110 9008017130 9011608039 9011906775 90119T0053 9017011006 9017908150 9020107008 9046312011 9046912010 91511B0812 9161160814 9161160814 9161160814 91611G0612 91621J0814
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22100

LN145..LHD..GEN;LN141,146,147,16#,17#,19#..ARL,GCC,GEN,SA

 1
78024-22100

LN166;LN141,145,146,155,171,191..LHD

 1
78024-22100

LN152..ATM..DEFI;LN145,155..LHD..DLX;LN141,146,147,152,16#,17#,19#..DSL..(ARL,GCC,GEN,SA)

 1
78100 - LINK ASSY, ACCELERATOR
78100-35071

LN145..DCB..TH;LN145..LHD..IV3;LN145,166..(GCC,GEN,MA,SA)..CBU;LN140,141,146,150,155,171,191..DLX

 1
78100-35071

LN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,16#,17#,19#..DSL..(ARL,GCC,GEN,SA,TH)

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-22140

LN145..DCB..TH;LN145..LHD..IV3;LN145,166..(GCC,GEN,MA,SA)..CBU;LN140,141,146,150,155,171,191..DLX

 1
78104-22140

LN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,16#,17#,19#..DSL..(ARL,GCC,GEN,SA,TH)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03088

RZN149,154..ATM..ARL;LN141,145,146,155,166,171,191..LHD..DSL

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

RZN169..DCB..SA;RZN169..RHD..CBR;RZN169..DLX..(ARL,SA);LN145,155..LHD..DLX..TH;RZN142,147,149,154,YN140..RHD..DLX;LN14#,152,16#,17#,19#,RZN174,194..(DSL,EFI)..(ARL,GCC,GEN,SA)

 2
90386-08063

LN145..GEN,SA;LN145,155..LHD..TH;LN140,167,192,RZN147,169,194,YN140..RHD..(ARL,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN149,154,174..(DSL,EFI,TDE)..(ARL,GCC,GEN)

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

RZN169..DCB..SA;RZN169..RHD..CBR;RZN169..DLX..(ARL,SA);LN145,155..LHD..DLX..TH;RZN142,147,149,154,YN140..RHD..DLX;LN14#,152,16#,17#,19#,RZN174,194..(DSL,EFI)..(ARL,GCC,GEN,SA)

 2
90386-08063

LN145..GEN,SA;LN145,155..LHD..TH;LN140,167,192,RZN147,169,194,YN140..RHD..(ARL,GEN,SA);KZN165,LN141,146,147,152,166,17#,191,RZN149,154,174..(DSL,EFI,TDE)..(ARL,GCC,GEN)

 2
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35160

LN141,145,146,155,166,171,191..LHD..DSL

 1
78010-35060

KDN145,15#,16#,190..DCB,SCB,XTR

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35340

LN141,145,146,155,166,171,191..LHD..DSL

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-35110

LN141,145,146,155,166,171,191..LHD..DSL

 1
78186-35110

LN145,166,171,191..LHD..GEN

 1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35100

LN141,145,146,155,166,171,191..LHD..DSL

 1
78188-35010

RZN148,154,16#,193..LHD..GEN..CBU

 1
78188-35100

LN145,166,171,191..LHD..GEN

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-35070

LN141,145,146,155,166,171,191..LHD..DSL

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-89105

LN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,16#,17#,19#..DSL..(ARL,GCC,GEN,SA,TH)

 1
Common parts
82711-14110
90080-17130
90116-08039
90119-06775
90119-T0053
90170-11006
90179-08150
90201-07008
90463-12011
90469-12010
91511-B0812
91611-60814
91611-G0612
91621-J0814

(0110- )KDN145,15#,16#,190

Click highlighted areas on diagram

diagram 78111C 78120G 91611B0614
Part # Description Qty Price
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08066

RZN142,147,148,154,16#,193..LHD..GEN..CBU

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35160

LN141,145,146,155,166,171,191..LHD..DSL

 1
78010-35060

KDN145,15#,16#,190..DCB,SCB,XTR

 1
Common parts
91611-B0614
