Toyota Hilux LN166 FUEL TANK & TUBE

LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9708- )KZN165,190,LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

Part #	Description	Period	Qty
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08030	LN141,145,146,155,166,171,191..LHD..DSL *H,L=240,ID=7.6	08/1997 - 09/2001	1
95333-08030	LN141,145,146,155,166,171,191..LHD *H,L=240,ID=7.6	08/2001 - 12/2999	1
77279-35100	KDN145,15#,16#,190	10/2001 - 03/2005	1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95333-08030	LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6	08/1997 - 12/2999	2
95333-08030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU *H,L=220,ID=7.6	08/2001 - 06/2005	2
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95333-08030	LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6	08/1997 - 12/2999	2
95333-08030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU *H,L=220,ID=7.6	08/2001 - 06/2005	2
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95333-06020	RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE *H,L=140	08/1997 - 08/2001	1
95333-06020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU *H,L=150	08/2001 - 06/2005	1
77249 - HOSE, FUEL EMISSION
77249-35120	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154..LHD..(GCC,GEN)	08/1997 - 08/2001	1
95333-06020	RZN148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
77249-35120	RZN148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	1
77249-35120	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
77251B - TUBE, FUEL MAIN
77251-3D190	LN145,166,191..LHD..DCB..GEN	08/2001 - 06/2005	1
77251-3D190	LN145,146,166,191..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77251-3D250	RZN148,16#,193..DCB..GEN	08/2001 - 06/2005	1
77252A - TUBE, FUEL MAIN, NO.2
77252-35360	LN150,152,17#,RZN147,149,154,169..(DCB,SCB,XTR)..(CBR,DEFI,DSL);KZN165,190,LN145,146,147,155,157,16#,19#..(DCB,SCB)..(DEFI,DSL,TDE)	04/2001 - 09/2001	1
77252-35360	LN150,152,17#,RZN154..CBR,DEFI,DSL;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,149,169..(DCB,SCB,THDCB,THSCB)..(CBR,DEFI,DSL,TDE)	08/1997 - 04/2001	1
77252-35360	LN145..LHD..IV3;LN145,166,171,191,RZN147..GEN..CBU	08/2001 - 06/2005	1
77209-35360	RZN148,16#,193..DCB..GEN	08/2001 - 06/2005	1
77255D - TUBE, FUEL RETURN
77255-35780	RZN147,148,149,16#,19#..DCB,SADCB,THDCB	08/1997 - 09/2000	1
77255-35810	LN167..(DCB,THDCB)..(ARL,SA);LN145,146,147,166,19#..(DCB,THDCB)..DLX	08/1997 - 09/2001	1
77255-35810	LN145,166,191..DCB..GEN	08/2001 - 06/2005	1
77255-35780	RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
77256C - TUBE, FUEL RETURN, NO.2
77256-35050	LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB	08/1997 - 04/2001	1
77256-35050	LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77256-35050	RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE)	04/2001 - 09/2001	1
77262B - TUBE, FUEL TANK TO CANISTER, NO.2
77262-35060	LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB	08/1997 - 04/2001	1
77262-35060	RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE)	04/2001 - 09/2001	1
77262-35060	LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6
77273-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77273-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35320	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77285-35320	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,191,RZN142,144,193..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77286-35020	LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU	08/2001 - 06/2005	2
77286F - CLAMP, FUEL TUBE, NO.2
77286-35040	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77286-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77289-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77289B - CLAMP, FUEL TUBE, NO.3
77289-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77289-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77295D - GROMMET, FUEL TUBE
77295-35170	LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN192,RZN142,147,149,169..(CBR,DEFI,DSL)..(GEN,SA,TH);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN154..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
77295-35170	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
77295E - GROMMET, FUEL TUBE
77295-35160	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77295-35160	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-35010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77298-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77439 - HOSE, FUEL RETURN
77439-35020	LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77439-35030	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77439-35020	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	2
77439 - HOSE, FUEL RETURN
77439-35020	LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77439-35030	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77439-35020	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067	RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE	08/1997 - 08/2001	1
90917-10090	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
Common parts
90179-06161
90461-10781
91611-B0614
91641-H0820
96132-51100
96132-51300

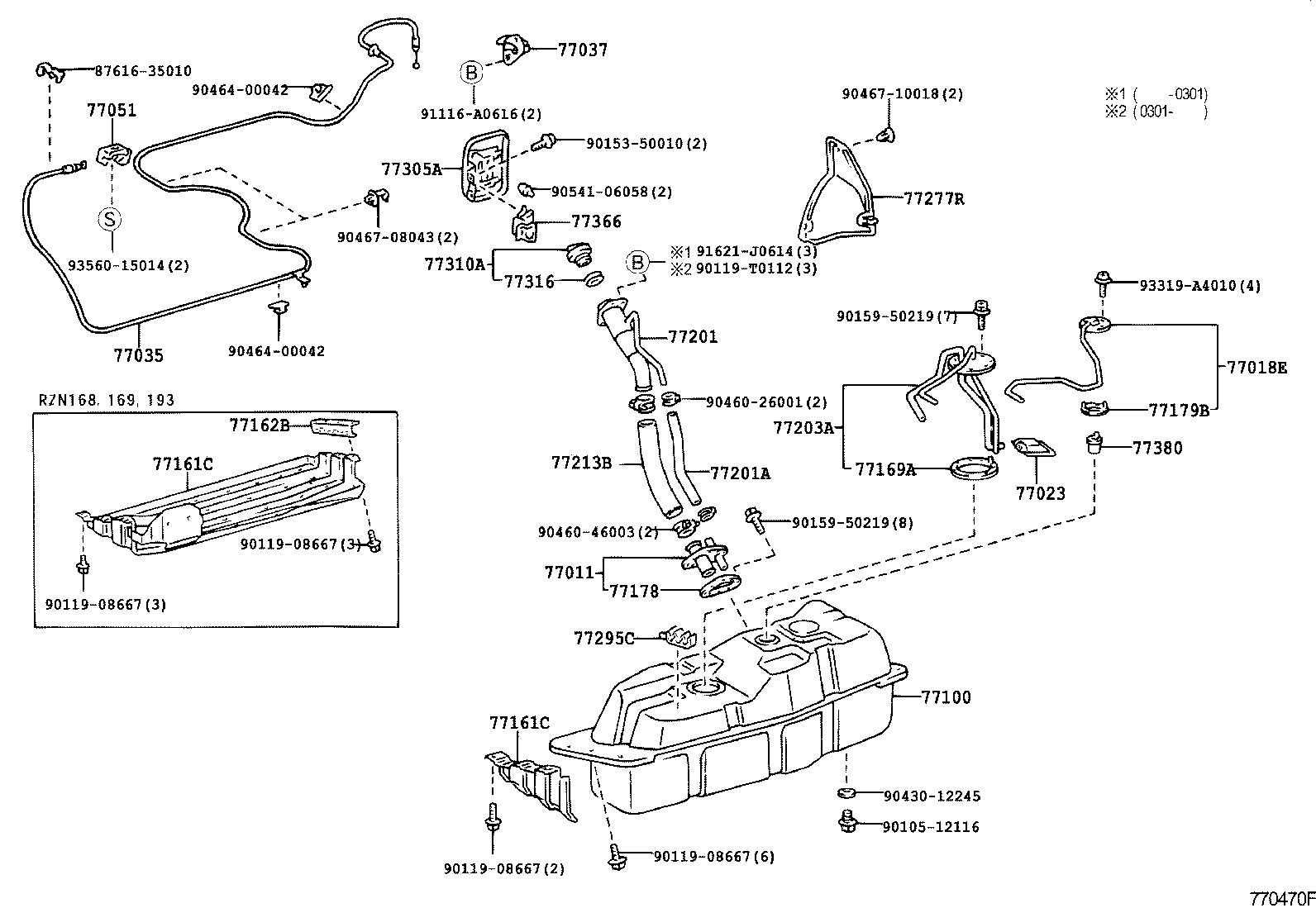

ILLUST NO. 1 OF 2(9708- )KDN165,190,KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,1

Click highlighted areas on diagram

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-35210	LN145..LHD..IV3;LN147..SCB..IV3;RZN149..SCB..CO;KZN190,RZN149,194..SR..(GCC,SA);LN145,147..(DCB,THDCB)..(ARL,TH);LN145,RZN148,154,169..(GCC,GEN,SA)..CBU;RZN148,169..(DCB,SCB,THDCB)..DLX..(ARL,CO);LN152,RZN149..(DCB,THDCB,XTR)..DLX..(ARL,CO,GCC)..CBU;LN167,17#,RZN168,174,193..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,SA);KDN145,16#,190,KZN165,LN146,166,19#,RZN147..(DCB,SCB,THDCB)..(CBR,DCR,DEFI,DSL,TDE)	08/2001 - 05/2003	1
77011-35210	LN145..LHD..IV3;LN147..SCB..IV3;RZN149..SCB..CO;KZN190,RZN149,194..SR..(GCC,SA);LN145,147..(DCB,THDCB)..(ARL,TH);LN145,RZN148,154,169..(GCC,GEN,SA)..CBU;RZN148,169..(DCB,SCB,THDCB)..DLX..(ARL,CO);LN152,RZN149..(DCB,THDCB,XTR)..DLX..(ARL,CO,GCC)..CBU;LN167,17#,RZN168,174,193..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,SA);KDN145,16#,190,KZN165,LN146,166,19#,RZN147..(DCB,SCB,THDCB)..(CBR,DCR,DEFI,DSL,TDE)	08/2001 - 05/2003	1
77011-35210	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN145,146,166,171,191,RZN154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77011-35210	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN145,146,166,171,191,RZN154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-35080	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77018-35080	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32040	LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
77023-32040	LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-35110	RZN149,169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN,TH)	08/1997 - 12/2999	1
77035-35110	RZN149,169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN,TH)	08/1997 - 12/2999	1
77035-35110	LN145,166,191,RZN147,148,16#,193..LHD..DCB..GEN	08/2001 - 06/2005	1
77035-35110	LN145,166,191,RZN147,148,16#,193..LHD..DCB..GEN	08/2001 - 06/2005	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77051-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77051-35010	KZN165..SR..CBU;RZN144,149,154,169..CBR;RZN147,149,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA);LN141,145,155,157,166,RZN142,147,148,168..DLX..(GCC,GEN,TH)..CBU;KZN190,LN146,147,150,152,167,17#,19#,RZN174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..CBU	08/1997 - 09/2001	1
77051-35010	KZN165..SR..CBU;RZN144,149,154,169..CBR;RZN147,149,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA);LN141,145,155,157,166,RZN142,147,148,168..DLX..(GCC,GEN,TH)..CBU;KZN190,LN146,147,150,152,167,17#,19#,RZN174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..CBU	08/1997 - 09/2001	1
77100 - TANK ASSY, FUEL
77001-3D914	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167..(DCB,THDCB)..DLX..ARL;KZN190,LN145,147,166..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,191,RZN147,149,169..DCB..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA)..CBU	08/1997 - 12/2999	1
77001-3D914	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167..(DCB,THDCB)..DLX..ARL;KZN190,LN145,147,166..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,191,RZN147,149,169..DCB..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA)..CBU	08/1997 - 12/2999	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77169-14010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-34010	LN145..DCB..IV3;RZN147,149..LHD..SCB..CBR;LN145,146,166,171,191,RZN154..LHD..(GCC,GEN) (J)	08/1997 - 08/2001	1
77178-34010	LN145..DCB..IV3;RZN147,149..LHD..SCB..CBR;LN145,146,166,171,191,RZN154..LHD..(GCC,GEN) (J)	08/1997 - 08/2001	1
77178-34010	RZN148..CO;LN145..DCB..TH;LN167..SCB..IV3;LN145..LHD..IV3;RZN149..SCB..CO;LN145,RZN148..(GEN,SA)..CBU;KZN190,RZN149,194..SR..(GCC,SA);LN167,RZN154,16#..CO,GCC,GEN,SA;LN167,RZN149..(DCB,THDCB)..DLX..(ARL,CO,GCC);KDN145,16#,190,LN146,147,191,RZN193..DCB,THDCB;KZN165,LN166,17#,192,RZN147..(DCB,SCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,MA,SA)	08/2001 - 05/2003	1
77178-34010	RZN148..CO;LN145..DCB..TH;LN167..SCB..IV3;LN145..LHD..IV3;RZN149..SCB..CO;LN145,RZN148..(GEN,SA)..CBU;KZN190,RZN149,194..SR..(GCC,SA);LN167,RZN154,16#..CO,GCC,GEN,SA;LN167,RZN149..(DCB,THDCB)..DLX..(ARL,CO,GCC);KDN145,16#,190,LN146,147,191,RZN193..DCB,THDCB;KZN165,LN166,17#,192,RZN147..(DCB,SCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,MA,SA)	08/2001 - 05/2003	1
77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE
77179-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77179-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35560	RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) W(FUEL LID OPENER)	08/1997 - 08/2001	1
77201-35560	RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) W(FUEL LID OPENER)	08/1997 - 08/2001	1
77201-35580	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77201-35580	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95313-13026	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
95313-13026	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35640	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN145,147,167..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN146,166,191..DCB..(DSL,TDE)..(ARL,GCC,GEN)..CBU	08/1997 - 12/2999	1
77203-35640	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN145,147,167..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN146,166,191..DCB..(DSL,TDE)..(ARL,GCC,GEN)..CBU	08/1997 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35320	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77213-35320	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77295C - GROMMET, FUEL TUBE
77295-35140	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77295-35140	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-35020	RZN169..DCB..CBR;RZN149..DCB..CBR..GCC;RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..(DCB,THDCB)..DLX..(ARL,GCC,GEN,TH)	08/1997 - 09/2001	1
77305-35020	RZN169..DCB..CBR;RZN149..DCB..CBR..GCC;RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..(DCB,THDCB)..DLX..(ARL,GCC,GEN,TH)	08/1997 - 09/2001	1
77305-35010	RZN169..DCB..SA;RZN149..DCB..CBR;LN166..DCB..DSL..(GCC,GEN);KZN165..(DCB,THDCB)..SR..(ARL,SA);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN145..RHD..DCB..DLX..(GEN,SA)..CBU;LN147,167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI)..(GCC,GEN,SA) W(FUEL LID OPENER)	08/1997 - 12/2999	1
77305-35010	RZN169..DCB..SA;RZN149..DCB..CBR;LN166..DCB..DSL..(GCC,GEN);KZN165..(DCB,THDCB)..SR..(ARL,SA);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN145..RHD..DCB..DLX..(GEN,SA)..CBU;LN147,167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI)..(GCC,GEN,SA) W(FUEL LID OPENER)	08/1997 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77310-35110	LN14#,16#,17#,191..CBU	08/1997 - 03/1998	1
77310-35110	LN14#,16#,17#,191..CBU	08/1997 - 03/1998	1
77310-35070	RZN14#,154,16#,193..GCC,GEN	08/1997 - 03/1998	1
77310-35070	RZN14#,154,16#,193..GCC,GEN	08/1997 - 03/1998	1
77310-48010	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77310-48010	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77310-12150	LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
77310-12150	LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
77316 - GASKET, FUEL TANK CAP
77316-16010	RZN169..CBR;RZN149..GCC;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)..CBU	03/1998 - 08/2001	1
77316-16010	RZN169..CBR;RZN149..GCC;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)..CBU	03/1998 - 08/2001	1
77316-16010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77316-16010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35050	RZN169..DCB..SA;RZN149..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN16#..DCB..(DEFI,DSL)..(GCC,GEN,TH);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB,THDCB)..(CBR,DSL,EFI);KZN190,LN145,147,RZN149..RHD..(DCB,THDCB)..DLX..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
77360-35050	RZN169..DCB..SA;RZN149..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN16#..DCB..(DEFI,DSL)..(GCC,GEN,TH);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB,THDCB)..(CBR,DSL,EFI);KZN190,LN145,147,RZN149..RHD..(DCB,THDCB)..DLX..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77380-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
Common parts
90080-54035
90105-12116
90119-06595
90119-08667
90149-50057
90159-50219
90159-60032
90167-T0003
90201-06547
90269-04059
90430-12245
90460-26001
90460-46003
90464-00042
90464-00786
90467-11061
90541-06058
90541-09024
91611-60618
91621-J0614
93319-A4010
93560-15014
94130-60600

ILLUST NO. 1 OF 2(9708- )LHD..DCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-35210	LN145..LHD..IV3;LN147..SCB..IV3;RZN149..SCB..CO;KZN190,RZN149,194..SR..(GCC,SA);LN145,147..(DCB,THDCB)..(ARL,TH);LN145,RZN148,154,169..(GCC,GEN,SA)..CBU;RZN148,169..(DCB,SCB,THDCB)..DLX..(ARL,CO);LN152,RZN149..(DCB,THDCB,XTR)..DLX..(ARL,CO,GCC)..CBU;LN167,17#,RZN168,174,193..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,SA);KDN145,16#,190,KZN165,LN146,166,19#,RZN147..(DCB,SCB,THDCB)..(CBR,DCR,DEFI,DSL,TDE)	08/2001 - 05/2003	1
77011-35210	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN145,146,166,171,191,RZN154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-35080	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32040	LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-35110	RZN149,169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN,TH)	08/1997 - 12/2999	1
77035-35110	LN145,166,191,RZN147,148,16#,193..LHD..DCB..GEN	08/2001 - 06/2005	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-35010	RZN169..DCB..SA;RZN149..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN16#..DCB..(DEFI,DSL)..(GCC,GEN,TH);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB,THDCB)..(CBR,DSL,EFI);KZN190,LN145,147,RZN149..RHD..(DCB,THDCB)..DLX..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
77037-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77051-35010	KZN165..SR..CBU;RZN144,149,154,169..CBR;RZN147,149,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA);LN141,145,155,157,166,RZN142,147,148,168..DLX..(GCC,GEN,TH)..CBU;KZN190,LN146,147,150,152,167,17#,19#,RZN174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..CBU	08/1997 - 09/2001	1
77100 - TANK ASSY, FUEL
77001-3D914	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167..(DCB,THDCB)..DLX..ARL;KZN190,LN145,147,166..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,191,RZN147,149,169..DCB..(CBR,DSL,TDE)..(ARL,GCC,GEN,SA)..CBU	08/1997 - 12/2999	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-04020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (L)	03/1999 - 08/2001	1
77161-35180	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147..DCB..(GCC,GEN);LN146,166,171,191..LHD;LN145,RZN149..LHD..DCB..MTM..DLX..GEN (J)	08/1997 - 08/2001	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-34010	LN145..DCB..IV3;RZN147,149..LHD..SCB..CBR;LN145,146,166,171,191,RZN154..LHD..(GCC,GEN) (J)	08/1997 - 08/2001	1
77178-34010	RZN148..CO;LN145..DCB..TH;LN167..SCB..IV3;LN145..LHD..IV3;RZN149..SCB..CO;LN145,RZN148..(GEN,SA)..CBU;KZN190,RZN149,194..SR..(GCC,SA);LN167,RZN154,16#..CO,GCC,GEN,SA;LN167,RZN149..(DCB,THDCB)..DLX..(ARL,CO,GCC);KDN145,16#,190,LN146,147,191,RZN193..DCB,THDCB;KZN165,LN166,17#,192,RZN147..(DCB,SCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,MA,SA)	08/2001 - 05/2003	1
77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE
77179-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35560	RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) W(FUEL LID OPENER)	08/1997 - 08/2001	1
77201-35580	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95313-13026	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35640	LN167..DCB..TH;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN145,147,167..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN146,166,191..DCB..(DSL,TDE)..(ARL,GCC,GEN)..CBU	08/1997 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35320	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
77295C - GROMMET, FUEL TUBE
77295-35140	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-35020	RZN169..DCB..CBR;RZN149..DCB..CBR..GCC;RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..(DCB,THDCB)..DLX..(ARL,GCC,GEN,TH)	08/1997 - 09/2001	1
77305-35010	RZN169..DCB..SA;RZN149..DCB..CBR;LN166..DCB..DSL..(GCC,GEN);KZN165..(DCB,THDCB)..SR..(ARL,SA);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN145..RHD..DCB..DLX..(GEN,SA)..CBU;LN147,167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI)..(GCC,GEN,SA) W(FUEL LID OPENER)	08/1997 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77310-35110	LN14#,16#,17#,191..CBU	08/1997 - 03/1998	1
77310-35070	RZN14#,154,16#,193..GCC,GEN	08/1997 - 03/1998	1
77310-48010	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77310-12150	LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
77316 - GASKET, FUEL TANK CAP
77316-16010	RZN169..CBR;RZN149..GCC;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)..CBU	03/1998 - 08/2001	1
77316-16010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35050	RZN169..DCB..SA;RZN149..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN16#..DCB..(DEFI,DSL)..(GCC,GEN,TH);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB,THDCB)..(CBR,DSL,EFI);KZN190,LN145,147,RZN149..RHD..(DCB,THDCB)..DLX..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
Common parts
87616-35010
90105-12116
90119-08667
90119-T0112
90153-50010
90159-50219
90430-12245
90460-26001
90460-46003
90464-00042
90467-08043
90467-10018
90541-06058
91116-A0616
91621-J0614
93319-A4010
93560-15014

ILLUST NO. 2 OF 2(0110- )KDN145,15#,16#,190

Click highlighted areas on diagram

Part #	Description	Period	Qty
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-08030	LN141,145,146,155,166,171,191..LHD..DSL *H,L=240,ID=7.6	08/1997 - 09/2001	1
95333-08030	LN141,145,146,155,166,171,191..LHD *H,L=240,ID=7.6	08/2001 - 12/2999	1
77279-35100	KDN145,15#,16#,190	10/2001 - 03/2005	1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95333-08030	LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6	08/1997 - 12/2999	2
95333-08030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU *H,L=220,ID=7.6	08/2001 - 06/2005	2
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95333-08030	LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6	08/1997 - 12/2999	2
95333-08030	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU *H,L=220,ID=7.6	08/2001 - 06/2005	2
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95333-06020	RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE *H,L=140	08/1997 - 08/2001	1
95333-06020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU *H,L=150	08/2001 - 06/2005	1
77249 - HOSE, FUEL EMISSION
77249-35120	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154..LHD..(GCC,GEN)	08/1997 - 08/2001	1
95333-06020	RZN148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
77249-35120	RZN148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	1
77249-35120	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
77249 - HOSE, FUEL EMISSION
77249-35120	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154..LHD..(GCC,GEN)	08/1997 - 08/2001	1
95333-06020	RZN148,154,16#,193..GEN..CBU NO.2	08/2001 - 06/2005	1
77249-35120	RZN148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	1
77249-35120	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6
77273-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77273-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35320	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77285-35320	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,191,RZN142,144,193..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77286-35020	LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU	08/2001 - 06/2005	2
77286F - CLAMP, FUEL TUBE, NO.2
77286-35040	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77286-35040	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-35020	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77289-35020	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77295D - GROMMET, FUEL TUBE
77295-35170	LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN192,RZN142,147,149,169..(CBR,DEFI,DSL)..(GEN,SA,TH);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN154..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
77295-35170	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
77295E - GROMMET, FUEL TUBE
77295-35160	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77295-35160	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-35010	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
77298-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
77439 - HOSE, FUEL RETURN
77439-35020	LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77439-35030	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77439-35020	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	2
77439 - HOSE, FUEL RETURN
77439-35020	LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77439-35030	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77439-35020	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	2
77439 - HOSE, FUEL RETURN
77439-35020	LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 08/2001	2
77439-35030	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
77439-35020	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067	RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE	08/1997 - 08/2001	1
90917-10090	LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU	08/2001 - 06/2005	1
Common parts
90179-06161
90461-10781
91611-B0614
91641-H0820
96132-41500
96132-51100
96132-51300

LN166L-PRMDS (1997)

ILLUST NO. 2 OF 2(9708- )KZN165,190,LN14#,15#,16#,17#,19#

ILLUST NO. 1 OF 2(9708- )KDN165,190,KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,1

ILLUST NO. 1 OF 2(9708- )LHD..DCB

ILLUST NO. 2 OF 2(0110- )KDN145,15#,16#,190

Part Price Details
