LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73130 73140 73210 73210 73210 73220 73220 73220 73230 73230 73230 73240 73240 73240 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 90105T0036 90105T0036 90105T0036 90105T0036 90105T0036 90105T0036 90105T0036 90105T0036 90105T0037 90105T0037 9010911043 9010911043 9010911043 90109T0004 90109T0004 90109T0004 9017911010 9017911010 9017911010 9020116028 9020615002 9046400537 91511B0612 91511B0612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-35480B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73210-35790B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-35480B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73210-35790B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-35480B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73210-35790B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-35380B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73220-35670B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73220-35660B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-35380B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73220-35670B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73220-35660B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-35380B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..(GCC,GEN,TH)

BLUISH GRAY,TRIM1#

 1
73220-35670B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73220-35660B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-35640B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35620B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-16410B1

LN167..(DCB,THDCB)..(ARL,SA);KZN165,190,LN145,147,166,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..(ARL,GEN,SA,TH)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73230-35641B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35750B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-35750B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-35640B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35620B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-16410B1

LN167..(DCB,THDCB)..(ARL,SA);KZN165,190,LN145,147,166,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..(ARL,GEN,SA,TH)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73230-35641B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35750B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-35750B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-35640B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35620B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-16410B1

LN167..(DCB,THDCB)..(ARL,SA);KZN165,190,LN145,147,166,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..(ARL,GEN,SA,TH)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73230-35641B0

RZN149..DCB..GCC;RZN149..DCB..DLX..GEN;LN145,146,166,191,RZN147,148,16#,193..DCB..(GCC,GEN)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-35750B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73230-35750B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-35280B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35430B0

RZN149,169..DCB..DLX..GEN;LN145,16#,191,RZN147,148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-16410B1

RZN169..DCB..SA;RZN169..DCB..CBR..GEN;LN167,RZN149..DCB..(GEN,TH);LN147,167,RZN149,169..DCB..DLX..(DEFI,EFI)..ARL;KZN165,LN145,16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GEN,SA);KZN190,LN147,RZN147,148,168..(DCB,THDCB)..DLX..(CBR,DSL,EFI,TDE)..(ARL,GEN,SA)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73240-35450B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35450B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-35280B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35430B0

RZN149,169..DCB..DLX..GEN;LN145,16#,191,RZN147,148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-16410B1

RZN169..DCB..SA;RZN169..DCB..CBR..GEN;LN167,RZN149..DCB..(GEN,TH);LN147,167,RZN149,169..DCB..DLX..(DEFI,EFI)..ARL;KZN165,LN145,16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GEN,SA);KZN190,LN147,RZN147,148,168..(DCB,THDCB)..DLX..(CBR,DSL,EFI,TDE)..(ARL,GEN,SA)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73240-35450B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35450B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-35280B0

RZN147,149,169..DCB..DLX..CBR..GEN;KZN165,LN145,166,191,RZN148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35430B0

RZN149,169..DCB..DLX..GEN;LN145,16#,191,RZN147,148,168,193..DCB..(GEN,SA)

W(BENCH SEAT = THREE PERSONS),BLUISH GRAY,TRIM1#

 1
73230-16410B1

RZN169..DCB..SA;RZN169..DCB..CBR..GEN;LN167,RZN149..DCB..(GEN,TH);LN147,167,RZN149,169..DCB..DLX..(DEFI,EFI)..ARL;KZN165,LN145,16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GEN,SA);KZN190,LN147,RZN147,148,168..(DCB,THDCB)..DLX..(CBR,DSL,EFI,TDE)..(ARL,GEN,SA)

W(SEPARATE SEAT),MD.MOON MIST,TRIM1#

 1
73240-35450B0

RZN169..DCB..CBR..GEN;RZN147,148,149,168..DCB..MTM..DLX..GEN;KZN165,LN145,166,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

W(BENCH SEAT = TWO PERSONS),MD.MOON MIST,TRIM1#

 1
73240-35450B0

LN145..RHD..DCB..GEN;LN166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
Common parts
90105-11046
90105-T0036
90105-T0037
90109-11043
90109-T0004
90179-11010
90201-16028
90206-15002
90464-00537
91511-B0612

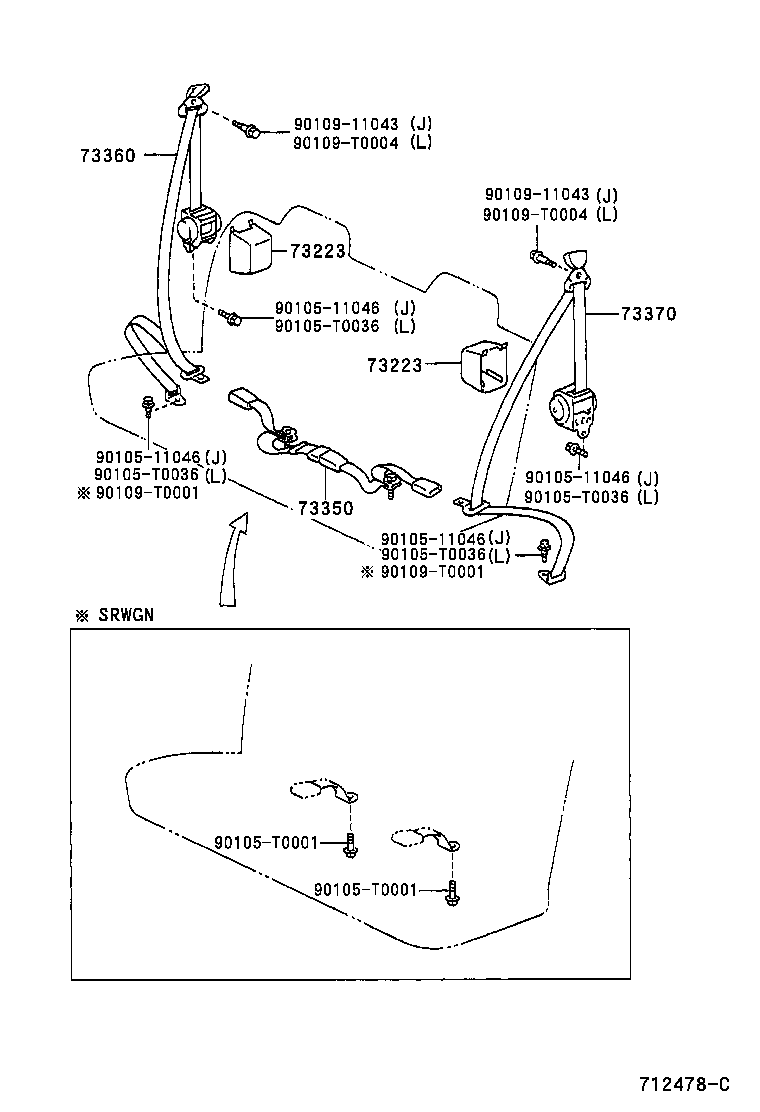

ILLUST NO. 2 OF 2(9708- )DCB,SADCB,SRWGN,THDCB

Click highlighted areas on diagram

REAR SEAT BELT

diagram 73223 73223 73350 73360 73370 9010511046 9010511046 9010511046 9010511046 90105T0001 90105T0001 90105T0036 90105T0036 90105T0036 90105T0036 9010911043 9010911043 90109T0001 90109T0001 90109T0004 90109T0004
Part # Description Qty Price
73223 - COVER, SEAT BELT RETRACTOR
73223-35020B0

LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,LN146,166,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU;LN145,147,167,RZN149,169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,GEN)

MD. MOON MIST,TRIM1#

 2
73223-35020B0

LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD. MOON MIST,TRIM1#

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-35020B0

LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);KZN165,LN146,166,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU;LN145,147,167,RZN149,169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,GEN)

MD. MOON MIST,TRIM1#

 2
73223-35020B0

LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN

MD. MOON MIST,TRIM1#

 2
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73300-35020B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73300-35040B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-35250B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73360-35290B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-35250B0

LN145..LHD..DLX..TH;RZN149,169..DCB..CBR;RZN149..DCB..EFI..GEN;LN145,146,166,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN)

BLUISH GRAY,TRIM1#

 1
73360-35290B0

LN166..LHD..DCB..GEN

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

 1
Common parts
90105-11046
90105-T0001
90105-T0036
90109-11043
90109-T0001
90109-T0004
