LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 71071B 71073B 71311 71311 71311E 71379A 71389 71410B 71430B 71511B 71551B 71561B 71561B 71567 71587 71587 71587 71610B 71630B 9008010143 9046818071 9046818071
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-3D620B0

LN166,RZN16#..DCB..(GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D600B0

LN166,RZN16#..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71071-3G040B0

RZN169..DCB..CBR..GEN;LN145..RHD..DCB..GEN..CBU;LN166,RZN149,168..DCB..DLX..(DSL,EFI)..GEN

W(VINYL LEATHER SEAT)-*104 & W(FRONT CONSOLE BOX),MOONMIST,TRIM1#

 1
71071-3G060B0

RZN149..DCB..EFI..GEN;RZN169..LHD..DCB..CBR;LN166,RZN168..LHD..DCB..DLX..(GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-3D700B0

LN145,146,166,191,RZN147,148,149,16#,193..DCB..DLX..(GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71073-3D640B0

LN166,RZN16#..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71073-3G090B0

RZN169..DCB..CBR..GEN;LN145..RHD..DCB..GEN..CBU;LN166,RZN149,168..DCB..DLX..(DSL,EFI)..GEN

W(SEAT BACK ASH RECEPTACLE),MOONMIST,TRIM1#

 1
71073-3G060B0

RZN149..DCB..EFI..GEN;RZN149,169..LHD..DCB..DLX..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71311 - PIN, FRONT SEAT HINGE
71311-89105

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 2
71311 - PIN, FRONT SEAT HINGE
71311-89105

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 2
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-3D450B1

LN166,RZN16#..DCB..GEN

MEDIUM MOONMIST,TRIM1#

 1
71410-3D420B1

LN166,RZN16#..DCB..GEN

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D820B0

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 OR W(FRONT CONSOLE BOX),MEDIUM MOONMIST,TRIM1#

 1
71410-3D840B0

RZN169..DCB..CBR..GEN;LN166,RZN149,168..DCB..DLX..(DSL,EFI)..GEN

W(VINYL LEATHER SEAT)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-3G110B1

LN166,RZN16#..DCB..GEN

MEDIUM MOONMIST,TRIM1#

 1
71430-3G210

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

 1
71040-35260B0

RZN169..DCB..CBR..GEN;LN166,RZN149,168..DCB..DLX..(DSL,EFI)..GEN

MEDIUM MOONMIST,TRIM1#

 1
71040-35280B1

RZN149..DCB..EFI..GEN;RZN149,169..LHD..DCB..DLX..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
71511-35070

RZN168..DLX..GEN;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN167,RZN144,149..SR..(CBR,DSL)..(GCC,SA);KZN165,LN166,RZN149..(DSL,EFI,TDE)..(GEN,SA);KZN190,LN167,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

 1
71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE)
71551-35060

RZN149..DLX..GEN;RZN149..SR..CBR..GCC;LN167..SCB..DEFI..SA;RZN169..DCB..CBR..GEN;RZN169..SCB..DLX..(ARL,SA);LN167,RZN147..SCB..(CBR,DEFI,DSL)..(ARL,GCC);KZN190,LN192,RZN169..SCB..DLX..(CBR,DEFI,DSL,TDE);LN166,RZN147,148,168,193..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,LN140,141,145,167,191,RZN142,144,YN140..(CBR,DSL,TDE)..(GCC,GEN,SA)

 1
71561B - PAD, FRONT SEAT BACK, UPPER
71561-35080

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 2
71561B - PAD, FRONT SEAT BACK, UPPER
71561-35080

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 2
71567 - PAD, FRONT SEAT BACK SAFETY
71567-35010

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
71610-35080

RZN169..SCB..ARL;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;LN166,RZN168..DLX..GEN;LN145..RHD..DCB..GEN..CBU;LN167,RZN169..SCB..(CBR,DEFI)..(GCC,GEN,SA);LN141,167,RZN142,144,147..SCB..(CBR,DSL)..(ARL,GCC)

W(FRONT CONSOLE BOX)

 1
71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE)
71630-35210

RZN169..DCB..CBR..GEN;RZN149..DCB..SR..CBR..GCC;RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,191,RZN193..DCB..(DSL,EFI,TDE)..(GEN,SA)

 1
Common parts
90080-10143
90468-18071

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 72110A 72120 72137 72138 72301 9011908830 9011908830 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-35130

RZN149..DCB..CBR..GCC;RZN149..DCB..DLX..GEN;RZN169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN)

 1
72110-35130

RZN149..DCB..(CO,GCC);LN145,146,166,191,RZN147,148,16#,193..LHD..DCB..DLX..(CO,GCC,GEN)

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-35140

RZN149..DCB..(CO,GCC);LN145,146,166,191,RZN147,148,16#,193..LHD..DCB..DLX..(CO,GCC,GEN)

 1
72120-35140

RZN149..DCB..CBR..GCC;RZN149..DCB..DLX..GEN;RZN169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN)

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-35040

RZN149..DLX..GEN;RZN149..SR..CBR..GCC;LN167..SCB..DEFI..SA;RZN169..DCB..CBR..GEN;RZN169..SCB..DLX..(ARL,SA);LN167,RZN147..SCB..(CBR,DEFI,DSL)..(ARL,GCC);KZN190,LN192,RZN169..SCB..DLX..(CBR,DEFI,DSL,TDE);LN166,RZN147,148,168,193..(DCB,SCB)..DLX..(ARL,GEN,SA);KZN165,LN140,141,145,167,191,RZN142,144,YN140..(CBR,DSL,TDE)..(GCC,GEN,SA)

 1
Common parts
90119-08830
90119-10825
90119-T0108

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

diagram 71071S 71072S 71073S 71074S 71318B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587 71587B 71587B 71588 71588 71610S 71620S 71630S 71640S 71831D 71831D 71832D 71832D 71910A 71910A 71931 71931 71931 71931 9046818071 9046818071 9046818071 9046818071 9418560800
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3D520B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D480B0

LN152..XTR..IV3;RZN154,169..(DCB,XTR)..DLX..ARL;RZN147,154,169..(DCB,XTR)..CBR..(GEN,SA);KZN165,LN147,167,RZN148,149,168..DCB..DLX..(ARL,GEN)..CBU;KZN190,LN145,166,17#,19#,RZN174,193..(DCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3D520B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D500B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-3D520B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D480B0

LN152..XTR..IV3;RZN154,169..(DCB,XTR)..DLX..ARL;KZN165,LN167,RZN154,169..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,149,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3D500B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3G080B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3D520B0

LN145..LHD..SCB;LN152..XTR..IV3;RZN169..CBR..GEN;RZN149..DCB..EFI..GEN;RZN148..DLX..GEN..CBU;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN);LN147,16#,RZN147,149,168..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN190,LN145,17#,19#,RZN174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71073-3D580B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71073-3D550B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3D550B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71073-3D580B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71073-3D520B0

LN145..LHD..IV3;RZN154,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN142,148,168..DLX..GEN..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-3D310B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D300B2

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-3D320B4

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D300B2

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D860B1

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71410-3D310B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-3G110B1

LN166,RZN16#..LHD..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430-3G010B3

LN145..LHD..IV3;RZN169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440-35730B2

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MEDIUM MOONMIST,TRIM1#

 1
71430-3G030B2

LN166..LHD..DCB..DSL..GEN

W(HEADREST & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-3G010B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;KZN165,RZN154..(DCB,XTR)..DLX..ARL..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430-3G030B2

LN166..LHD..DCB..DSL..GEN

W(HEADREST & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440-35750B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-35080

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71511-35090

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-35090

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71511-35080

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-35080

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71551-35070

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-35070

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71551-35080

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35090

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35090

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-35150

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71630-35130

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-35130

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71630-35140

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35370B0

LN147,167..DCB..DEFI..ARL;LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 2
71910-35400B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35420B1

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35370B0

LN147,167..DCB..DEFI..ARL;LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 2
71910-35400B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35420B1

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
Common parts
90468-18071
94185-60800

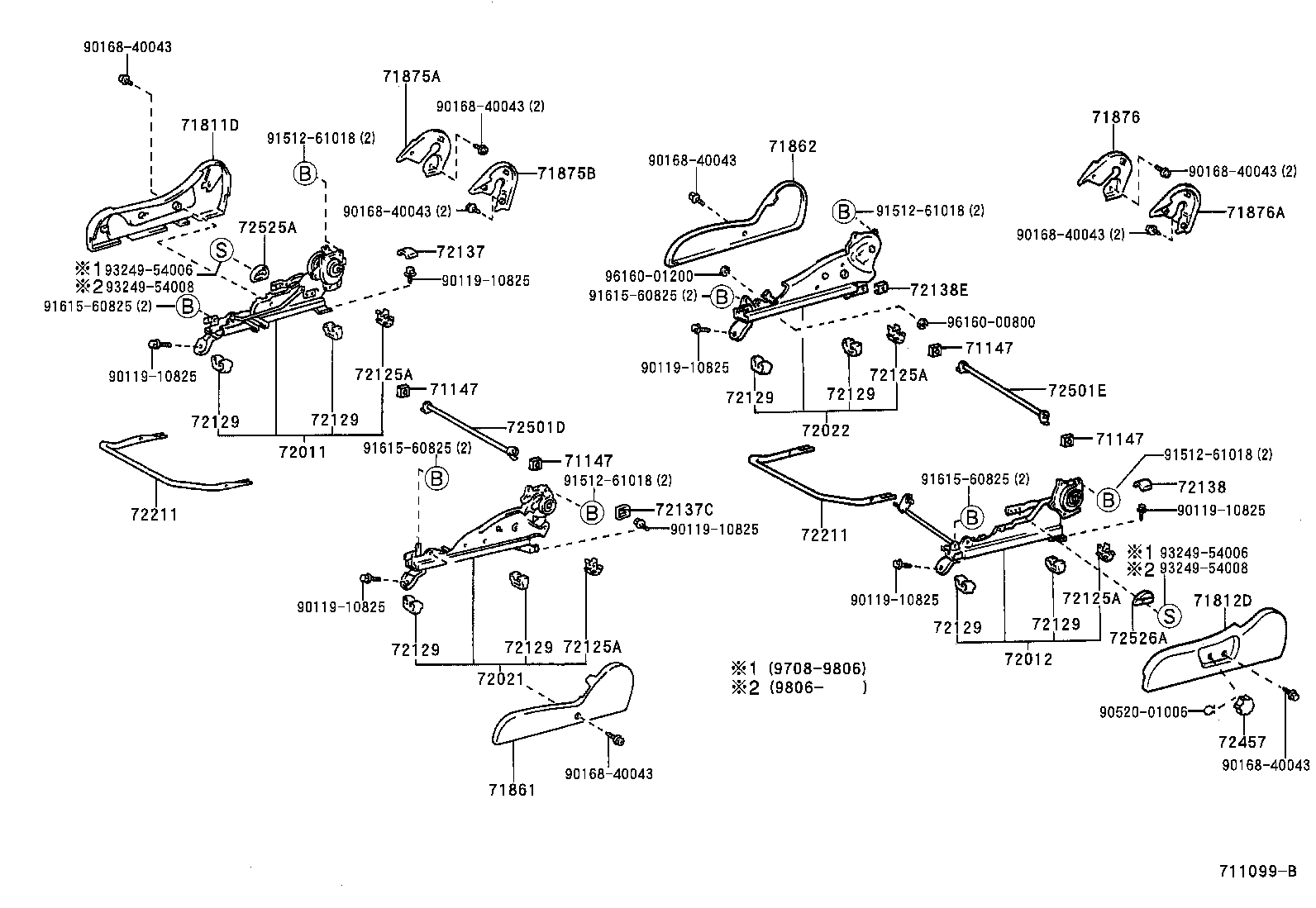

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

diagram 71147 71147 71147 71147 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72140A 72211 72211 72501D 72501E 72525A 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9161560825 9324954006 9324954008
Part # Description Qty Price
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-35100B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN165,LN167,RZN142..SCB..DLX..(ARL,GEN);KZN190,LN172,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-35120B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71812-35070B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-35060B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72011-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

 1
72011-35170

LN167..DCB..SR;LN167..(THDCB,XTR)..CBU;LN147,152,172..THDCB,THXTR;RZN149..(DCB,THDCB)..(ARL,GEN);LN152,RZN169..(DCB,THDCB,XTR)..CBU;LN147,152,167,172,RZN147..(DCB,XTR)..(CBR,DEFI)..(ARL,GEN,SA);KZN165,190,LN145,150,166,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN190,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72012-35160

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

 1
72012-35200

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);LN145,147,152,16#,172,19#,RZN148,16#,174,193..(DCB,XTR)..(ARL,GCC,GEN,SA)

 1
72021-35200

RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN165,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

 1
72021-35130

LN167..DCB..SR;RZN154..XTR..ARL;LN147,152,167,172,RZN147,149..(DCB,XTR)..(CBR,DEFI,EFI)..(ARL,GEN,SA);KZN165,190,LN145,166,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,190,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35210

RZN147,149..DCB..DLX..(GEN,SA);LN145,166,191,RZN148,16#,193..DCB..(GCC,GEN)

W(FRONT SEPARATE SEAT)

 1
72022-35230

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35150

KZN165..DCB..SR..ARL;RZN149,169..DCB..DLX..ARL;RZN154,194..RHD..(SADCB,XTR);RZN149,154,169..(DCB,XTR)..CBR..GEN;LN145,147,16#,17#,191,RZN147,148,168,174,193..(DCB,XTR)..DLX..(CBR,DSL,EFI)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
72022-35150

RZN169..DCB..SA;RZN149,154,169..(DCB,XTR)..DLX..ARL;KZN165,RZN147..DCB..(ARL,GEN,SA)..CBU;LN147,167,RZN148,168..DCB..DLX..(ARL,GEN);LN145,166,17#,191,RZN174,19#..(DCB,XTR)..(DEFI,DSL,EFI)..(ARL,GCC,GEN,SA)

W(WALK-IN SEAT)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;LN147..THDCB..DLX..DEFI;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;KZN165,LN152,192..XTR..(DEFI,TDE)..TH..CBU;LN147,RZN149,154,169..(DCB,SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,190,LN166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;RZN149,169..DCB..DLX..ARL;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN154..(THDCB,THXTR,XTR)..DLX..(DEFI,EFI)..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,LN152,192,RZN154..XTR..(CBR,DEFI,TDE)..(GEN,TH)..CBU;KZN165,190,LN147,166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU

 1
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-35030B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90119-T0108
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 3 OF 3(9711- )KDN165,190,KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,193,VZN16

Click highlighted areas on diagram

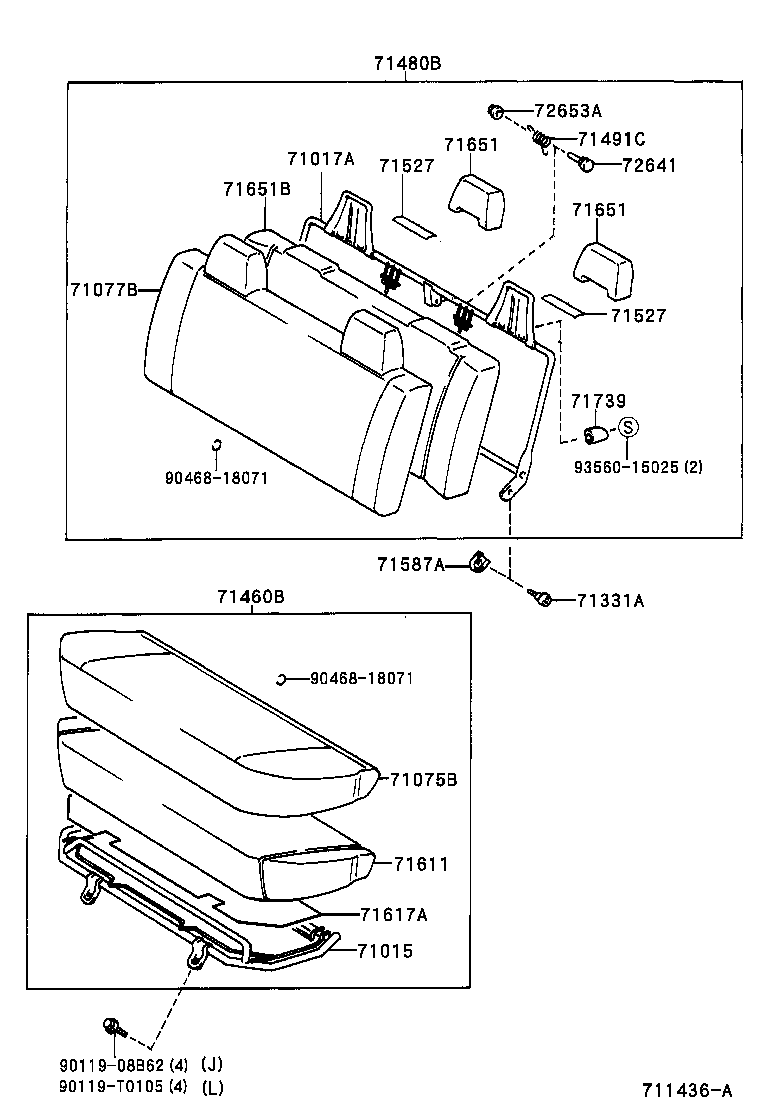

REAR SEAT

diagram 71015A 71016A 71075S 71076S 71379C 71379C 71460S 71470S 71611A 71612A 71629 71629 9011908B62 9011908B62 90119T0105 90119T0105
Part # Description Qty Price
Common parts
90119-08B62
90119-T0105

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71147 71147 71147 71147 71537A 71537A 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72137C 72138 72138E 72210E 72210E 72211 72211 72501D 72501E 72525A 72526A 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 9016840011 9016840011 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9324954006 9324954006 9324954008 9324954008
Part # Description Qty Price
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-35100B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN165,LN167,RZN142..SCB..DLX..(ARL,GEN);KZN190,LN172,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-35120B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71812-35070B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-35060B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72011-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

 1
72011-35170

LN167..DCB..SR;LN167..(THDCB,XTR)..CBU;LN147,152,172..THDCB,THXTR;RZN149..(DCB,THDCB)..(ARL,GEN);LN152,RZN169..(DCB,THDCB,XTR)..CBU;LN147,152,167,172,RZN147..(DCB,XTR)..(CBR,DEFI)..(ARL,GEN,SA);KZN165,190,LN145,150,166,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN190,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72012-35160

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

 1
72012-35200

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);LN145,147,152,16#,172,19#,RZN148,16#,174,193..(DCB,XTR)..(ARL,GCC,GEN,SA)

 1
72021-35200

RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN165,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

 1
72021-35130

LN167..DCB..SR;RZN154..XTR..ARL;LN147,152,167,172,RZN147,149..(DCB,XTR)..(CBR,DEFI,EFI)..(ARL,GEN,SA);KZN165,190,LN145,166,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,190,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35210

RZN147,149..DCB..DLX..(GEN,SA);LN145,166,191,RZN148,16#,193..DCB..(GCC,GEN)

W(FRONT SEPARATE SEAT)

 1
72022-35230

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35150

KZN165..DCB..SR..ARL;RZN149,169..DCB..DLX..ARL;RZN154,194..RHD..(SADCB,XTR);RZN149,154,169..(DCB,XTR)..CBR..GEN;LN145,147,16#,17#,191,RZN147,148,168,174,193..(DCB,XTR)..DLX..(CBR,DSL,EFI)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
72022-35150

RZN169..DCB..SA;RZN149,154,169..(DCB,XTR)..DLX..ARL;KZN165,RZN147..DCB..(ARL,GEN,SA)..CBU;LN147,167,RZN148,168..DCB..DLX..(ARL,GEN);LN145,166,17#,191,RZN174,19#..(DCB,XTR)..(DEFI,DSL,EFI)..(ARL,GCC,GEN,SA)

W(WALK-IN SEAT)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137C - COVER, SEAT TRACK INNER, RH
72137-35020B0

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72137-35020B0

KZN190..DCB..SR;LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO);KZN165,LN145,RZN147..(DCB,THDCB,XTR)..(ARL,GEN,SA,TH)..(CBU,IV3);KDN165,190,LN147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72138E - COVER, SEAT TRACK, INNER LH
72138-35010B0

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72138-35010B0

KZN190..DCB..SR;LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO);KZN165,LN145,RZN147..(DCB,THDCB,XTR)..(ARL,GEN,SA,TH)..(CBU,IV3);KDN165,190,LN147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MD.MOON MIST,TRIM1#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;LN147..THDCB..DLX..DEFI;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;KZN165,LN152,192..XTR..(DEFI,TDE)..TH..CBU;LN147,RZN149,154,169..(DCB,SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,190,LN166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;RZN149,169..DCB..DLX..ARL;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN154..(THDCB,THXTR,XTR)..DLX..(DEFI,EFI)..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,LN152,192,RZN154..XTR..(CBR,DEFI,TDE)..(GEN,TH)..CBU;KZN165,190,LN147,166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU

 1
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-35030B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-35020B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 2 OF 3(9805-0108)SR..GEN ; (9805-0108)LN166,RZN16#..LHD..DCB..GEN ; (0009-0108)RZN148..DC

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71147 71147 71147 71147 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72137C 72138 72138E 72211 72211 72457 72501D 72501E 72525A 72526A 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9052001006 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9324954006 9324954006 9324954008 9324954008 9616000800 9616001200
Part # Description Qty Price
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN152..XTR..IV3;RZN169..DCB..SA;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN149,154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-35100B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN165,LN167,RZN142..SCB..DLX..(ARL,GEN);KZN190,LN172,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-35120B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71812-35070B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-35060B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35040B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35050B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72011-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

 1
72011-35170

LN167..DCB..SR;LN167..(THDCB,XTR)..CBU;LN147,152,172..THDCB,THXTR;RZN149..(DCB,THDCB)..(ARL,GEN);LN152,RZN169..(DCB,THDCB,XTR)..CBU;LN147,152,167,172,RZN147..(DCB,XTR)..(CBR,DEFI)..(ARL,GEN,SA);KZN165,190,LN145,150,166,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DEFI,DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN190,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

(J)

 1
72011-35170

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72012-35160

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

 1
72012-35200

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-35130

RZN147,149,169..DCB..(ARL,GEN);LN145,147,16#,172,191,RZN148,154,168,174,193..(DCB,XTR)..(DSL,EFI)..(ARL,GEN)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);LN145,147,152,16#,172,19#,RZN148,16#,174,193..(DCB,XTR)..(ARL,GCC,GEN,SA)

 1
72021-35200

RZN169..DCB,THDCB;RZN147,149..(DCB,THDCB)..(ARL,GEN,SA);KZN165,LN145,147,150,152,16#,172,19#,RZN148,154,168,174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..(DSL,EFI,TDE)..(CBU,IV3)

 1
72021-35130

LN167..DCB..SR;RZN154..XTR..ARL;LN147,152,167,172,RZN147,149..(DCB,XTR)..(CBR,DEFI,EFI)..(ARL,GEN,SA);KZN165,190,LN145,166,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

RZN154..XTR..ARL;RZN147,149..DCB..(ARL,GEN,SA);KZN165,190,LN145,147,152,16#,172,19#,RZN148,16#,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
72021-35130

KZN165,190..DCB..SR..SA;LN152,RZN149..(DCB,XTR)..DLX..(ARL,CO)..CBU;KZN165,LN147,RZN147,VZN167..DCB..DLX..(ARL,GEN);KDN165,190,LN145,16#,17#,191,RZN148,154,16#,174,19#,VZN172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-35150

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35210

RZN147,149..DCB..DLX..(GEN,SA);LN145,166,191,RZN148,16#,193..DCB..(GCC,GEN)

W(FRONT SEPARATE SEAT)

 1
72022-35230

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT)

 1
72022-35150

KZN165..DCB..SR..ARL;RZN149,169..DCB..DLX..ARL;RZN154,194..RHD..(SADCB,XTR);RZN149,154,169..(DCB,XTR)..CBR..GEN;LN145,147,16#,17#,191,RZN147,148,168,174,193..(DCB,XTR)..DLX..(CBR,DSL,EFI)..(ARL,GEN)

W(WALK-IN SEAT)

 1
72022-35170

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
72022-35150

RZN169..DCB..SA;RZN149,154,169..(DCB,XTR)..DLX..ARL;KZN165,RZN147..DCB..(ARL,GEN,SA)..CBU;LN147,167,RZN148,168..DCB..DLX..(ARL,GEN);LN145,166,17#,191,RZN174,19#..(DCB,XTR)..(DEFI,DSL,EFI)..(ARL,GCC,GEN,SA)

W(WALK-IN SEAT)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

OUTER

 2
72125-44010

RZN169..SR;RZN148..CBU;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);LN167,192,RZN147..DCB..(ARL,SA);RZN169..(DCB,SCB)..(ARL,GCC,GEN);LN147,RZN142,149,194..(DCB,SADCB,SCB)..(ARL,GEN,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 2
72125-10010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 2
72125-44010

LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN

INNER

 2
72125-10010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 2
72125-44010

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 2
72125-44010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..DCB..EFI..GEN;LN167,RZN169..SCB..ARL;RZN149..(DCB,SCB,THDCB)..ATM..ARL;LN145,RZN142,148,168..DLX..GEN..CBU;LN147,167,RZN154..(THSCB,XTR)..DLX..(CBR,DEFI);LN147,RZN147,149..(DCB,SCB,THDCB)..MTM..(ARL,GEN);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 2
72125-10010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

RZN169..SR;LN167..SCB..ARL;RZN142,148,194..(GEN,SA)..CBU;RZN147,149..(DCB,SCB,THSCB)..(ARL,GEN);LN167,192,RZN147..(DCB,THSCB)..(CBR,DSL)..(ARL,SA);KZN165,LN145,147,152,166,17#,191,RZN154,16#,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

OUTER

 4
72129-44030

RZN149..GEN;LN147,RZN149..DCB..ARL;LN145,16#,17#,191,RZN142,147,148,154,16#,174,193..ARL,GEN

INNER

 4
72129-44030

RZN169..SR;LN167..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN169..(DCB,SCB)..(ARL,GCC,GEN);RZN142,148,149,194..(GEN,SA)..CBU;LN147,167,192,RZN147,149..DCB..(ARL,SA);KZN165,LN145,152,166,17#,191,RZN154,168,174,193..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN)

INNER

 4
72129-12010

LN147..IV3;LN147,166..DCB;RZN169..SR..SA;LN145..LHD..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN167,RZN148,149..DCB..(CO,SA);RZN169..(DCB,SCB,THSCB)..(ARL,GCC,GEN);KZN165,RZN149..(DCB,SCB,THSCB)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,17#,191,RZN142,147,154,174,193,VZN167,172..(DCB,SCB,THSCB,XTR)..(ARL,GEN,MA)

OUTER

 4
72129-12010

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..ATM..ARL;RZN169..SCB..ARL;RZN149..DCB..EFI..GEN;RZN147,149..MTM..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;RZN154,169..(DCB,THDCB,THSCB,THXTR,XTR)..(ARL,SA);LN167,RZN154..(SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GEN);KZN165,LN147,150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)..(CBU,IV3)

OUTER

 4
72129-44030

KZN190..DCB..SR;RZN149..DCB..(ARL,CO);LN152,RZN147..(DCB,XTR)..(ARL,GEN)..CBU;KDN165,190,KZN165,LN145,147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

INNER

 4
72129-44030

RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN149..CBR..GEN;LN167..THSCB..DEFI;LN167,RZN169..SCB..ARL;RZN147..(DCB,SCB)..(ARL,GEN);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);LN145,RZN142,148,168..DLX..GEN..CBU;LN147,RZN154..(SCB,THSCB,XTR)..(CBR,DEFI);KZN165,LN150,152,166,17#,191,RZN174,19#..(DEFI,DSL,EFI,TDE)..(CBU,IV3);KZN190,LN145,147,167,192,RZN147,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA,TH)..CBU

INNER

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137C - COVER, SEAT TRACK INNER, RH
72137-35020B0

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72137-35020B0

KZN190..DCB..SR;LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO);KZN165,LN145,RZN147..(DCB,THDCB,XTR)..(ARL,GEN,SA,TH)..(CBU,IV3);KDN165,190,LN147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-35050B0

KZN190..DCB..SR;KDN165,LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO,GCC);KZN165,LN145..(DCB,THDCB,XTR)..(CBU,IV3);KDN190,LN146,147,16#,17#,191,RZN147,148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,LN150..(THDCB,XTR)..SR..CBU;LN192,RZN154..RHD..(DCB,THXTR,XTR)..CBU;LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL)..(CBU,IV3);KZN165,LN145,146,17#,191,RZN147,174,19#..(DCB,SADCB,THXTR,XTR)..(ARL,GCC,GEN,SA)

MEDIUM MOONMIST,TRIM1#

 1
72138E - COVER, SEAT TRACK, INNER LH
72138-35010B0

LN145,147,16#,17#,191,RZN147,148,149,154,16#,174,193..(DCB,XTR)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72138-35010B0

KZN190..DCB..SR;LN150,152..DLX..CBU;RZN149..(DCB,THDCB)..(ARL,CO);KZN165,LN145,RZN147..(DCB,THDCB,XTR)..(ARL,GEN,SA,TH)..(CBU,IV3);KDN165,190,LN147,16#,17#,191,RZN148,154,16#,174,19#,VZN167,172..(DCB,THDCB,THXTR,XTR)..(ARL,CO,GCC,GEN,MA,SA)

MD.MOON MIST,TRIM1#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

LH,(J)

 1
72211-35010

LN152..IV3;LN145..LHD..IV3;RZN169..DCB..SA;RZN149..SCB..ATM..IV3;LN147..THDCB..DLX..DEFI;LN167..(DCB,XTR)..DSL..CBU;RZN169..(DCB,SCB)..DLX..ARL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN168..(DCB,SCB)..DLX..(ARL,GEN);LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN;LN167,RZN149..SR..(CBR,DEFI)..(GEN,TH)..CBU;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN145,RZN154,169..(SCB,XTR)..(CBR,DSL)..GEN..CBU;KZN165,LN192,RZN147,149,154..(DCB,THXTR,XTR)..DLX..(ARL,SA)..CBU;KZN165,LN152,192,RZN148..(SCB,XTR)..(DEFI,EFI,TDE)..(GEN,TH)..CBU;KZN165,LN16#,17#,RZN142,147,149,174..(SCB,THXTR,XTR)..MTM..DLX..(ARL,GEN)

RH,(J)

 1
72212-35010

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166..LHD..DCB..DSL..GEN;KZN190,LN191,RZN148,149,168,193..DCB..DLX..(GEN,SA)

RH

 1
72212-35010

RZN147,149..DCB..GEN;RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN148,168,193..DCB..DLX..(GEN,SA)

LH

 1
72211-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

RH

 1
72212-35010

KZN190..DCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;RZN149..DCB..CO;RZN169..SR..(GEN,SA);LN16#..DCB..(GEN,MA,SA);LN147,RZN148..DCB..DLX..(ARL,CO);RZN169..(DCB,SCB)..DLX..(ARL,GEN);KZN165,RZN168,194..(CO,GEN,SA)..CBU;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN)..CBU;KZN165,LN167,RZN149,154..(DCB,SCB,XTR)..DLX..ARL;KDN165,190,LN172,191,RZN142,147,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

LH

 1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-22020B4

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;LN147..THDCB..DLX..DEFI;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;KZN165,LN152,192..XTR..(DEFI,TDE)..TH..CBU;LN147,RZN149,154,169..(DCB,SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,190,LN166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-35010

LN152..IV3;LN17#,191,RZN174,19#;LN145,RZN149..DCB..GEN;RZN149,169..DCB..DLX..ARL;KZN165..(DCB,SCB)..SR..(ARL,SA);LN167..(DCB,THDCB)..DLX..DEFI..ARL;LN147,RZN154..(THDCB,THXTR,XTR)..DLX..(DEFI,EFI)..ARL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;LN167,RZN169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA,TH)..CBU;KZN165,LN152,192,RZN154..XTR..(CBR,DEFI,TDE)..(GEN,TH)..CBU;KZN165,190,LN147,166,192,RZN147,148,168..DCB..DLX..(ARL,GEN,SA)..CBU

 1
72501-35010

RZN169..SR..SA;LN145..LHD..IV3;LN147..SCB..IV3;LN166..SCB..GEN;KZN190..DCB..SR;LN145,RZN148..GEN..CBU;LN147,166..DCB..(ARL,GEN,MA);LN167,RZN148,149..DCB..(CO,SA);KZN165,RZN149,154..(DCB,SCB,XTR)..(ARL,SA);LN152,RZN168,194..(DCB,SCB,XTR)..(ARL,CO,GEN,SA)..CBU;KDN165,190,LN167,172,191,RZN142,147,169,174,193,VZN167,172..(DCB,SCB,XTR)..(ARL,GEN,MA)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-35030B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-35020B0

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90168-40043
90520-01006
91512-61018
91615-60825
93249-54006
93249-54008
96160-00800
96160-01200

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587B 71588 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931 72750D 72770 72791 72797 9046818071 9046818071 9052001006 9165160614
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3D520B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D480B0

LN152..XTR..IV3;RZN154,169..(DCB,XTR)..DLX..ARL;RZN147,154,169..(DCB,XTR)..CBR..(GEN,SA);KZN165,LN147,167,RZN148,149,168..DCB..DLX..(ARL,GEN)..CBU;KZN190,LN145,166,17#,19#,RZN174,193..(DCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3D520B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D500B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-3D520B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D480B0

LN152..XTR..IV3;RZN154,169..(DCB,XTR)..DLX..ARL;KZN165,LN167,RZN154,169..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,149,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3D500B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3G080B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3D520B0

LN145..LHD..SCB;LN152..XTR..IV3;RZN169..CBR..GEN;RZN149..DCB..EFI..GEN;RZN148..DLX..GEN..CBU;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN);LN147,16#,RZN147,149,168..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN190,LN145,17#,19#,RZN174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71073-3D580B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71073-3D550B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3D550B0

LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71073-3D580B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71073-3D520B0

LN145..LHD..IV3;RZN154,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN142,148,168..DLX..GEN..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-3D310B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D300B2

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-3D320B4

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D300B2

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D860B1

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71410-3D310B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D320B4

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-3G110B1

LN166,RZN16#..LHD..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430-3G010B3

LN145..LHD..IV3;RZN169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN147,154..(DCB,XTR)..DLX..(ARL,SA)..CBU;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440-35730B2

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MEDIUM MOONMIST,TRIM1#

 1
71430-3G030B2

LN166..LHD..DCB..DSL..GEN

W(HEADREST & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-3G010B3

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN169..(DCB,SCB)..DLX..ARL;RZN149..(DCB,SCB)..ATM..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;KZN165,RZN154..(DCB,XTR)..DLX..ARL..CBU;KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;LN147,167,RZN147,149..(DCB,SCB)..MTM..DLX..(ARL,GEN);KZN165,RZN142,154..(SCB,XTR)..DLX..(CBR,TDE)..(ARL,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430-3G030B2

LN166..LHD..DCB..DSL..GEN

W(HEADREST & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71440-35750B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-35080

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71511-35090

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-35090

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71511-35080

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-35080

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71551-35070

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-35070

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71551-35080

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

RZN142,147..GEN;RZN147..DCB..GCC;RZN169..RHD..GEN;RZN169..LHD..DCB;LN145,146,166,191,RZN148,149,168,193..DLX..(GCC,GEN)

W(BENCH SEAT)

 1
71587-89103

RZN147..SCB..GCC;RZN149..DLX..GEN;RZN149..SR..CBR..GCC;RZN169..DCB..CBR..GEN;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN166,RZN147,148,168,193..DLX..(ARL,GEN,SA);LN140,141,145,191,RZN142,144,YN140..(CBR,DSL)..(GCC,GEN,SA);KZN190,LN167,192,RZN169..(SCB,THSCB)..DLX..(CBR,DEFI,DSL,TDE)

SEAT LEG SIDE COVER

 2
71587-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN)

W(SPORTS SEAT)

 2
71587-35040

RZN169..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DLX..GEN;KZN190,LN167,192,RZN142..SCB..DLX..(CBR,DEFI,TDE)..(GEN,SA)

BENCH SEAT

 1
71587-35050

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35090

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35090

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-35150

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71630-35130

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;LN167,RZN169..DCB..(CBR,DSL)..(ARL,GEN,SA);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN);KZN190,LN145,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-35130

LN152..XTR..IV3;RZN169..DCB..SA;RZN149..DCB..GEN;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);LN167,RZN154,169..(DCB,XTR)..(CBR,DSL)..(ARL,GEN,SA);KZN165,LN167,RZN149,154,169..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN145,147,166,17#,19#,RZN147,148,168,174,193..(DCB,XTR)..DLX..(ARL,GEN,SA)

 1
71630-35140

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(SPORTS SEAT)

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35370B0

LN147,167..DCB..DEFI..ARL;LN166..LHD..DCB..DSL..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 2
71910-35400B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35420B1

LN145..LHD..IV3;RZN169..CBR..GEN;LN145,152..(DCB,XTR)..IV3;RZN147..(DCB,SCB)..(ARL,GEN);RZN147,154,169..(DCB,XTR)..DLX..(ARL,SA);LN145,166,RZN142,148,149,168..MTM..DLX..GEN..CBU;KZN165,LN167,RZN154..(DCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)..CBU;KZN190,LN147,17#,19#,RZN149,174,193..(DCB,XTR)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

LN145..LHD..IV3;RZN169..DCB..SA;RZN149,169..CBR..GEN;RZN149..DCB..EFI..GEN;LN145,152..(DCB,XTR)..IV3;RZN149,169..(DCB,SCB)..DLX..ARL;LN145,166,RZN148,168..DLX..GEN..CBU;LN167,RZN147..DCB..(CBR,DSL)..(ARL,SA);LN147,RZN147..(DCB,SCB)..DLX..(ARL,GEN);KZN190,LN17#,19#,RZN174,193..(DCB,XTR)..DLX;KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167,RZN154..(DCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN165,LN167,RZN142,154..(SCB,XTR)..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GEN)

W(LOCK),BLUE GRAY,TRIM1#

 2
72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-35020

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
72791 - LEVER, LUMBAR SUPPORT
72791-12010B3

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

MD.MOON MIST,TRIM1#

 1
72797 - SPACER, LUMBAR SUPPORT
72797-50010

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

 1
Common parts
90468-18071
90520-01006
91651-60614

ILLUST NO. 3 OF 3(9708- )DCB,SADCB,THDCB

Click highlighted areas on diagram

REAR SEAT

diagram 71015 71017A 71075B 71077B 71331A 71460B 71480B 71491C 71527 71527 71587A 71611 71617A 71651 71651 71651B 71739 72641 72653A 9011908B62 90119T0105 9046818071 9046818071 9356015025
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-35050

RZN147..DCB..SA;RZN149..SR..GEN;LN166,RZN169..LHD..DCB..GEN;KZN165,LN167,192,RZN16#,194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA)

 1
71015-35040

RZN169..DCB..SA;RZN169..DCB..CBR..GEN;RZN149..DCB..DLX..CBR;KZN165,LN145,146,191,RZN147,19#..DCB..(GCC,GEN,SA);KZN190,LN166,RZN148,149,168..DCB..DLX..(DSL,EFI,TDE)..(GEN,SA)

 1
71015-35040

LN145,166,191,RZN147,148,16#,193..LHD..DCB..DLX..GEN

W(FRONT BENCH SEAT)

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-35090

RZN169..DCB..SA;RZN169..DCB..CBR;KZN190,RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,19#,RZN19#..DCB..(DSL,EFI,TDE)..(GCC,GEN,SA)

 1
71017-35100

RZN169..DCB..SA;RZN169..DCB..CBR;RZN149..DCB..SR..CBR;KZN190,RZN147,148,149,168..DCB..DLX..(GEN,SA);KZN165,LN145,16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(GCC,GEN,SA)

W(REAR HEADREST)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-35470B0

LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB..DLX..(ARL,GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71075-35480B0

RZN149..DCB..SR;RZN169..LHD..DCB..GEN;LN147,167,RZN149,16#..DCB..DLX..(DSL,EFI)

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71075-35460B0

LN166,RZN16#..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71075-35480B0

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71075-35490B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FRONT SEPARATE SEAT & WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71075-35710B0

RZN169..LHD..DCB..CBR..GEN;LN166,RZN148,168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(REAR HEADREST),MD.MOON MIST,TRIM1#

 1
71075-35690B0

RZN169..DCB..CBR..GEN;LN166,RZN149,168..DCB..DLX..(DSL,EFI)..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71075-35700B0

RZN149..DCB..DLX..CBR;RZN169..DCB..CBR..GEN;LN166,RZN149..DCB..(DSL,EFI)..GEN;KZN190,LN145,146,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71075-35720B0

RZN169..LHD..DCB..CBR..GEN;LN166,RZN148,168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-35710B0

LN166,RZN16#..DCB..GEN

W(HEADREST),MOONMIST,TRIM1#

 1
71077-35730B0

LN166,RZN16#..DCB..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71077-35740B0

LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB..DLX..(ARL,GCC,GEN)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-35770B0

RZN149..DCB..SR;RZN169..LHD..DCB..GEN;LN147,167,RZN149,16#..DCB..DLX..(DSL,EFI)

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-35780B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FRONT SEPARATE SEAT & WALK-IN SEAT),MEDIUM MOONMIST,TRIM1#

 1
71077-35770B0

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-35760B0

LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB..DLX..(ARL,GCC,GEN)

W(HEADREST & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-3D180B0

RZN169..DCB..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DCB..DLX..GEN

W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1#

 1
71077-3D230B0

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN;LN147,167,RZN149,169..DCB..DLX..(DSL,EFI)..ARL

SR PACKAGE & W(REAR HEADREST),MD.MOON MIST,TRIM1#

 1
71077-3D220B0

RZN169..DCB..CBR;RZN169..DCB..DLX..ARL;LN145,167,RZN147,149..DCB..DLX..(ARL,GEN);KZN165,190,LN147,166,191,RZN148,168,193..DCB..DLX..(ARL,GCC,GEN,SA)..CBU

W(FABRIC SEAT = DLX TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71077-3D140B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-3D200B0

RZN169..DCB..CBR;RZN169..DCB..DLX..ARL;LN167,RZN147,149..DCB..DLX..(ARL,GEN);KZN190,LN145,147,166,191,RZN148,168,193..DCB..DLX..(ARL,GCC,GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71077-3D210B0

RZN169..DCB..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DCB..DLX..GEN

W(REAR HEADREST),MOONMIST,TRIM1#

 1
71077-3D370B5

RZN149..DCB..DLX..(ARL,CO,GCC);KDN165,190,KZN165,LN145,146,147,16#,191,RZN147,148,16#,193,VZN167..DCB..DLX..(ARL,CO,GCC,GEN,MA,SA)

W(FABRIC SEAT = DLX TYPE)-*104 & W(REAR HEADREST),MOONMIST,TRIM1#

 1
71077-3D210B0

LN145,166,191,RZN147,148,16#,193..LHD..DCB..DLX..GEN

W(REAR HEADREST),MOONMIST,TRIM1#

 1
71077-3D370B5

RZN149..DCB..DLX..(ARL,CO,GCC);KZN165,LN145,146,147,16#,191,RZN147,148,16#,193,VZN167..DCB..DLX..(ARL,CO,GCC,GEN,MA,SA)

W(FABRIC SEAT = DLX TYPE)-*104 & W(REAR HEADREST),MOONMIST,TRIM1#

 1
71331A - PIN, REAR SEAT HINGE
71331-35050

RZN169..DCB..SA;KZN165..THDCB..SR;LN167,RZN169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN167,RZN149..DCB..SR..(CBR,DEFI)..(GCC,GEN,TH);KZN190,LN145,147,RZN147,148,149,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN165,LN166,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-35080

RZN169..DCB..CBR..GEN;LN166,RZN149,168..LHD..DCB..DLX..(DSL,EFI)..GEN

 1
71460-35640B1

LN166,RZN16#..DCB..GEN

MEDIUM MOONMIST,TRIM1#

 1
71460-35680B2

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71460-35800B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MD.MOONMIST,TRIM1#

 1
71460-35690B3

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71560-35020B0

RZN169..DCB..GEN;LN166,RZN149,168..DCB..(DSL,EFI)..GEN

MEDIUM MOONMIST,TRIM1#

 1
71560-35070B1

RZN168,194..DCB;RZN149..SR..GEN;LN166,RZN169..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71560-35060B2

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#

 1
71560-35110B0

LN166,RZN16#..LHD..DCB..GEN

W(SPORTS SEAT & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71560-35060B1

LN145,166,191,RZN147,148,149,16#,193..DCB..MTM..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#

 1
71560-35100B2

RZN169..LHD..DCB..CBR..GEN;LN166,RZN148,168..LHD..DCB..DLX..GEN

W(SPORTS SEAT),MD.MOON MIST,TRIM1#

 1
71560-35040B0

RZN169..DCB..CBR..GEN;KZN190,LN145,166,191,RZN147,148,149,168,193..DCB..DLX..(GEN,SA)

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71560-35090B2

KZN165,RZN169,194..DCB..SA;RZN169..LHD..DCB..CBR..GEN;LN166,RZN148,168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-35770B3

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71480-35830B1

LN166,RZN16#..DCB..GEN

W(HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480-35790B1

LN166,RZN16#..DCB..GEN

MEDIUM MOONMIST,TRIM1#

 1
71480-3D280B2

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT SEPARATE SEAT),MEDIUM MOONMIST,TRIM1#

 1
71480-35780B3

LN166..LHD..DCB..GEN

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71480-3D330B2

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT SEPARATE SEAT) & W(REAR HEADREST),MEDIUMMOONMIST,TRIM1#

 1
71480-3D140B0

RZN149..SR..GEN;LN166,RZN16#..LHD..DCB..GEN

MD.MOONMIST,TRIM1#

 1
71480-35840B2

LN145,166,191,RZN147,148,149,16#,193..DCB..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480-3D450B0

RZN149..SR..GEN;RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MEDIUM MOONMIST,TRIM1#

 1
71480-3D280B1

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166,191,RZN148,149,168,193..LHD..DCB..MTM..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT BENCH SEAT),MEDIUM MOONMIST,TRIM1#

 1
71480-3D260B0

RZN169..DCB..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DCB..DLX..GEN

W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480-3D290B1

RZN169..LHD..DCB..CBR..GEN;LN166,RZN168..LHD..DCB..DLX..GEN

W(FABRIC SEAT = SR TYPE)-*104 & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480-3D330B1

LN145..DCB..IV3;RZN147,169..DCB..CBR..GEN;LN145,166,191,RZN148,149,168,193..LHD..DCB..MTM..DLX..GEN

W(FABRIC SEAT = DLX TYPE)-*104 & W(FRONT BENCH SEAT) & W(REAR HEADREST),MEDIUM MOONMIST,TRIM1#

 1
71480-3D270B0

RZN169..DCB..CBR..GEN;LN145,166,191,RZN147,148,149,168,193..DCB..DLX..GEN

W(VINYL LEATHER SEAT)-*104,MEDIUM MOONMIST,TRIM1#

 1
71491C - SPRING, REAR SEAT SET
71491-89101

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 1
71527 - TAPE, FRONT SEAT CUSHION SILENCER
71527-34010

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71527 - TAPE, FRONT SEAT CUSHION SILENCER
71527-34010

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71587A - PROTECTOR, REAR SEAT BACK EDGE
71587-35010

RZN169..DCB..SA;KZN165..THDCB..SR;LN167,RZN169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN167,RZN149..DCB..SR..(CBR,DEFI)..(GCC,GEN,TH);KZN190,LN145,147,RZN147,148,149,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN165,LN166,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71611 - PAD, REAR SEAT CUSHION
71611-35030

LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..(ARL,GCC,GEN,SA)

 1
71611-35060

RZN149..DLX..GCC;LN166,RZN149,169..DCB..GEN;LN145,146,191,RZN147,148,168,193..DCB..(GCC,GEN)

 1
71611-35060

RZN149..DCB..DLX..CBR;RZN169..DCB..CBR..GEN;LN166,RZN149..DCB..(DSL,EFI)..GEN;KZN190,LN145,146,191,RZN147,148,168,193..DCB..DLX..(GCC,GEN,SA)

 1
71651 - PAD, REAR NO.1 SEAT BACK
71661-35010

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71651 - PAD, REAR NO.1 SEAT BACK
71661-35010

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-35050

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 1
71739 - CUSHION, SEAT SUPPORT
71739-35020

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
72641 - PIN, REAR SEAT BACK LOCK
72641-89101

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 1
72653A - SNAP, REAR SEAT BACK LOCK ROD
72653-89101

RZN169..DCB..SA;RZN149..DCB..SR..CBR;RZN169..DCB..DLX..ARL;LN167,RZN169..DCB..DLX..(CBR,DEFI)..(ARL,GCC,GEN);KZN190,LN145,147,RZN147,148,149,168..DCB..DLX..(ARL,GEN,SA);KZN165,LN16#,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 1
Common parts
90119-08B62
90119-T0105
90468-18071
93560-15025
