Toyota Hilux LN166 REAR BODY SIDE PANEL

Manufacturers Home
Toyota
GR
HILUX
LN166L-PRMDS (1997)
6554 - REAR BODY SIDE PANEL

LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9708- )DCB,SADCB,THDCB

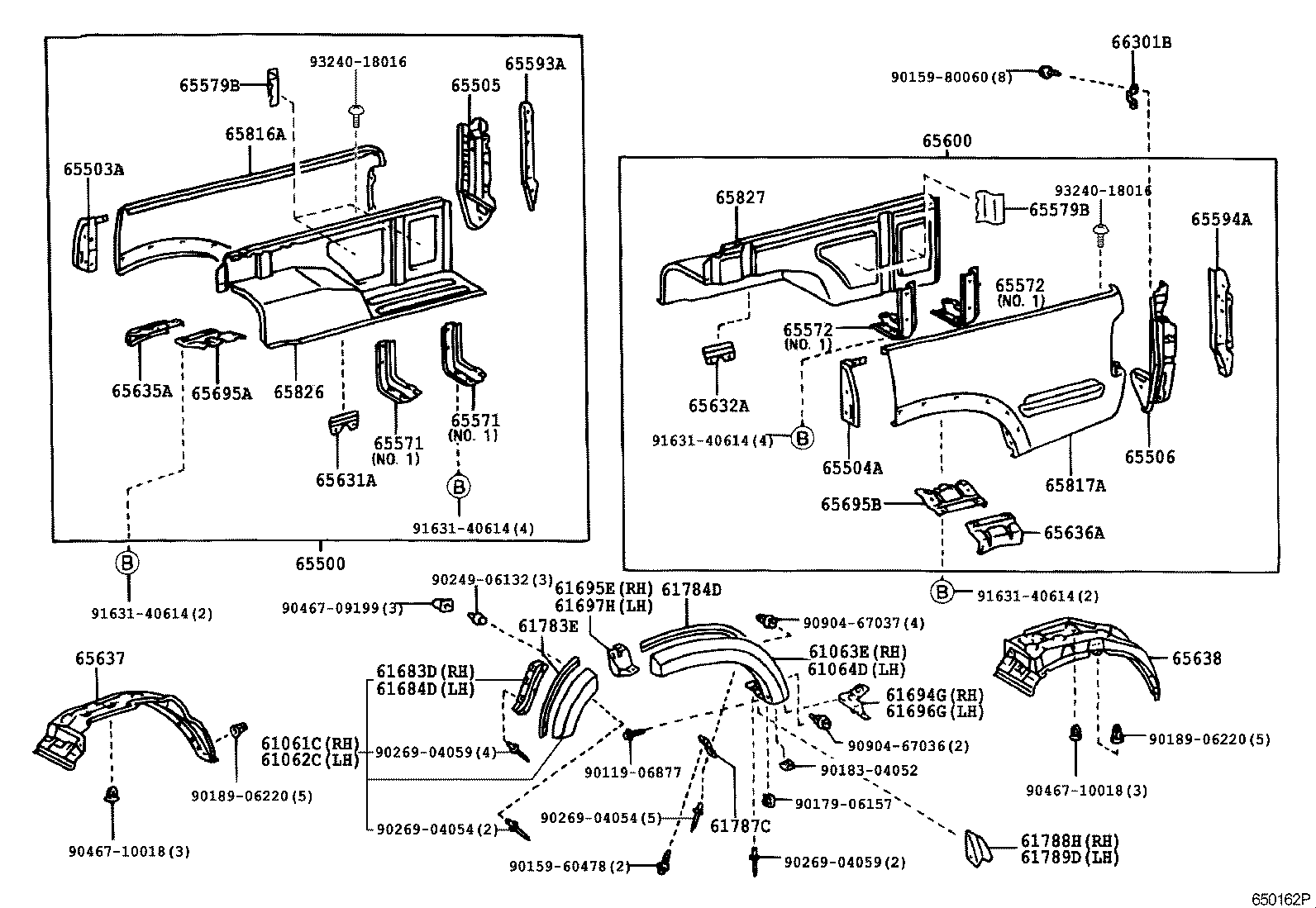

Click highlighted areas on diagram

Part #	Description	Period	Qty
61061C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
61061-35900	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 12/2999	1
61061-35900	LN167..SR..ARL;RZN169..DCB..DLX..GEN;KDN165,190,LN166,RZN194..DCB..(GEN,MA,SA);KZN165,190,RZN169,VZN167..(DCB,THDCB)..SR	08/2001 - 06/2005	1
61062C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH
61062-35900	LN167..SR..ARL;RZN169..DCB..DLX..GEN;KDN165,190,LN166,RZN194..DCB..(GEN,MA,SA);KZN165,190,RZN169,VZN167..(DCB,THDCB)..SR	08/2001 - 06/2005	1
61062-35900	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 12/2999	1
61063E - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH
61063-35900	KZN165,190,VZN167..DCB..SR..(ARL,SA);KDN165,190,LN166,RZN169,194..DCB..(GEN,MA,SA)	08/2001 - 06/2005	1
61063-35900	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 12/2999	1
61064D - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH
61064-35900	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 12/2999	1
61064-35900	KZN165,190,VZN167..DCB..SR..(ARL,SA);KDN165,190,LN166,RZN169,194..DCB..(GEN,MA,SA)	08/2001 - 06/2005	1
61683D - BRACKET, REAR WHEEL OPENING, NO.1 RH
61683-35040	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61683-35040	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61684D - BRACKET, REAR WHEEL OPENING, NO.1 LH
61684-35040	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61684-35040	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61694G - BRACKET, REAR WHEEL OPENING, NO.2 RH
61694-35010	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61694-35010	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61695E - BRACKET, REAR WHEEL OPENING, NO.3 RH
61695-35010	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61695-35010	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61696G - BRACKET, REAR WHEEL OPENING, NO.2 LH
61696-35010	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61696-35010	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61697H - BRACKET, REAR WHEEL OPENING, NO.3 LH
61697-35020	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61697-35020	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-35040J0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
61783-35040A0	KZN165..SR..(ARL,SA);KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	09/2000 - 08/2001	2
61783-35040G0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
61783-35040K0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
61783-35040A2	LN166..DCB..GEN DARK BLUE,6N7 ,8L7	09/2000 - 08/2001	2
61783-35040G1	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
61783-35040A1	LN166..DCB..GEN DARK BLUE,6N7	09/2000 - 08/2001	2
61783-35040A3	LN166,RZN169..DCB..GEN GRAYISH PURPLE,000 ,058 ,926	09/2000 - 08/2001	2
61783-35040B1	LN166..DCB..DSL..GEN;RZN169..RHD..DCB..(GEN,SA);RZN169..LHD..DCB..DLX..GEN;KZN165,190,RZN194..DCB..SR..SA GRAY,058 ,1E4 ,204 ,3K4 ,3L5 ,6R4	08/2001 - 03/2003	2
61783-35040A2	RZN169..DCB..GEN;LN166..LHD..DCB..GEN *104,DARK BLUE,8L7	08/2001 - 06/2005	2
61783-35040B1	LN166,RZN169..DCB..DLX..GEN GRAY,000 ,058 ,1E4 ,204 ,3K4 ,3L5 ,587 ,6R4 ,8L7	03/2003 - 06/2005	2
61783-35040E0	LN166,RZN169..DCB..GEN IVORY,587	08/2001 - 06/2005	2
61784D - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-35020G1	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
61784-35020J0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
61784-35020A0	KZN165..SR..(ARL,SA);KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	09/2000 - 08/2001	2
61784-35020G0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
61784-35020A3	LN166,RZN169..DCB..GEN GRAYISH PURPLE,000 ,058 ,926	09/2000 - 08/2001	2
61784-35020K0	KZN165..(DCB,THDCB)..SR;KZN190,LN16#,192,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
61784-35020A2	LN166..DCB..GEN DARK BLUE,6N7 ,8L7	09/2000 - 08/2001	2
61784-35020A1	LN166..DCB..GEN DARK BLUE,6N7	09/2000 - 08/2001	2
61784-35020B1	LN166..DCB..DSL..GEN;RZN169..RHD..DCB..(GEN,SA);RZN169..LHD..DCB..DLX..GEN;KZN165,190,RZN194..DCB..SR..SA GRAY,058 ,1E4 ,204 ,3K4 ,3L5 ,6R4	08/2001 - 03/2003	2
61784-35020E0	LN166,RZN169..DCB..GEN IVORY,587	08/2001 - 06/2005	2
61784-35020A2	RZN169..DCB..GEN;LN166..LHD..DCB..GEN *104,DARK BLUE,8L7	08/2001 - 06/2005	2
61784-35020B1	LN166,RZN169..DCB..DLX..GEN GRAY,000 ,058 ,1E4 ,204 ,3K4 ,3L5 ,587 ,6R4 ,8L7	03/2003 - 06/2005	2
61787C - BRACKET, REAR WHEEL OPENING, NO.4
61787-35010	RZN169..DCB..CBR..GEN;KZN165..(DCB,THDCB)..SR;RZN169..(DCB,THDCB)..(ARL,SA);KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA,TH)	08/1997 - 09/2001	2
61787-35010	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	2
61788H - BRACKET, REAR WHEEL OPENING, NO.5
61788-35020	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
61788-35020	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61789D - BRACKET, REAR WHEEL OPENING, NO.6
61789-35020	LN166,RZN169..DCB..GEN	08/2001 - 06/2005	1
61789-35020	RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)	08/1997 - 10/2001	1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-35730	RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 12/2999	1
65500-35560	LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 09/2001	1
65500-35540	KZN165..DCB..SR..ARL;RZN169..LHD..DCB..CBR..GEN;LN167,RZN169..DCB..DLX..ARL;LN166,RZN168..LHD..DCB..DLX..GEN W(REFLEX REFLECTOR)	08/1997 - 12/2999	1
65500-3D140	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 12/2999	1
65500-3D140	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65500-35730	LN166,191,RZN16#,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 12/2999	1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65503-35030	RZN149..DCB..SR..GCC;LN166,RZN16#..LHD..DCB..GEN;LN145,167,RZN169..(DCB,THDCB)..(DSL,EFI)..(ARL,TH) W(INNER HOOK)	08/1997 - 08/2001	1
65551-35040	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65551-35040	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65504-35030	RZN149..DCB..SR..GCC;LN166,RZN16#..LHD..DCB..GEN;LN145,167,RZN169..(DCB,THDCB)..(DSL,EFI)..(ARL,TH) W(INNER HOOK)	08/1997 - 08/2001	1
65552-35040	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65552-35040	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-35030	RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,RZN169..DCB..(ARL,TH);LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65505-35030	LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..(DCB,THDCB)..SR..(ARL,GCC);LN145,167,RZN149,169..(DCB,THDCB)..(ARL,TH);LN147,17#,RZN154,168,174..(DCB,THDCB,THXTR,XTR)..CBU	10/1998 - 08/2001	1
65505-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65505-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65505-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-35030	LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..(DCB,THDCB)..SR..(ARL,GCC);LN145,167,RZN149,169..(DCB,THDCB)..(ARL,TH);LN147,17#,RZN154,168,174..(DCB,THDCB,THXTR,XTR)..CBU	10/1998 - 08/2001	1
65506-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65506-35030	RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,RZN169..DCB..(ARL,TH);LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65506-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65506-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65571 - FRAME, SIDE PANEL, FRONT RH
65572-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/2000	2
65572-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65572-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
65571 - FRAME, SIDE PANEL, FRONT RH
65572-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/2000	2
65572-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65572-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
65572 - FRAME, SIDE PANEL, FRONT LH
65571-35010	RZN168..SCB;LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/1999 - 05/2000	2
65571-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	05/2000 - 09/2000	2
65571-35010	LN145..DCB..TH;LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/1999	2
65571-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65571-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	2
65572 - FRAME, SIDE PANEL, FRONT LH
65571-35010	RZN168..SCB;LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/1999 - 05/2000	2
65571-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	05/2000 - 09/2000	2
65571-35010	LN145..DCB..TH;LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/1999	2
65571-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65571-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	2
65579B - BRACKET, SIDE PANEL FRAME
65579-35010	LN145,166..RHD..DCB..CBU;RZN148,149,16#..LHD..DCB..DLX..GEN	09/1999 - 09/2000	4
65579B - BRACKET, SIDE PANEL FRAME
65579-35010	LN145,166..RHD..DCB..CBU;RZN148,149,16#..LHD..DCB..DLX..GEN	09/1999 - 09/2000	4
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-35030	LN140,15#,171;LN145,147..IV3;LN166..DCB..GEN;LN145,167..SA,TH	08/1997 - 10/1998	1
65593-35030	LN145..LHD..IV3;LN147..DSL..IV3;LN167..DLX..DSL..SA;RZN169..LHD..DCB..GEN;LN140,15#,171..DSL..CBU;LN167..(DCB,THDCB)..DEFI..ARL;LN145,167..(DCB,THSCB,XTR)..DSL..(IV1,IV3);LN167,RZN149..RHD..(DCB,XTR)..(DSL,EFI)..CBU;LN145,152..(DCB,SCB,THXTR)..DSL..(ARL,SA,TH);LN147,166,RZN16#..DCB..(DEFI,DSL,EFI)..(ARL,GEN) SR PACKAGE	10/1998 - 08/2001	1
65593-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65593-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-35030	RZN169..DCB..ARL;RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65594-35030	RZN149..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..GEN;LN147,RZN16#..DCB..DLX..(DEFI,DSL,EFI) SR PACKAGE	10/1998 - 08/2001	1
65594-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65594-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65594-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-35480	LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 09/2001	1
65600-35870	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 03/2006	1
65600-35460	RZN169..LHD..DCB..CBR..GEN;LN167,RZN169..DCB..DLX..ARL;LN166,RZN168..LHD..DCB..DLX..GEN SR PACKAGE & W(REFLEX REFLECTOR)	08/1997 - 06/2002	1
65600-35620	RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 03/2006	1
65600-35870	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65600-35620	LN166,191,RZN16#,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 12/2999	1
65631A - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-89113	RZN147,169..DCB..SA;LN167..SCB..ARL..CBU;LN145,RZN142,147,169..(ARL,GCC,GEN)..CBU;KZN165,LN141,146,147,166,17#,191,RZN144,148,149,154,168,174,193..CBU;KZN190,LN145,167,192,RZN194..(DCB,SADCB,THDCB,THSCB,XTR)..(ARL,SA,TH)..CBU	08/1997 - 08/2001	1
65631-89113	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65632A - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-89112	LN145..LHD..DLX..TH;LN167..SCB..ARL..CBU;LN192..(DCB,XTR)..CBU;RZN169..DLX..ARL..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;KZN165..(THDCB,THSCB,XTR)..SR..CBU;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL..CBU;LN147,RZN147,148,168..DLX..(ARL,GCC,GEN)..CBU;KZN190,RZN147,154..(DCB,THXTR,XTR)..DLX..(ARL,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN165,LN166..(DCB,SCB)..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;LN167,RZN174,19#..(DCB,SADCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI)..CBU;LN141,145,146,17#,191,RZN142,144,149,154,169..(CBR,DEFI,DSL)..(ARL,GCC,GEN)..CBU	08/1997 - 01/2003	1
65632-89112	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65635A - PANEL, WHEEL HOUSE, REAR RH
65635-35010	KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN145,RZN148,168..LHD..DCB..DLX;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);LN167,RZN147,149,169..DCB..(CBR,DEFI)..(GCC,GEN,TH);LN145,147,167..RHD..(DCB,THDCB)..DLX..(ARL,GEN)..CBU;KZN165,LN146,166,191,RZN193..DCB..(DSL,EFI,TDE)..(ARL,GCC,GEN)	08/1997 - 03/2002	1
65635-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
65636A - PANEL, WHEEL HOUSE, REAR LH
65636-35010	KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN145,RZN148,168..LHD..DCB..DLX;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);LN167,RZN147,149,169..DCB..(CBR,DEFI)..(GCC,GEN,TH);LN145,147,167..RHD..(DCB,THDCB)..DLX..(ARL,GEN)..CBU;KZN165,LN146,166,191,RZN193..DCB..(DSL,EFI,TDE)..(ARL,GCC,GEN)	08/1997 - 03/2002	1
65636-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-35040	RZN169..DCB..CBR;LN145,146,147,16#,191,RZN147,148,149,168,193..DCB..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	08/1997 - 10/1998	1
65637-35040	LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..CBU NEW ZEALAND SPEC	10/1998 - 02/1999	1
65637-35040	RZN169..DCB..ARL;RZN149,169..DCB..CBR;RZN149..(DCB,THDCB)..ARL;RZN147,148,168..DCB..DLX..(GCC,GEN);KZN165,LN145,146,147,16#,191,RZN193..(DCB,THDCB)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	02/1999 - 09/2001	1
65637-35040	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN NEW ZEALAND SPEC	08/2001 - 06/2005	1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-35040	LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..CBU NEW ZEALAND SPEC	10/1998 - 02/1999	1
65638-35040	RZN169..DCB..CBR;LN145,146,147,16#,191,RZN147,148,149,168,193..DCB..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	08/1997 - 10/1998	1
65638-35040	RZN169..DCB..ARL;RZN149,169..DCB..CBR;RZN149..(DCB,THDCB)..ARL;RZN147,148,168..DCB..DLX..(GCC,GEN);KZN165,LN145,146,147,16#,191,RZN193..(DCB,THDCB)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	02/1999 - 09/2001	1
65638-35040	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN NEW ZEALAND SPEC	08/2001 - 06/2005	1
65695A - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-35020	LN145..GEN..CBU;LN167,192..XTR..DEFI..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,166,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN,TH)..CBU	08/1997 - 08/2001	1
65695-35020	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65695B - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-35020	RZN169..ARL..CBU;LN167,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..CBU;KZN165,LN192,RZN144,149,154,169..(CBR,DEFI,TDE)..(ARL,GCC,GEN,TH)..CBU;LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,TH)..CBU;LN141,145,146,147,166,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN)..CBU	08/1997 - 09/2001	1
65695-35020	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65816A - PANEL, REAR BODY SIDE, RH
65816-35210	LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 10/1998	1
65816-35070	RZN169..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN16#..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL W(REFLEX REFLECTOR)	08/1997 - 08/2001	1
65816-35150	RZN149,169..DCB..CBR;RZN149,169..DCB..DLX..ARL;LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(CBR,DSL,EFI)..(ARL,GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65816-35210	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	10/1998 - 12/2999	1
65816-35210	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65816-35150	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65817A - PANEL, REAR BODY SIDE, LH
65817-35080	LN166..LHD..DCB..GEN;LN167,RZN169..DCB..ARL W(OVER FENDER & REFLEX REFLECTOR)	08/1997 - 05/1998	1
65817-35210	LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 10/1998	1
65817-35080	LN166,RZN169..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..(ARL,TH) W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 08/2001	1
65817-35070	RZN169..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN16#..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL W(REFLEX REFLECTOR)	08/1997 - 08/2001	1
65817-35150	RZN149,169..DCB..CBR;RZN149,169..DCB..DLX..ARL;LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(CBR,DSL,EFI)..(ARL,GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65817-35210	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	10/1998 - 12/2999	1
65817-35150	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65817-35210	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-35060	RZN149..DCB..SR..GCC;LN167,RZN169..DCB..ARL;LN166,RZN16#..LHD..DCB..GEN	08/1997 - 10/1998	1
65826-35060	RZN149..DCB..ARL;LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..DCB..SR..(ARL,GCC);LN147,167,RZN16#..DCB..DLX..(DEFI,DSL,EFI)	10/1998 - 08/2001	1
65826-35120	RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;RZN149..DCB..DLX..EFI..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU W(INNER HOOK)	08/1997 - 12/2999	1
65826-35120	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(INNER HOOK)	08/2001 - 06/2005	1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-35060	RZN149..DCB..SR..GCC;LN167,RZN169..DCB..ARL;LN166,RZN16#..LHD..DCB..GEN	08/1997 - 10/1998	1
65827-35060	RZN149..DCB..ARL;LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..DCB..SR..(ARL,GCC);LN147,167,RZN16#..DCB..DLX..(DEFI,DSL,EFI)	10/1998 - 08/2001	1
65827-35120	RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;RZN149..DCB..DLX..EFI..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU W(INNER HOOK)	08/1997 - 12/2999	1
65827-35120	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(INNER HOOK)	08/2001 - 06/2005	1
66301B - HOOK SUB-ASSY, ROPE
66312-34010	RZN149..DCB..SR..GCC;RZN147,149,169..ARL..CBU;LN166,RZN16#..LHD..DCB..GEN;KZN165,LN147,167,17#,RZN154,174..(ARL,GEN)..CBU	05/1998 - 08/2001	4
Common parts
90119-06877
90159-60478
90159-80060
90179-06157
90183-04052
90189-06220
90249-06132
90269-04054
90269-04059
90467-09199
90467-10018
90904-67036
90904-67037
91631-40614
93240-18016

(9708- )DCB,SADCB,THDCB

Click highlighted areas on diagram

W(REFLEX REFLECTOR)

Part #	Description	Period	Qty
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-35730	RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 12/2999	1
65500-35560	LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 09/2001	1
65500-35540	KZN165..DCB..SR..ARL;RZN169..LHD..DCB..CBR..GEN;LN167,RZN169..DCB..DLX..ARL;LN166,RZN168..LHD..DCB..DLX..GEN W(REFLEX REFLECTOR)	08/1997 - 12/2999	1
65500-3D140	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 12/2999	1
65500-3D140	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65500-35730	LN166,191,RZN16#,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 12/2999	1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65503-35030	RZN149..DCB..SR..GCC;LN166,RZN16#..LHD..DCB..GEN;LN145,167,RZN169..(DCB,THDCB)..(DSL,EFI)..(ARL,TH) W(INNER HOOK)	08/1997 - 08/2001	1
65551-35040	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65551-35040	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65504-35030	RZN149..DCB..SR..GCC;LN166,RZN16#..LHD..DCB..GEN;LN145,167,RZN169..(DCB,THDCB)..(DSL,EFI)..(ARL,TH) W(INNER HOOK)	08/1997 - 08/2001	1
65552-35040	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65552-35040	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-35030	RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,RZN169..DCB..(ARL,TH);LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65505-35030	LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..(DCB,THDCB)..SR..(ARL,GCC);LN145,167,RZN149,169..(DCB,THDCB)..(ARL,TH);LN147,17#,RZN154,168,174..(DCB,THDCB,THXTR,XTR)..CBU	10/1998 - 08/2001	1
65505-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65505-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65505-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-35030	LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..(DCB,THDCB)..SR..(ARL,GCC);LN145,167,RZN149,169..(DCB,THDCB)..(ARL,TH);LN147,17#,RZN154,168,174..(DCB,THDCB,THXTR,XTR)..CBU	10/1998 - 08/2001	1
65506-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65506-35030	RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,RZN169..DCB..(ARL,TH);LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65506-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65506-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65510 - RAIL ASSY, SIDE PANEL TOP, RH
65510-35020	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU	08/1997 - 12/2999	1
65510-35020	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	1
65520 - RAIL ASSY, SIDE PANEL TOP, LH
65520-35020	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU	08/1997 - 12/2999	1
65520-35020	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	1
65553 - PLATE, SIDE PANEL REAR END POST, UPPER RH
65553-35020	RZN144,149,169..CBR;LN141,145,146,166,191,RZN142,147,148,168,193..DLX..(GCC,GEN)..CBU	08/1997 - 03/2002	1
65553-35020	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
65554 - PLATE, SIDE PANEL REAR END POST, UPPER LH
65554-35020	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU	08/1997 - 12/2999	1
65554-35020	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU	08/2001 - 06/2005	1
65563A - PLATE, SIDE PANEL REAR END POST, LOWER RH
65563-35010	LN16#,191,RZN16#,193..(ARL,GCC,GEN)..CBU	08/1997 - 08/1998	1
65563-35010	LN166,191,RZN16#,193..DLX..GEN	08/2001 - 06/2005	1
65564 - PLATE, SIDE PANEL REAR END POST, LOWER LH
65564-35010	LN16#,191,RZN16#,193..(ARL,GCC,GEN)..CBU	08/1997 - 08/1998	1
65564-35010	LN166,191,RZN16#,193..DLX..GEN	08/2001 - 06/2005	1
65571 - FRAME, SIDE PANEL, FRONT RH
65572-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/2000	2
65572-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65572-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
65571 - FRAME, SIDE PANEL, FRONT RH
65572-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/2000	2
65572-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65572-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
65572 - FRAME, SIDE PANEL, FRONT LH
65571-35010	RZN168..SCB;LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/1999 - 05/2000	2
65571-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	05/2000 - 09/2000	2
65571-35010	LN145..DCB..TH;LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/1999	2
65571-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65571-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	2
65572 - FRAME, SIDE PANEL, FRONT LH
65571-35010	RZN168..SCB;LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/1999 - 05/2000	2
65571-35010	LN145..DCB..TH;KZN165,LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	05/2000 - 09/2000	2
65571-35010	LN145..DCB..TH;LN141,145,146,147,16#,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU NO.1	08/1997 - 09/1999	2
65571-35010	LN145,166..LHD..DCB;LN145,166,RZN148,168..SCB..GEN..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,17#,191,RZN142,144,147,149,154,169,174,193..(ARL,GCC,GEN)..CBU NO.1	09/2000 - 08/2001	2
65571-35010	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.1	08/2001 - 06/2005	2
65579B - BRACKET, SIDE PANEL FRAME
65579-35010	LN145,166..RHD..DCB..CBU;RZN148,149,16#..LHD..DCB..DLX..GEN	09/1999 - 09/2000	4
65579B - BRACKET, SIDE PANEL FRAME
65579-35010	LN145,166..RHD..DCB..CBU;RZN148,149,16#..LHD..DCB..DLX..GEN	09/1999 - 09/2000	4
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-35030	LN140,15#,171;LN145,147..IV3;LN166..DCB..GEN;LN145,167..SA,TH	08/1997 - 10/1998	1
65593-35030	LN145..LHD..IV3;LN147..DSL..IV3;LN167..DLX..DSL..SA;RZN169..LHD..DCB..GEN;LN140,15#,171..DSL..CBU;LN167..(DCB,THDCB)..DEFI..ARL;LN145,167..(DCB,THSCB,XTR)..DSL..(IV1,IV3);LN167,RZN149..RHD..(DCB,XTR)..(DSL,EFI)..CBU;LN145,152..(DCB,SCB,THXTR)..DSL..(ARL,SA,TH);LN147,166,RZN16#..DCB..(DEFI,DSL,EFI)..(ARL,GEN) SR PACKAGE	10/1998 - 08/2001	1
65593-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65593-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-35030	RZN169..DCB..ARL;RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU	08/1997 - 10/1998	1
65594-35030	RZN149..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..GEN;LN147,RZN16#..DCB..DLX..(DEFI,DSL,EFI) SR PACKAGE	10/1998 - 08/2001	1
65594-35040	LN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 10/1998	1
65594-35040	LN166,RZN148,168,193..DLX..(GCC,GEN)..CBU;LN141,145,146,191,RZN142,144,147,149,169..(CBR,DSL)..(GCC,GEN)..CBU W(2 LATCH HANDLE)	10/1998 - 12/2999	1
65594-35040	LN145,166,191,RZN142,147,148,16#,193..DLX..GEN..CBU W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-35480	LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 09/2001	1
65600-35870	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 03/2006	1
65600-35460	RZN169..LHD..DCB..CBR..GEN;LN167,RZN169..DCB..DLX..ARL;LN166,RZN168..LHD..DCB..DLX..GEN SR PACKAGE & W(REFLEX REFLECTOR)	08/1997 - 06/2002	1
65600-35620	RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 03/2006	1
65600-35870	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65600-35620	LN166,191,RZN16#,193..DCB..DLX..(GCC,GEN) W(REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 12/2999	1
65631A - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-89113	RZN147,169..DCB..SA;LN167..SCB..ARL..CBU;LN145,RZN142,147,169..(ARL,GCC,GEN)..CBU;KZN165,LN141,146,147,166,17#,191,RZN144,148,149,154,168,174,193..CBU;KZN190,LN145,167,192,RZN194..(DCB,SADCB,THDCB,THSCB,XTR)..(ARL,SA,TH)..CBU	08/1997 - 08/2001	1
65631-89113	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65632A - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-89112	LN145..LHD..DLX..TH;LN167..SCB..ARL..CBU;LN192..(DCB,XTR)..CBU;RZN169..DLX..ARL..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;KZN165..(THDCB,THSCB,XTR)..SR..CBU;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL..CBU;LN147,RZN147,148,168..DLX..(ARL,GCC,GEN)..CBU;KZN190,RZN147,154..(DCB,THXTR,XTR)..DLX..(ARL,SA);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN165,LN166..(DCB,SCB)..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;LN167,RZN174,19#..(DCB,SADCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI)..CBU;LN141,145,146,17#,191,RZN142,144,149,154,169..(CBR,DEFI,DSL)..(ARL,GCC,GEN)..CBU	08/1997 - 01/2003	1
65632-89112	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65635A - PANEL, WHEEL HOUSE, REAR RH
65635-35010	KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN145,RZN148,168..LHD..DCB..DLX;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);LN167,RZN147,149,169..DCB..(CBR,DEFI)..(GCC,GEN,TH);LN145,147,167..RHD..(DCB,THDCB)..DLX..(ARL,GEN)..CBU;KZN165,LN146,166,191,RZN193..DCB..(DSL,EFI,TDE)..(ARL,GCC,GEN)	08/1997 - 03/2002	1
65635-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
65636A - PANEL, WHEEL HOUSE, REAR LH
65636-35010	KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN145,RZN148,168..LHD..DCB..DLX;RZN149..(DCB,THDCB)..DLX..EFI..(ARL,GEN);LN167,RZN147,149,169..DCB..(CBR,DEFI)..(GCC,GEN,TH);LN145,147,167..RHD..(DCB,THDCB)..DLX..(ARL,GEN)..CBU;KZN165,LN146,166,191,RZN193..DCB..(DSL,EFI,TDE)..(ARL,GCC,GEN)	08/1997 - 03/2002	1
65636-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-35040	RZN169..DCB..CBR;LN145,146,147,16#,191,RZN147,148,149,168,193..DCB..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	08/1997 - 10/1998	1
65637-35040	LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..CBU NEW ZEALAND SPEC	10/1998 - 02/1999	1
65637-35040	RZN169..DCB..ARL;RZN149,169..DCB..CBR;RZN149..(DCB,THDCB)..ARL;RZN147,148,168..DCB..DLX..(GCC,GEN);KZN165,LN145,146,147,16#,191,RZN193..(DCB,THDCB)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	02/1999 - 09/2001	1
65637-35040	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN NEW ZEALAND SPEC	08/2001 - 06/2005	1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-35040	LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..CBU NEW ZEALAND SPEC	10/1998 - 02/1999	1
65638-35040	RZN169..DCB..CBR;LN145,146,147,16#,191,RZN147,148,149,168,193..DCB..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	08/1997 - 10/1998	1
65638-35040	RZN169..DCB..ARL;RZN149,169..DCB..CBR;RZN149..(DCB,THDCB)..ARL;RZN147,148,168..DCB..DLX..(GCC,GEN);KZN165,LN145,146,147,16#,191,RZN193..(DCB,THDCB)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)..CBU NEW ZEALAND SPEC	02/1999 - 09/2001	1
65638-35040	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN NEW ZEALAND SPEC	08/2001 - 06/2005	1
65695A - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-35020	LN145..GEN..CBU;LN167,192..XTR..DEFI..CBU;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,146,147,166,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN,TH)..CBU	08/1997 - 08/2001	1
65695-35020	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65695B - BRACKET, WHEEL HOUSE BRACE, NO.2
65695-35020	RZN169..ARL..CBU;LN167,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..CBU;KZN165,LN192,RZN144,149,154,169..(CBR,DEFI,TDE)..(ARL,GCC,GEN,TH)..CBU;LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(DEFI,DSL,EFI)..(ARL,GEN,TH)..CBU;LN141,145,146,147,166,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN)..CBU	08/1997 - 09/2001	1
65695-35020	LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
65816A - PANEL, REAR BODY SIDE, RH
65816-35210	LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 10/1998	1
65816-35070	RZN169..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN16#..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL W(REFLEX REFLECTOR)	08/1997 - 08/2001	1
65816-35150	RZN149,169..DCB..CBR;RZN149,169..DCB..DLX..ARL;LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(CBR,DSL,EFI)..(ARL,GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65816-35210	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	10/1998 - 12/2999	1
65816-35210	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65816-35150	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65817A - PANEL, REAR BODY SIDE, LH
65817-35080	LN166..LHD..DCB..GEN;LN167,RZN169..DCB..ARL W(OVER FENDER & REFLEX REFLECTOR)	08/1997 - 05/1998	1
65817-35210	LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/1997 - 10/1998	1
65817-35080	LN166,RZN169..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..(ARL,TH) W(OVER FENDER & REFLEX REFLECTOR)	05/1998 - 08/2001	1
65817-35070	RZN169..DCB..ARL;LN167..(DCB,THDCB)..ARL;LN166,RZN16#..LHD..DCB..GEN;KZN165..(DCB,THDCB)..SR..ARL W(REFLEX REFLECTOR)	08/1997 - 08/2001	1
65817-35150	RZN149,169..DCB..CBR;RZN149,169..DCB..DLX..ARL;LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(CBR,DSL,EFI)..(ARL,GCC,GEN)..CBU W(2 LATCH HANDLE)	08/1997 - 12/2999	1
65817-35210	LN166,RZN169..DCB..DLX..(CBR,DSL)..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	10/1998 - 12/2999	1
65817-35150	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(2 LATCH HANDLE)	08/2001 - 06/2005	1
65817-35210	LN166,RZN169..DCB..DLX..GEN W(OVER FENDER & REFLEX REFLECTOR & 2 LATCH HANDLE)	08/2001 - 06/2005	1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-35060	RZN149..DCB..SR..GCC;LN167,RZN169..DCB..ARL;LN166,RZN16#..LHD..DCB..GEN	08/1997 - 10/1998	1
65826-35060	RZN149..DCB..ARL;LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..DCB..SR..(ARL,GCC);LN147,167,RZN16#..DCB..DLX..(DEFI,DSL,EFI)	10/1998 - 08/2001	1
65826-35120	RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;RZN149..DCB..DLX..EFI..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU W(INNER HOOK)	08/1997 - 12/2999	1
65826-35120	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(INNER HOOK)	08/2001 - 06/2005	1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-35060	RZN149..DCB..SR..GCC;LN167,RZN169..DCB..ARL;LN166,RZN16#..LHD..DCB..GEN	08/1997 - 10/1998	1
65827-35060	RZN149..DCB..ARL;LN166,RZN169..LHD..DCB..GEN;KZN165,RZN149..DCB..SR..(ARL,GCC);LN147,167,RZN16#..DCB..DLX..(DEFI,DSL,EFI)	10/1998 - 08/2001	1
65827-35120	RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;RZN149..DCB..DLX..EFI..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..DCB..DLX..(ARL,GCC,GEN)..CBU W(INNER HOOK)	08/1997 - 12/2999	1
65827-35120	LN145,166,191,RZN147,148,168,193..DCB..DLX..GEN W(INNER HOOK)	08/2001 - 06/2005	1
66301B - HOOK SUB-ASSY, ROPE
66312-34010	RZN149..DCB..SR..GCC;RZN147,149,169..ARL..CBU;LN166,RZN16#..LHD..DCB..GEN;KZN165,LN147,167,17#,RZN154,174..(ARL,GEN)..CBU	05/1998 - 08/2001	4
66311 - HOOK, ROPE
66311-89109	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU	08/1997 - 12/2999	6
66311-89109	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	6
66311 - HOOK, ROPE
66311-89109	RZN169..DCB..SA;LN167,RZN149,169..DCB..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);KZN165,190,LN166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA)..CBU;KZN165,LN145,146,19#,RZN147,19#..(DCB,SADCB)..(GCC,GEN,SA)..CBU	08/1997 - 12/2999	6
66311-89109	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	6
Common parts
90159-80060
90189-06220
90467-10018
91631-40614
93240-18016

LN166L-PRMDS (1997)

(9708- )DCB,SADCB,THDCB

(9708- )DCB,SADCB,THDCB

Part Price Details
