LN166L-PRMDS (1997)
Toyota Hilux
(9708- )DCB,SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

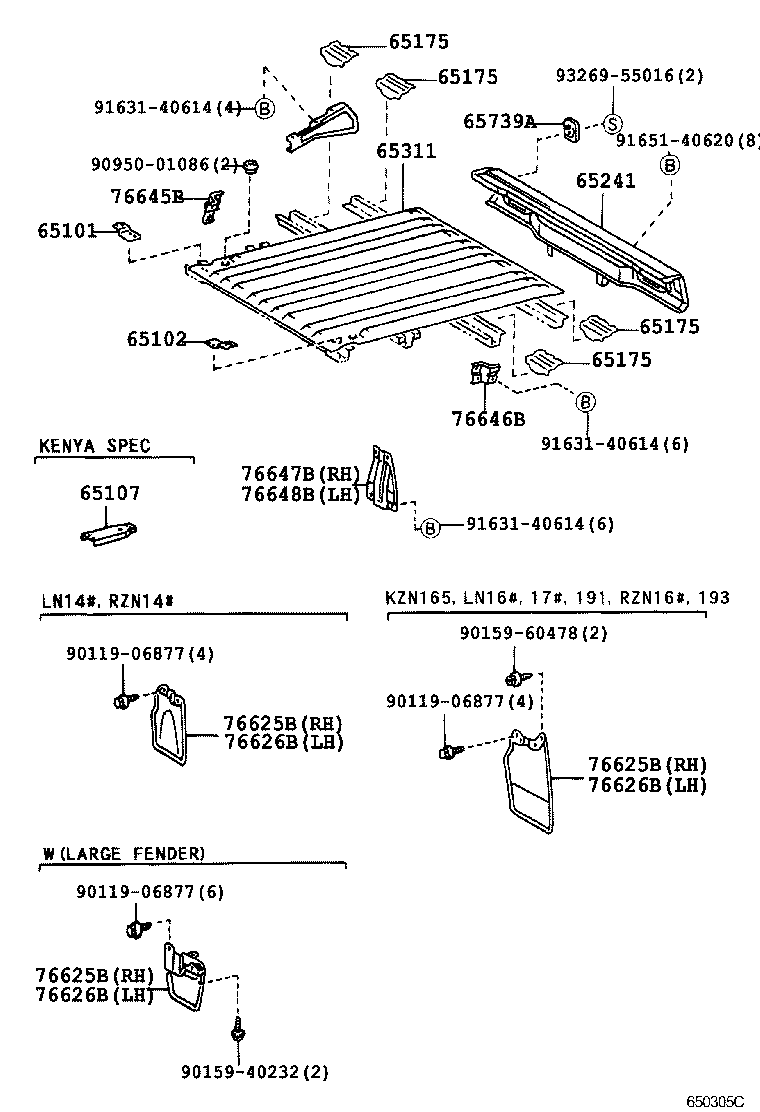

| 65101 - BRACKET SUB-ASSY, MAIN SILL MOUNTING, NO.1 | ||||
| 65101-35010 |
KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..CBU |
1 | ||
| 65101-35010 |
RZN147,169..DCB..GCC;RZN149..ATM..ARL..CBU;RZN147,169..RHD..(DCB,THDCB);KZN165,190,LN145,146,147,16#,19#,RZN148,149,168,19#..(DCB,SADCB,THDCB)..MTM..CBU |
1 | ||
| 65101-35010 |
LN167..DCB..DLX;RZN149..DCB..(ARL,GCC);KZN190,LN167..(DCB,THDCB)..SR..(ARL,SA);KZN165,RZN169..(DCB,THDCB)..(ARL,GCC,GEN,SA)..CBU;KDN145,16#,190,LN145,146,147,166,191,RZN147,148,168,19#,VZN167..DCB..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 65102 - BRACKET SUB-ASSY, MAIN SILL MOUNTING, NO.2 | ||||
| 65102-35010 |
KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..CBU |
1 | ||
| 65102-35010 |
LN167..DCB..DLX;RZN149..DCB..(ARL,GCC);KZN190,LN167..(DCB,THDCB)..SR..(ARL,SA);KZN165,RZN169..(DCB,THDCB)..(ARL,GCC,GEN,SA)..CBU;KDN145,16#,190,LN145,146,147,166,191,RZN147,148,168,19#,VZN167..DCB..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 65102-35010 |
RZN147,169..DCB..GCC;RZN149..ATM..ARL..CBU;RZN147,169..RHD..(DCB,THDCB);KZN165,190,LN145,146,147,16#,19#,RZN148,149,168,19#..(DCB,SADCB,THDCB)..MTM..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-35090 |
LN167..DCB..TH;LN145..LHD..DLX..TH;KZN165..SR..ARL..CBU;RZN154,169..DLX..ARL..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;LN147,16#,RZN148,168,174,193..DLX..(ARL,GCC,GEN)..CBU;LN141,145,146,17#,191,RZN142,144,147,149,154,169..(CBR,DEFI,DSL)..(ARL,GCC,GEN)..CBU W(STEP BUMPER) |
1 | ||
| 65240-35050 |
LN145,166,171,191,RZN142,147,148,149,168,193..DLX..GEN..CBU |
1 | ||
| 65240-35050 |
LN167..THDCB..SR;LN145..RHD..DCB..TH;RZN149..(DCB,SCB,THSCB)..ARL..CBU;LN167,RZN142,147..(DCB,SCB,THSCB)..(ARL,GEN)..CBU;KZN165,LN145,166,RZN148,16#,VZN167..(ARL,GCC,GEN,MA)..CBU;KDN165,190,LN147,152,17#,191,RZN154,174,193,VZN172..(DCB,THXTR,XTR)..(ARL,GEN,MA)..CBU |
1 | ||
| 65240-35090 |
LN145..LHD..TH;KZN165..SR..ARL;LN166..SCB..GEN;LN167..THDCB..SR;RZN169..(ARL,GCC,GEN)..CBU;LN167,RZN149,VZN167..(DCB,SCB,THSCB)..(ARL,CO,GCC)..CBU;KDN165,190,LN141,145,RZN142,144,147,148,168..(CO,GCC,GEN,MA)..CBU;LN146,147,152,166,17#,191,RZN154,174,193,VZN172..(DCB,THXTR,XTR)..(ARL,GCC,GEN,MA)..CBU W(STEP BUMPER) |
1 | ||
| 65240-35050 |
RZN169..ARL..CBU;RZN142,147,148,168,193..DLX..(ARL,GEN)..CBU;KZN165,LN167,RZN149..(DCB,SCB,THDCB,THSCB)..(ARL,GEN,TH)..CBU;LN145,147,166,171,191,RZN154,169..DLX..(CBR,DEFI,DSL)..(ARL,GCC,GEN)..CBU |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-35050 |
KZN165,LN145,146,147,16#,191,RZN147,148,149,16#,193..(DCB,THDCB)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 65311-35050 |
RZN147,169..DCB..GCC;RZN147,169..RHD..(DCB,THDCB)..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN148,149,168,193..(DCB,THDCB)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 65311-35050 |
LN167..SR..ARL;LN167..DCB..DLX..ARL;RZN149..DCB..(ARL,CO,GCC);KZN165,RZN169..(DCB,THDCB)..(ARL,GCC,GEN)..CBU;KDN145,16#,190,LN145,146,147,166,191,RZN147,148,168,193,VZN167..DCB |
1 | ||
| 65739A - BUMPER, TAIL GATE | ||||
| 65739-89103 |
RZN169..DLX..SA;RZN147,149..GEN,SA;KZN190,LN167,171,192,RZN142..(SCB,XTR)..(GEN,SA);LN145,166,191,RZN148,168,193..DLX..(GCC,GEN)..CBU |
2 | ||
| 65739-89103 |
LN167,RZN169..(SCB,THDCB)..DLX..(ARL,SA)..CBU;KZN165,LN145,16#..(DCB,SCB)..(DEFI,DSL,TDE)..(ARL,GCC,GEN)..CBU;LN147,171,19#,RZN142,147,148,149,168,193..DLX..(ARL,GEN,SA)..CBU |
2 | ||
| 65739-89103 |
RZN147..DCB..GEN;RZN169..DLX..(ARL,SA)..CBU;KZN165,RZN149..(ARL,GEN)..CBU;LN167,RZN169..DLX..(CBR,DEFI,DSL)..CBU;RZN147..(SCB,THSCB)..(ARL,GEN,SA)..CBU;LN145,147,166,191,RZN148,168,193..DLX..(ARL,GCC,GEN)..CBU;KZN190,LN171,192,RZN142,154,YN140..(SCB,XTR)..(CBR,DEFI,DSL,TDE)..(GEN,SA) |
2 | ||
| 65739-89103 |
KZN165..THDCB..SR;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA)..CBU;LN167..(SCB,THDCB,THSCB)..DLX..CBU;KZN165,LN145,166..(DCB,SCB)..(DSL,TDE)..(ARL,GCC,GEN)..CBU;LN147,171,19#,RZN142,147,148,149,168,193..DLX..(ARL,GEN,SA)..CBU |
2 | ||
| 65739-89103 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76607-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76625-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76607-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76607-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76607-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76625-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76607-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76607-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76607-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76625-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76625-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76607-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76625-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76607-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76608-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76626-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76608-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76608-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76608-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76626-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76608-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76608-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,19#..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76608-35050 |
LN16#,RZN169..DCB..(CBR,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN167..DLX..CBU;KZN165..ARL..CBU;LN166,191,RZN16#,193..CBU;KZN190,LN17#,192,RZN174..(SCB,THXTR,XTR)..DLX..CBU |
1 | ||
| 76626-35140 |
LN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 76626-35140 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL..CBU;LN16#,191,RZN168,193..(DCB,SCB)..DLX..CBU;KZN190,LN17#,192,RZN174..(SCB,XTR)..DLX..CBU;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76608-35050 |
KZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76626-35140 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 76608-35050 |
LN166..DCB..DSL..GEN NEW ZEALAND SPEC & W(LARGE FENDER) |
1 | ||
| 76645B - BRACKET, REAR BODY MUDGUARD, RH | ||||
| 76645-35020 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 76645-35020 |
KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..CBU |
1 | ||
| 76645-35020 |
LN192,RZN147..SCB..CBU;LN167,RZN169..DLX..CBU;RZN147..DCB..(GCC,GEN);LN14#,15#,166,17#,191,RZN142,144,148,149,154,168,174,19#..CBU |
1 | ||
| 76646B - BRACKET, REAR BODY MUDGUARD, LH | ||||
| 76646-35010 |
LN192,RZN147..SCB..CBU;LN167,RZN169..DLX..CBU;RZN147..DCB..(GCC,GEN);LN14#,15#,166,17#,191,RZN142,144,148,149,154,168,174,19#..CBU |
1 | ||
| 76646-35010 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 76647B - SUPPORT, REAR BODY MUDGUARD, RH | ||||
| 76647-35050 |
LN145..DCB..TH;LN167..(DCB,SCB,THDCB,THSCB)..(ARL,TH)..CBU;KZN165,LN141,145,146,147,166,17#,191,RZN14#,154,16#,174,193..(ARL,GCC,GEN)..CBU |
1 | ||
| 76647-35050 |
RZN149..GEN;LN141,145,146,166,171,191,RZN142,147,148,168,193..DLX..(GCC,GEN)..CBU |
1 | ||
| 76647-35050 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN149..DLX..(ARL,GEN)..CBU;LN147,167,RZN154,169..DLX..ARL..CBU;LN166,RZN147,148,168..DLX..(ARL,GCC,GEN)..CBU;KZN165,LN141,145,146,17#,191,RZN142,174,193..(DCB,SCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 76647-35050 |
LN145,166,171,191,RZN142,147,148,149,168,193..DLX..GEN..CBU |
1 | ||
| 76647-35050 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 76648B - SUPPORT, REAR BODY MUDGUARD, LH | ||||
| 76648-35040 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 76648-35040 |
LN167..DCB..TH;LN145..LHD..DLX..TH;RZN154,169..DLX..ARL..CBU;KZN165..(THDCB,THSCB)..SR..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;LN147,16#,RZN147,148,168,174,193..DLX..(ARL,GCC,GEN)..CBU;KZN165,LN141,145,146,17#,191,RZN142,144,149,154,169..(DCB,SCB,THXTR,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN)..CBU |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-40232 | ||||
| 90159-60478 | ||||
| 90950-01086 | ||||
| 91631-40614 | ||||
| 91651-40620 | ||||
| 93269-55016 | ||||
