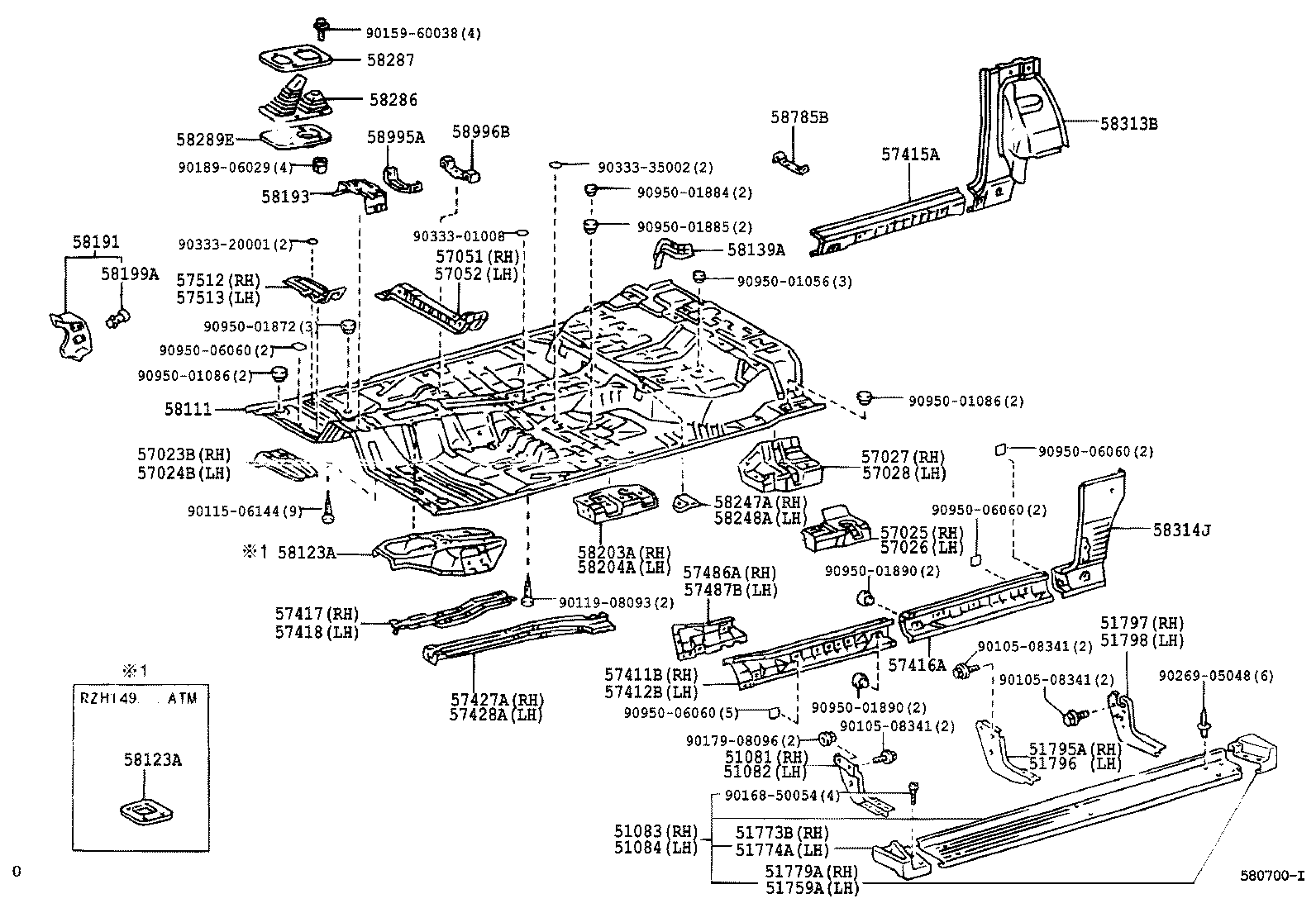

LN166L-PRMDS (1997)
Toyota Hilux
(9708- )DCB,SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-35040 |
RZN169..CBR;RZN169..DCB..SA;RZN168..DLX..GEN;LN16#,171,19#,RZN193..(DSL,EFI)..(GCC,GEN,TH)..CBU |
1 | ||
| 51081-35050 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51081-35050 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-35050 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51082-35040 |
RZN169..CBR;RZN169..DCB..SA;RZN168..DLX..GEN;LN16#,171,19#,RZN193..(DSL,EFI)..(GCC,GEN,TH)..CBU |
1 | ||
| 51082-35050 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-35110 |
RZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,19#,RZN193..DCB..(DSL,EFI)..(GCC,GEN,SA) |
1 | ||
| 51083-35120 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51083-35120 |
KZN190..DCB..SR;KDN165,190,KZN165,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51083-35121 |
KDN165,190,KZN165,190,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51083-35110 |
LN166,191,RZN16#,193..DCB..(CO,GCC,GEN,MA) |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-35110 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51084-35100 |
RZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,19#,RZN193..DCB..(DSL,EFI)..(GCC,GEN,SA) |
1 | ||
| 51084-35100 |
LN166,191,RZN16#,193..DCB..(CO,GCC,GEN,MA) |
1 | ||
| 51084-35110 |
KZN190..DCB..SR;KDN165,190,KZN165,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51084-35101 |
LN166,191,RZN16#,193..DCB..(CO,GCC,GEN,MA) |
1 | ||
| 51084-35111 |
KDN165,190,KZN165,190,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-35040 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51759-35050 |
KDN165,190,KZN165,190,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51759-35050 |
RZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51778-35040 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51773-35040 |
KZN190..DCB..SR;KDN165,190,KZN165,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51773-35040 |
RZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-35040 |
KZN190..DCB..SR;KDN165,190,KZN165,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51779-35040 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51774-35040 |
RZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-35060 |
RZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51779-35060 |
KZN190..DCB..SR;KDN165,190,KZN165,LN166,RZN169,194..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51779-35050 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-35030 |
RZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,171,19#,RZN193..(DCB,XTR)..(DSL,EFI)..(GCC,GEN,TH)..CBU |
1 | ||
| 51795-35040 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51795-35040 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-35040 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51796-35040 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51796-35030 |
RZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,171,19#,RZN193..(DCB,XTR)..(DSL,EFI)..(GCC,GEN,TH)..CBU |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-35050 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51797-35060 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 51797-35060 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51798-35050 |
RZN169..DCB..SA;RZN169..DCB..CBR;LN166,191,RZN168,193..DCB..DLX..(GCC,GEN) |
1 | ||
| 51798-35060 |
KZN165,190,RZN194..DCB..SR..SA;LN166,RZN169..DCB..(GEN,MA,SA) W(OVER FENDER) |
1 | ||
| 51798-35060 |
LN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA) W(OVER FENDER) |
1 | ||
| 57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH | ||||
| 57023-35050 |
LN152..IV3;RZN169..DCB..SA;LN172..THXTR..IV3;KZN165..SR..(ARL,SA);RZN149..MTM..DLX..ARL;RZN147,194..DCB,SADCB,SCB;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB,THDCB)..DLX..(ARL,SA);KZN165,RZN154..(SCB,THXTR,XTR)..MTM..DLX..ARL;RZN149,154..(DCB,SCB,THDCB,XTR)..ATM..DLX..(ARL,GEN);LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167,172..(DCB,THXTR)..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN141,145,146,147,166,17#,19#,RZN142,148,168,174,193,YN140..(DCB,SCB,THDCB,THSCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57023-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH | ||||
| 57024-35050 |
LN152..IV3;RZN169..DCB..SA;LN172..THXTR..IV3;KZN165..SR..(ARL,SA);RZN149..MTM..DLX..ARL;RZN147,194..DCB,SADCB,SCB;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB,THDCB)..DLX..(ARL,SA);KZN165,RZN154..(SCB,THXTR,XTR)..MTM..DLX..ARL;RZN149,154..(DCB,SCB,THDCB,XTR)..ATM..DLX..(ARL,GEN);LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167,172..(DCB,THXTR)..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN141,145,146,147,166,17#,19#,RZN142,148,168,174,193,YN140..(DCB,SCB,THDCB,THSCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57024-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57027 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH | ||||
| 57027-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57027-35020 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 57028 - BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH | ||||
| 57028-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57028-35020 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-35041 |
LN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;LN152..DEFI..IV3;LN150,RZN194..SR;RZN149,169..DLX..ARL;KZN165..SR..(ARL,SA);LN145,155..LHD..DLX..TH;KZN165,190..DCB..DLX..CBU;LN145,RZN148..DLX..GEN..CBU;LN167..(DCB,THDCB,THSCB,XTR)..DSL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN152,167,RZN149,169..(CBR,DEFI)..(GEN,TH);LN192,RZN147,154..(DCB,THXTR,XTR)..(ARL,SA,TH);LN147,166,17#,191,RZN142,147,168,174,193..DLX..(ARL,GEN);KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN) |
1 | ||
| 57051-35040 |
LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN |
1 | ||
| 57051-35020 |
RZN147;LN145..LHD..IV3;RZN149..CBR..GCC;RZN149..DLX..CBR..GEN;LN145,167..DCB..DSL..(GEN,SA);LN145,192,RZN194..SCB..(DSL,EFI)..(CBU,IV1);LN167,RZN169..(SCB,THSCB)..DLX..(DSL,EFI)..(ARL,SA);KZN165,LN141,146,191,RZN144,169,YN140..(CBR,DSL,TDE)..(GCC,GEN,SA);LN155,157,166,RZN142,148,168,193..DLX..(CBR,DSL,EFI)..(GCC,GEN,TH)..CBU W(FRONT BENCH SEAT) |
1 | ||
| 57051-35041 |
LN145..LHD..IV3;RZN169..SR..GEN;LN145,166,171,191,RZN142,147,148,154,168,193..GEN..CBU |
1 | ||
| 57051-35020 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,168,193..DLX..GEN..CBU W(FRONT BENCH SEAT) |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-35020 |
RZN147;LN145..LHD..IV3;RZN149..CBR..GCC;RZN149..DLX..CBR..GEN;LN145,167..DCB..DSL..(GEN,SA);LN145,192,RZN194..SCB..(DSL,EFI)..(CBU,IV1);LN167,RZN169..(SCB,THSCB)..DLX..(DSL,EFI)..(ARL,SA);KZN165,LN141,146,191,RZN144,169,YN140..(CBR,DSL,TDE)..(GCC,GEN,SA);LN155,157,166,RZN142,148,168,193..DLX..(CBR,DSL,EFI)..(GCC,GEN,TH)..CBU W(FRONT BENCH SEAT) |
1 | ||
| 57052-35041 |
LN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;LN152..DEFI..IV3;LN150,RZN194..SR;RZN149,169..DLX..ARL;KZN165..SR..(ARL,SA);LN145,155..LHD..DLX..TH;KZN165,190..DCB..DLX..CBU;LN145,RZN148..DLX..GEN..CBU;LN167..(DCB,THDCB,THSCB,XTR)..DSL;LN167..(DCB,THDCB)..DLX..DEFI..ARL;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN152,167,RZN149,169..(CBR,DEFI)..(GEN,TH);LN192,RZN147,154..(DCB,THXTR,XTR)..(ARL,SA,TH);LN147,166,17#,191,RZN142,147,168,174,193..DLX..(ARL,GEN);KZN165,LN167,RZN154..(SCB,XTR)..DLX..(CBR,DSL,TDE)..(ARL,GEN) |
1 | ||
| 57052-35040 |
LN145,147,16#,17#,191,RZN142,147,148,149,154,16#,174,193..ARL,GEN |
1 | ||
| 57052-35020 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,168,193..DLX..GEN..CBU W(FRONT BENCH SEAT) |
1 | ||
| 57052-35041 |
LN145..LHD..IV3;RZN169..SR..GEN;LN145,166,171,191,RZN142,147,148,154,168,193..GEN..CBU |
1 | ||
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-35050 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57411-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-35050 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57412-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57415A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57415-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57416A - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57416-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57416-35020 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-35020 |
LN152..IV3;RZN169..DCB..SA;RZN154..XTR..ATM;KZN165..THDCB..SR;LN172..THXTR..IV3;RZN154,169..(DCB,THDCB,THXTR,XTR)..MTM..DLX..ARL;LN167,RZN149,154,169..(DCB,THDCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA);LN167,172,RZN149..(DCB,THDCB,THXTR)..DLX..(DEFI,EFI)..(ARL,GEN)..CBU;KZN165,LN146,171,19#,RZN147,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,172,RZN148,168..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57427-35020 |
LN145,166,171,191,RZN147,148,154,16#,193..(DCB,XTR)..GEN |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-35020 |
LN152..IV3;RZN169..DCB..SA;RZN154..XTR..ATM;KZN165..THDCB..SR;LN172..THXTR..IV3;RZN154,169..(DCB,THDCB,THXTR,XTR)..MTM..DLX..ARL;LN167,RZN149,154,169..(DCB,THDCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA);LN167,172,RZN149..(DCB,THDCB,THXTR)..DLX..(DEFI,EFI)..(ARL,GEN)..CBU;KZN165,LN146,171,19#,RZN147,174,19#..(DCB,SADCB,XTR)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,172,RZN148,168..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 57428-35020 |
LN145,166,171,191,RZN147,148,154,16#,193..(DCB,XTR)..GEN |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-35020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57486-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-35020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57487-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57512-35021 |
LN145..DCB..GEN;KZN165..SCB..DLX;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165,RZN194..SR..(ARL,SA);LN145,RZN144..SCB..(CBR,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN149,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,155,157,166,19#,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57512-35020 |
LN14#,16#,191,RZN14#,16#,193 |
1 | ||
| 57512-35021 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-35021 |
LN145..DCB..GEN;KZN165..SCB..DLX;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165,RZN194..SR..(ARL,SA);LN145,RZN144..SCB..(CBR,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN149,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,155,157,166,19#,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 57513-35020 |
LN14#,16#,191,RZN14#,16#,193 |
1 | ||
| 57513-35021 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-35300 |
KZN165,LN16#,RZN16#..DCB,THDCB |
1 | ||
| 58111-35301 |
RZN169..DCB..SA;KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN168..(DCB,THDCB)..DLX..(ARL,GEN);LN167,RZN169..DCB..(CBR,DEFI)..(GCC,GEN,TH);KZN165,LN166..DCB..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU |
1 | ||
| 58111-35301 |
LN166,RZN16#..DCB..GEN |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-35050 |
RZN169..SR;LN167..SCB..ARL;LN145,155..LHD..TH;LN145,RZN147,169..ARL,GEN;LN167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DSL)..(ARL,SA,TH);LN147,150,152,166,17#,191,RZN142,148,149,154,168,174,19#..MTM..(ARL,GEN,SA,TH) |
1 | ||
| 58123-35052 |
RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN169..DCB..SA;LN145,155..LHD..DLX..TH;RZN154,169..MTM..DLX..ARL;LN145,RZN148..DLX..GEN..CBU;KZN165..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,RZN154..(DCB,XTR)..DLX..(CBR,TDE);LN150,152,167,192,RZN194..MTM..SR..(SA,TH);KZN165,LN166..(DCB,SCB)..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;LN147,167,17#,191,RZN142,147,149,168,174,193..MTM..DLX..(ARL,GEN) |
1 | ||
| 58123-35052 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 58123-35051 |
RZN169..SR;LN167..SCB..ARL;RZN169..ARL,GCC,GEN;LN145,RZN147,149..MTM..(ARL,GEN);LN155,RZN142,148..LHD..(GEN,TH)..CBU;KZN165,LN147,150,152,166,17#,191,RZN154,168,174,19#..MTM;KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-35050 |
RZN169..SR;LN167..SCB..ARL;LN145,155..LHD..TH;LN145,RZN147,169..ARL,GEN;LN167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DSL)..(ARL,SA,TH);LN147,150,152,166,17#,191,RZN142,148,149,154,168,174,19#..MTM..(ARL,GEN,SA,TH) |
1 | ||
| 58123-35052 |
RZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN169..DCB..SA;LN145,155..LHD..DLX..TH;RZN154,169..MTM..DLX..ARL;LN145,RZN148..DLX..GEN..CBU;KZN165..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,RZN154..(DCB,XTR)..DLX..(CBR,TDE);LN150,152,167,192,RZN194..MTM..SR..(SA,TH);KZN165,LN166..(DCB,SCB)..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;LN147,167,17#,191,RZN142,147,149,168,174,193..MTM..DLX..(ARL,GEN) |
1 | ||
| 58123-35052 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 58123-35051 |
RZN169..SR;LN167..SCB..ARL;RZN169..ARL,GCC,GEN;LN145,RZN147,149..MTM..(ARL,GEN);LN155,RZN142,148..LHD..(GEN,TH)..CBU;KZN165,LN147,150,152,166,17#,191,RZN154,168,174,19#..MTM;KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH) |
1 | ||
| 58139A - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58139-35010 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-35040 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 58193-35040 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-35020 |
RZN169..DCB..SA;KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58203-35020 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-35020 |
RZN169..DCB..SA;KZN165..THDCB..SR;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58204-35020 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-89102 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58247-89102 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-89102 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-35100 |
LN166,171..LHD |
1 | ||
| 58286-35100 |
LN166,171..LHD..GEN |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-35050 |
LN166,171..DSL..(GCC,GEN) |
1 | ||
| 58287-35050 |
LN166,171..GEN |
1 | ||
| 58289E - BOOT, SHIFT LEVER, NO.2 | ||||
| 58289-35070 |
LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI |
1 | ||
| 58289-35070 |
LN166,171..GEN |
1 | ||
| 58313B - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-35900 |
KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB |
1 | ||
| 58313-35900 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58314J - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 58314-35030 |
LN145,166,191,RZN147,148,16#,193..DCB..GEN |
1 | ||
| 58785B - BRACKET, TOOL BAG BAND | ||||
| 58785-89106 |
LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165,LN150..(THDCB,XTR)..SR;LN146,17#,19#,RZN147,174,19#..DCB,SADCB,THXTR,XTR;KZN165,LN166..DCB..(DSL,TDE)..(ARL,GCC,GEN,SA)..CBU;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN152,167,RZN149,154,169..(DCB,THDCB,THXTR,XTR)..(CBR,DSL);LN167,RZN154,169..(DCB,THDCB,THXTR,XTR)..DLX..(DEFI,EFI)..ARL;KZN190,LN145,147,RZN148,149,168..(DCB,THDCB)..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GEN,SA) |
1 | ||
| 58785-89106 |
LN145,166,171,191,RZN147,148,154,16#,193..(DCB,XTR)..GEN |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-35030 |
LN167..SCB..ARL;LN152..DEFI..IV3;LN150,RZN194..SR;RZN169..DLX..ARL;LN145..LHD..DLX..TH;RZN149..DCB..DLX..CBR;RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB,XTR)..DSL;LN141,146,147,17#,RZN174,193..DLX;KZN165,RZN149..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN165,LN152,RZN154..(THXTR,XTR)..(CBR,DSL,TDE);LN166,192..(DCB,XTR)..(DEFI,DSL)..(GCC,GEN,SA,TH);LN155,RZN142,144,147,169..LHD..(CBR,DSL)..(GCC,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN148,168..(DCB,THDCB,THSCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,190,LN145,RZN154..RHD..(DCB,THXTR,XTR)..DLX..(ARL,GEN,SA)..CBU |
1 | ||
| 58995-35030 |
RZN169..LHD..DCB..GEN;LN145,166,171,RZN148,154,168,193..(DCB,XTR)..GEN |
1 | ||
| 58996B - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-35010 |
LN167..SCB..ARL;LN152..DEFI..IV3;LN150,RZN194..SR;RZN169..DLX..ARL;LN145..LHD..DLX..TH;RZN149..DCB..DLX..CBR;RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB,XTR)..DSL;LN141,146,147,17#,RZN174,193..DLX;KZN165,RZN149..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN165,LN152,RZN154..(THXTR,XTR)..(CBR,DSL,TDE);LN166,192..(DCB,XTR)..(DEFI,DSL)..(GCC,GEN,SA,TH);LN155,RZN142,144,147,169..LHD..(CBR,DSL)..(GCC,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN148,168..(DCB,THDCB,THSCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,190,LN145,RZN154..RHD..(DCB,THXTR,XTR)..DLX..(ARL,GEN,SA)..CBU |
1 | ||
| 58996-35010 |
RZN169..LHD..DCB..GEN;LN145,166,171,RZN148,154,168,193..(DCB,XTR)..GEN |
1 | ||
| Common parts | ||||
| 90105-08341 | ||||
| 90115-06144 | ||||
| 90119-08093 | ||||
| 90159-60038 | ||||
| 90168-50054 | ||||
| 90179-08096 | ||||
| 90189-06029 | ||||
| 90269-05048 | ||||
| 90333-01008 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90950-01056 | ||||
| 90950-01086 | ||||
| 90950-01872 | ||||
| 90950-01884 | ||||
| 90950-01885 | ||||
| 90950-01890 | ||||
| 90950-06060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
