LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )DCB,SADCB,THDCB

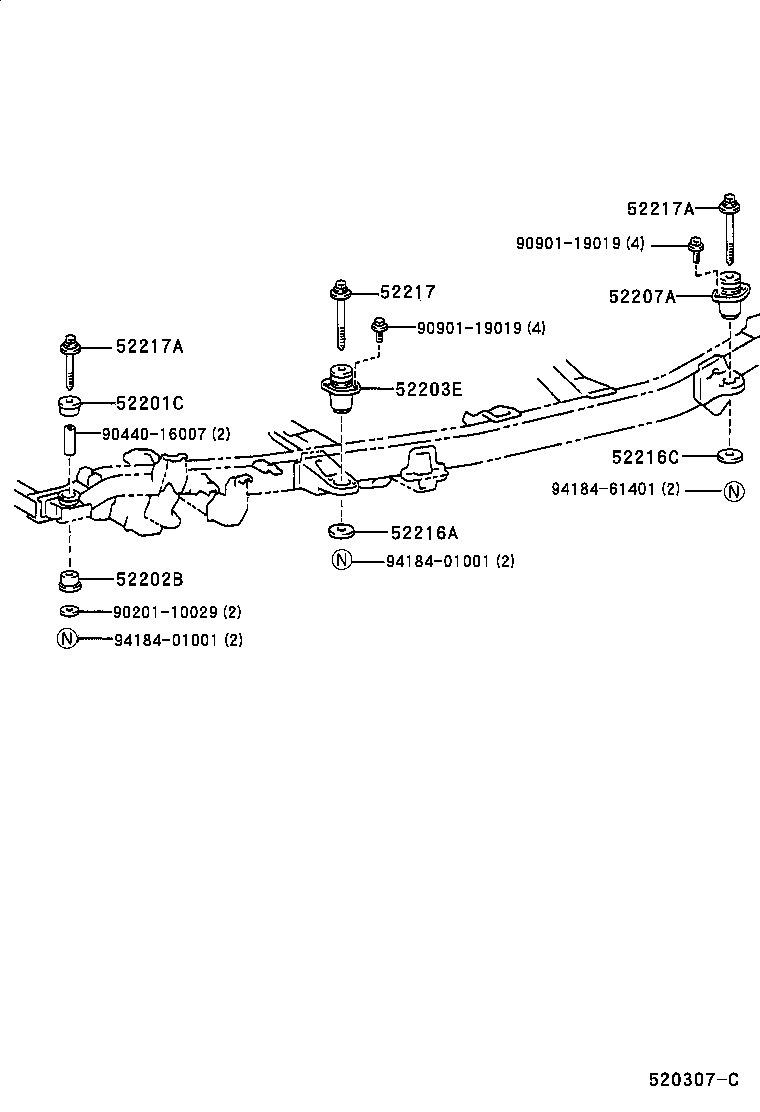

Click highlighted areas on diagram

DOUBLE CAB

diagram 52201C 52202B 52203E 52207A 52216A 52216C 52217 52217A 52217A 9020110029 9044016007 9090119019 9090119019 9418401001 9418401001 9418461401
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-35120

LN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN167,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-35110

LN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN167,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-35240

RZN169..DCB..SA;RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;LN167,RZN149..DCB..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN145,147,166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU

 2
52207A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER
52207-35070

LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)

 2
52207-35070

LN145,166,191,RZN147,148,16#,193..DCB..GEN

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-34020

LN145,166,191,RZN147,148,16#,193..DCB..GEN

 2
52216-34020

LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)

 2
52216C - STOPPER, CAB MOUNTING CUSHION
52216-35050

RZN169..DCB..CBR;LN166,171,191,RZN193..LHD..(DCB,XTR)

 2
52216-35050

LN166,171,191,RZN16#,193..(DCB,XTR)..GEN

 2
52217 - BOLT, BODY MOUNTING
52217-35070

RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)

 2
52217-35070

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

 2
52217A - BOLT, BODY MOUNTING
52217-35060

LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)

 2
52217-35010

RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)

L=115

 2
52217-35060

LN145,166,191,RZN147,148,16#,193..DCB..GEN

 2
52217-35010

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

L=115

 2
52217A - BOLT, BODY MOUNTING
52217-35060

LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)

 2
52217-35010

RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)

L=115

 2
52217-35060

LN145,166,191,RZN147,148,16#,193..DCB..GEN

 2
52217-35010

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

L=115

 2
Common parts
90201-10029
90440-16007
90901-19019
94184-01001
94184-61401
