LN166L-PRMDS (1997)
Toyota Hilux

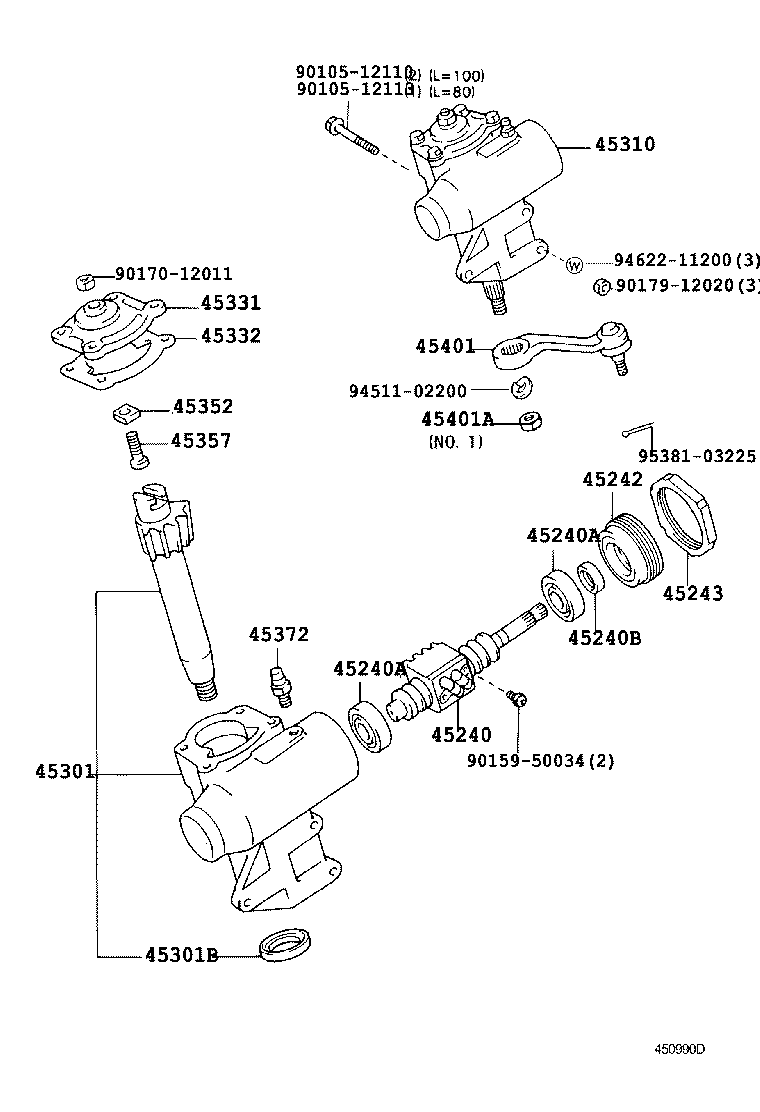

ILLUST NO. 2 OF 3(9708- )RZN169..GEN ; (9708- )LN166,171,19#,RZN168,19#..DCB,SCB,XTR..CO,GEN,S
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60040 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 90363-20024 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 90363-20024 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 90311-18010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-60020 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45242-60020 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45243-60020 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35190 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36004 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 90311-36004 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35200 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-26010 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45304-26010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45332-26010 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-37010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) T=2.00 |
1 | ||
| 45353-37010 |
LN166,171,191,RZN16#,193..GEN T=2.00 |
1 | ||
| 45354-37010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) T=2.05 |
1 | ||
| 45354-37010 |
LN166,171,191,RZN16#,193..GEN T=2.05 |
1 | ||
| 45352-37010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) T=1.95 |
1 | ||
| 45352-37010 |
LN166,171,191,RZN16#,193..GEN T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45357-36010 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45357-60030 |
RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING) |
1 | ||
| 45357-60030 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,168,193..DLX..GEN..CBU W(POWER STEERING) |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 90930-03058 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35270 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 45401-35270 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2 |
1 | ||
| 90170-22058 |
RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1 |
1 | ||
| 90170-22058 |
LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1 |
1 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2 |
1 | ||
| Common parts | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90159-50034 | ||||
| 90170-12011 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
| 95381-03225 | ||||
ILLUST NO. 1 OF 3(9708- )LN166,171,191,RZN16#,193..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39385 |
LN167..DSL;RZN169..DLX..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN166,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE;KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN,SA) |
1 | ||
| 45046-39385 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39385 |
RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 45046-39385 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2 |
1 | ||
| 90170-22058 |
RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1 |
1 | ||
| 90170-22058 |
LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1 |
1 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39185 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45406-39185 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39185 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45406-39185 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90201-14010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61401 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 90389-21004 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 90389-21004 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90304-31012 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45451-39605 |
LN166,171,191..LHD |
1 | ||
| 45451-39185 |
LN166,171,191..LHD |
1 | ||
| 45451-39605 |
LN166,171,191..LHD..GEN |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39505 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 45460-39505 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 45465-35040 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 45465-35040 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 45466-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 45466-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 45466-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 45466-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39505 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 45460-39505 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..ARL,CO,GEN,MA,SA,TH |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39455 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX |
1 | ||
| 45490-39455 |
LN166,171,191,RZN16#,193..LHD |
1 | ||
| 45490-39456 |
LN166,171,191,RZN16#,193..LHD..(CO,GEN) |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 90171-12028 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 45497-28010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35130 |
RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172 |
4 | ||
| 90105-14043 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
4 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172 |
4 | ||
| 90105-14043 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35150 |
RZN168..DLX;RZN169..CBR;RZN169..ARL,SA;KZN165,190,LN16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39046 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90171-12028 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90171-12028 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90106-12014 | ||||
| 90179-12020 | ||||
| 91612-61045 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94130-61200 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03225 | ||||
ILLUST NO. 3 OF 3(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35160 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 44107-35160 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 90364-36006 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 90364-36006 |
LN166,171,191,RZN16#,193..GEN |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-69002 |
KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7 |
1 | ||
| 90301-69002 |
LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
LN166..LHD..GEN;LN171,191,RZN16#,193..GEN ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-69002 |
KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7 |
1 | ||
| 90301-69002 |
LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
LN166..LHD..GEN;LN171,191,RZN16#,193..GEN ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-69002 |
KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7 |
1 | ||
| 90301-69002 |
LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
LN166..LHD..GEN;LN171,191,RZN16#,193..GEN ID=37.7,OD=44.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-69002 |
KZN165,LN16#,17#,19#,RZN16#,174,19# ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=37.7,OD=44.7 |
1 | ||
| 90301-69002 |
LN166,171,191,RZN16#,193..GEN ID=69.0,OD=74.0 |
1 | ||
| 96711-19010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU ID=9.8,OD=13.6 |
2 | ||
| 90301-37006 |
LN166..LHD..GEN;LN171,191,RZN16#,193..GEN ID=37.7,OD=44.7 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=36.0,OD=44.0 |
1 | ||
| 90562-35001 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=35.7,OD=38.1 |
1 | ||
| 90562-35001 |
LN166,171,191,RZN16#,193..GEN ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
LN166,171,191,RZN16#,193..GEN ID=36.0,OD=44.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=36.0,OD=44.0 |
1 | ||
| 90562-35001 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19# ID=35.7,OD=38.1 |
1 | ||
| 90562-35001 |
LN166,171,191,RZN16#,193..GEN ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
LN166,171,191,RZN16#,193..GEN ID=36.0,OD=44.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-48002 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90521-48002 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-36005 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90311-36005 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60030 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 44108-60030 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# |
1 | ||
| 90301-64002 |
LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60030 |
KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 44111-60030 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35340 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44120-35340 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-60020 |
LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 44142-60020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 44152-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# |
1 | ||
| 90501-20095 |
LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44153-30020 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 44154-30020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# |
1 | ||
| 96711-19014 |
LN145..LHD..IV3;LN166..LHD..GEN;LN145,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE |
1 | ||
| 90210-10001 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44447B - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-35020 |
RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..GEN |
1 | ||
| 44447-35020 |
RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL) |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
RZN169..GEN;LN166,171,19#,RZN168,19#..(DCB,SCB,XTR)..(GEN,SA) |
1 | ||
| 45357-36010 |
LN166,171,191,RZN16#,193..GEN |
1 | ||
| 45357-60030 |
RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING) |
1 | ||
| 45357-60030 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,168,193..DLX..GEN..CBU W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90080-11145 | ||||
| 90080-11392 | ||||
| 90119-10070 | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
ILLUST NO. 2 OF 3(9708- )KDN145,15#,16#,190,KZN165,190,LN14#,152,155,157,16#,17#,19#,RZN144,147,1
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-35180 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19#..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 04445-35180 |
KZN165,190,LN16#,17#,19#,RZN16#,174,19#..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 04445-35180 |
LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA) |
1 | ||
| 04445-35180 |
LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-35100 |
LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA) |
1 | ||
| 04455-35100 |
LN167..SCB..IV3;KZN190,RZN194..SR;LN167..DCB..DLX..ARL;LN167,RZN169..GCC,GEN,SA;KZN165,LN166,17#,19#,RZN168,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,SA) |
1 | ||
| 04455-35100 |
RZN169..CBR;LN166,171,191,RZN193..LHD |
1 | ||
| 04455-35100 |
RZN169..CBR;LN166,171,191,RZN193..LHD |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35350 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 44110-35350 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 44110-35350 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44110-35350 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35270 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 45401-35270 |
RZN169..LHD..CBR;LN166,171,191,RZN168,193..LHD..DLX..(GCC,GEN) |
1 | ||
| 45401-35270 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45401-35270 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2 |
1 | ||
| 90171-14042 |
KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2 |
1 | ||
| 90170-22058 |
RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1 |
1 | ||
| 90170-22058 |
RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1 |
1 | ||
| 90170-22058 |
LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1 |
1 | ||
| 90170-22058 |
LN145,RZN147..RHD..GEN..CBU;LN166,171,191,RZN16#,193..GEN NO.1 |
1 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2 |
1 | ||
| 90171-14042 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU NO.2 |
1 | ||
| Common parts | ||||
| 90101-12152 | ||||
| 90101-12153 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12027 | ||||
| 90179-12020 | ||||
| 94622-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
