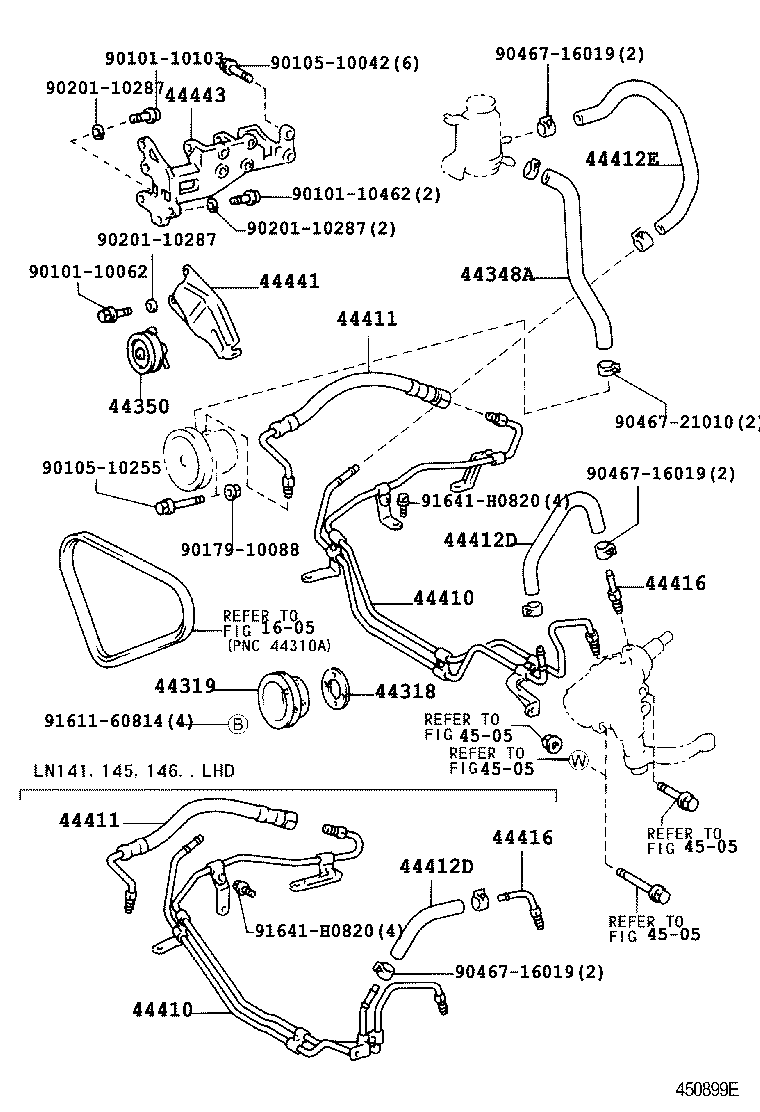

LN166L-PRMDS (1997)
Toyota Hilux
(9708- )LN141,145,146,155,166,171,191..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-35010 |
LN166,171,191..LHD..GEN |
1 | ||
| 44318-35010 |
LN145..LHD..TH;LN166,171,191..LHD..GEN |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-35030 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44319-35030 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44319-34010 |
RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35200 |
LN141,145,146,155,166,171,191..LHD..DSL |
1 | ||
| 44348-35200 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-60020 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44350-60020 |
LN141,145,146,155,166,171,191..LHD |
1 | ||
| 44350-60021 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44350-34010 |
RZN148,154,16#,193..GEN..CBU |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35510 |
LN166,171,191..LHD |
1 | ||
| 44410-35511 |
LN166,171,191..LHD |
1 | ||
| 44410-35511 |
LN166,171,191..LHD..GEN |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35510 |
LN166,171,191..LHD |
1 | ||
| 44410-35511 |
LN166,171,191..LHD |
1 | ||
| 44410-35511 |
LN166,171,191..LHD..GEN |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35530 |
LN166,171,191..LHD |
1 | ||
| 44411-35530 |
LN166,171,191..LHD..GEN |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35530 |
LN166,171,191..LHD |
1 | ||
| 44411-35530 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35100 |
LN166,171,191..LHD |
1 | ||
| 44412-35100 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35100 |
LN166,171,191..LHD |
1 | ||
| 44412-35100 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-35200 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44412-35200 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44412-35180 |
RZN148,154,16#,193..LHD..GEN..CBU |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
LN166,171,191,RZN169,193..LHD |
1 | ||
| 44416-35020 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
LN166,171,191,RZN169,193..LHD |
1 | ||
| 44416-35020 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-35040 |
LN141,145,146,155,166,171,191..LHD..DSL |
1 | ||
| 44441-35040 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35050 |
LN141,145,146,166,171,191..LHD |
1 | ||
| 44443-35051 |
LN141,145,146,155,166,171,191..LHD W(TACHOMETER) |
1 | ||
| 44443-35070 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44443-35070 |
LN145,166,171,191..LHD..GEN |
1 | ||
| Common parts | ||||
| 90101-10062 | ||||
| 90101-10103 | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90105-10255 | ||||
| 90179-10088 | ||||
| 90201-10287 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91611-60814 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4505 | ||||

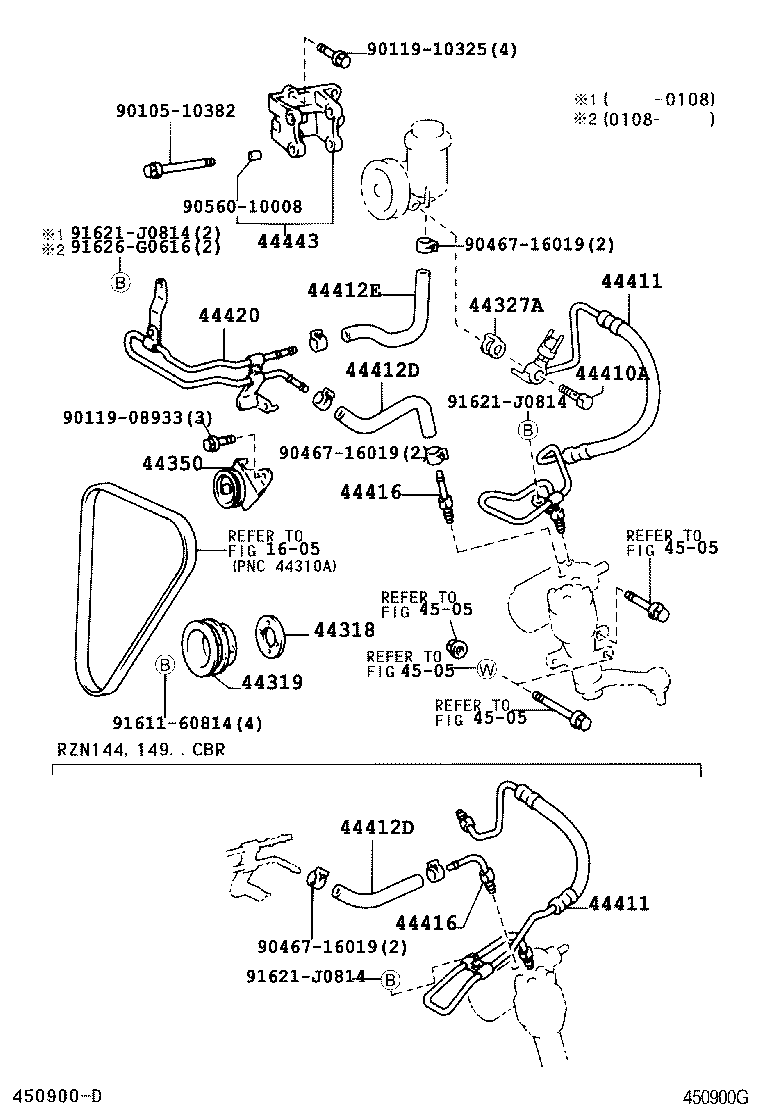

(9708- )RZN168..SCB..CBU ; (9708- )RZN144,149,169..LHD ; (9708- )RZN149,16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-35010 |
LN166,171,191..LHD..GEN |
1 | ||
| 44318-35010 |
LN145..LHD..TH;LN166,171,191..LHD..GEN |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-35030 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44319-35030 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44319-34010 |
RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30040 |
RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-60020 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44350-60020 |
LN141,145,146,155,166,171,191..LHD |
1 | ||
| 44350-60021 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44350-34010 |
RZN148,154,16#,193..GEN..CBU |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35530 |
LN166,171,191..LHD |
1 | ||
| 44411-35530 |
LN166,171,191..LHD..GEN |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35530 |
LN166,171,191..LHD |
1 | ||
| 44411-35530 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35100 |
LN166,171,191..LHD |
1 | ||
| 44412-35100 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35100 |
LN166,171,191..LHD |
1 | ||
| 44412-35100 |
LN166,171,191..LHD..GEN |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-35200 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44412-35200 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 44412-35180 |
RZN148,154,16#,193..LHD..GEN..CBU |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
LN166,171,191,RZN169,193..LHD |
1 | ||
| 44416-35020 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
LN166,171,191,RZN169,193..LHD |
1 | ||
| 44416-35020 |
LN166,171,191,RZN16#,193..LHD..GEN |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35050 |
LN141,145,146,166,171,191..LHD |
1 | ||
| 44443-35051 |
LN141,145,146,155,166,171,191..LHD W(TACHOMETER) |
1 | ||
| 44443-35070 |
LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 44443-35070 |
LN145,166,171,191..LHD..GEN |
1 | ||
| Common parts | ||||
| 90105-10382 | ||||
| 90119-08933 | ||||
| 90119-10325 | ||||
| 90467-16019 | ||||
| 90560-10008 | ||||
| 91611-60814 | ||||
| 91621-J0814 | ||||
| 91626-G0616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4505 | ||||
