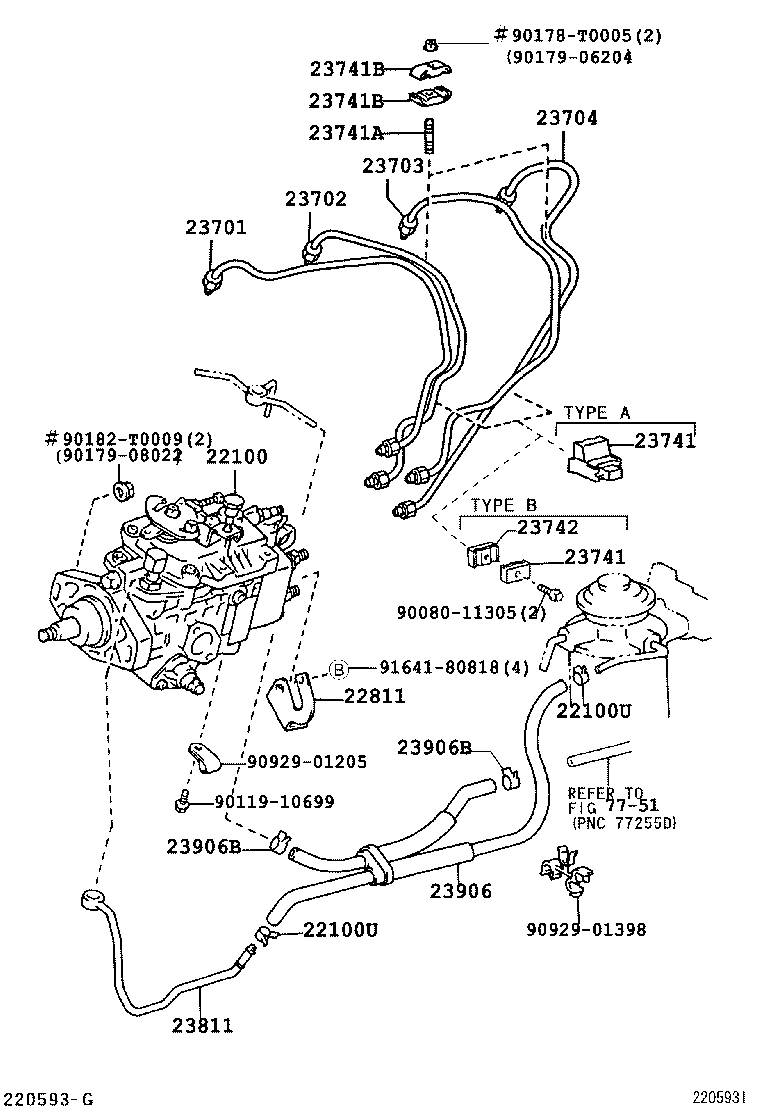

LN166L-PRMDS (1997)
Toyota Hilux
(9708- )2L,3L..LN141,145,146,155,166,171,191..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54710 |
3L..LN166..LHD..DCB..GEN W(TACHO METER PICK UP SENSOR),MARK 22100-54710 |
1 | ||
| 22100-5D140 |
3L..LN166..LHD..GEN EGYPT SPEC |
1 | ||
| 22100-54860 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) W(TACHO METER PICK UP SENSOR) |
1 | ||
| 22100-54710 |
3L..LN166..LHD..DCB..GEN W(TACHOMETER PICK UP SENSOR),MARK 22100-54710 |
1 | ||
| 22100-5B740 |
3L..LN166,171,191..DSL..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100-5B740 |
3L..LN166,171,191..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100-5D140 |
3L..LN166..LHD..GEN EGYPT SPEC |
1 | ||
| 22100-54860 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) W(TACHO METER PICK UP SENSOR) |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-13050 |
5L..LN167;5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,19#..DLX |
2 | ||
| 90467-13050 |
2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
2 | ||
| 96135-51300 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-13050 |
5L..LN167;5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,19#..DLX |
2 | ||
| 90467-13050 |
2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
2 | ||
| 96135-51300 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54041 |
2L,3L,5L..LN14#,16#,17#,191 |
1 | ||
| 22811-54042 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) |
1 | ||
| 22811-54042 |
2L..LN155..RHD;2L..LN145..LHD..IV3;2L..LN145..RHD..DCB..TH;2L,3L..LN140,141,146,150,171,191..DLX;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54140 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 23701-54140 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 23701-54140 |
2L,3L,5L..LN14#,152,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 23701-54140 |
2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;5LE..LN147,172..THDCB,THXTR;5LE..LN152,167..(SCB,THDCB,THSCB,THXTR)..CBU;2L,3L,5LE..LN140,141,145,146,166,171,19#..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54140 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 23702-54140 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 23702-54140 |
2L,3L,5L..LN14#,152,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 23702-54140 |
2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;5LE..LN147,172..THDCB,THXTR;5LE..LN152,167..(SCB,THDCB,THSCB,THXTR)..CBU;2L,3L,5LE..LN140,141,145,146,166,171,19#..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54100 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 23703-54100 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 23703-54100 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 23703-54100 |
5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,155,171,19#..DLX;2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54100 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 23704-54100 |
2L,3L,5L..LN14#,152,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 23704-54100 |
5L#..LN152..IV3;5L..LN167..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 23704-54100 |
2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;5LE..LN147,172..THDCB,THXTR;5LE..LN152,167..(SCB,THDCB,THSCB,THXTR)..CBU;2L,3L,5LE..LN140,141,145,146,166,171,19#..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-54030 |
5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167..ARL,SA;5LE..LN152,157,192..SA,TH;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 23741-54030 |
2L..LN145..SR;5LE..LN147..THDCB;2L..LN145..LHD..IV3;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,171,19#..DLX;2L,5LE..LN145,167..RHD..DCB..DLX..(SA,TH);2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-54030 |
5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167..ARL,SA;5LE..LN152,157,192..SA,TH;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 23741-54030 |
2L..LN145..SR;5LE..LN147..THDCB;2L..LN145..LHD..IV3;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,171,19#..DLX;2L,5LE..LN145,167..RHD..DCB..DLX..(SA,TH);2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06095 |
2L..LN145,155..LHD..TH;2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) |
2 | ||
| 90116-06095 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
2 | ||
| 90116-06095 |
5L..LN167,192..(DCB,SCB,XTR)..(ARL,TH);2L,3L,5L..LN14#,15#,166,17#,191..(DCB,SCB,XTR)..MTM |
2 | ||
| 90116-06095 |
2L,3L,5L..LN14#,15#,16#,17#,19#..(DCB,SCB,XTR)..MTM |
2 | ||
| 90116-06095 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 23741-56010 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
4 | ||
| 23741-56010 |
5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,155,171,19#..DLX;2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 23741-56010 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
4 | ||
| 23741-56010 |
5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,155,171,19#..DLX;2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
4 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54151 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU (J) |
1 | ||
| 23811-54151 |
2L,3L,5L#..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 23811-05022 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU (L) |
1 | ||
| 23811-54151 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 23906 - HOSE SUB-ASSY, FUEL | ||||
| 23906-54090 |
2L,3L..LN141,145,146,155,166,171,191..LHD..DSL |
1 | ||
| 23906-54090 |
2L,3L..LN145,166,171,191..LHD..GEN |
1 | ||
| 23906B - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
2L,3L..LN145,166,171,191..LHD..GEN |
2 | ||
| 96135-41100 |
2L,3L..LN141,145,146,155,166,171,191..LHD..DSL |
2 | ||
| 23906B - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-51100 |
2L,3L..LN145,166,171,191..LHD..GEN |
2 | ||
| 96135-41100 |
2L,3L..LN141,145,146,155,166,171,191..LHD..DSL |
2 | ||
| Common parts | ||||
| 90080-11305 | ||||
| 90119-10699 | ||||
| 90178-T0005 | ||||
| 90179-06204 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90929-01205 | ||||
| 90929-01398 | ||||
| 91641-80818 | ||||
| Linked diagrams | ||||
| 7751 | ||||
