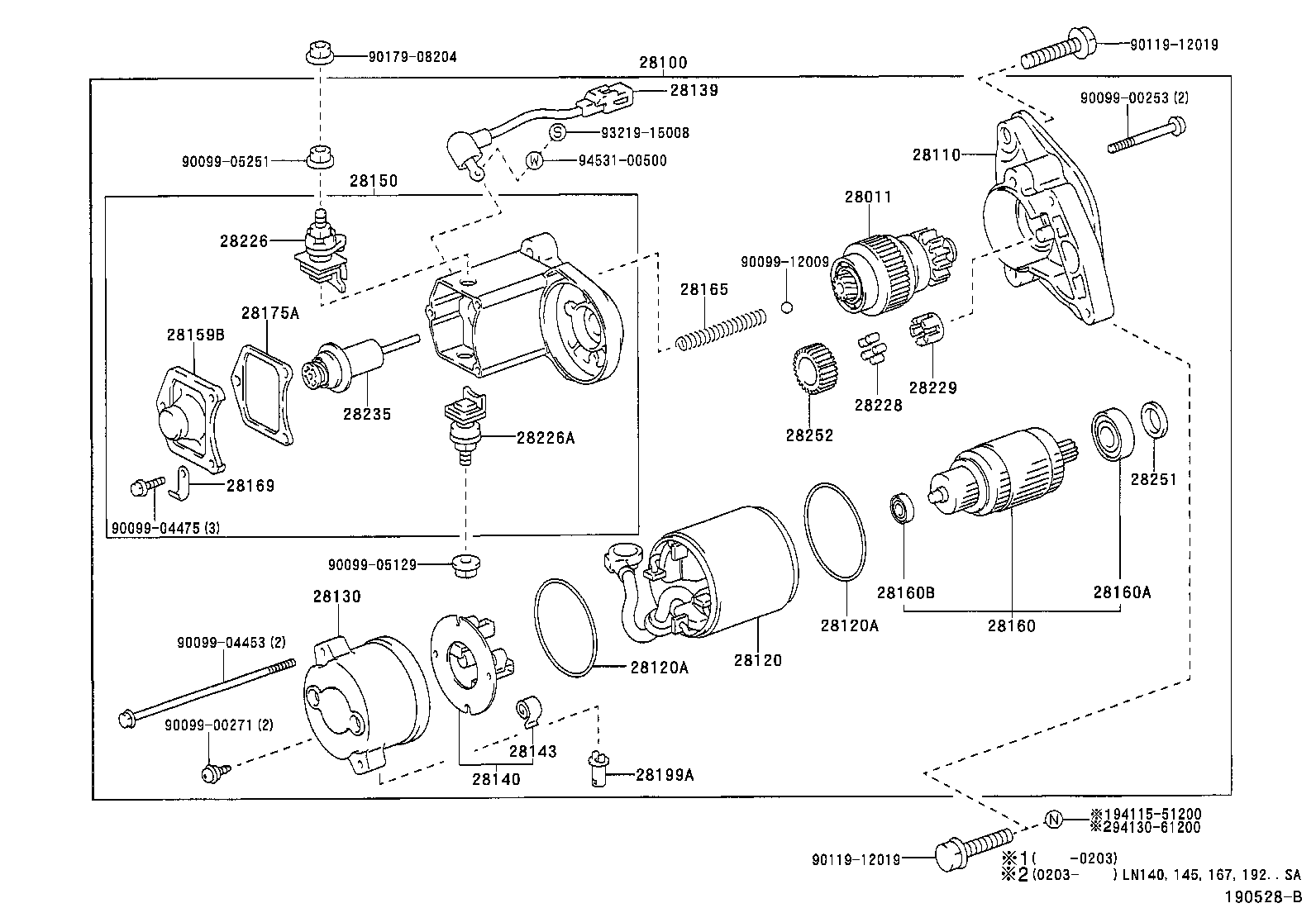

LN166L-PRMDS (1997)
Toyota Hilux
(9708- )5L..LN167,192..TH ; (9708- )2L,3L,5L..LN140,141,145,146,15#,166,171,1
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28011-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28011-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28100-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28100-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28110-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28120-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28120-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28120-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN140,141,145,146,166,171,191,RZN144,149,154,169,174,194..ARL,GCC,GEN,SA |
2 | ||
| 90099-14064 |
2RZFE..RZN168..DCB;1RZ,2RZFE..RZN147,148..LHD..GEN..CBU;2L,3L,3RZ#..LN140,141,145,146,166,171,191,RZN144,149,154,169,174,194..ARL,GCC,GEN,SA |
2 | ||
| 90099-14064 |
2L..LN140;1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN141,145,146,166,171,191,RZN144,149,154,169,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
2 | ||
| 90099-14064 |
3RZFE..RZN149,169;1RZ..RZN147..LHD..GEN;5L,3RZFE..LN167,192,RZN154,174..THXTR,XTR;2L,3L,5L,3RZ#..LN140,141,145,146,15#,166,171,191,RZN144,149,154,169,194..GCC,GEN,SA,TH |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN140,141,145,146,166,171,191,RZN144,149,154,169,174,194..ARL,GCC,GEN,SA |
2 | ||
| 90099-14064 |
2RZFE..RZN168..DCB;1RZ,2RZFE..RZN147,148..LHD..GEN..CBU;2L,3L,3RZ#..LN140,141,145,146,166,171,191,RZN144,149,154,169,174,194..ARL,GCC,GEN,SA |
2 | ||
| 90099-14064 |
2L..LN140;1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN141,145,146,166,171,191,RZN144,149,154,169,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
2 | ||
| 90099-14064 |
3RZFE..RZN149,169;1RZ..RZN147..LHD..GEN;5L,3RZFE..LN167,192,RZN154,174..THXTR,XTR;2L,3L,5L,3RZ#..LN140,141,145,146,15#,166,171,191,RZN144,149,154,169,194..GCC,GEN,SA,TH |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28130-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA |
1 | ||
| 28139-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28140-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28140-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28140-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
4 | ||
| 28143-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
4 | ||
| 28143-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28150-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28150-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28159-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28159-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28160-54380 |
2L,3L..LN140,141,145,146,166,171,191..DSL..(GCC,GEN,SA) 12V 2.0KW |
1 | ||
| 28160-54380 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU 12V 2.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10208 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 90099-10208 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 90099-10208 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10197 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 90099-10197 |
3RZF..RZN169..RHD..DCB;3RZF..RZN169..LHD..SCB..GEN;5L,3RZF..LN167,192,RZN149..GEN,TH;2L,3L,5L,3RZF..LN140,141,145,146,15#,166,171,191,RZN154..GCC,GEN,SA,TH 12V 1.4KW,2.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2L,3L..LN141,145,146,166,171,191..GCC,GEN 12V 2.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28169-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28169-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28175-54380 |
2L..LN145..DCB..IV3;2L..LN145..LHD..IV3;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU 12V 2.0KW |
1 | ||
| 28175-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2L..LN140;1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN141,145,146,166,171,191,RZN144,149,154,169,174,194..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 28199-74110 |
3RZFE..RZN149,169;1RZ..RZN147..LHD..GEN;5L,3RZFE..LN167,192,RZN154,174..THXTR,XTR;2L,3L,5L,3RZ#..LN140,141,145,146,15#,166,171,191,RZN144,149,154,169,194..GCC,GEN,SA,TH |
1 | ||
| 28199-74110 |
1RZ..RZN147..LHD..GEN;2L,3L,3RZ#..LN140,141,145,146,166,171,191,RZN144,149,154,169,174,194..ARL,GCC,GEN,SA |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54340 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28226-54340 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28226-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN141,145,146,166,171,191 12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2L,3L,5L..LN14#,15#,16#,17#,19# 12V 2.0KW,2.2KW |
1 | ||
| 28226-72010 |
2L,3L,5L#..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA 12V 2.0KW,2.2KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L,5L#..LN145,152,167..ARL,GEN,SA;1KZTE,2L,3L,5LE..KZN165,190,LN140,141,146,147,166,17#;3L,5L#,1RZ#,2RZFE,3RZ#,2Y..LN19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
5 | ||
| 28228-26040 |
1KZTE,2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA |
5 | ||
| 28228-26040 |
2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2L,3L..LN141,145,146,166,171,191..GCC,GEN 12V 2.0KW |
1 | ||
| 28229-74070 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-54380 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| 28235-54380 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28235-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28254-54380 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA |
1 | ||
| 28254-54380 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64130 |
2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28254-64130 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA 12V 2.0KW |
1 | ||
| 28254-64130 |
3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH 12V 2.0KW |
1 | ||
| Common parts | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08204 | ||||
| 93219-15008 | ||||
| 94115-51200 | ||||
| 94130-61200 | ||||
| 94531-00500 | ||||
