LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;

Click highlighted areas on diagram

diagram 25706 25760 25860 25860 25860 2606 4301 88031R 88031R 88892S 9017906204 9041304008 9041304008 9044508331 9044704027 9044704056 9044704056 9046400369 9092901366 9092901386 9092901386 9099992002 9099992002 9099992002 9099992002 9099992002 91611B0616 9162140812 9162261014 9541340033 9541340033 9541349933 9541349936
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-54040

2L,3L..LN141,145,146,150,155,166,171,191..GCC,GEN,TH

 1
25706-54041

2L..LN145..LHD..IV3;2L,5LE..LN150,192..SR;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,172..(SCB,THXTR,XTR)..(CBU,IV1);2L,5LE..LN145,167..(DCB,THDCB)..DLX..(ARL,GEN);2L,3L,5LE..LN140,141,146,152,155,157,166,171,191..(DEFI,DSL)..(GCC,GEN,SA,TH)

 1
25706-54041

2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-54380

2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54150

2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
25860-54150

2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU;2L,3L..LN140,141,146,150,155,171,191..DLX

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54150

2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
25860-54150

2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU;2L,3L..LN140,141,146,150,155,171,191..DLX

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54150

2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
25860-54150

2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU;2L,3L..LN140,141,146,150,155,171,191..DLX

 1
88031R - ACTUATOR SET, IDLE-UP
88031-35110

LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
88031-35110

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031-35111

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031R - ACTUATOR SET, IDLE-UP
88031-35110

LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
88031-35110

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031-35111

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
Common parts
90179-06204
90413-04008
90445-08331
90447-04027
90447-04056
90464-00369
90929-01366
90929-01386
90999-92002
91611-B0616
91621-40812
91622-61014
95413-40033
95413-49933
95413-49936
Linked diagrams
2606
4301

(0108- )2L..LN145..LHD..IV3 ; (0108- )2L,3L..LN141,145,146,166,171,191..GCC,G

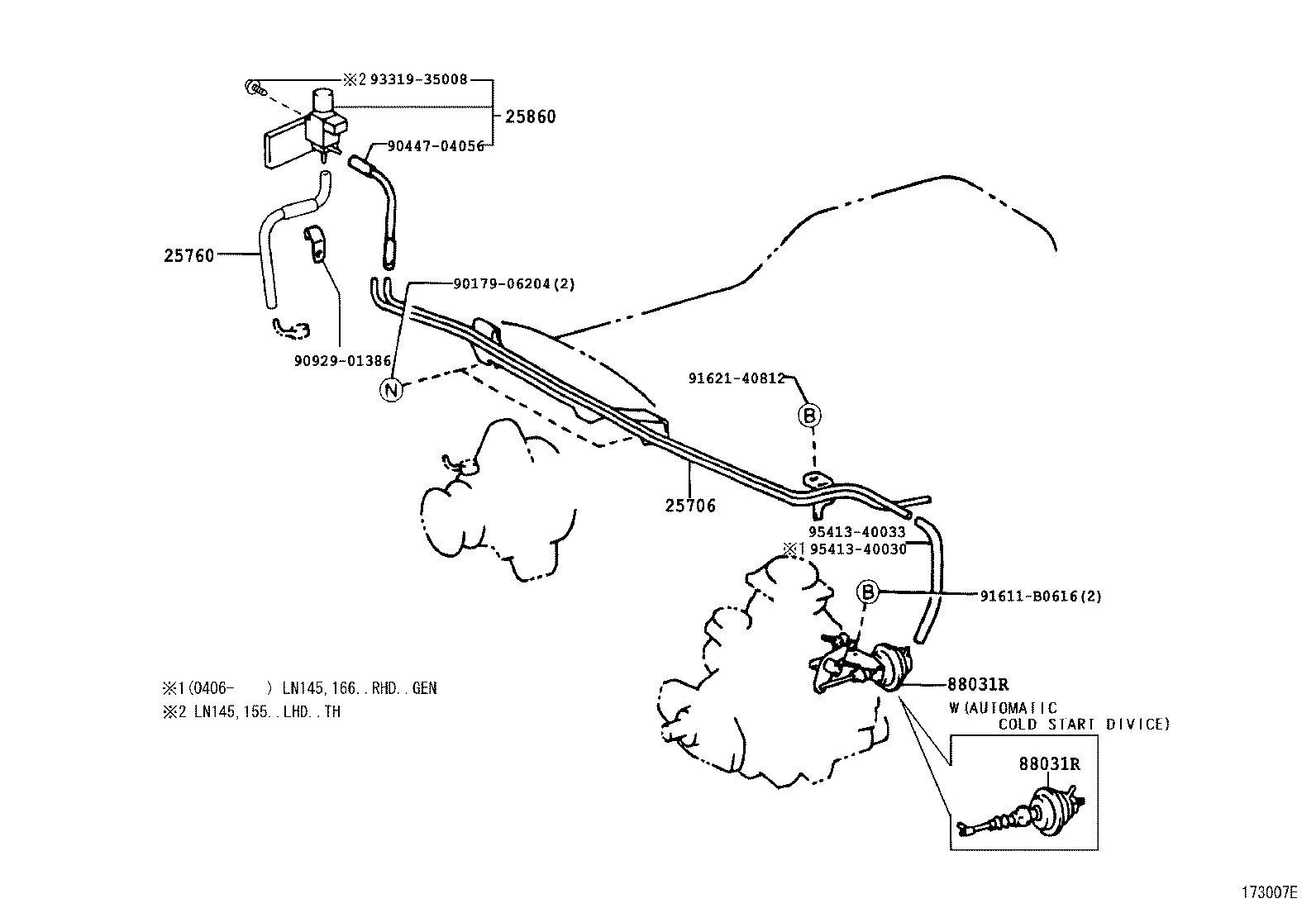

Click highlighted areas on diagram

diagram 25706 25760 25860 88031R 88031R 9017906204 9044704056 9092901386 91611B0616 9162140812 9331935008 9541340030 9541340033
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-54040

2L,3L..LN141,145,146,150,155,166,171,191..GCC,GEN,TH

 1
25706-54041

2L..LN145..LHD..IV3;2L,5LE..LN150,192..SR;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,172..(SCB,THXTR,XTR)..(CBU,IV1);2L,5LE..LN145,167..(DCB,THDCB)..DLX..(ARL,GEN);2L,3L,5LE..LN140,141,146,152,155,157,166,171,191..(DEFI,DSL)..(GCC,GEN,SA,TH)

 1
25706-54041

2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..GEN..CBU

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-54380

2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54150

2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
25860-54150

2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU;2L,3L..LN140,141,146,150,155,171,191..DLX

 1
88031R - ACTUATOR SET, IDLE-UP
88031-35110

LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
88031-35110

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031-35111

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031R - ACTUATOR SET, IDLE-UP
88031-35110

LN145..DCB..IV3;LN141,145,146,166,171,191..LHD..(GCC,GEN)

 1
88031-35110

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
88031-35111

LN145..LHD..IV3;LN140,141,145,146,166,171,191..(GCC,GEN,SA)..CBU

 1
Common parts
90179-06204
90447-04056
90929-01386
91611-B0616
91621-40812
93319-35008
95413-40030
95413-40033
