LN166L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

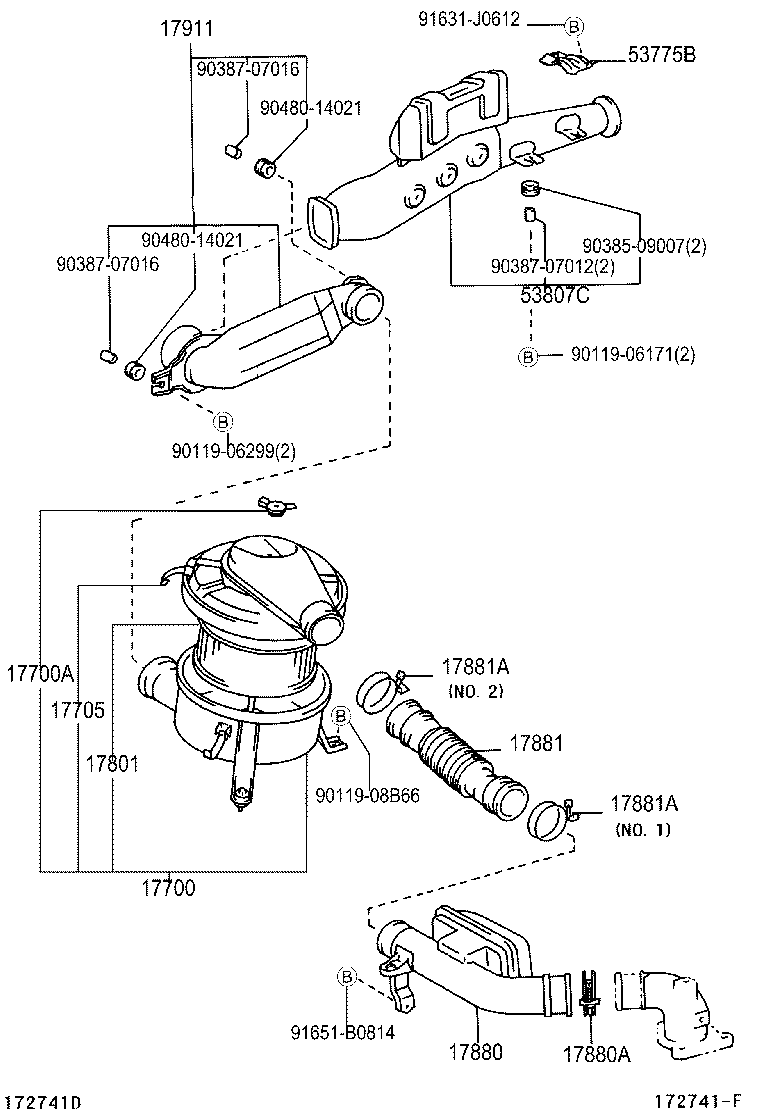

(0004- )2L,3L..LN145,166,171,191..LHD..GEN ;(0007- )3L..LN141,146,166..GCC

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-5B190	2L,3L..LN145,166,171,191..LHD..GEN	04/2000 - 07/2000	1
17700-5B190	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/2000 - 08/2001	1
17700-5B070	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 04/2000	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN	04/2000 - 07/2000	1
90175-08008	5L#..LN152..IV3;5L..LN167,192..ARL,SA;5LE..LN167..DCB..DLX..ARL;5LE..LN167,192..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN141,145,146,147,166,17#,191..DLX..(ARL,GCC,GEN)	07/2000 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54450	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/1999 - 04/2000	1
17705-54390	2L,3L..LN141,145,146,155,166,171,191..LHD	08/1997 - 07/1999	1
17705-54480	2L,3L..LN145,166,171,191..LHD..GEN	04/2000 - 07/2000	1
17705-54480	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/2000 - 08/2001	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54180	5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN	04/2000 - 07/2000	1
17801-54170	5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH	09/1999 - 04/2000	1
17801-54170	2L,3L,5L..LN14#,15#,16#,17#,19#	08/1997 - 09/1999	1
17801-54180	5L..LN167,192..ARL,SA;2L,3L,5L..LN141,145,146,147,152,166,17#,191..DSL..(ARL,GCC,GEN)	07/2000 - 12/2999	1
17880 - HOSE ASSY, AIR CLEANER
17880-54250	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
17880-54250	2L,3L..LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
17880A - CLAMP, HOSE
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-54650	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
17881-54650	2L,3L..LN141,145,146,155,166,171,191..LHD	08/2001 - 12/2001	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.2	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.1	08/1997 - 09/2001	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.2	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.1	08/1997 - 09/2001	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35021	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	05/1998 - 09/2001	1
52810-35020	2L,3L..LN141,145,146,166,171,191..LHD	08/1997 - 05/1998	1
52810-35021	2L,3L..LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-35010	KDN145,15#,16#,190..CBU	10/2001 - 04/2003	1
53775-35010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53775-35010	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 12/2999	1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35060	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
53807-35060	LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
53807-35050	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
90119-06171
90119-06299
90119-08B66
90385-09007
90387-07012
90387-07016
90480-14021
91631-J0612
91651-B0814

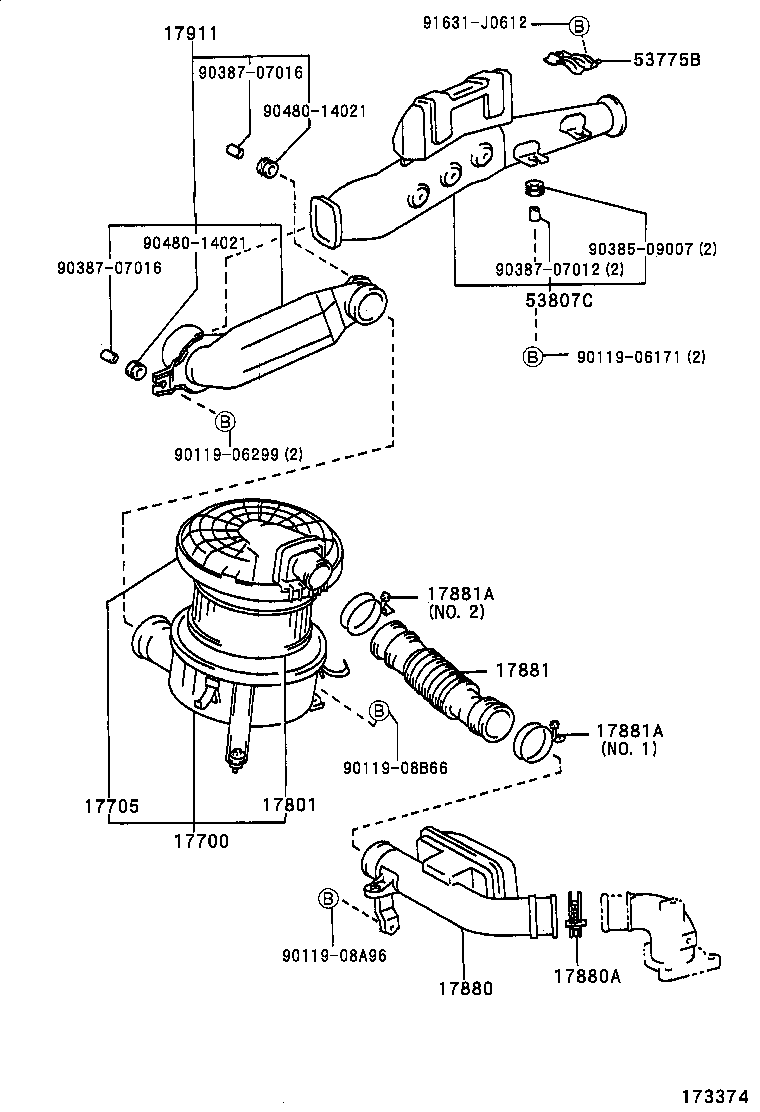

(9708-0004)2L,3L..LN141,145,146,166,171,191..LHD..GCC,GEN ; (0004-0007)3L..LN141,14

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-5B190	2L,3L..LN145,166,171,191..LHD..GEN	04/2000 - 07/2000	1
17700-5B190	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/2000 - 08/2001	1
17700-5B070	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/1997 - 04/2000	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54450	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/1999 - 04/2000	1
17705-54390	2L,3L..LN141,145,146,155,166,171,191..LHD	08/1997 - 07/1999	1
17705-54480	2L,3L..LN145,166,171,191..LHD..GEN	04/2000 - 07/2000	1
17705-54480	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	07/2000 - 08/2001	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54180	5L..LN167,192..ARL,SA;2L,3L,5L..LN145,147,152,166,17#,191..ARL,GEN	04/2000 - 07/2000	1
17801-54170	5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH	09/1999 - 04/2000	1
17801-54170	2L,3L,5L..LN14#,15#,16#,17#,19#	08/1997 - 09/1999	1
17801-54180	5L..LN167,192..ARL,SA;2L,3L,5L..LN141,145,146,147,152,166,17#,191..DSL..(ARL,GCC,GEN)	07/2000 - 12/2999	1
17880 - HOSE ASSY, AIR CLEANER
17880-54250	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
17880-54250	2L,3L..LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
17880A - CLAMP, HOSE
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN)	08/2001 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-54650	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
17881-54650	2L,3L..LN141,145,146,155,166,171,191..LHD	08/2001 - 12/2001	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.2	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.1	08/1997 - 09/2001	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.2	08/1997 - 09/2001	1
96111-10730	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL NO.1	08/1997 - 09/2001	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35021	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	05/1998 - 09/2001	1
52810-35020	2L,3L..LN141,145,146,166,171,191..LHD	08/1997 - 05/1998	1
52810-35021	2L,3L..LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35021	2L,3L..LN141,145,146,155,166,171,191..LHD..DSL	05/1998 - 09/2001	1
52810-35020	2L,3L..LN141,145,146,166,171,191..LHD	08/1997 - 05/1998	1
52810-35021	2L,3L..LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-35010	KDN145,15#,16#,190..CBU	10/2001 - 04/2003	1
53775-35010	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
53775-35010	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 12/2999	1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35060	LN141,145,146,155,166,171,191..LHD..DSL	08/1997 - 09/2001	1
53807-35060	LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
53807-35050	RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
Common parts
90119-06171
90119-06299
90119-08A96
90119-08B66
90385-09007
90387-07012
90387-07016
90480-14021
91631-J0612

LN166L-PRMDS (1997)

(0004- )2L,3L..LN145,166,171,191..LHD..GEN ;(0007- )3L..LN141,146,166..GCC

(9708-0004)2L,3L..LN141,145,146,166,171,191..LHD..GCC,GEN ; (0004-0007)3L..LN141,14
