LN166L-PRMDS (1997)
Toyota Hilux

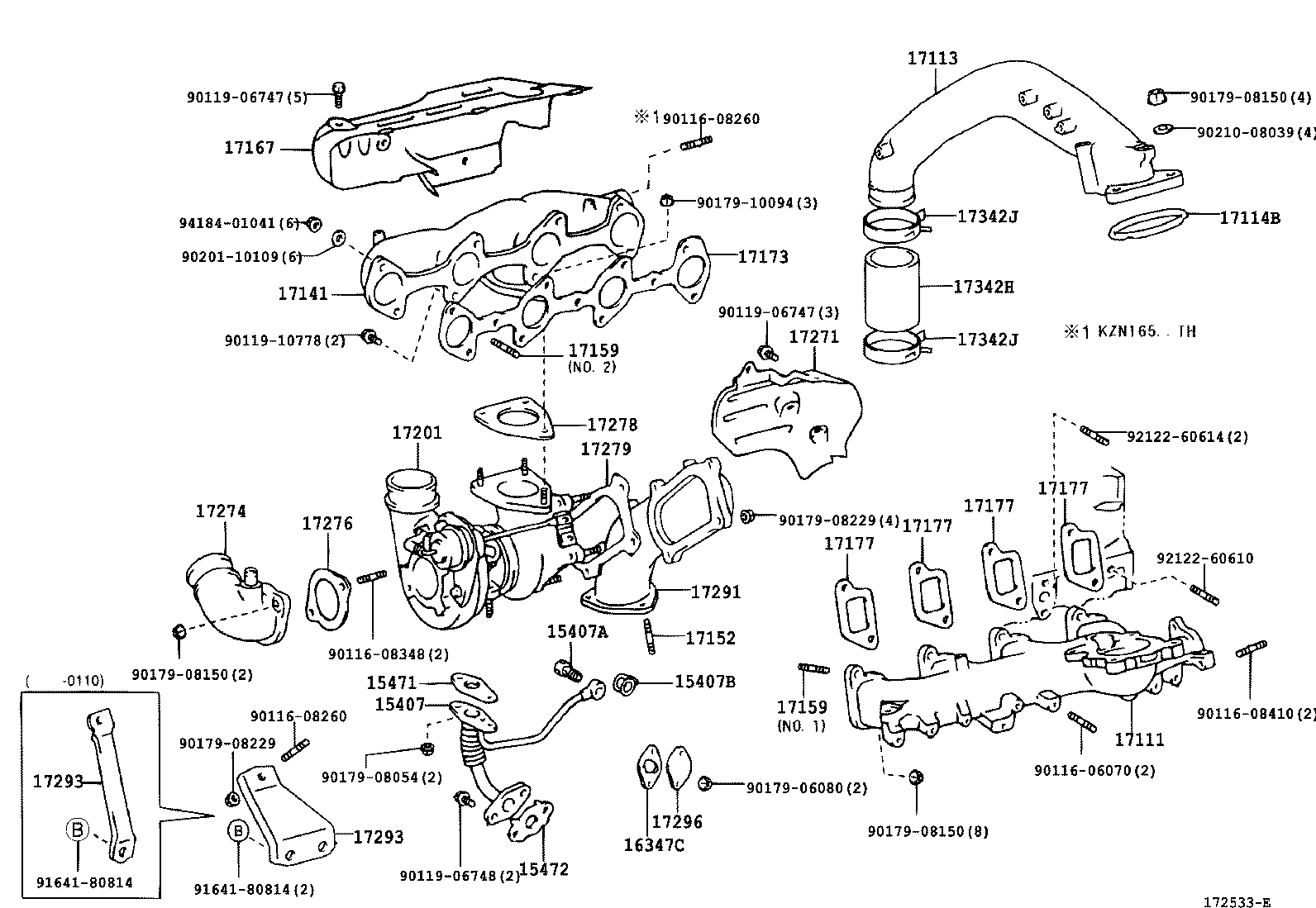

ILLUST NO. 1 OF 2(0007- )1KZTE..SA ; (0008- )1KZTE..KZN165..DCB,SCB,THDCB,XTR..ARL,TH ; (0109-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54101 |
2L,3L,5L..LN14#,15#,16#,17#,19#..(DCB,SCB,XTR)..MTM |
1 | ||
| 17101-54101 |
2L,3L,5L..LN14#,15#,16#,17#,19#..MTM |
1 | ||
| 17101-54101 |
5L..LN167,192..(DCB,SCB,XTR)..(ARL,TH);2L,3L,5L..LN14#,15#,166,17#,191..(DCB,SCB,XTR)..MTM |
1 | ||
| 17111-54112 |
5L..LN152,157,167,192..(DCB,SCB,XTR)..MTM..(ARL,TH);2L,3L,5L..LN141,145,146,147,166,17#,191..(DCB,SCB,XTR)..DSL..(ARL,GCC,GEN) |
1 | ||
| 17111-54112 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN)..CBU |
1 | ||
| 17111-54113 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54030 |
5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;5LE..LN147,157,172..DLX;5L..LN167..(DCB,SCB)..ARL;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L..LN140,141,146,147,152,155,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 17116-54021 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17116-54030 |
5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,155,171,19#..DLX;2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54111 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17141-54111 |
5L..LN167;5LE..LN152..IV3;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 17141-54111 |
2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;2L..LN145,155..LHD..TH;5LE..LN167..(SCB,THSCB)..CBU;2L,3L,5LE..LN140,141,145,146,166,171,19#..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
3 | ||
| 90116-10088 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54110 |
2L..LN145..DCB..TH;2L,3L..LN145,166..DSL..(GCC,GEN);2L,3L..LN141,146,155,171,191..LHD |
1 | ||
| 17167-54110 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17167-54110 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,TH) |
1 | ||
| 17167-54110 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 17167-54110 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54030 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 17173-54030 |
2L..LN145..DCB..TH;2L,3L..LN145,166..DSL..(GCC,GEN);2L,3L..LN141,146,155,171,191..LHD |
1 | ||
| 17173-54030 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,TH) |
1 | ||
| 17173-54030 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54021 |
5LE..LN152,167,192..DLX;5L..LN152,157,167,192..MTM;2L,3L,5L#..LN14#,150,155,166,17#,191..DEFI,DSL |
1 | ||
| 17177-54021 |
2L..LN145..GEN..CBU;2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;3L,5LE..LN141,146,166,171,19#..GCC,GEN,MA,SA |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54021 |
5LE..LN152,167,192..DLX;5L..LN152,157,167,192..MTM;2L,3L,5L#..LN14#,150,155,166,17#,191..DEFI,DSL |
1 | ||
| 17177-54021 |
2L..LN145..GEN..CBU;2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;3L,5LE..LN141,146,166,171,19#..GCC,GEN,MA,SA |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54021 |
5LE..LN152,167,192..DLX;5L..LN152,157,167,192..MTM;2L,3L,5L#..LN14#,150,155,166,17#,191..DEFI,DSL |
1 | ||
| 17177-54021 |
2L..LN145..GEN..CBU;2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;3L,5LE..LN141,146,166,171,19#..GCC,GEN,MA,SA |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54021 |
5LE..LN152,167,192..DLX;5L..LN152,157,167,192..MTM;2L,3L,5L#..LN14#,150,155,166,17#,191..DEFI,DSL |
1 | ||
| 17177-54021 |
2L..LN145..GEN..CBU;2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;3L,5LE..LN141,146,166,171,19#..GCC,GEN,MA,SA |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90116-08260 | ||||
| 90116-08348 | ||||
| 90116-08410 | ||||
| 90119-06747 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90179-06080 | ||||
| 90179-08054 | ||||
| 90179-08150 | ||||
| 90179-08229 | ||||
| 90179-10094 | ||||
| 90201-10109 | ||||
| 90210-08039 | ||||
| 91641-80814 | ||||
| 92122-60610 | ||||
| 92122-60614 | ||||
| 94184-01041 | ||||
(9708- )2L,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54101 |
2L,3L,5L..LN14#,15#,16#,17#,19#..(DCB,SCB,XTR)..MTM |
1 | ||
| 17101-54101 |
2L,3L,5L..LN14#,15#,16#,17#,19#..MTM |
1 | ||
| 17101-54101 |
5L..LN167,192..(DCB,SCB,XTR)..(ARL,TH);2L,3L,5L..LN14#,15#,166,17#,191..(DCB,SCB,XTR)..MTM |
1 | ||
| 17111-54112 |
5L..LN152,157,167,192..(DCB,SCB,XTR)..MTM..(ARL,TH);2L,3L,5L..LN141,145,146,147,166,17#,191..(DCB,SCB,XTR)..DSL..(ARL,GCC,GEN) |
1 | ||
| 17111-54112 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN)..CBU |
1 | ||
| 17111-54113 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 90116-08220 |
2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..(SCB,THSCB)..ARL..CBU;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
2 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54050 |
2L..LN150..SR;2L..LN145..SCB;2L..LN145..DCB..GEN;2L..LN145..LHD..DLX..TH;2L,3L..LN140,141,146,155,166,171,191..DSL..(GCC,GEN,SA,TH) |
1 | ||
| 17114-54050 |
2L..LN145..DCB..TH;2L..LN145..LHD..IV3;2L,3L..LN145,166..(GCC,GEN,MA,SA)..CBU;2L,3L..LN140,141,146,150,155,171,191..DLX |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54030 |
5LE..LN152..IV3;2L..LN145..LHD..DLX..TH;5LE..LN147,157,172..DLX;5L..LN167..(DCB,SCB)..ARL;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L..LN140,141,146,147,152,155,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 17116-54021 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17116-54030 |
5LE..LN147..THDCB;2L..LN145..DCB..TH;2L..LN145..LHD..IV3;5LE..LN167..DCB..SA;5LE..LN167..DCB..SR..ARL;5LE..LN147,167..THSCB..IV3;3L,5LE..LN166,172..DCB,SCB,THXTR;5LE..LN167..(SCB,THDCB,THSCB)..CBU;2L,3L,5LE..LN140,141,146,150,155,171,19#..DLX;2L,5LE..LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54111 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17141-54111 |
5L..LN167;5LE..LN152..IV3;5LE..LN167..DCB..DLX..ARL;2L..LN145,155..LHD..DLX..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 17141-54111 |
2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;2L..LN145,155..LHD..TH;5LE..LN167..(SCB,THSCB)..CBU;2L,3L,5LE..LN140,141,145,146,166,171,19#..(GCC,GEN,MA,SA)..CBU |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10141 |
2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..(SCB,THSCB)..ARL..CBU;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
2 | ||
| 90116-10141 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) | ||||
| 90116-08293 |
2L..LN150..SR;2L..LN145..SCB;2L..LN145..DCB..GEN;2L..LN145..LHD..DLX..TH;2L,3L..LN140,141,146,155,166,171,191..DSL..(GCC,GEN,SA,TH) |
3 | ||
| 90116-08293 |
2L..LN145..LHD..IV3;2L..LN145,155..LHD..TH;2L,3L..LN140,141,145,146,166,171,191..(GCC,GEN,MA,SA)..CBU |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
3 | ||
| 90116-10088 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54110 |
2L..LN145..DCB..TH;2L,3L..LN145,166..DSL..(GCC,GEN);2L,3L..LN141,146,155,171,191..LHD |
1 | ||
| 17167-54110 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17167-54110 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,TH) |
1 | ||
| 17167-54110 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 17167-54110 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54030 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 17173-54030 |
2L..LN145..DCB..TH;2L,3L..LN145,166..DSL..(GCC,GEN);2L,3L..LN141,146,155,171,191..LHD |
1 | ||
| 17173-54030 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,TH) |
1 | ||
| 17173-54030 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54021 |
5LE..LN152,167,192..DLX;5L..LN152,157,167,192..MTM;2L,3L,5L#..LN14#,150,155,166,17#,191..DEFI,DSL |
1 | ||
| 17177-54021 |
2L..LN145..GEN..CBU;2L..LN145..LHD..IV3;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;3L,5LE..LN141,146,166,171,19#..GCC,GEN,MA,SA |
1 | ||
| Common parts | ||||
| 90080-11320 | ||||
| 90119-08A96 | ||||
| 90119-10367 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 90339-05012 | ||||
| 91611-60822 | ||||
| Linked diagrams | ||||
| 2202 | ||||
