LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

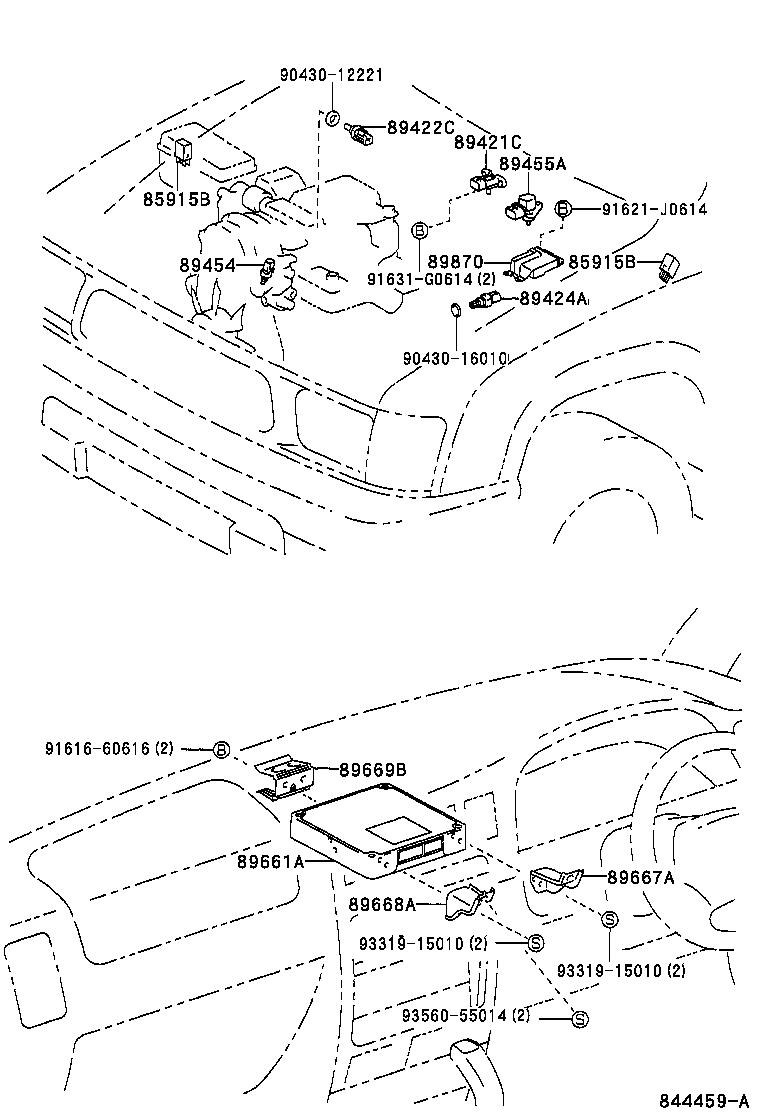

(0110- )KDN145,15#,16#,190

Click highlighted areas on diagram

diagram 85915B 85915B 89421C 89422C 89424A 89454 89455A 89661A 89667A 89668A 89669B 89870 9043012221 9043016010 9161660616 91621J0614 91631G0614 9331915010 9331915010 9356055014
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02012

KDN145,15#,165,190

 2
90987-02012

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02012

KDN145,15#,165,190

 2
90987-02012

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-12102

LN167..IV3;LN147,152,172;LN167..(DCB,THDCB)..DLX..ARL

 1
89421-20210

KDN145,15#,16#,190..TH..CBU

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

KDN145,15#,16#,190..TH..CBU

 1
89422-35010

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-12010

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89661A - COMPUTER, ENGINE CONTROL
89666-35530

KDN145,15#

 1
89666-35300

LN167..IV3;LN147,152,172;LN167..(DCB,THDCB)..DLX..ARL

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-35110

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89667-35110

KDN145,15#,16#,190..TH..CBU

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35160

KDN145,15#,16#,190..TH..CBU

 1
89668-35160

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35070

KDN145,15#,16#,190..TH..CBU

 1
89669-35070

LN167..IV3;LN147,152,172;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL

 1
89870 - DRIVER ASSY, SPILL VALVE CONTROL
89870-35040

KDN145,15#,16#,190..TH..CBU

 1
Common parts
90430-12221
90430-16010
91616-60616
91621-J0614
91631-G0614
93319-15010
93560-55014

ILLUST NO. 2 OF 2(1107- )KUN1#,2#,3#,LAN15,25,35

Click highlighted areas on diagram

diagram 89661A 89661A 89667A 89667A 89668A 89668A 89878 89878 90105T0066 90105T0066 90105T0066 90105T0066 90159T0001 90159T0001 90159T0001 90159T0001 90178T0018 90178T0018 9017906110 9017906110
Part # Description Qty Price
Common parts
90105-T0066
90159-T0001
90178-T0018
90179-06110

ILLUST NO. 1 OF 2(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

diagram 221931C170 8401 85911K 89421C 89421C 89421C 89422C 89424D 89424D 89454 89455A 89455A 89871A 89871A 89871A 89871A 898790K010 89879B 89879B 89879B 89879B 90105T0059 90105T0066 90105T0066 90105T0066 90105T0066 90105T0066 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 90119T0064 90119T0064 9043012221 9043016010 9155480612 91631G0614 9167180616 9331914008 9331914008 9331914008 9331914008
Part # Description Qty Price
Common parts
22193-1C170
89879-0K010
90105-T0059
90105-T0066
90119-06915
90119-T0064
90430-12221
90430-16010
91554-80612
91631-G0614
91671-80616
93319-14008
Linked diagrams
8401
