LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(9708- )LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

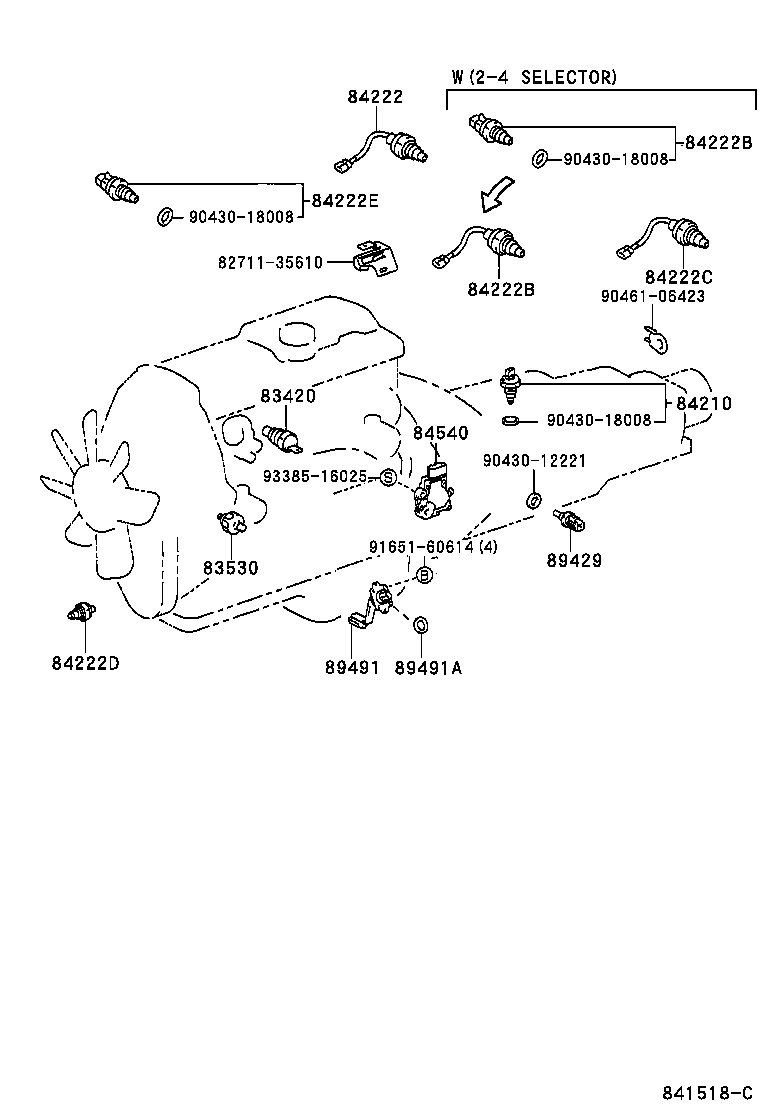

ENGINE & TRANSMISSION

diagram 8271135610 83420 83530 84210 84222 84222B 84222B 84222C 84222D 84222E 84540 89429 89491 89491A 9043012221 9043018008 9043018008 9043018008 9046106423 9165160614 9338516025
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

KZN165,190,LN14#,15#,16#,17#,19#,RZN142,147,YN140

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM

 1
84210-04010

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172..THDCB,THSCB,THXTR;KDN145,150,155,LN140,145,150,155,167,192,RZN142,147..SA,TH

 1
89429 - SENSOR, OIL TEMPERATURE
89422-20010

LN145,147,15#,167,172,192..ARL,TH

 1
Common parts
82711-35610
90430-12221
90430-18008
90461-06423
91651-60614
93385-16025

ILLUST NO. 5 OF 6(9708- )

Click highlighted areas on diagram

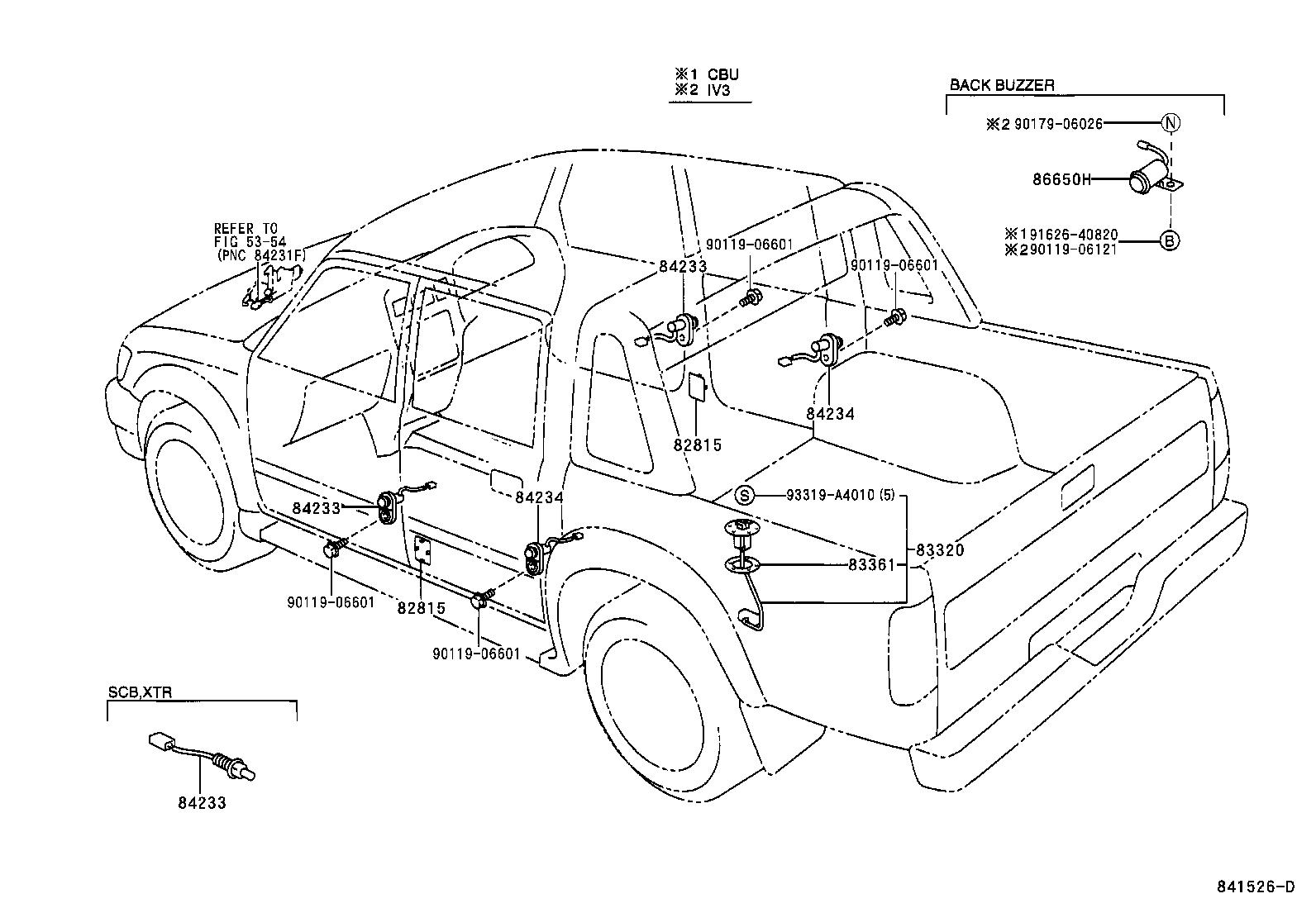

DOOR & FLOOR SWITCHES

diagram 5354 82815 82815 83320 83361 84233 84233 84233 84234 84234 86650H 9011906121 9011906601 9011906601 9011906601 9011906601 9017906026 9162640820 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80358

LN147,152..(SCB,XTR)..DEFI..ARL;LN145,RZN147,148,149,154..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)

FUEL TANK=69L

 1
83320-80358

LN152..DEFI..CBU;LN147,152..(THSCB,THXTR)..DEFI;LN145,150,155,157..(SCB,XTR)..TH;LN147,152..(SCB,THSCB,THXTR,XTR)..DSL

FUEL TANK=69L

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-04020

LN152..THXTR

MALAYSIA SPEC

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-04020

LN152..THXTR

MALAYSIA SPEC

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-04020

LN152..THXTR

MALAYSIA SPEC

 2
Common parts
90119-06121
90119-06601
90179-06026
91626-40820
93319-A4010
Linked diagrams
5354

ILLUST NO. 6 OF 6(9708- )RHD

Click highlighted areas on diagram

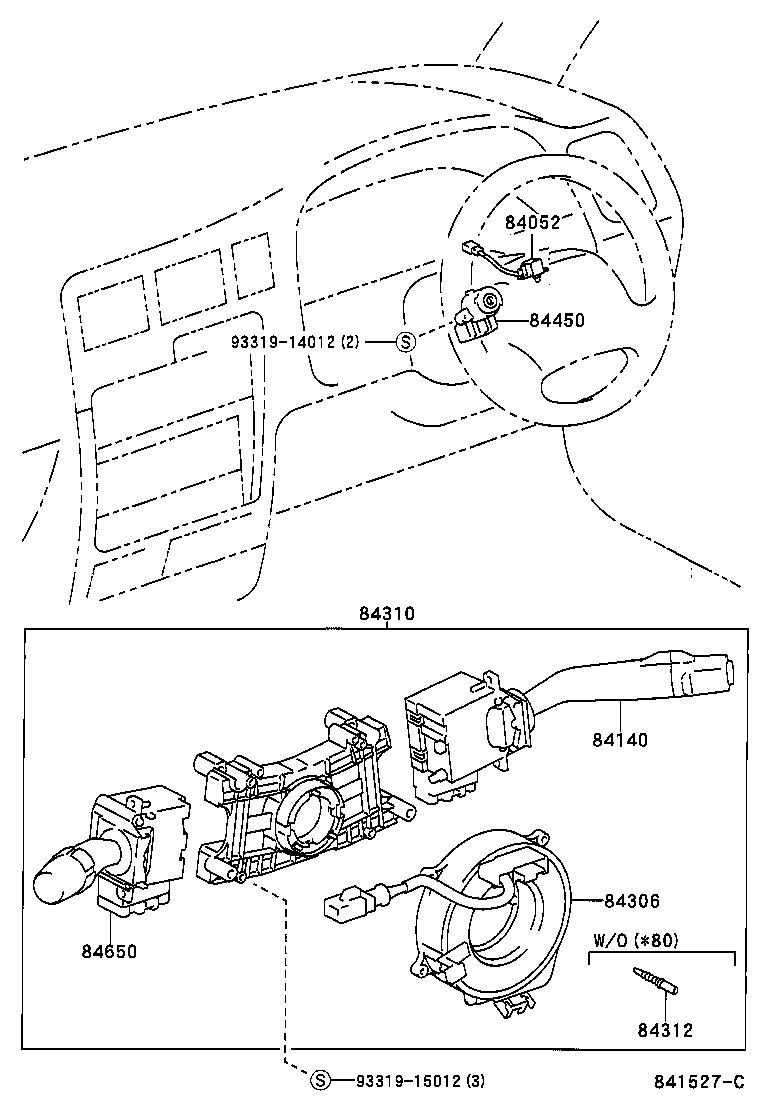

COMBINATION SWITCH

diagram 84052 84140 84306 84310 84312 84450 84650 9331914012 9331915012
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070

LN145..SCB..TH;LN167,192,RZN147..GCC,TH;KZN165,190,LN141,146,15#,166,RZN142,144,149,169,194..GCC,SA,TH

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26170

KZN165,190,LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)

 1
84140-06030

LN152..THXTR;LN147,RZN149..THDCB..SR

THAILAND SPEC

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-04060

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,RZN149..THDCB,THSCB;KDN165,190,LN152,172,RZN154..(DCB,THXTR)..DLX

 1
84306-26070

LN147,152,167,172,RZN149,154..THDCB,THSCB,THXTR

W(LEATHER STEERING WHEEL)

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-35820

LN147,152,167,172,RZN147,149,154,169,174..(DCB,SCB,XTR)..ARL

W(*80 & INTERMITTENT WIPER)

 1
84310-35790

KZN165,RZN194..SR;KZN190,LN145,147,152,167,172,192,RZN147,149,154,169,174..ARL,SA

 1
84310-06080

LN152..THXTR;LN147,RZN149..THDCB..SR;KDN145,150,155,LN166..MA,TH;KDN165,190..(DCB,XTR)..TH..CBU

 1
84310-04200

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

W(*80 & INTERMITTENT WIPER)

 1
84310-3D080

KZN165..SR..ARL;LN147,152,167,172,RZN149,154..ARL

W(*80)

 1
84310-35790

LN167..IV3;LN167..SCB..SA;LN140,147,152,172,192;LN167..(DCB,THDCB)..DLX..ARL;RZN149,194..RHD..(DCB,THDCB)..SR

W(INTERMITTENT WIPER)

 1
84310-3D090

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

W(*80 & INTERMITTENT WIPER)

 1
84312 - PLATE, HORN CONTACT
84312-26010

LN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

 1
84312-06010

LN152..THXTR;LN147,RZN149..THDCB..SR;KDN145,150,155,165,190..(DCB,SCB,XTR)..TH..CBU

THAILAND SPEC

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-35540

KZN165,RZN194..SR;KZN190,LN145,147,152,167,172,192,RZN147,149,154,169,174..ARL,SA

 1
84652-06050

KDN165,190..(DCB,XTR)..TH..CBU;KDN145,15#,166,LN166..(DCB,SCB,XTR)..(MA,TH)

THAILAND SPEC

 1
84652-06050

LN147,RZN149..THDCB..SR;KDN165,190,LN152..(DCB,THXTR)..DLX

 1
84652-35540

LN167..IV3;LN167..SCB..SA;RZN149..SR..ARL;LN140,147,152,172,192;LN167..(DCB,THDCB)..DLX..ARL

W(INTERMITTENT WIPER)

 1
Common parts
93319-14012
93319-15012

ILLUST NO. 4 OF 6(9708- )RHD

Click highlighted areas on diagram

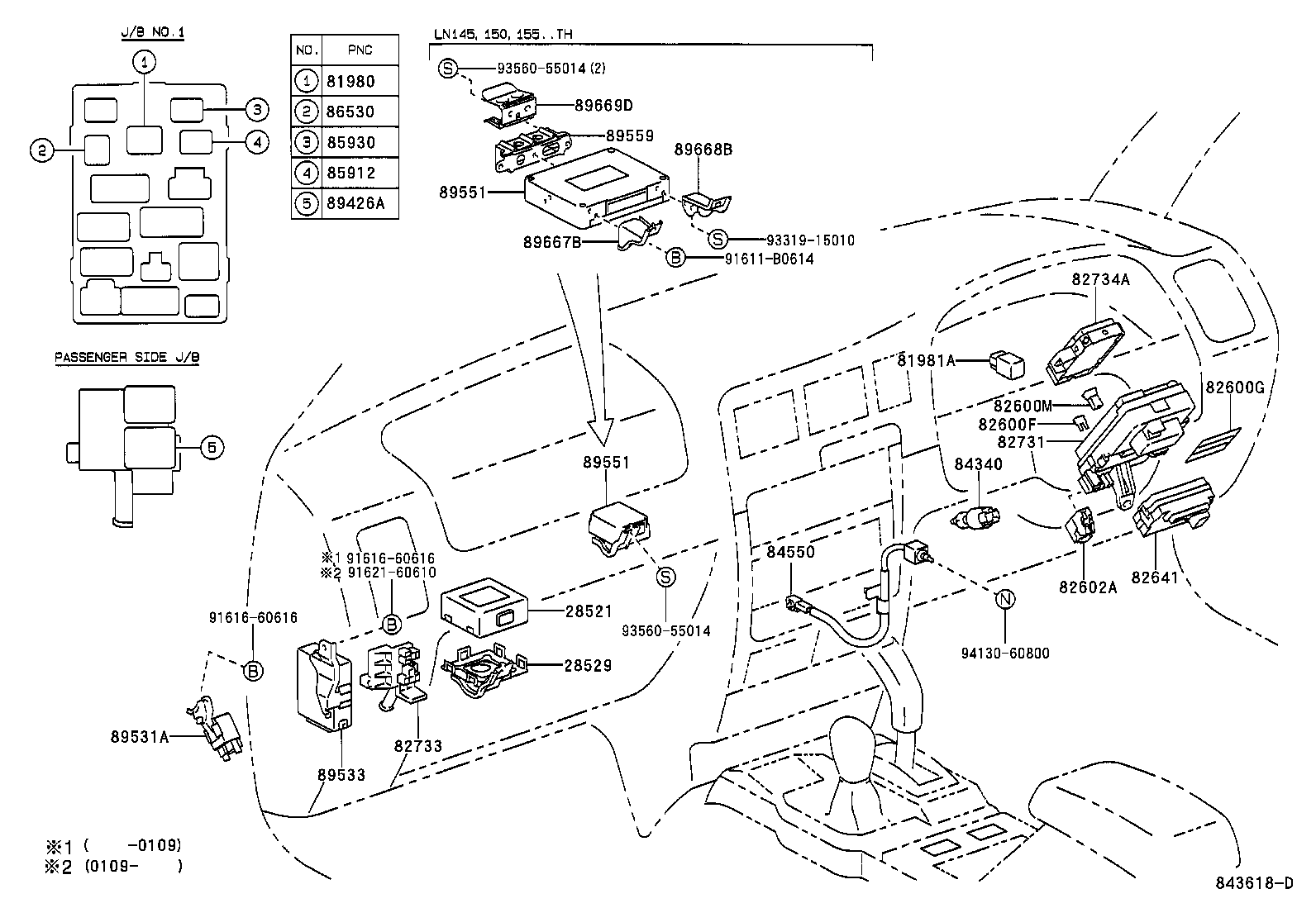

COWL RELAY

diagram 28521 28529 81980 81981A 82600F 82600G 82600M 82602A 82641 82731 82733 82734A 84340 84550 85912 85930 86530 89426A 89531A 89533 89551 89551 89559 89667B 89668B 89669D 91611B0614 9161660616 9161660616 9162160610 9331915010 9356055014 9356055014 9413060800
Part # Description Qty Price
28521 - TIMER, PREHEATING
28521-54600

5L..LN147,152,157,167,172,192..ARL,TH

 1
28529 - BRACKET, PREHEATING TIMER, NO.1
28529-54320

2L,3L,5L..LN14#,15#,16#,17#,19#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-12110

KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)

 1
81980-32010

KZN165,LN147,152,167,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
81981A - FLASHER, TURN SIGNAL
81981-02010

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
82600F - FUSE, FUSE BLOCK
90982-09011

LN147,152,167,172..THSCB,THXTR

20A,MINI FUSE,YELLOW

 2
90982-09011

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,XTR)..ARL

20A,MINI FUSE,YELLOW

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-35090

LN167..SCB..IV3;LN167..(DCB,THDCB)..DLX..ARL;KZN165,RZN149,154..(DCB,SCB,XTR)..ARL;LN147,152,172,VZN167,172..DCB,SCB,THDCB,THXTR,XTR

 1
82683-35090

KZN165..SCB..DLX;LN152..ATM..DEFI;LN167..DCB..DEFI..ARL;LN147,152,157,172..DLX..DEFI;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN167..(SCB,THDCB,THSCB,XTR)..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..(DCB,SCB,XTR)..(ARL,TH)

 1
82683-35090

KZN165,LN152,172,192..THSCB,XTR;LN147,157,167..(DCB,SCB,THDCB,XTR)..(ARL,TH)

 1
82600M - FUSE, MEDIUM CURRENT
90982-10001

RZN169..RHD;RZN142,147..LHD;KZN165,LN145..SR;RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,166..LHD..SCB;RZN149,154..ARL,GCC;LN145,166,RZN148,168..DCB..(GCC,GEN);KDN145,15#,165,190,KZN190,LN146,147,152,167,17#,19#,RZN144,174,19#

30A,PINK

 1
90982-10001

RZN147..LHD;RZN149..ARL,GCC;RZN149..DCB..CO;LN145,RZN168..SR;LN145,166..LHD..SCB;RZN168..DCB..DLX..GEN;LN145,166,RZN148..DCB..(GCC,GEN,MA);KDN145,190,RZN142..(DCB,SCB,XTR)..(GCC,GEN,TH);KDN150,155,165,KZN165,190,LN146,147,152,167,17#,19#,RZN144,154,169,19#,VZN167,172..DCB,SCB,THDCB,THSCB,THXTR,XTR

30A,PINK

 1
90982-10001

RZN149..DCB..CO;LN145,RZN168..SR;RZN169..LHD..GEN;LN167,RZN142..ARL,GEN;RZN149,169..ARL,GCC,SA;LN145,166,RZN147..LHD..SCB..GEN;LN145,166,RZN148..DCB..(GCC,GEN);RZN147,168..LHD..DCB..DLX..(GCC,GEN);KDN145,15#,165,190,KZN165,LN146,147,152,17#,191,RZN144,154,174,19#

30A,PINK

 1
90982-10001

RZN147..LHD;RZN169..LHD..DCB;RZN169..SCB..GCC;RZN149,154..ARL,GCC;LN145,166..LHD..SCB;RZN169..RHD..(ARL,GEN);KZN165,LN145..SR..(ARL,TH);LN145,166,RZN148,168..DCB..(GCC,GEN);KDN145,15#,165,190,LN146,147,152,167,17#,191,RZN142,144,174,193..ARL,GCC,GEN,TH

30A,PINK

 1
90982-10001

LN145,RZN168..SR;RZN169..LHD..GEN;LN167,RZN142..ARL,GEN;RZN149,169..ARL,GCC,SA;LN145,166,RZN147..LHD..SCB..GEN;LN145,166,RZN148..DCB..(GCC,GEN);RZN147,168..LHD..DCB..DLX..(GCC,GEN);KDN145,15#,165,190,KZN165,LN146,147,152,17#,191,RZN144,154,174,19#

30A,PINK

 1
82641 - RELAY, INTEGRATION NO.1
82641-35220

KZN165,LN145,15#,192..RHD..TH;LN147,167,RZN149,169..(DCB,THDCB,XTR)..(ARL,TH)

W(LIGHT REMIND WARNING)

 1
82641-35230

KZN165..SR..(ARL,TH)..(CBU,IV3);LN147,150,152,167,192,RZN149,169..(DCB,THDCB,XTR)..(ARL,TH)..CBU

W(LIGHT REMIND WARNING & POWER DOOR LOCK)

 1
82641-35220

LN147,152,167,172,RZN149,154..(THDCB,THSCB,THXTR)..DLX

 1
82641-35220

KZN165,LN147,152,167,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..DLX..ARL

 1
82641-35230

LN147,152,167,172,RZN149,154..(THDCB,THXTR)..DLX

W(POWER DOOR LOCK)

 1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-35010

LN147,167..(DCB,SCB)..ARL;KZN165,LN152,172..(THSCB,XTR)..ARL

W(*80)

 1
82731-35040

KZN165..SCB..DLX;LN167..DEFI..ARL;LN147..(DCB,SCB,THSCB)..DEFI;KZN165,LN152,172..(DCB,THDCB,THXTR,XTR)..(DEFI,TDE)..ARL

 1
82731-35010

RZN149,169..(DCB,SCB)..ARL;KZN165,RZN147..SCB..DLX..ARL;LN147,152,167,172..DEFI..ARL;KZN165,RZN154,174..(DCB,THDCB,XTR)..ARL

W(*80)

 1
82731-35040

LN147,152,167,172..THSCB,THXTR

 1
82731-35040

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,THDCB,XTR)..ARL

 1
82731-35010

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,XTR)..ARL

W(*80)

 1
82734A - BLOCK, CENTER JUNCTION
82734-35020

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,XTR)..ARL

 1
84340 - SWITCH ASSY, STOP LAMP
84340-35020

LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

 1
84340-04010

KZN165,LN145,150,155..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-35020

LN140,145,147,15#,16#,172,192,RZN147,149,154,169,174,194..RHD

 1
84550-04010

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
84550-04010

KDN145,15#,16#,190,LN145,150,155..RHD..(DCB,SCB,XTR)..TH..CBU

 1
85912 - RELAY, DEFOGGER
90987-02012

RZN169..LHD..DCB..GEN;RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN147,152,167,17#,RZN148,154,168,174..(DCB,THDCB,THXTR,XTR)..(ARL,GEN)

 1
85930 - RELAY ASSY, POWER WINDOW
90987-02012

KZN165,LN147,152,167,172,RZN149,154..(DCB,SCB,XTR)..DLX..ARL..CBU

 1
90080-87008

LN147,152,167,172,RZN149,154..(THDCB,THSCB,THXTR)..DLX..CBU

 1
90080-87008

LN145..SR;LN147,RZN149..THDCB..SR;KDN145,15#,16#,190..TH..CBU

 1
86530 - RELAY ASSY, HORN
86530-20070

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
Common parts
91611-B0614
91616-60616
91621-60610
93319-15010
93560-55014
94130-60800

ILLUST NO. 3 OF 6(9708- )RHD

Click highlighted areas on diagram

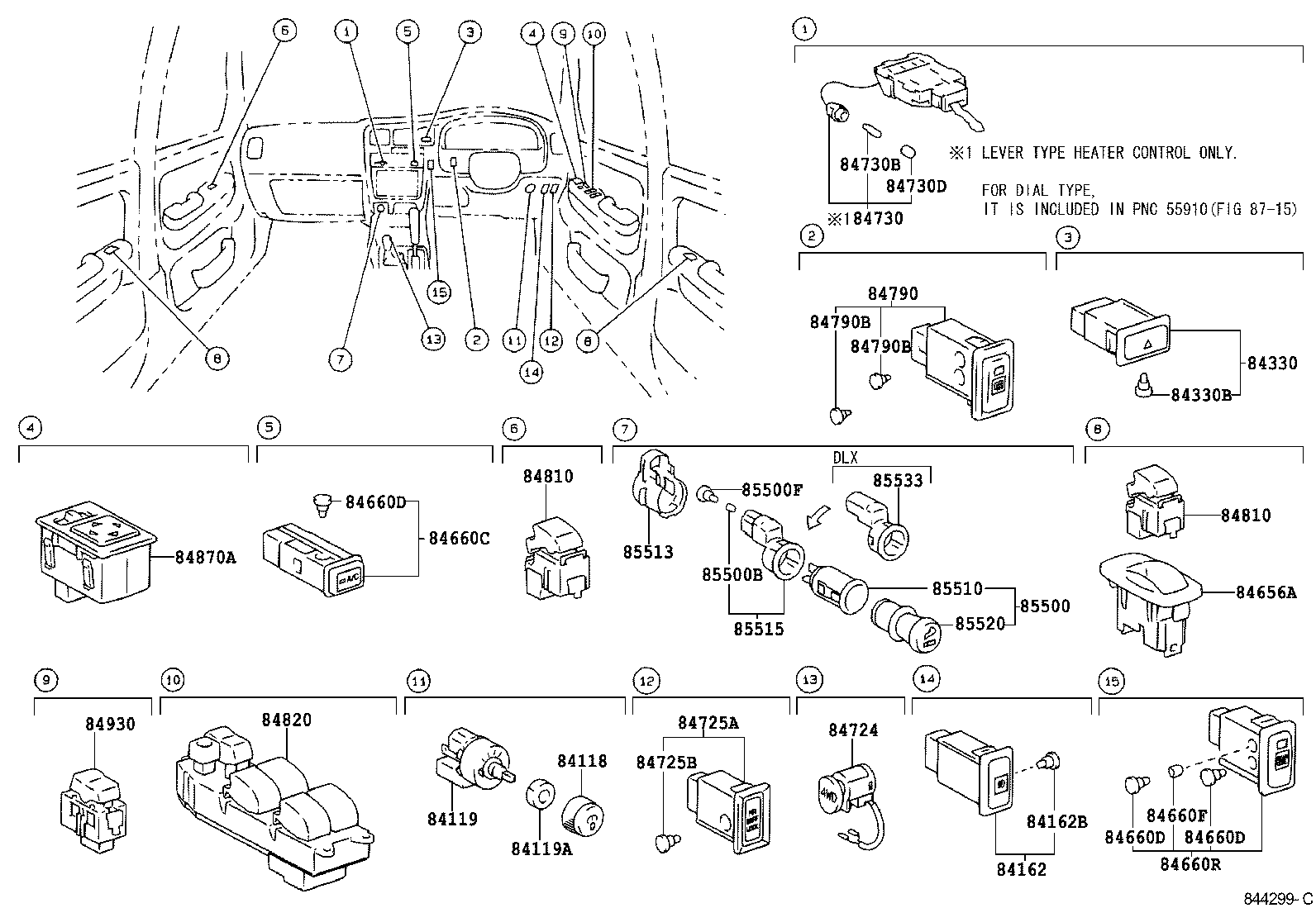

INSTRUMENT PANEL SWITCHES

diagram 84118 84119 84119A 84162 84162B 84330 84330B 84656A 84660C 84660D 84660D 84660D 84660F 84660R 84724 84725A 84725B 84730 84730B 84730D 84790 84790B 84790B 84810 84810 84820 84870A 84930 85500 85500B 85500F 85510 85513 85515 85520 85533
Part # Description Qty Price
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20011

KZN165,LN147,150,152,167,172,192,RZN147,149,154,169,174..ARL,TH

 1
84118-20011

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
84118-20011

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-20082

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
84119-20082

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
84119-20082

KZN165,LN147,150,152,167,172,192,RZN147,149,154,169,174..ARL,TH

 1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90170-09002

KZN165,LN147,150,152,167,172,192,RZN147,149,154,169,174..ARL,TH

 1
90170-09002

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
90170-09002

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-35060

KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)

(J)

 1
84332-04050

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
84332-35060

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

(J)

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

LN147,167..(DCB,SCB)..ARL;KZN165,LN152,172..(THSCB,XTR)..ARL

14V 0.91W

 1
84999-10860

KZN165,RZN147..SCB..DLX..ARL;LN147,167,RZN149,169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN152,172,RZN154,174..(DCB,THDCB,XTR)..(DEFI,EFI,TDE)..ARL

14V 0.91W

 1
90011-01003

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

14V 0.91W

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-35020

RZN169..LHD..DCB..GEN;LN152,167,192..XTR..DEFI..CBU;LN167,RZN169..(DCB,THDCB)..(ARL,TH);LN152,RZN149..(DCB,THDCB,THXTR,XTR)..DLX..(ARL,GEN);KZN165,LN147,17#,RZN148,154,168,174..(DCB,THDCB,THXTR,XTR)..(ARL,GEN,TH)..(CBU,IV3)

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320

RZN169..LHD..DCB..GEN;LN152,167,192..XTR..DEFI..CBU;LN167,RZN169..(DCB,THDCB)..(ARL,TH);LN152,RZN149..(DCB,THDCB,THXTR,XTR)..DLX..(ARL,GEN);KZN165,LN147,17#,RZN148,154,168,174..(DCB,THDCB,THXTR,XTR)..(ARL,GEN,TH)..(CBU,IV3)

14V 0.84W

 2
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320

RZN169..LHD..DCB..GEN;LN152,167,192..XTR..DEFI..CBU;LN167,RZN169..(DCB,THDCB)..(ARL,TH);LN152,RZN149..(DCB,THDCB,THXTR,XTR)..DLX..(ARL,GEN);KZN165,LN147,17#,RZN148,154,168,174..(DCB,THDCB,THXTR,XTR)..(ARL,GEN,TH)..(CBU,IV3)

14V 0.84W

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080

KZN190,LN152,171,192,RZN194..(SCB,XTR)..(GEN,SA,TH)..CBU;KZN165,LN150,167,RZN144,149..(SCB,THSCB,XTR)..SR..(CBR,DEFI,DSL,TDE)..(CBU,IV3)

 1
84810-12080

KZN165,LN152,172,RZN149,154..(SCB,THSCB,THXTR,XTR)..ARL..CBU

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080

KZN190,LN152,171,192,RZN194..(SCB,XTR)..(GEN,SA,TH)..CBU;KZN165,LN150,167,RZN144,149..(SCB,THSCB,XTR)..SR..(CBR,DEFI,DSL,TDE)..(CBU,IV3)

 1
84810-12080

KZN165,LN152,172,RZN149,154..(SCB,THSCB,THXTR,XTR)..ARL..CBU

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-16020

RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GCC);KZN165,RZN144,149..SR..(ARL,GCC,GEN);LN146,147,150,152,167,192,RZN147..(DCB,THDCB,XTR)..(ARL,GCC,TH)..CBU

 1
84870-34010

LN147,152,167,172,RZN149,154..(THDCB,THSCB,THXTR)..DLX..CBU

 1
84870-34010

KZN165,LN147,152,167,172,RZN149,154..(DCB,SCB,XTR)..DLX..ARL..CBU

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
85513 - COVER, CIGARETTE LIGHTER
85513-12020

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-32010

LN145,155,157..RHD..TH;RZN149,169..(DCB,THDCB)..ARL;KZN165,RZN144,149..SR..(CBR,TDE)..(ARL,GCC,TH);LN147,150,152,167,192,RZN147..(DCB,THDCB,XTR)..(ARL,GCC,TH)..(CBU,IV1)

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010

RZN149..ARL,GEN;RZN144,149..DLX..GCC;LN147,152,167,172,RZN147,154,169,174..ARL,GCC,GEN,SA;KZN165,190,LN140,141,145,146,150,155,157,166,171,19#,RZN142,148,168,19#,YN140..GCC,GEN,SA,TH

 1

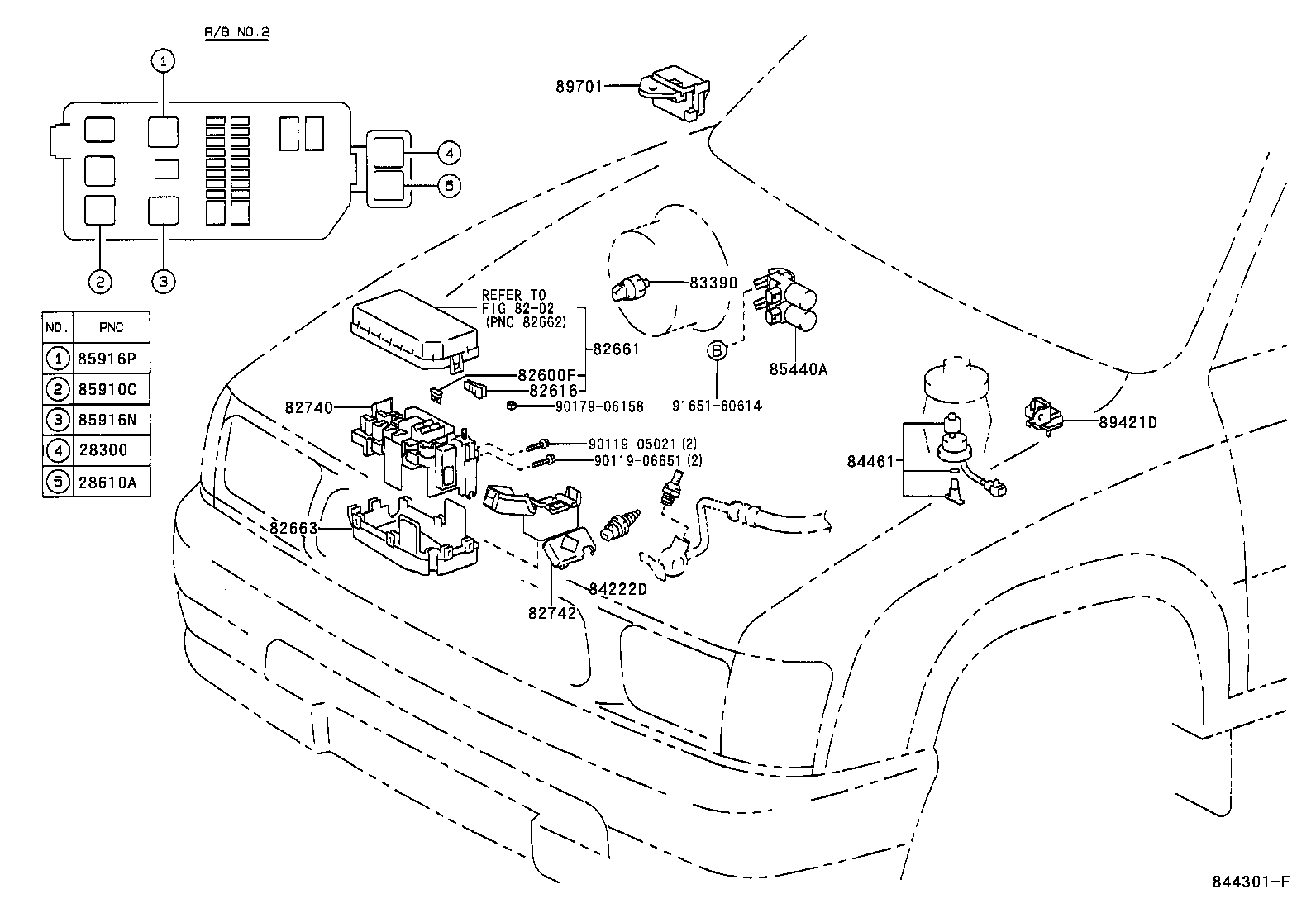

ILLUST NO. 2 OF 6(9708- )LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

ENGINE ROOM

diagram 28300 28610A 8202 82600F 82616 82661 82663 82740 82742 83390 84222D 84461 85440A 85910C 85916N 85916P 89421D 89701 9011905021 9011906651 9017906158 9165160614
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-10020

2L,5L,3RZF..LN145,15#,167,192,RZN144..GCC,TH;1RZ#,2RZFE,3RZ#,2Y..RZN142,147,148,149,154,16#,174,19#,YN140

 1
28300-46010

5LE..LN152,157,167,192;2L,5L..LN145,152,167,192..ARL,GEN,SA;1KZTE,2L,3L,5L#..KZN165,190,LN140,141,146,147,166,17#,191

 1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-54360

5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..DCB..GEN;1KZTE..KZN165..SCB..DLX;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;1KZTE..KZN165..SR..(ARL,SA);5LE..LN167..(SCB,THDCB,THSCB)..DLX;1KZTE,2L,5LE..KZN165,LN150,152..XTR..SR;1KZTE,5LE..KZN165,LN167..DCB..DLX..ARL..CBU;1KZTE,2L,3L,5L#..KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
82600F - FUSE, FUSE BLOCK
90982-09011

LN147,152,167,172..THSCB,THXTR

20A,MINI FUSE,YELLOW

 2
90982-09011

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,XTR)..ARL

20A,MINI FUSE,YELLOW

 1
82616 - PULLER, FUSE
82616-20010

LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-3D080

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172..(DCB,SCB,XTR)..ARL

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-35070

LN147,152,167,172..THDCB,THSCB,THXTR

 1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35090

LN147,152,167,172..THDCB,THSCB,THXTR

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82742-35010

KDN145,15#,16#,190..TH

 1
82742-35010

LN147,152,167,172..THDCB,THSCB,THXTR

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30100

LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
85916N - RELAY, TAIL LAMP
90987-02012

KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)

 1
90080-87008

KDN145,15#,16#,190,LN145,150..(DCB,SCB,XTR)..TH..CBU

 1
90080-87008

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
85916P - RELAY, HEADLAMP
90987-02006

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
Common parts
90119-05021
90119-06651
90179-06158
91651-60614
Linked diagrams
8202

ILLUST NO. 2 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28380A 83390 83390 90119T0037
Part # Description Qty Price
Common parts
90119-T0037

ILLUST NO. 5 OF 8(0408- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8302 8302 84118 84119 84330 84330B 84660C 84725A 84725B 84790 84790B 84790B 84870A 84988L 85500 85500B 85510 85513 85515 85520 85530 85533 85535B 85539 87290 87290 87290B 87290B 90170T0001
Part # Description Qty Price
Common parts
90170-T0001
Linked diagrams
8302

ILLUST NO. 8 OF 8(0408- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 82223F 83320 83320 84222D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84820 84820 9010906296 9010906296 9010906296 9010906296 90164T0005 90164T0005 9043018008
Part # Description Qty Price
Common parts
90109-06296
90164-T0005
90430-18008

ILLUST NO. 4 OF 8(0408- )RHD

Click highlighted areas on diagram

COWL

diagram 28371 81980 82210J 82210J 82600F 82600F 82660B 82730A 84340 84345 84550 85912 85913C 85930G 85934 87346K 87346K 88280A 89530C 89533 89533A 90105T0066 90105T0066 90105T0066 90105T0066 90159T0003 90178T0018 90178T0018 9167180618
Part # Description Qty Price
Common parts
90105-T0066
90159-T0003
90178-T0018
91671-80618

ILLUST NO. 6 OF 8(0408- )

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84140 84140 84247A 84250A 84306 84306 84306 84306 84306 84306 84312 84450 84650 84650 85432 9015950199 9015950199 90159T0007 90168T0004
Part # Description Qty Price
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501

ILLUST NO. 1 OF 8(0408- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827112B660 827150K410 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84222 84222B 84222C 84540 89491 9043018008 9155180612 9165140825 9165140830
Part # Description Qty Price
Common parts
82711-2B660
82715-0K410
90430-18008
91551-80612
91651-40825
91651-40830

ILLUST NO. 3 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82600F 82616 82620A 82630 82641 82661 82662A 82663 827150K800 82741 82742 8404 8404 9011906923 9011906923
Part # Description Qty Price
Common parts
82715-0K800
90119-06923
Linked diagrams
8404

ILLUST NO. 8 OF 8(1107- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 82223F 83320 83320 84222D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84820 84820 9010906296 9010906296 9010906296 9010906296 90164T0005 90164T0005 9043018008
Part # Description Qty Price
Common parts
90109-06296
90164-T0005
90430-18008

ILLUST NO. 7 OF 8(1107- )

Click highlighted areas on diagram

SEAT

diagram 84921A 84921A 84921B 84921B 84922B 84922C 9016740044 9016740044
Part # Description Qty Price
Common parts
90167-40044

ILLUST NO. 6 OF 8(1107- )

Click highlighted areas on diagram

STEERING

diagram 4501 4504 84052 84140 84140 84247A 84250A 84306 84306 84306 84306 84306 84306 84306 84312 84450 84650 84650 85432 9015950199 90159T0007 90168T0004
Part # Description Qty Price
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501
4504

ILLUST NO. 5 OF 8(1107- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82223J 8302 8302 84118 84119 84152 84330 84330B 84660C 84720J 84725A 84725B 84790 84790B 84790B 84870A 84870D 84988L 85500 85500B 85510 85513 85515 85520 85530 85533 85535B 85539 8601 8715 87290 87290B 87290B 90170T0001
Part # Description Qty Price
Common parts
90170-T0001
Linked diagrams
8302
8601
8715

ILLUST NO. 4 OF 8(1107- )RHD

Click highlighted areas on diagram

COWL

diagram 28371 81980 82210J 82210N 82210N 82600D 82600D 82600F 82660B 827111E320 82730A 84340 84345 84550 85912 85913C 85916N 85930G 85934 87346K 87346K 88280A 89530C 89533 89533A 90105T0066 90105T0066 90105T0066 90105T0066 90119T0420 90159T0003 90178T0018 90178T0018 9167180618
Part # Description Qty Price
Common parts
82711-1E320
90105-T0066
90119-T0420
90159-T0003
90178-T0018
91671-80618

ILLUST NO. 2 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28380A 28551 28551 28559 28559 28559A 28559A 83320B 83390 83390 9011906915 9011906915 9011906915 90119T0037 90178T0018
Part # Description Qty Price
Common parts
90119-06915
90119-T0037
90178-T0018

ILLUST NO. 1 OF 8(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION 1/2

diagram 3304 3304 3304 3505 827150K410 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84222 84222B 84222C 84540 89491 89491A 9043018008 9092901366 9165140825 9165140830 9165160614
Part # Description Qty Price
Common parts
82715-0K410
90430-18008
90929-01366
91651-40825
91651-40830
91651-60614
Linked diagrams
3304
3505

ILLUST NO. 1 OF 8(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION 2/2

diagram 827150KC00 8271571190 89425 89425A 89425B 89439 89439 89467B 89481B 89481B 90105T0209 90119T0126 90178T0018 9167180814 9415180600
Part # Description Qty Price
Common parts
82715-0KC00
82715-71190
90105-T0209
90119-T0126
90178-T0018
91671-80814
94151-80600

ILLUST NO. 3 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82600E 82616 82620A 82630 82641 82661 82662A 82663 827150K800 82741 82742 82742A 8404 8404 8405 85916P 85926 9011906923 9011906923 90119T0185 90119T0185
Part # Description Qty Price
Common parts
82715-0K800
90119-06923
90119-T0185
Linked diagrams
8404
8405
