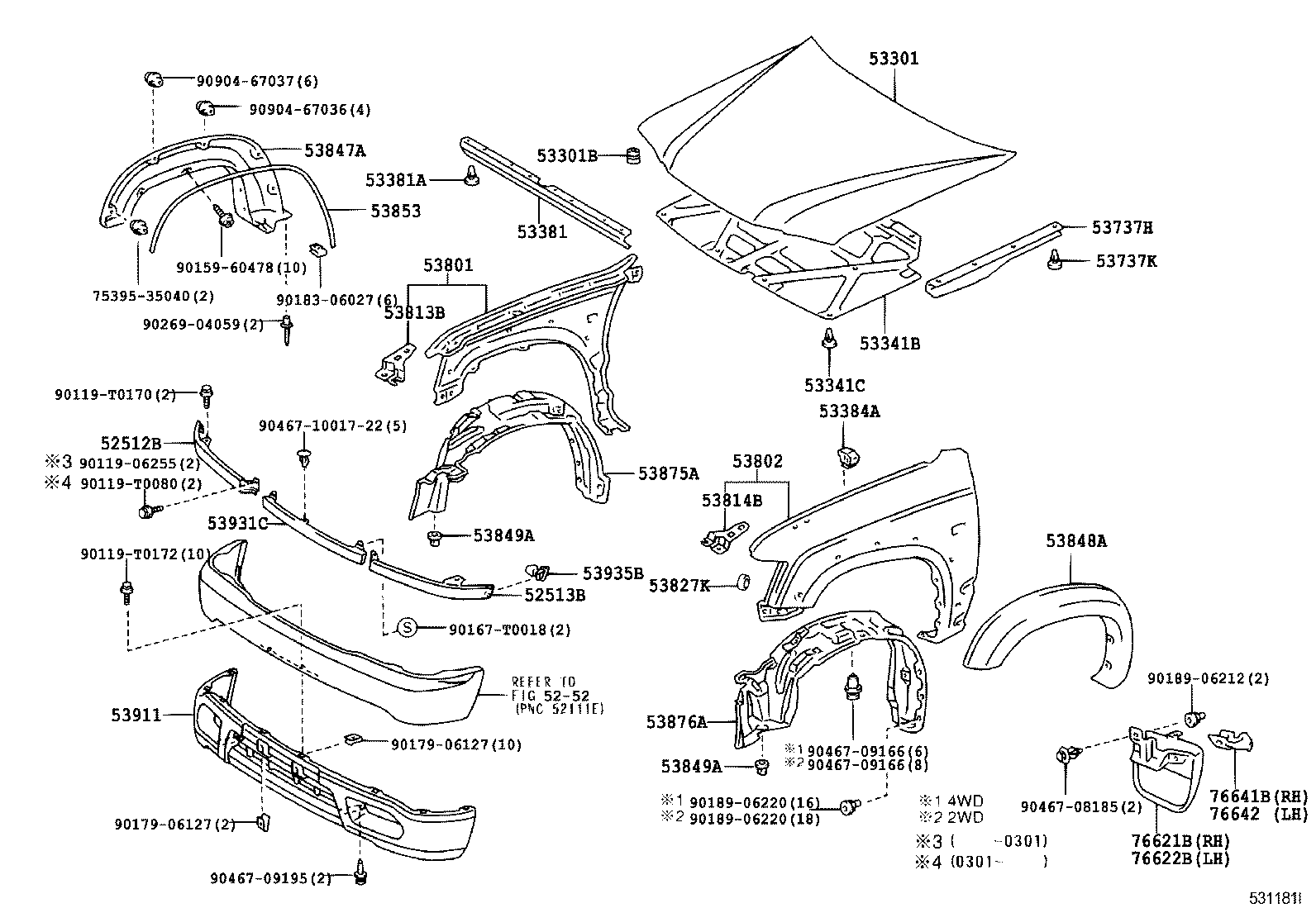

LN152R-FRMDEQ (2001)
Toyota Hilux
(0109- )TH ; (0109- )THDCB,THSCB,THXTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52512B - FILLER, FRONT BUMPER, RH | ||||
| 52512-04010 |
KDN145,15#,16#,190,KZN165,LN145,150,155..(DCB,SCB,XTR)..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR |
1 | ||
| 52513B - FILLER, FRONT BUMPER, LH | ||||
| 52513-04010 |
KDN145,15#,16#,190,KZN165,LN145,150,155..(DCB,SCB,XTR)..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35060 |
KZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 53301-35100 |
KDN145,15#,16#,190,KZN165,LN145,147,15#,167,172,RZN147,149,154,169,174,VZN167,172..ARL,TH |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-YE030 |
KDN145,15#,16#,190..(DCB,SCB,XTR)..TH |
1 | ||
| 53341-04040 |
KDN145,15#,16#,190..(DCB,SCB,XTR)..TH..CBU |
1 | ||
| 53341-04040 |
KZN165..TH;KDN165,190..IV1;KZN165,LN147,152,167,172..THDCB,THSCB,THXTR |
1 | ||
| 53737H - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-35040 |
LN157,192;LN152,167..DSL;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150..(THDCB,THSCB,XTR)..SR;KZN190,LN140,145,147,172..DLX..(ARL,SA) |
1 | ||
| 53737-04010 |
KZN165,LN147,152,167,172..THDCB,THSCB,THXTR;KDN145,15#,16#,190,KZN165..(DCB,SCB,XTR)..TH |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-35160 |
RZN154..XTR..MTM..ARL;LN147,RZN149..MTM..IV3;LN147,152,RZN149..(DCB,THXTR)..ARL W(ANTENNA) |
1 | ||
| 53801-35380 |
KDN145,15#,LN145,147,150,152,RZN147,149,154..RHD..(ARL,TH) W(ANTENNA & SIDE TURN SIGNAL LAMP) |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-35010 |
LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53814-35010 |
LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-04140 |
KDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR |
1 | ||
| 53911-35220 |
LN147,152,RZN147,149,154..THDCB,THSCB,THXTR |
1 | ||
| 53931C - PANEL, FRONT END | ||||
| 53931-04010 |
KDN145,15#,16#,190,KZN165,LN145,150,155..(DCB,SCB,XTR)..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR |
1 | ||
| Common parts | ||||
| 75395-35040 | ||||
| 90119-06255 | ||||
| 90119-T0080 | ||||
| 90119-T0170 | ||||
| 90119-T0172 | ||||
| 90159-60478 | ||||
| 90167-T0018 | ||||
| 90179-06127 | ||||
| 90183-06027 | ||||
| 90189-06212 | ||||
| 90189-06220 | ||||
| 90269-04059 | ||||
| 90467-08185 | ||||
| 90467-09166 | ||||
| 90467-09195 | ||||
| 90467-1001722 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 2 OF 2(0408-0608)ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH ; (0501-0604)LA
FENDE LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60603 | ||||
| 90189-T0014 | ||||
| Linked diagrams | ||||
| 5152 | ||||
ILLUST NO. 1 OF 2(0408-0608)ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH ; (0501-0604)LA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-07175 | ||||
| 90950-06124 | ||||
ILLUST NO. 1 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-07175 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(1107- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60496 | ||||
| 90189-T0014 | ||||
| Linked diagrams | ||||
| 5252 | ||||
