LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )DCB,SCB,XTR..TH ; (0109- )THDCB,THSCB,THXTR

Click highlighted areas on diagram

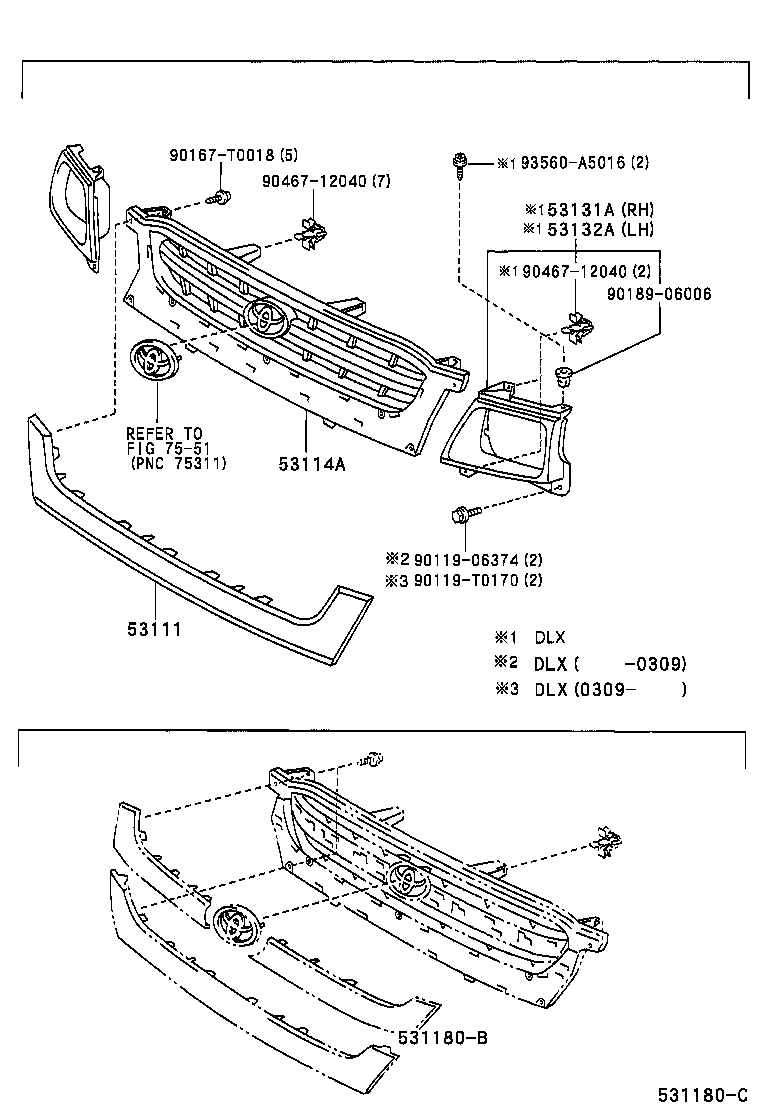

diagram 53111 53114A 53131A 53132A 7551 9011906374 90119T0170 90167T0018 9018906006 9046712040 9046712040 93560A5016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-35410

RZN149..ATM..ARL;RZN142,148,YN140..CBU;RZN149..MTM..(ARL,GEN);LN141,145,146,147,152,RZN147,154..ARL,GCC,GEN

 1
53111-04280

LN167..THDCB..DLX;LN167..THSCB..IV3;RZN149..THDCB..ATM;RZN149..(THDCB,THSCB)..MTM;KDN16#,190..(DCB,XTR)..TH..CBU;LN147,152,172,RZN154..THDCB,THSCB,THXTR

CHROME PLATED

 1
53111-04260

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
53114A - GRILLE, RADIATOR, INNER
53114-04060

LN167..THDCB..DLX;LN167..THSCB..IV3;KDN16#,190..(DCB,XTR)..TH..CBU;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
Common parts
90119-06374
90119-T0170
90167-T0018
90189-06006
90467-12040
93560-A5016
Linked diagrams
7551

(0408-0808)ARL,GCC,GEN,IDN,PHL,TH ; (0501-0810)LA,SA ; (0503-0809)MA ; (0507-0812)A

Click highlighted areas on diagram

diagram 521610K040 53111 53117C 53121C 53122C 53155D 7551 7551 90164T0008 90164T0008 9018304066
Part # Description Qty Price
Common parts
52161-0K040
90164-T0008
90183-04066
Linked diagrams
7551

(1107- )

Click highlighted areas on diagram

diagram 52161R 53111 53121A 53145B 53155D 7551 90164T0008 90164T0008 90164T0008 90164T0008
Part # Description Qty Price
Common parts
90164-T0008
Linked diagrams
7551
