LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )RHD

Click highlighted areas on diagram

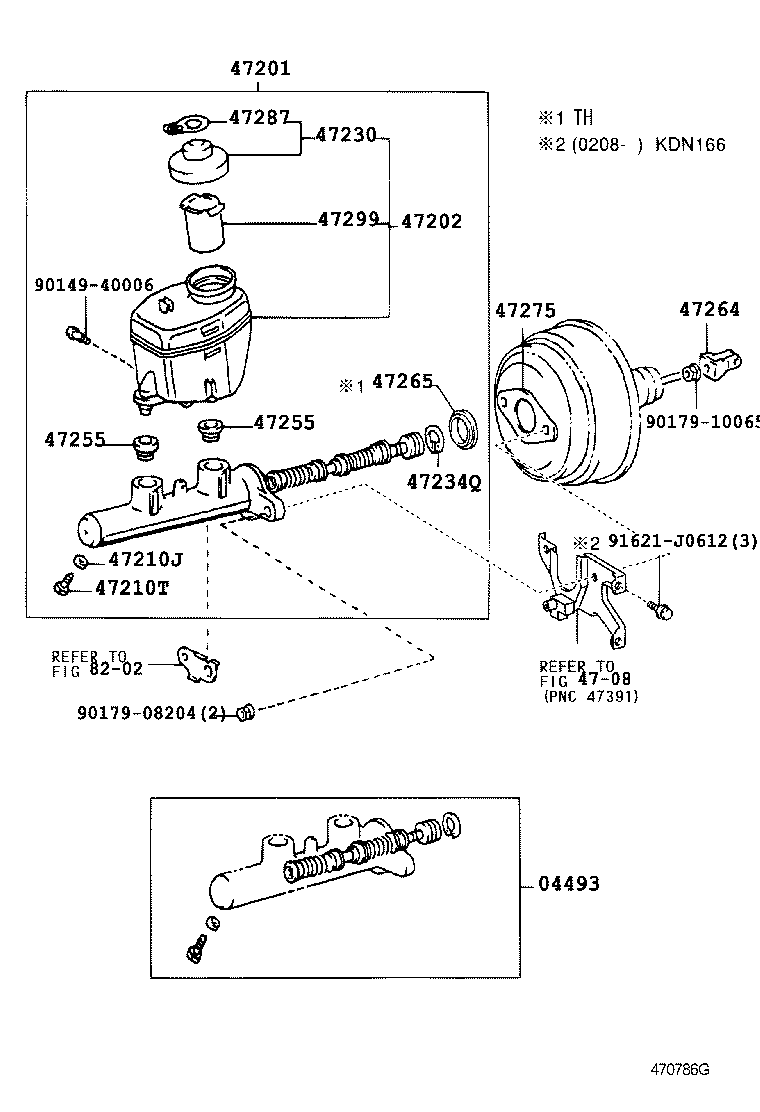

diagram 04493 4708 47201 47202 47210J 47210T 47230 47234Q 47255 47255 47264 47265 47275 47287 47299 8202 9014940006 9017908204 9017910065 91621J0612
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-3D010

LN147,152..ARL

W(ABS)

 1
04493-60280

LN147,152..THDCB,THSCB,THXTR

 1
04493-60280

LN147,152..(DCB,SCB,XTR)..ARL

 1
04493-3D010

LN147,152,RZN147,149,154..(DEFI,EFI)..ARL

W(ABS)

 1
04493-60280

RZN149,154..ARL;LN145,155..LHD..TH;LN147,152..(DCB,SCB,XTR)..DEFI..ARL

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-3D420

LN140,145,147,152..ARL,SA

W(PNC 47287)

 1
47201-3D430

LN147,152..ARL

W(PNC 47287) & W(ABS)

 1
47201-04040

LN147,152..THDCB,THSCB,THXTR

 1
47201-3D430

LN147,152

W(PNC 47287) & W(ABS)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-60080

LN140,145,147,152..ARL,SA

W(PNC 47287)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

RZN169..ARL,SA;LN155,RZN148,168..LHD..DLX;LN167,192,RZN147..CBR,DSL,EFI;LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);LN167,192,RZN149..(DEFI,EFI)..(ARL,GEN,SA);KZN165,190,LN140,141,146,147,166,17#,191,RZN174,19#..DEFI,DSL,EFI,TDE;LN145,152,RZN142,144,149,154,169,YN140..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA)

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

LN145..SA;LN145,155,RZN169..LHD;LN140,141,146,147,152,RZN168,193..(DCB,SCB,THXTR)..(DSL,EFI)

W(ABS)

 1
47230-04040

LN147,152..THDCB,THSCB,THXTR

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-04010

LN152,167,172..THDCB,THSCB,THXTR

W(ABS)

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

LN145,155..LHD..TH;LN145,152,167,192..ARL,GEN,SA;KZN165,190,LN140,141,146,147,166,17#,191,RZN14#,154,16#,174,19#,YN140

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

LN145..SA;LN145,155,RZN169..LHD;LN140,141,146,147,152,RZN168,193..DLX

 1
Common parts
90149-40006
90179-08204
90179-10065
91621-J0612
Linked diagrams
4708
8202

(0408-0808)ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH ; (0710- )LAN15..PKN ; (0808- )KUN

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47210J 47210T 47230 47255 47255 47287 47299 90016AB602 90016AC701 9017908204
Part # Description Qty Price
Common parts
90016-AB602
90016-AC701
90179-08204
Linked diagrams
4703
