Toyota Hilux LN152 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
GR
HILUX
LN152R-FRMDEQ (2001)
4505 - FRONT STEERING GEAR & LINK

LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005

Engine 5LE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9708- )KDN145,15#,LN140,145,147,15#,RZN142,147,149,154,YN140..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-39375	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45047 - END SUB-ASSY, TIE ROD, LH
45046-39375	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
45406 - ROD SUB-ASSY, TIE, RH
45406-39115	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
45407 - ROD SUB-ASSY, TIE, LH
45406-39115	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90101-12152	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) *12-1.25PX95-25	08/1997 - 12/2999	2
90101-12153	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) *12-1.25PX35-26	08/1997 - 12/2999	1
45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
90201-14010	LN167..IV3;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN147,152,172,RZN149,154,VZN167,172..ARL	06/2002 - 02/2005	1
45409C - NUT(FOR IDLER ARM SUPPORT)
94184-61400	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
94184-61400	LN147,152,RZN149,154..ARL	06/2002 - 02/2005	1
94184-61400	KDN145,15#,LN145,150..TH	06/2002 - 08/2004	1
45409D - BUSH(FOR IDLER ARM)
90386-18002	KDN145,15#,LN145,150..TH	06/2002 - 08/2004	2
90386-18002	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-18002	LN147,152,RZN149,154..ARL	06/2002 - 02/2005	2
45409D - BUSH(FOR IDLER ARM)
90386-18002	KDN145,15#,LN145,150..TH	06/2002 - 08/2004	2
90386-18002	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
90386-18002	LN147,152,RZN149,154..ARL	06/2002 - 02/2005	2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012	LN167..IV3;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN147,152,172,RZN149,154,VZN167,172..ARL	06/2002 - 02/2005	1
45450 - ROD ASSY, STEERING RELAY
45450-39245	LN140,145,147,15#,RZN142,147,149,154,YN140..RHD	08/1997 - 07/2001	1
45460 - ROD ASSY, TIE, RH
45460-39485	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45461 - ROD, STEERING TIE
45465-35060	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
45461 - ROD, STEERING TIE
45465-35060	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
45470 - ROD ASSY, TIE, LH
45460-39485	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
45490 - ARM ASSY, STEERING IDLER
45490-39305	LN140,145,147,15#,RZN142,147,149,154,YN140..RHD	08/1997 - 08/2001	1
45497 - CAP, IDLER ARM BRACKET
45497-28010	LN167..IV3;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN147,152,172,RZN149,154,VZN167,172..ARL	06/2002 - 02/2005	1
45611 - ARM, STEERING KNUCKLE, RH
45611-04010	KDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH)
90106-10032	LN14#,15#,RZN14#,154	08/1997 - 08/1998	1
45612 - ARM, STEERING KNUCKLE, LH
45612-04010	KDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH)
90106-10032	LN14#,15#,RZN14#,154	08/1997 - 08/1998	1
45619C - COVER, STEERING KNUCKLE STOPPER, RH
45619-35030	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2001	1
45619D - COVER, STEERING KNUCKLE STOPPER, LH
45619-35030	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2001	1
Common parts
90101-08057
90101-12187
90101-12190
90170-10035
90170-10082
90170-12027
90178-12004
94110-50800
94512-00800
94622-11200
95381-03022
95381-03225

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-04020	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL	08/1997 - 09/2001	2
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL	08/1997 - 09/2001	2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145	LN14#,15#,RZN14#,154 ID=65.0,OD=70.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-33002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=33.7,OD=40.7	08/1997 - 09/2001	1
90080-30071	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR ID=9.15,OD=13.05	09/2001 - 02/2005	2
90080-30072	LN147,152,RZN149,154..THDCB,THSCB,THXTR ID=65.0,OD=70.0	09/2001 - 02/2005	1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145	LN14#,15#,RZN14#,154 ID=65.0,OD=70.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-33002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=33.7,OD=40.7	08/1997 - 09/2001	1
90080-30071	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR ID=9.15,OD=13.05	09/2001 - 02/2005	2
90080-30072	LN147,152,RZN149,154..THDCB,THSCB,THXTR ID=65.0,OD=70.0	09/2001 - 02/2005	1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145	LN14#,15#,RZN14#,154 ID=65.0,OD=70.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-33002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=33.7,OD=40.7	08/1997 - 09/2001	1
90080-30071	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR ID=9.15,OD=13.05	09/2001 - 02/2005	2
90080-30072	LN147,152,RZN149,154..THDCB,THSCB,THXTR ID=65.0,OD=70.0	09/2001 - 02/2005	1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145	LN14#,15#,RZN14#,154 ID=65.0,OD=70.0	08/1997 - 01/2000	1
96711-19010	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19# ID=9.8,OD=13.6	08/1997 - 01/2000	2
90301-33002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=33.7,OD=40.7	08/1997 - 09/2001	1
90080-30071	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR ID=9.15,OD=13.05	09/2001 - 02/2005	2
90080-30072	LN147,152,RZN149,154..THDCB,THSCB,THXTR ID=65.0,OD=70.0	09/2001 - 02/2005	1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-31002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=31.7,OD=34.1,T=4	08/1997 - 09/2001	1
90562-32002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=32,OD=40	08/1997 - 09/2001	1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-31002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=31.7,OD=34.1,T=4	08/1997 - 09/2001	1
90562-32002	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL ID=32,OD=40	08/1997 - 09/2001	1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90521-44002	LN14#,15#,RZN14#,154	08/1997 - 01/2000	1
90080-52117	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90311-32016	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL	08/1997 - 09/2001	1
44108 - COVER SUB-ASSY, SIDE
44108-04010	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44108A - RING, O(FOR SIDE COVER)
90301-64002	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
90080-30073	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44111 - SHAFT, CROSS
44111-35030	RZN147;RZN154..ARL;LN145..CBU,IV1;LN145..LHD..IV3;LN145..DCB..IV3;RZN142,148..LHD..DLX;RZN149..EFI..(ARL,GEN);LN140,141,146,147,15#,RZN144,149,154..CBR,DEFI,DSL	08/1997 - 09/2001	1
44120 - VALVE ASSY, W/BALL NUT
44120-04010	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44142 - NUT, LOCK
44142-60020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44152 - PLUNGER, POWER PISTON
44152-30020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)
90501-20095	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
90080-50281	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44153 - GUIDE, POWER PISTON PLUNGER
44153-30020	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
44153-04010	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44154 - NUT, POWER PISTON PLUNGER GUIDE
44154-30020	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)
96711-19014	KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#	08/1997 - 01/2000	1
90080-30070	LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001	LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;RZN154,169..ARL,SA;RZN147,148,168..DLX;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN174,19#..DEFI,DSL,EFI,TDE	08/1997 - 09/2001	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-60030	RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING)	08/1997 - 09/2001	1
Common parts
90080-11145
90080-11392
90119-10070
90119-10582
90170-10208

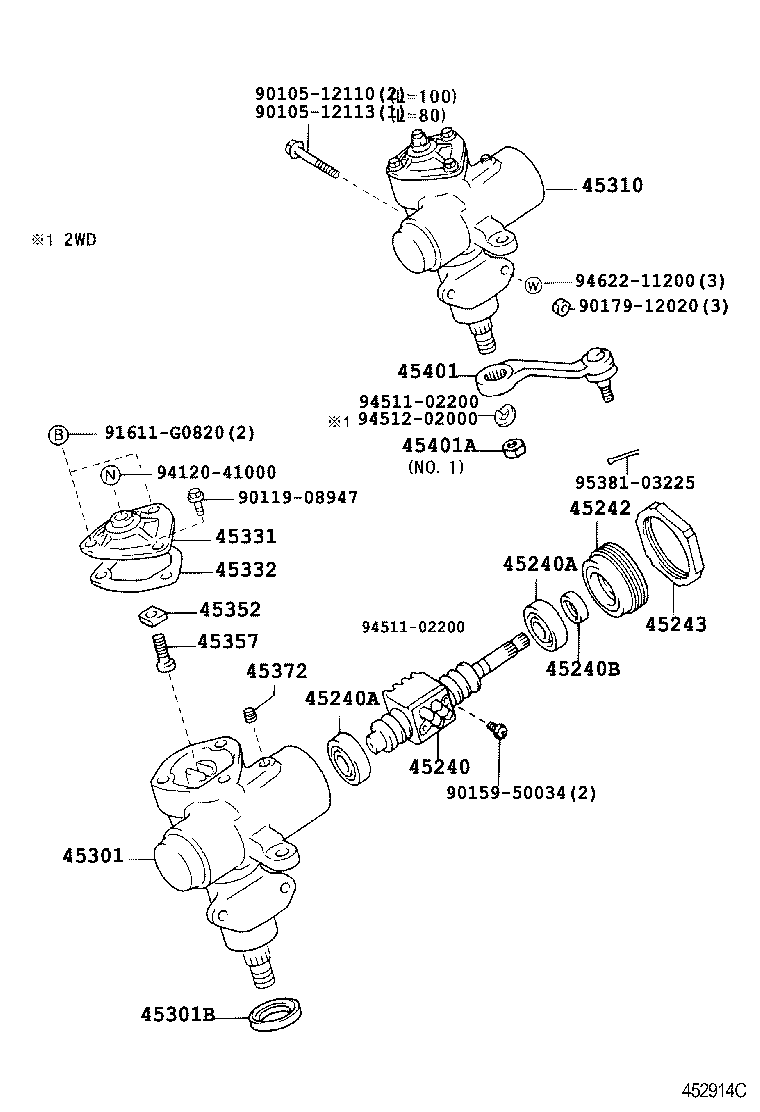

ILLUST NO. 2 OF 3(9708- )LN145,152..SCB,XTR..MTM..GEN,SA,TH ;(9708- )LN140,141,146,150,155,15

Click highlighted areas on diagram

MANUAL STEERING

Part #	Description	Period	Qty
45240A - BEARING(FOR STEERING WORM)
90369-19006	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	2
90369-19006	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	2
45240A - BEARING(FOR STEERING WORM)
90369-19006	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	2
90369-19006	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
90311-19001	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45242 - SCREW, WORM BEARING ADJUSTING
45242-35060	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45242-35060	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-35020	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45243-35020	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-32014	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
90311-32014	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45331 - COVER, SECTOR SHAFT END
45304-35080	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45304-35080	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45332 - GASKET, SECTOR SHAFT END COVER
45332-35040	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45332-35040	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45352 - WASHER, SECTOR SHAFT THRUST
45352-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.00	08/1997 - 08/2000	1
45352-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.00	08/1997 - 08/2000	1
45354-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.05	08/1997 - 08/2000	1
45354-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.05	08/1997 - 08/2000	1
45355-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.10	08/1997 - 08/2000	1
45355-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.10	08/1997 - 08/2000	1
45356-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.15	08/1997 - 08/2000	1
45356-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=2.15	08/1997 - 08/2000	1
45353-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=1.95	08/1997 - 08/2000	1
45353-20010	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140 T=1.95	08/1997 - 08/2000	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-60030	RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING)	08/1997 - 09/2001	1
45357-60030	RZN147,168..DLX;LN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..CBU;RZN154,194..RHD..(SCB,XTR);LN167,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN147,172,RZN142,144,149,154,169..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN);LN140,141,145,146,15#,166,171,19#,RZN174,193..(DCB,SCB,XTR)..(DSL,EFI)..(CBU,IV1) W(POWER STEERING)	08/1997 - 09/2001	1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
90930-03027	RZN149..DLX..GCC;RZN144,154..DLX..CBR;LN152,RZN149..MTM..(GEN,TH);LN140,141,145,146,150,155,157,RZN142,147,148,YN140	08/1997 - 08/2000	1
45401 - ARM SUB-ASSY, PITMAN
45411-35330	LN145..DCB..IV3;LN145..RHD..(CBU,IV1);LN140,147,15#,RZN147,149,154..RHD W(POWER STEERING)	08/1997 - 08/2001	1
45411-35330	LN145..DCB..IV3;LN145..RHD..(CBU,IV1);LN140,147,15#,RZN147,149,154..RHD W(POWER STEERING)	08/1997 - 08/2001	1
45411-35460	LN147,152,RZN149,154..ARL	09/2001 - 02/2005	1
45411-35460	LN147,152,RZN149,154..ARL	09/2001 - 02/2005	1
45411-35460	KDN145,15#,LN145..RHD..TH	09/2001 - 08/2004	1
45411-35460	KDN145,15#,LN145..RHD..TH	09/2001 - 08/2004	1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
Common parts
90105-12110
90105-12113
90119-08947
90159-50034
90179-12020
91611-G0820
94120-41000
94511-02200
94512-02000
94622-11200
95381-03225

ILLUST NO. 2 OF 3(9708- )KDN145,15#,16#,190,KZN165,190,LN14#,152,155,157,16#,17#,19#,RZN144,147,1

Click highlighted areas on diagram

POWER STEERING

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-35120	LN145..DCB..TH;LN145..DCB..IV3;LN145..LHD..IV3;LN155,RZN142..LHD;LN145..(GEN,SA)..CBU;LN140,141,146,147,152,RZN144,147,148,149,154..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2001	1
04445-35120	LN145..DCB..TH;LN145..DCB..IV3;LN145..LHD..IV3;LN155,RZN142..LHD;LN145..(GEN,SA)..CBU;LN140,141,146,147,152,RZN144,147,148,149,154..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA)	08/1997 - 08/2001	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-35040	LN147,152..(DCB,SCB,XTR)..ARL	08/1997 - 09/2000	1
04455-35040	LN147,152..(DCB,SCB,XTR)..ARL	08/1997 - 09/2000	1
04455-35040	LN145,155..LHD..TH;LN147,152,RZN147,149,154..(DCB,SCB,XTR)..(DEFI,EFI)..ARL	08/1997 - 09/2001	1
04455-35040	LN145,155..LHD..TH;LN147,152,RZN147,149,154..(DCB,SCB,XTR)..(DEFI,EFI)..ARL	08/1997 - 09/2001	1
44110 - GEAR ASSY, POWER STEERING
44110-04010	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
44110-04010	LN147,152,RZN149,154..THDCB,THSCB,THXTR	09/2001 - 02/2005	1
45401 - ARM SUB-ASSY, PITMAN
45411-35330	LN145..DCB..IV3;LN145..RHD..(CBU,IV1);LN140,147,15#,RZN147,149,154..RHD W(POWER STEERING)	08/1997 - 08/2001	1
45411-35330	LN145..DCB..IV3;LN145..RHD..(CBU,IV1);LN140,147,15#,RZN147,149,154..RHD W(POWER STEERING)	08/1997 - 08/2001	1
45411-35460	LN147,152,RZN149,154..ARL	09/2001 - 02/2005	1
45411-35460	LN147,152,RZN149,154..ARL	09/2001 - 02/2005	1
45411-35460	KDN145,15#,LN145..RHD..TH	09/2001 - 08/2004	1
45411-35460	KDN145,15#,LN145..RHD..TH	09/2001 - 08/2004	1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90171-14042	KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 NO.2	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
90170-22058	RZN142..LHD;LN145..CBU,IV1;LN145..DCB..IV3;LN145..LHD..IV3;KZN165,190,LN140,141,146,147,15#,16#,17#,19#,RZN144,147,148,149,154,16#,174,19# W(POWER STEERING),NO.1	08/1997 - 08/2001	1
Common parts
90101-12152
90101-12153
90105-12110
90105-12113
90170-12027
90179-12020
94622-11200

ILLUST NO. 1 OF 2(1107- )GGN15,KUN1#,LAN15,TGN10,15,16..RHD

Click highlighted areas on diagram

POWER STEERING

Part #	Description	Period	Qty	Price
Common parts
90119-T0133
90170-15001
90170-T0006
90178-T0021
95381-03025

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

LN152R-FRMDEQ (2001)

ILLUST NO. 1 OF 3(9708- )KDN145,15#,LN140,145,147,15#,RZN142,147,149,154,YN140..RHD

ILLUST NO. 3 OF 3(9708- )

ILLUST NO. 2 OF 3(9708- )LN145,152..SCB,XTR..MTM..GEN,SA,TH ;(9708- )LN140,141,146,150,155,15

ILLUST NO. 2 OF 3(9708- )KDN145,15#,16#,190,KZN165,190,LN14#,152,155,157,16#,17#,19#,RZN144,147,1

ILLUST NO. 1 OF 2(1107- )GGN15,KUN1#,LAN15,TGN10,15,16..RHD

ILLUST NO. 2 OF 2(1107- )

Part Price Details
