LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109-0203)KDN145,15#,165,KZN165,LN147,152,167,172..ARL,TH ; (0203- )KDN145,15#,

Click highlighted areas on diagram

W(SENSOR)

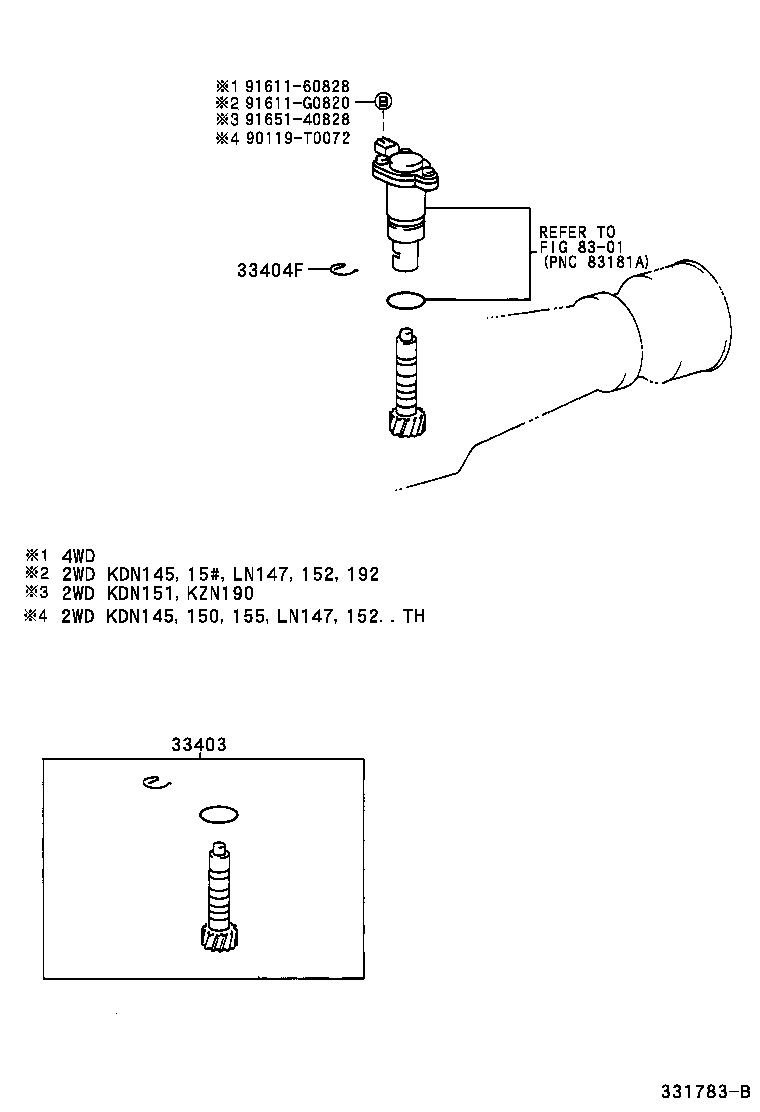

diagram 33403 33404F 8301 90119T0072 9161160828 91611G0820 9165140828
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39025

LN147,152,192..MTM..(ARL,TH)

N=19,MARK 19:6

 1
33482-39025

LN147,152,192,RZN147..MTM..(DEFI,EFI)..(ARL,TH)

N=19,MARK 19:6

 1
33403-39305

LN147,152

N=19,MARK 19:6

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LN147,157,167..ARL,TH;KZN165,LN152,172,192..(THSCB,THXTR,XTR)..MTM

 1
90468-12005

KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..MTM..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..MTM..(ARL,TH)

 1
Common parts
90119-T0072
91611-60828
91611-G0820
91651-40828
Linked diagrams
8301

(0408- )KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC

Click highlighted areas on diagram

G50,G55,G58

diagram 3303 33403 33404F 8401 8401 90119T0072
Part # Description Qty Price
Common parts
90119-T0072
Linked diagrams
3303
8401

(1107- )KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC

Click highlighted areas on diagram

G50,G55,G58

diagram 3303 33403 33404F 8401 8401 90119T0072
Part # Description Qty Price
Common parts
90119-T0072
Linked diagrams
3303
8401
