LN152R-FRMDEQ (2001)

Toyota Hilux

Production Sep 2001 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2L,3L,5L

Click highlighted areas on diagram

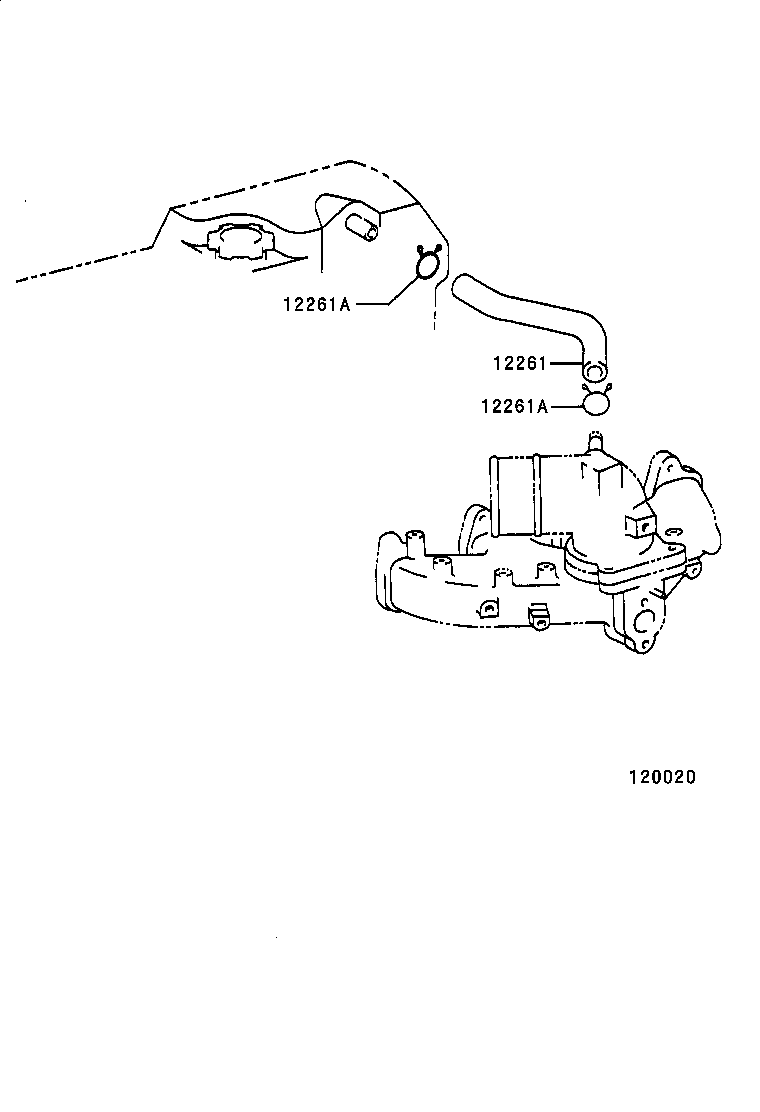

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-54080

2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 2
