LN152R-CRPSST (1998)
Toyota Hilux

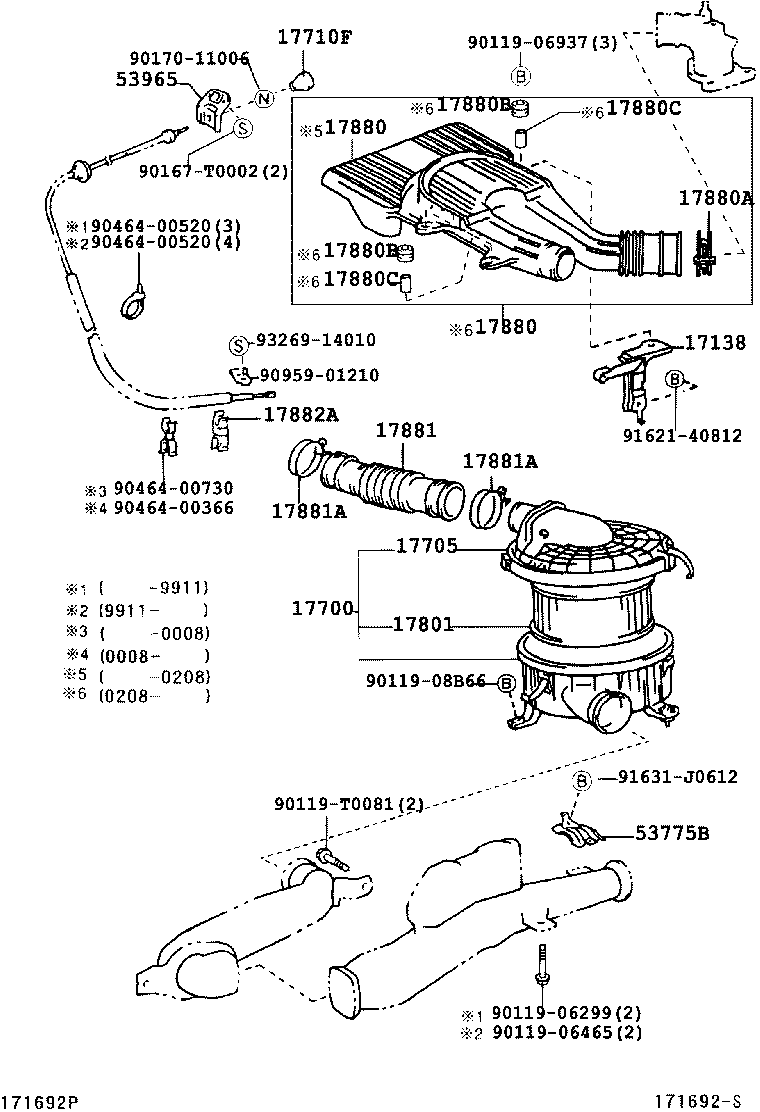

(9806-9911)2L,5L..LN145,15#,167,192..RHD..TH ; (9911- )2L..LN145,150,155..RHD..T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54011 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
5L..LN167,192..TH;2L,3L,5L..LN140,145,15#,166..RHD..(GEN,SA,TH) |
1 | ||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166..GCC,SA,TH |
1 | ||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78186-35120 |
5L..LN152,157..CBU |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-06299 | ||||
| 90119-06465 | ||||
| 90119-06937 | ||||
| 90119-08B66 | ||||
| 90119-T0081 | ||||
| 90167-T0002 | ||||
| 90170-11006 | ||||
| 90464-00366 | ||||
| 90464-00520 | ||||
| 90464-00730 | ||||
| 90959-01210 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
| 93269-14010 | ||||

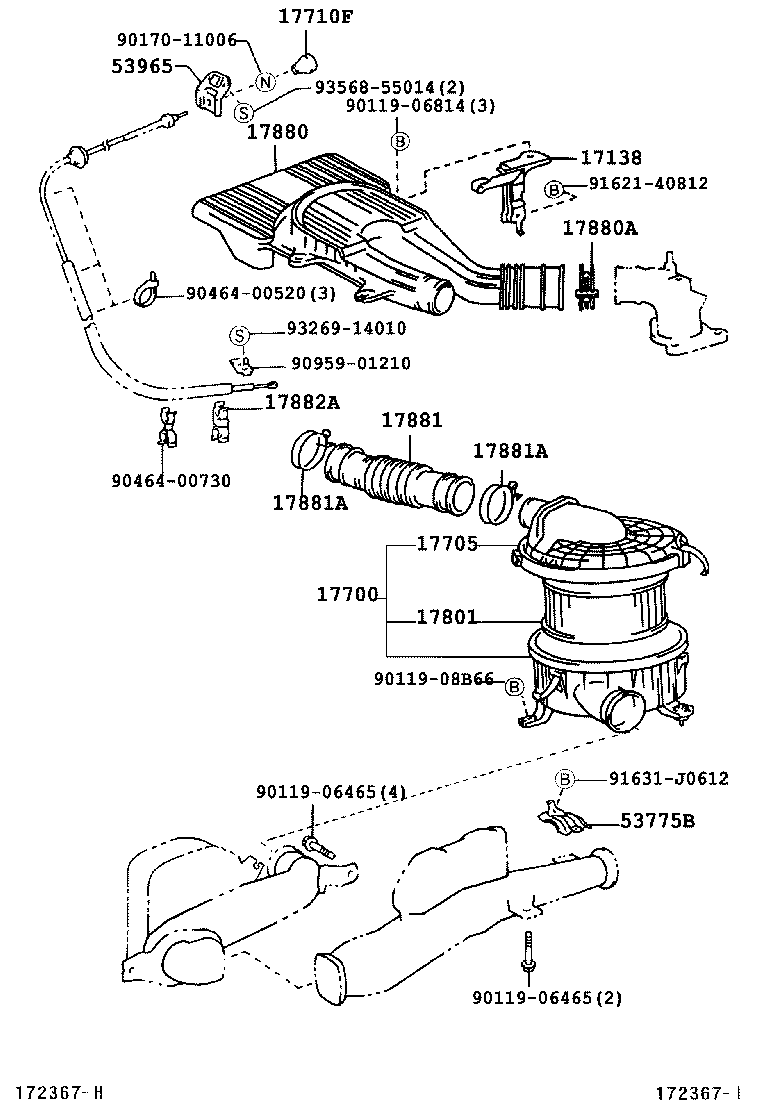

(9911-0009)5L..LN152,157,167,192..TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-54010 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17138-54011 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54410 |
5L..LN167,192..TH;2L,3L,5L..LN140,145,15#,166..RHD..(GEN,SA,TH) |
1 | ||
| 17705-54410 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH |
1 | ||
| 17801-54170 |
5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166..GCC,SA,TH |
1 | ||
| 17801-54170 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-54240 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10710 |
2L..LN150..SR;2L..LN145..RHD..SCB;2L..LN145..RHD..DCB..GEN;2L,3L,5L..LN140,147,152,155,157,16#,172,192..RHD..(ARL,GEN,SA,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54640 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2L,3L,5L..LN140,145,147,15#,16#,172,192..RHD |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78186-35120 |
5L..LN152,157..CBU |
1 | ||
| 53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING | ||||
| 53775-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06814 | ||||
| 90119-08B66 | ||||
| 90170-11006 | ||||
| 90464-00520 | ||||
| 90464-00730 | ||||
| 90959-01210 | ||||
| 91621-40812 | ||||
| 91631-J0612 | ||||
| 93269-14010 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-T0064 | ||||
| 90119-T0331 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 91671-B0816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(0408-0808)1KDFTV..ARL,GEN,PHL,TH ; (0808- )1KDFTV..GEN,IDN,PHL,TH ; (0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
