LN152R-CRMSST (1998)

Toyota Hilux

Production Jun 1998 - Sep 2000
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0009)2L,5L..LN145,15#,167,192..RHD..TH

Click highlighted areas on diagram

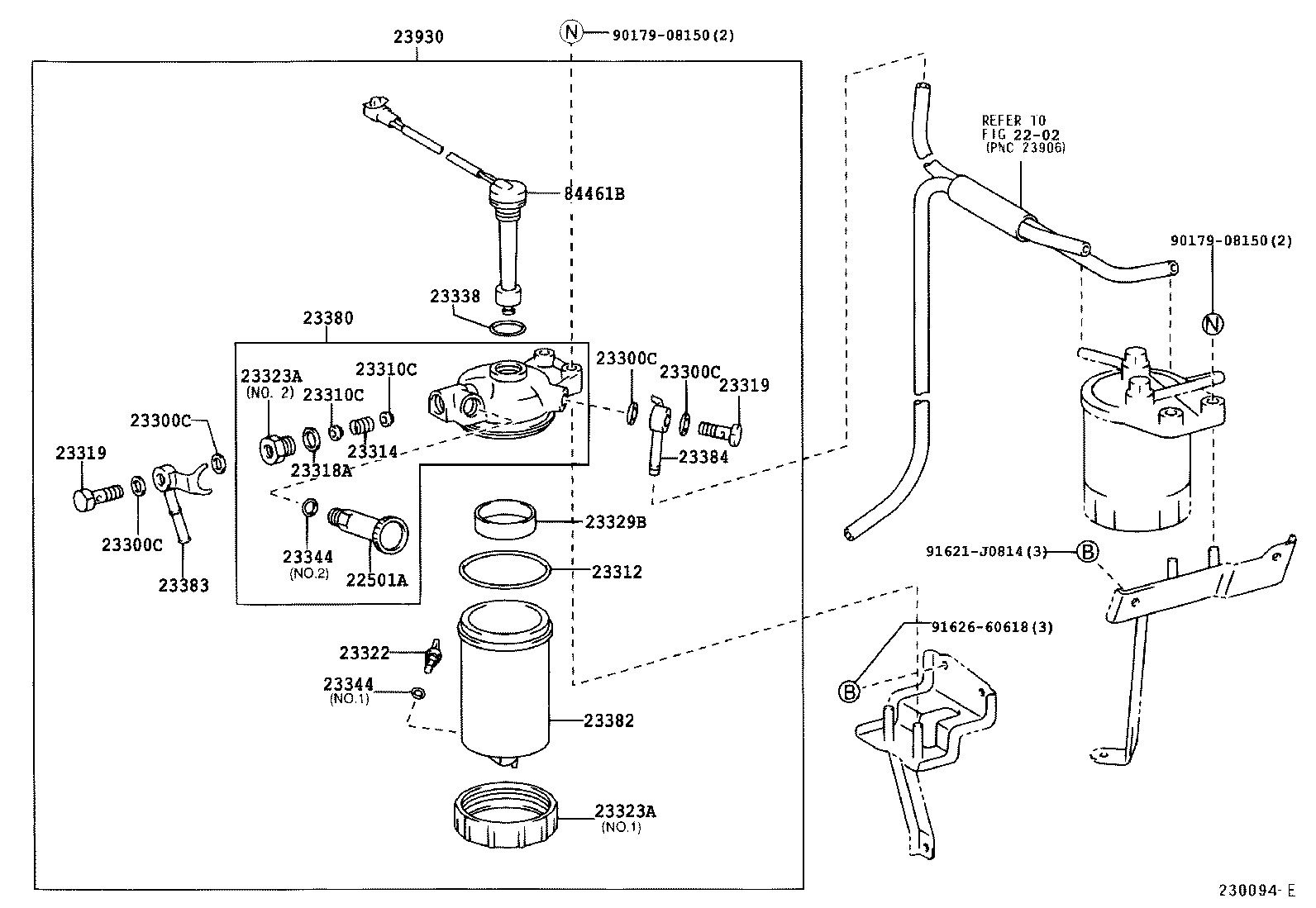

diagram 2202 22501A 23300C 23300C 23300C 23300C 23310C 23310C 23312 23314 23318A 23319 23319 23322 23323A 23323A 23329B 23338 23344 23344 23380 23382 23383 23384 23930 84461B 9017908150 9017908150 91621J0814 9162660618
Part # Description Qty Price
23312 - GASKET, FILTER BOWL
23312-54010

5L..LN152,157,167,192..TH

 1
23318A - GASKET(FOR UNION BOLT)
15318-44010

5L..LN152,157,167,192..TH

 1
23323A - UNION
23323-54020

5L..LN152,157,167,192..TH

NO.2

 1
23323-54010

5L..LN152,157,167,192..TH

NO.1

 1
23323A - UNION
23323-54020

5L..LN152,157,167,192..TH

NO.2

 1
23323-54010

5L..LN152,157,167,192..TH

NO.1

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-54020

5L..LN152,157,167,192..TH

NO.2

 1
23344-54010

5L..LN152,157,167,192..TH

NO.1

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-54020

5L..LN152,157,167,192..TH

NO.2

 1
23344-54010

5L..LN152,157,167,192..TH

NO.1

 1
23380 - CAP ASSY, FUEL FILTER
23380-54061

5L..LN152,157,167,192..TH

 1
23382 - CASE, FUEL FILTER
23382-54061

2L,5L..LN145,15#,192..RHD..TH

 1
23382-54062

5L..LN152,157,167,192..TH

 1
23383 - UNION, FUEL FILTER
23383-54060

5L..LN152,157,167,192..TH

 1
23384 - UNION, FUEL FILTER, NO.2
23384-54061

5L..LN152,157,167,192..TH

 1
23384-54060

2L,5L..LN145,15#,192..RHD..TH

 1
23930 - SEDIMENTER ASSY, FUEL
23930-54061

2L,5L..LN145,15#,192..RHD..TH

 1
23930-54062

5L..LN152,157,167,192..TH

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

KDN145,15#,16#,190,KZN165,190

 1
84461-35080

LN145,15#,167,192..RHD..TH

 1
Common parts
90179-08150
91621-J0814
91626-60618
Linked diagrams
2202
