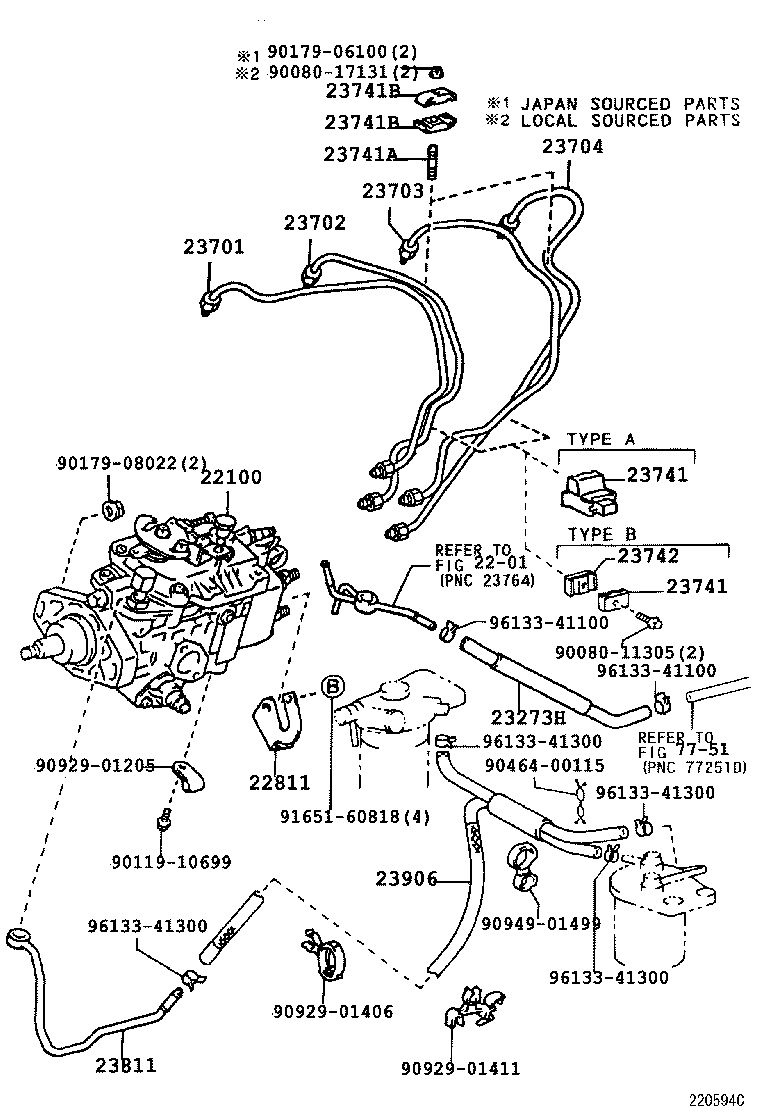

LN152R-CRMSST (1998)
Toyota Hilux
(9806-0009)2L,5L..LN145,15#,167,192..RHD..TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5B710 |
5L..LN152,157,167,192..MTM..TH |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-05010 |
2L,5L..LN145,152,155,157..RHD..TH;2L,5L..LN147,150,167,192..THDCB,THSCB,XTR (L) |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-05010 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 23701-05010 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (L) |
1 | ||
| 23701-54140 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 23701-54140 |
2L,5L..LN145,15#,167,192..TH (J) |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-05010 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 23702-54140 |
2L,5L..LN145,15#,167,192..TH (J) |
1 | ||
| 23702-54140 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 23702-05010 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (L) |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54100 |
2L,3L,5L..LN14#,15#,16#,17#,19#..DCB,SCB,XTR |
1 | ||
| 23703-54100 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-05010 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 23704-05010 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (L) |
1 | ||
| 23704-54100 |
2L,5L..LN145,15#,167,192..TH (J) |
1 | ||
| 23704-54100 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-05010 |
2L,5L..LN145,15#,167,192..TH TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-05010 |
2L,5L..LN145,15#,167,192..TH TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06095 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
2 | ||
| 90116-06095 |
5L..LN167,192..(DCB,SCB,XTR)..(ARL,TH);2L,3L,5L..LN14#,15#,166,17#,191..(DCB,SCB,XTR)..MTM |
2 | ||
| 90116-06095 |
2L,3L,5L..LN14#,15#,16#,17#,19#..(DCB,SCB,XTR)..MTM |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 23741-05020 |
2L,5L..LN145,15#,167,192..TH (L) |
4 | ||
| 23741-56010 |
2L,5L..LN145,15#,167,192..TH (J) |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 23741-05020 |
2L,5L..LN145,15#,167,192..TH (L) |
4 | ||
| 23741-56010 |
2L,5L..LN145,15#,167,192..TH (J) |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-05010 |
2L,5L..LN145,15#,167,192..TH |
2 | ||
| 23906 - HOSE SUB-ASSY, FUEL | ||||
| 23906-54101 |
2L,5L..LN145,15#,192..RHD..TH |
1 | ||
| 23906-54102 |
2L,5L..LN145,15#,167,192..RHD..TH |
1 | ||
| Common parts | ||||
| 90080-11305 | ||||
| 90080-17131 | ||||
| 90119-10699 | ||||
| 90179-06100 | ||||
| 90179-08022 | ||||
| 90464-00115 | ||||
| 90929-01205 | ||||
| 90929-01406 | ||||
| 90929-01411 | ||||
| 90949-01499 | ||||
| 91651-60818 | ||||
| 96133-41100 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 7751 | ||||
