LN150R-CRMSST (1998)

Toyota Hilux

Production Jun 1998 - Sep 2001
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )KDN145,150,155,165,190,KZN165,LN145,15#,167,192..RHD..DCB,SCB,XTR..TH

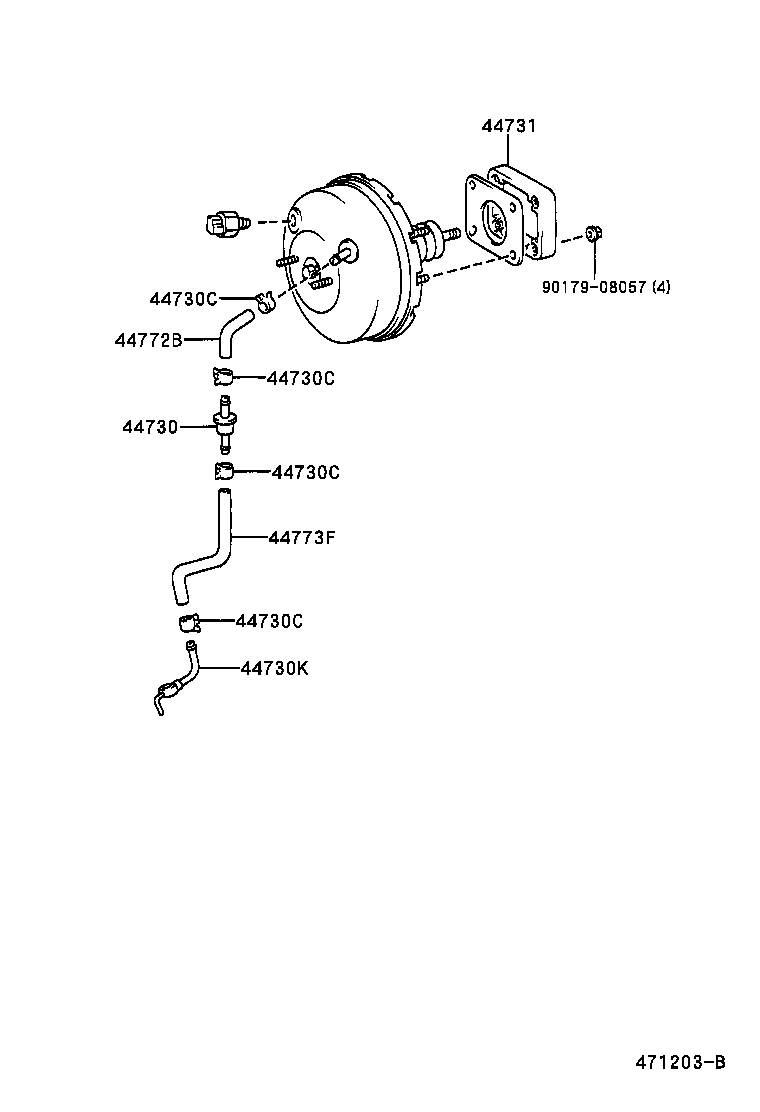

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730K 44731 44772B 44773F 9017908057
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010

LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN145,15#,167,192..RHD..TH

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN145,15#,167,192..RHD..TH

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN145,15#,167,192..RHD..TH

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

LN145,15#,167,192..RHD..TH

 4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09150

LN145,150,155..RHD..TH

 1
90405-09149

LN145,15#,192..RHD..DSL..TH

W(AIR CONDITIONER)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-35370

LN145,15#,167,192..RHD..TH

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-35600

LN145,15#,167,192..RHD..TH

 1
Common parts
90179-08057
