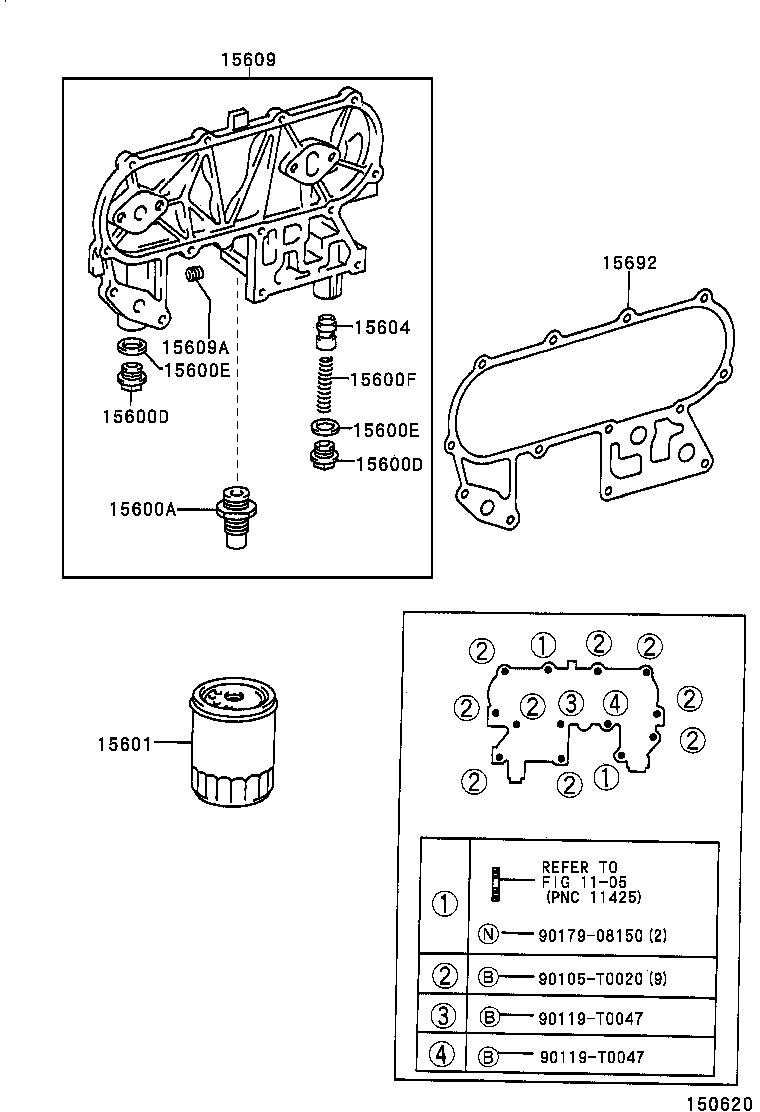

LN150R-CRMSST (1998)
Toyota Hilux
(9708-0009)2L,3L,5L..LN141,145,146,147,15#..ARL,GCC,GEN,TH ; (0009- )2L..LN145..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19011 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..ARL,GCC,GEN,TH |
1 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18029 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18029 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 90501-16026 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2L,5L..LN145,15#,167,192..TH (J) |
1 | ||
| 90080-91158 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (L) |
1 | ||
| 90080-91158 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 15600-41010 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15131-54010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-05010 |
2L,5L..LN145,15#..TH (L) |
1 | ||
| 15609-05010 |
2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR (L) |
1 | ||
| 15609-54014 |
2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR (J) |
1 | ||
| 15692 - GASKET, OIL FILTER BRACKET | ||||
| 15692-05020 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 15692-05020 |
5L..LN152,172..THXTR;5L..LN147,167..THSCB,XTR;2L,5L..LN145,15#,192..TH (L) |
1 | ||
| 15692-05011 |
2L,5L..LN145,15#,192..TH (L) |
1 | ||
| 15692-54050 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 15692-54050 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 15692-05020 |
2L,5L..LN140,145,15#,167,192..SA,TH (L) |
1 | ||
| 15692-54050 |
5L..LN167,192;2L,5LE..LN145,15#,167,192..TH (J) |
1 | ||
| 15692-54050 |
2L,5L..LN140,145,15#,167,192..SA,TH (J) |
1 | ||
| 15692-05020 |
5L..LN167,192;2L,5LE..LN145,15#,167,192..TH (L) |
1 | ||
| Common parts | ||||
| 90105-T0020 | ||||
| 90119-08B32 | ||||
| 90119-T0047 | ||||
| 90179-08150 | ||||
| 91511-80825 | ||||
| Linked diagrams | ||||
| 1105 | ||||

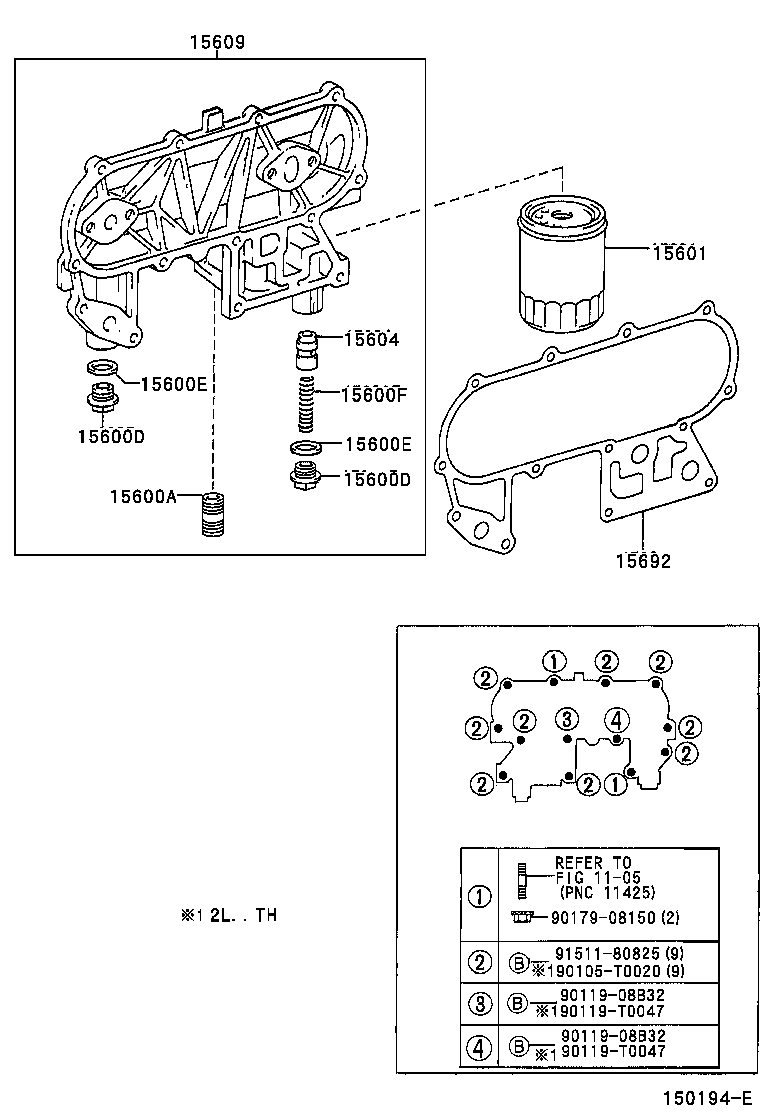

(9807-0009)2L..LN140,145..SA ; (0009- )2L..RHD..SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19011 |
2L,3L,5L..LN141,145,146,147,15#,16#,17#,19#..ARL,GCC,GEN,TH |
1 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18029 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18029 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 90501-16026 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2L,5L..LN145,15#,167,192..TH (J) |
1 | ||
| 90080-91158 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (L) |
1 | ||
| 90080-91158 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 15600-41010 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15131-54010 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-05010 |
2L,5L..LN145,15#..TH (L) |
1 | ||
| 15609-05010 |
2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR (L) |
1 | ||
| 15609-54014 |
2L,5L..LN145,15#..TH;5L..LN147,152..THDCB,THSCB,THXTR (J) |
1 | ||
| 15692 - GASKET, OIL FILTER BRACKET | ||||
| 15692-05020 |
2L,5L..LN145,15#,167,192..TH (L) |
1 | ||
| 15692-05020 |
5L..LN152,172..THXTR;5L..LN147,167..THSCB,XTR;2L,5L..LN145,15#,192..TH (L) |
1 | ||
| 15692-05011 |
2L,5L..LN145,15#,192..TH (L) |
1 | ||
| 15692-54050 |
5L..LN152,172..THXTR;2L,5L..LN145,15#,192..TH;5L..LN147,167..THDCB,THSCB,XTR (J) |
1 | ||
| 15692-54050 |
2L,3L,5L..LN14#,15#,16#,17#,19# |
1 | ||
| 15692-05020 |
2L,5L..LN140,145,15#,167,192..SA,TH (L) |
1 | ||
| 15692-54050 |
5L..LN167,192;2L,5LE..LN145,15#,167,192..TH (J) |
1 | ||
| 15692-54050 |
2L,5L..LN140,145,15#,167,192..SA,TH (J) |
1 | ||
| 15692-05020 |
5L..LN167,192;2L,5LE..LN145,15#,167,192..TH (L) |
1 | ||
| Common parts | ||||
| 90105-T0020 | ||||
| 90119-T0047 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1105 | ||||
