LN147R-JRMDSQ (1999)
Toyota Hilux

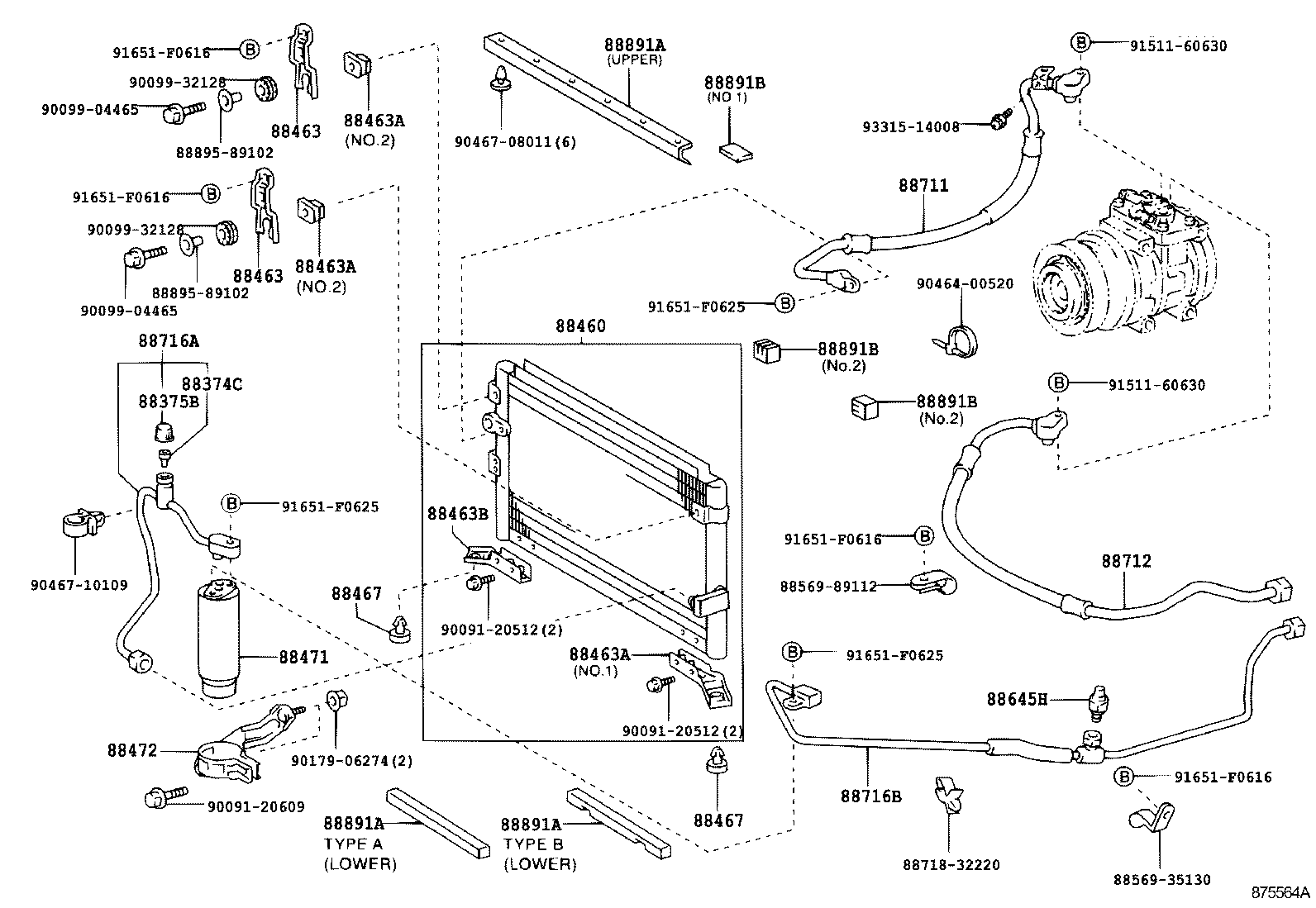

ILLUST NO. 1 OF 2(9708-0109)LN147,152,167,172..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KZN165..SR..ARL;LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-35210 |
LN147,152,167,172..DLX DEALER OPTION |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35090 |
LN152..IV3;KZN165..SR..ARL;LN167..SCB..DEFI..SA;RZN149..ATM..DLX..ARL;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN145,155..LHD..DLX..TH;RZN169..LHD..DCB..CBR..GEN;LN147,167,172,RZN147,154,174..DLX..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN) |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35090 |
LN152..IV3;KZN165..SR..ARL;LN167..SCB..DEFI..SA;RZN149..ATM..DLX..ARL;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);LN145,155..LHD..DLX..TH;RZN169..LHD..DCB..CBR..GEN;LN147,167,172,RZN147,154,174..DLX..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN) |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..DCB..SA;RZN147..ARL,GCC,GEN;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,SCB,THXTR,XTR);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154,169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
LN152..IV3;KZN165..SR..ARL;LN167..SCB..DEFI..SA;RZN149..ATM..DLX..ARL;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;LN147,167,172,RZN147,154,174..DLX..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
LN152..IV3;KZN165..SR..ARL;LN167..SCB..DEFI..SA;RZN149..ATM..DLX..ARL;RZN149..SCB..MTM..ARL;RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;LN147,167,172,RZN147,154,174..DLX..ARL;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
LN147,167..DLX;KZN165,LN152,172..(THSCB,THXTR,XTR)..ARL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-35030 |
LN167..SCB..ARL;RZN169..DCB..SA;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN147..RHD..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;LN145,RZN169..RHD..(CBR,DSL)..GEN..CBU;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR..(ARL,SA);KZN190,LN147,166,172,192,RZN149,154,174..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZN165..SR..ARL;LN145..LHD..IV3;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167,192..SCB..DEFI..SA;RZN149..DLX..EFI..(ARL,GEN);LN145,152..(DCB,THXTR,XTR)..IV3;RZN154,194..RHD..(DCB,THXTR,XTR);LN155,RZN144,149,154..LHD..(CBR,DSL);LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN141,146,147,16#,17#,191,RZN142,147,148,168,174,193..DLX..(ARL,GCC,GEN) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35520 |
LN145..RHD..GEN..CBU;LN167,192..SCB..DEFI..SA;LN145,152..(DCB,THXTR,XTR)..IV3;LN147,16#,172..RHD..DLX..(ARL,GEN) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35500 |
LN145..RHD..GEN..CBU;LN167,192..SCB..DEFI..SA;LN145,152..(DCB,THXTR,XTR)..IV3;LN147,16#,172..RHD..DLX..(ARL,GEN) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35360 |
RZN194..DCB,SCB;LN167..SCB..ARL;RZN169..DCB..SA;LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN147..RHD..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;LN145,RZN169..RHD..(CBR,DSL)..GEN..CBU;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN147,166,172,192,RZN149,154,174..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-35030 |
LN145,147,152,16#,172,RZN147,149,154,169,174..RHD..(ARL,GEN) |
1 | ||
| 88726-35120 |
RZN194..DCB;RZN169..DLX..ARL;LN167,192..SCB..DEFI..SA;LN145,152..(DCB,THXTR,XTR)..IV3;LN145,RZN169..RHD..(CBR,DSL)..GEN..CBU;LN147,16#,172,RZN147,149,154,174..RHD..DLX..(ARL,GEN) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-35030 |
LN152..IV3;KZN165..SR..ARL;LN167..DEFI..SA;RZN169..DLX..(ARL,SA);LN147,167,172,RZN147,149,154,174..DLX..ARL UPPER |
1 | ||
| 88578-35130 |
LN147,152..DSL..ARL TYPE B:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88578-89119 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..CBR..GCC;LN167..SCB..DEFI..SA;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN147,148..LHD..DLX..(GCC,GEN);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154..(CBR,DSL)..(GCC,GEN)..CBU;KZN190,LN141,146,147,166,172,192,RZN147,154,174..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GCC,SA) DEALER OPTION & TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-35030 |
LN152..IV3;KZN165..SR..ARL;LN167..DEFI..SA;RZN169..DLX..(ARL,SA);LN147,167,172,RZN147,149,154,174..DLX..ARL UPPER |
1 | ||
| 88578-35130 |
LN147,152..DSL..ARL TYPE B:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88578-89119 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..CBR..GCC;LN167..SCB..DEFI..SA;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN147,148..LHD..DLX..(GCC,GEN);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154..(CBR,DSL)..(GCC,GEN)..CBU;KZN190,LN141,146,147,166,172,192,RZN147,154,174..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GCC,SA) DEALER OPTION & TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-35030 |
LN152..IV3;KZN165..SR..ARL;LN167..DEFI..SA;RZN169..DLX..(ARL,SA);LN147,167,172,RZN147,149,154,174..DLX..ARL UPPER |
1 | ||
| 88578-35130 |
LN147,152..DSL..ARL TYPE B:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88578-89119 |
LN145..LHD..IV3;LN167..SCB..ARL;RZN169..CBR..GCC;LN167..SCB..DEFI..SA;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB)..DSL;LN145,152..(DCB,THXTR,XTR)..IV3;RZN147,148..LHD..DLX..(GCC,GEN);LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;LN145,RZN142,144,149,154..(CBR,DSL)..(GCC,GEN)..CBU;KZN190,LN141,146,147,166,172,192,RZN147,154,174..DLX..(DEFI,DSL,EFI,TDE)..(ARL,GCC,SA) DEALER OPTION & TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35110 |
LN147,152,167,172,RZN149,154,169,174..ARL NO.1 |
1 | ||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35110 |
LN147,152,167,172,RZN149,154,169,174..ARL NO.1 |
1 | ||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35110 |
LN147,152,167,172,RZN149,154,169,174..ARL NO.1 |
1 | ||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| Common parts | ||||
| 88569-35130 | ||||
| 88569-89112 | ||||
| 88718-32220 | ||||
| 88895-89102 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90179-06274 | ||||
| 90464-00520 | ||||
| 90467-08011 | ||||
| 90467-10109 | ||||
| 91511-60630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93315-14008 | ||||
